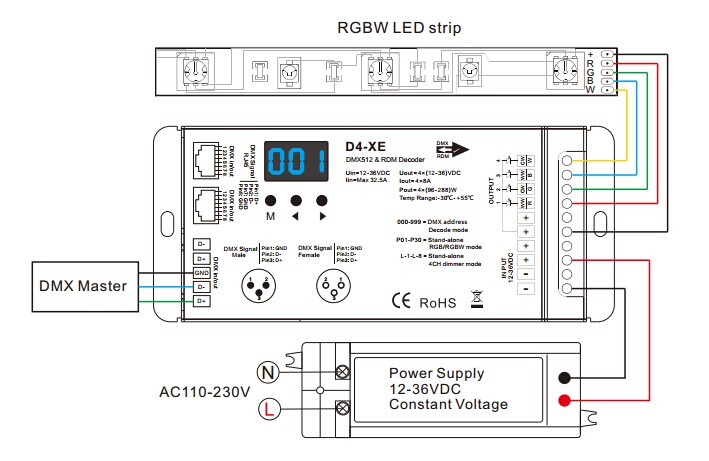

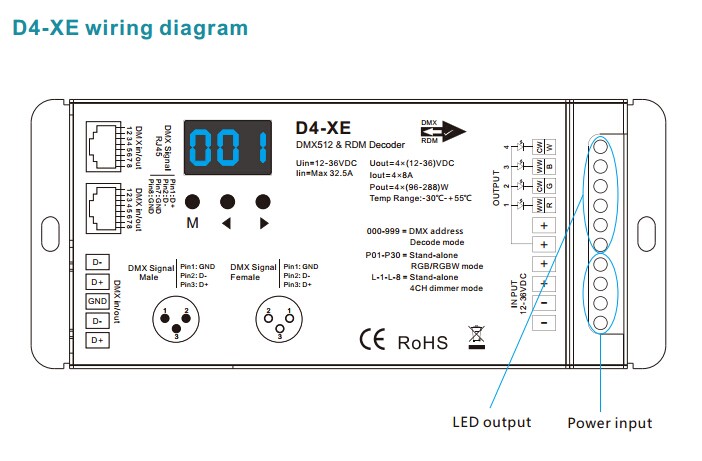

4CH 8A Constant Voltage DMX512 & RDM Decoder D4-XE For led strip lights kit
4 channel PWM constant voltage / constant current DMX decoder with digital display.
DMX decode mode / Stand-alone RGB/RGBW mode / Stand-alone 4 channel dimmer mode.
DMX address display, set DMX address freely.
Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard)
RDM bi-directional communication function, can realize intercommunication between DMX master and
decoder. for example, you can set DMX decoder address by DMX master console.
Under stand-alone RGB/RGBW controller mode, have 30 mode, include static color, jump, flash, gradual change style, adjustable speed and brightness.
Under stand-alone 4 channel dimmer mode, each channel adjust brightness independently, and save up to 8 groups brightness.
1/2/4 DMX channel decode optional.
High or low PWM frequency optional.
Log or linear dimming curve optional.
Three kinds of DMX signal input method, have XLR3 and RJ45 port.
Standards and Certifications
