With high-quality and high-brightness 5050 LED chips, this RGB CCT LED strip provides bright and vivid colors that are sure to enhance any environment. The strip is mounted on a 2OZ double-sided board and uses Sanan Optoelectronics chips, ensuring superior performance and durability.

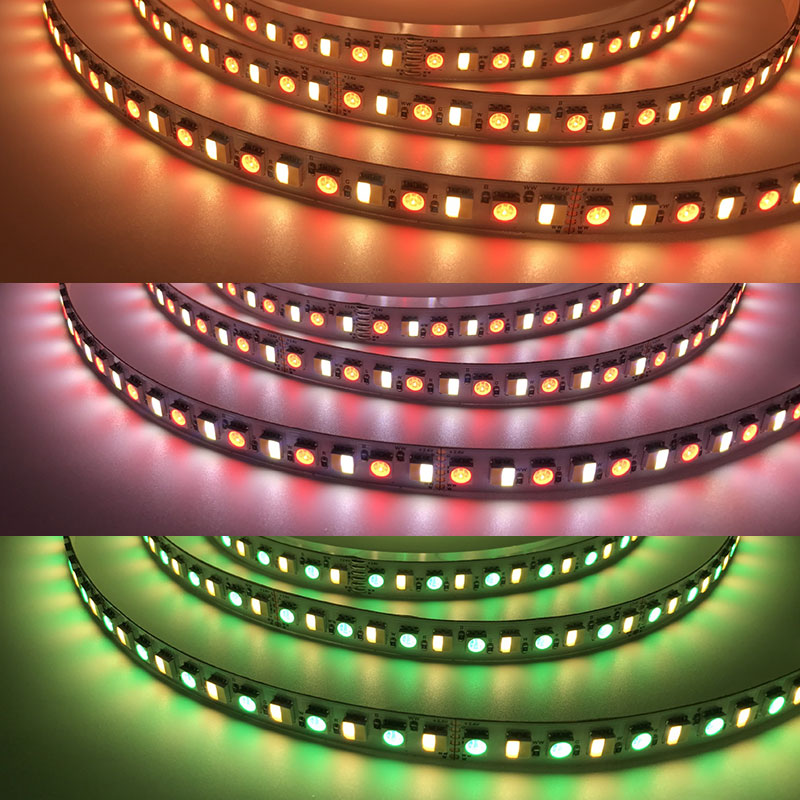

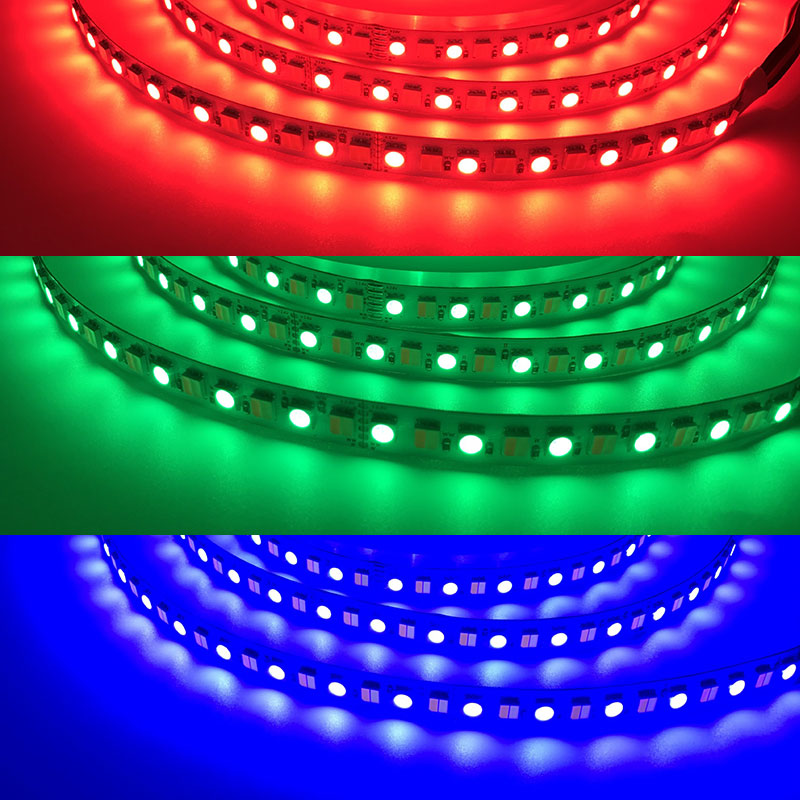

Each meter of the RGB CCT strip contains 120 LEDs, which can be cut every 12 LEDs, easy to customize the length to fit your specific needs. Features RGB+CCT emitting colors, providing a wide range of color options to choose from via a RGB CCT controller.
This RGB CCT LED strip operates at a standard voltage of DC24V and has a power consumption of 19.2W±10% per meter. It is available in four different waterproof ratings - IP20, IP65, IP67, and IP68 - making it suitable for both indoor and outdoor use.
The FPCB size is 12mm wide. Packaged in 5m/16.4ft rolls and comes with adhesive tape on the back for easy installation.
High-density RGB CCT led strip, 120LEDs/m, 600LEDs/Roll
SMD5050 LEDs, high lumen and brightness

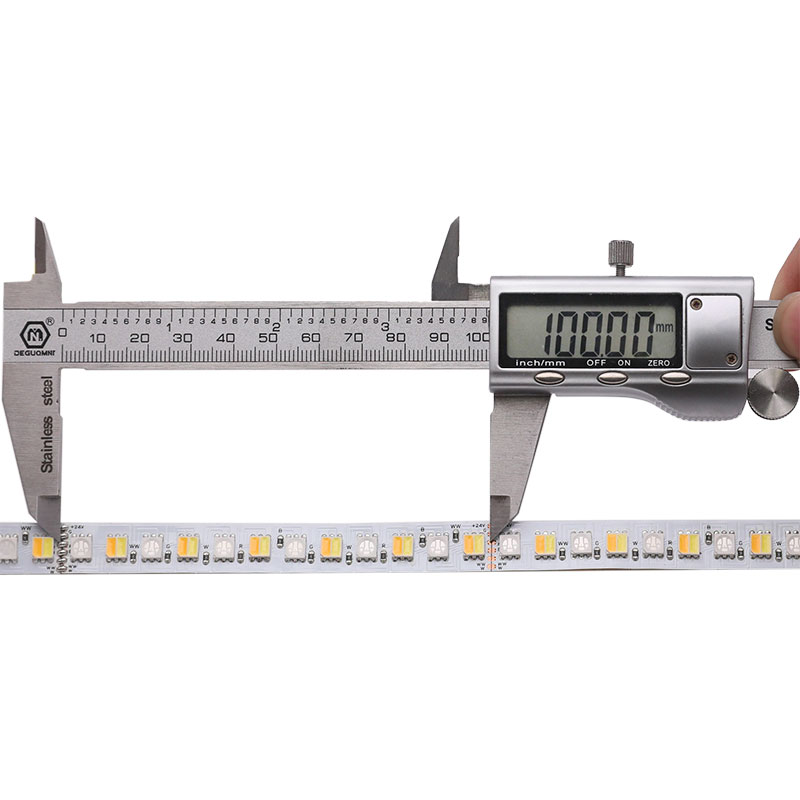

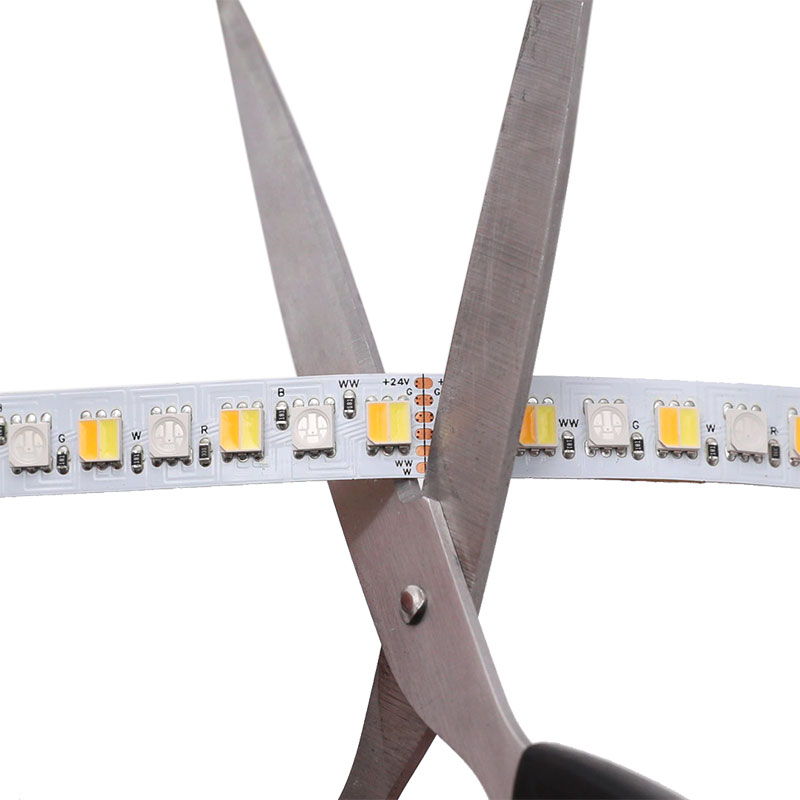

Every 12 LEDs can be cut, 100mm/4in an individual circuit segment

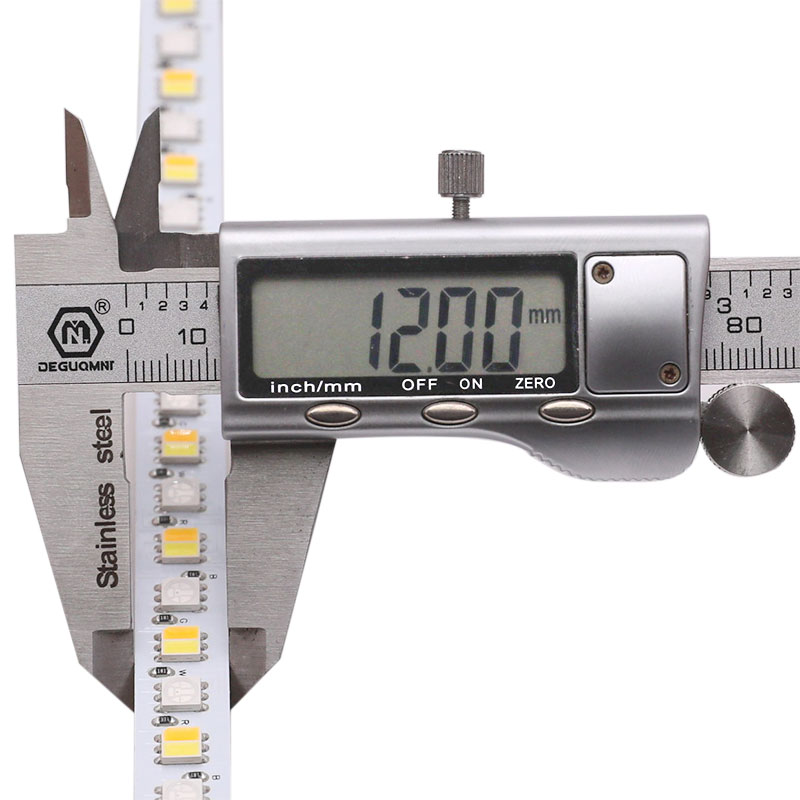

12mm PCB width
DC24V input, choose a 24V power supply here

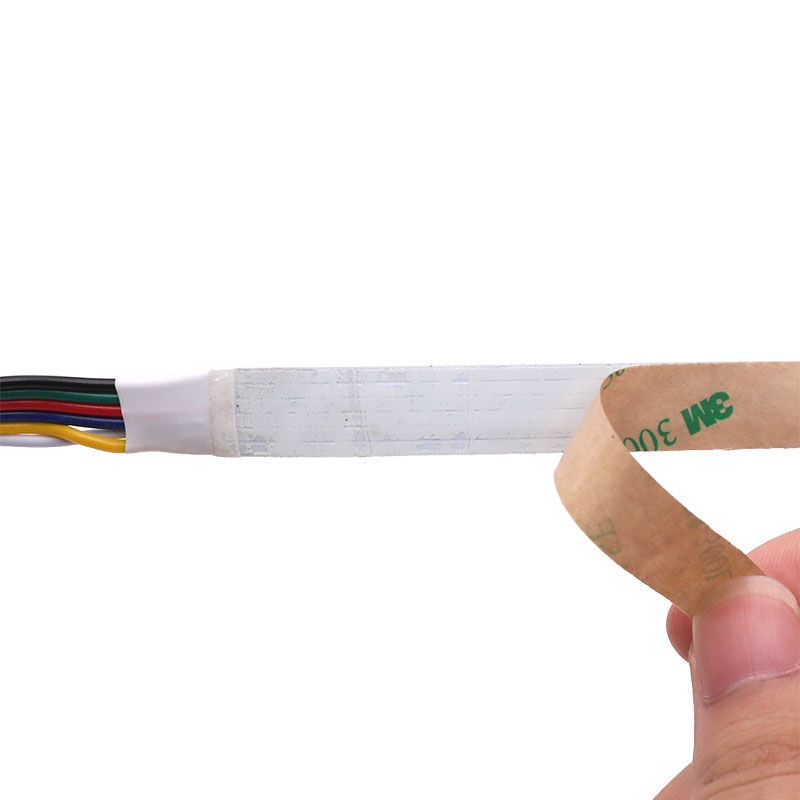

Adhesive tape for easy installation
Standards and Certifications
|LED Strip Type:||RGB CCT LED Strip|
|LED Chip:||Sanan Chip (SMD5050)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

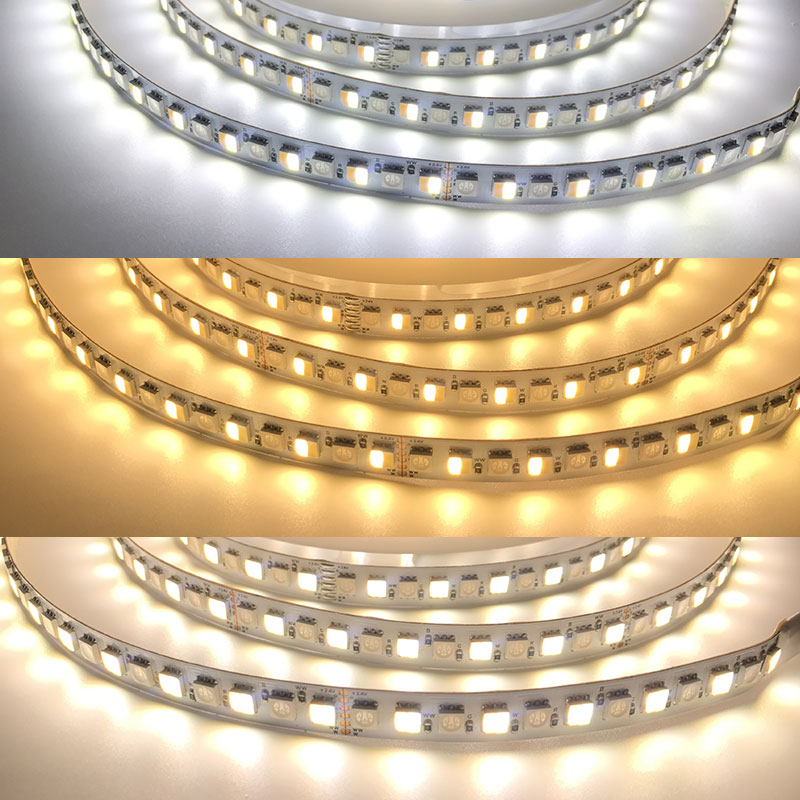

|Light Color:||RGB+CCT (2700K-6500K color temperature)|
|Dimension:||16.4ft/roll, every 12PCS LED (100mm/4in) can be cut|
|LED Quantity:||120 LEDs per meter (36/ft), 600LEDs per roll|
|Strip Width:||12mm (0.47in)|
|Working Power:||19.2±10% W/m, 105.6W /16.4ft Max|
|Lamp Luminous Flux(lm):||22 Lumen/LED|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
How To Wire RGB CCT LED Strips?
RGB CCT led strip wiring diagram:
