Max 50m / 164ft Ultra Long 10X10mm Side Glow 48V Neon Flex Outdoor

Model: INJECTION-NEON-1010-48V
Max 50m / 164ft Ultra Long 10X10mm Side Glow 48V Neon Flex Outdoor
  • Max 50m / 164ft Ultra Long 10X10mm Side Glow 48V Neon Flex Outdoor
  • Max 50m / 164ft Ultra Long 10X10mm Side Glow 48V Neon Flex Outdoor

Select Specifications:

Select Operating Voltage:

Starting at: $30.98

Free shipping over $299(US) or $199(other countries)

Various options in stock
Qty Discounts Off Price
1-49
$30.98
50-99
$30.36
100-199
$29.74
200+
$29.12
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Our 48V Ultra Long Flex Neon is designed for outdoor lighting and unique spatial aesthetics. Using a high-pressure molding process, our 48V LED neon strip eliminates visible joints for seamless illumination, perfect for creating artful lighting fixtures or architectural accents. We recommend to use 12-48V V1-K dimmer for brightness adjustment. You can also bend this flexible neon light horizontally to mold a variety of shapes - hidden impact-resistant plastic panels make it more durable.

    These neon LED lights are made with vapor-phase silicone as a material that prevents yellowing and tearing, eliminating the need for frequent replacement. The LED neon flex adopts a one-piece molding process with a sturdy silicone encapsulation that holds the LEDs in place for rock-solid stability. Whether illuminating outdoors in the rain or in a dusty warehouse, the IP67 waterproof seal keeps out moisture and debris to ensure consistent illumination.

    In addition, these ultra-thin mini neon lights fit into spaces that ordinary fixtures can't reach, such as narrow crevices and in irregular recesses. Our 48V neon is a great choice if you need stable, consistent lighting over a large area. It delivers consistent brightness over a range of 25 meters on one side (50 meters on both sides), making it ideal for lighting large, ultra-long distances.

    This is a 48V neon strip that supports longer single segment runs compared to 12V/24V neon strips

    This strip does not come with clips, please click on the link to buy them separately.

    If you need a customized length, you can contact us.



    Max. Running Length

    48V can run 82ft (25m) with one end 48V power supply and run 164ft (50m) with both ends of power supply.

    So if the length of your project is about 25 meters and more, 48V neon led tube is a good choice.



    Product Specifications

    Product Type: 10X10mm Flexible Injection Molding Neon Lights
    LED Chip: SMD2835 (dimmable)
    LED Quantity: 120 LEDs per meter, 36.6 per foot
    Section Size: 10x10mm (0.39x0.39in)
    Beam Angle: 120°
    Lighting Direction: Side Emitting
    Light Colors:

    1800K Amber Color, 2300K Warm White, 2700K Warm White, 3000K Warm white

    4000K Natural White, 5000K Daylight White, 6000K Daylight White, 7500K Cool White

    Length:

    16.4ft/roll, 32.8ft/roll, 49.2ft/roll, 65.6ft/roll, 82ft/roll, 98.4ft/roll, 131.2ft/roll, 164ft/roll

    Lumen:

    24-26lm/LED

    Input Voltage: DC 48V
    Working Power:

    12W/m, 3.66W/ft

    16.4ft 5 meters - 60W

    32.8ft 10 meters - 120W

    49.2ft 15 meters - 180W

    65.6ft 20 meters - 240W

    82ft 25 meters - 300W

    98.4ft 30 meters - 360W

    131.2ft 40 meters - 480W

    164ft 50 meters - 600W

    Material: Gas-phase silica gel
    Waterproof Rating: Waterproof IP67
    CRI(Ra>): 90
    Lifespan: 50,000+hours
    Cut: 50mm/1.96''

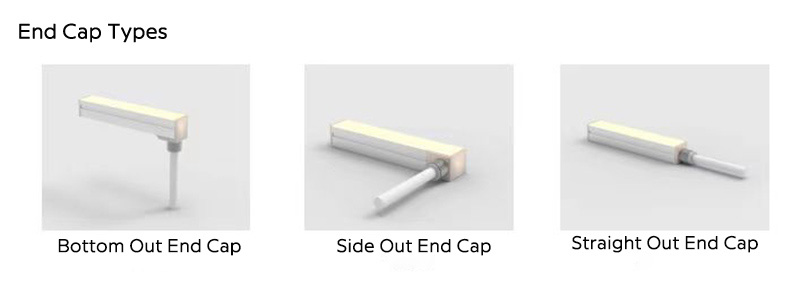

    Three End Cap Types of Neon Tube Lights

    Seamless Lighting Effect Of Injection Molding Neon Lights



    Max 50m / 164ft Ultra Long 10X10mm Side Glow 48V Neon Flex Outdoor

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    Max 50m / 164ft Ultra Long 10X10mm Side Glow 48V Neon Flex OutdoorMax 50m / 164ft Ultra Long 10X10mm Side Glow 48V Neon Flex Outdoor
