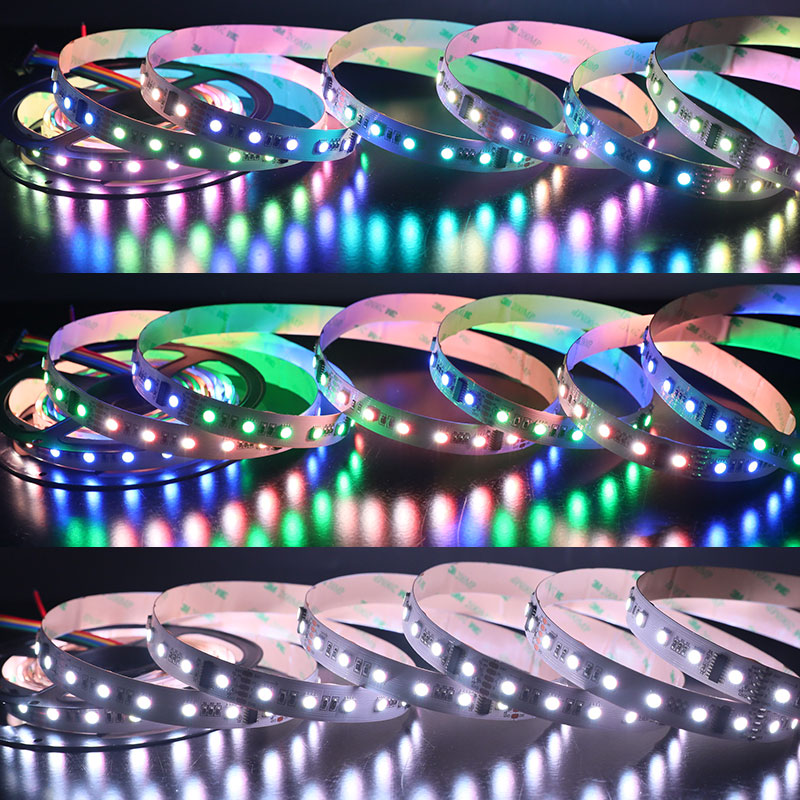

DMX512 RGBW DC24V 300LEDs Wide 15MM Dream Color Programmable Parallel signal - HTTP Breakpoint Resume Transmission Matrix Control Flex LED Strip Lights, 16.4feet/roll

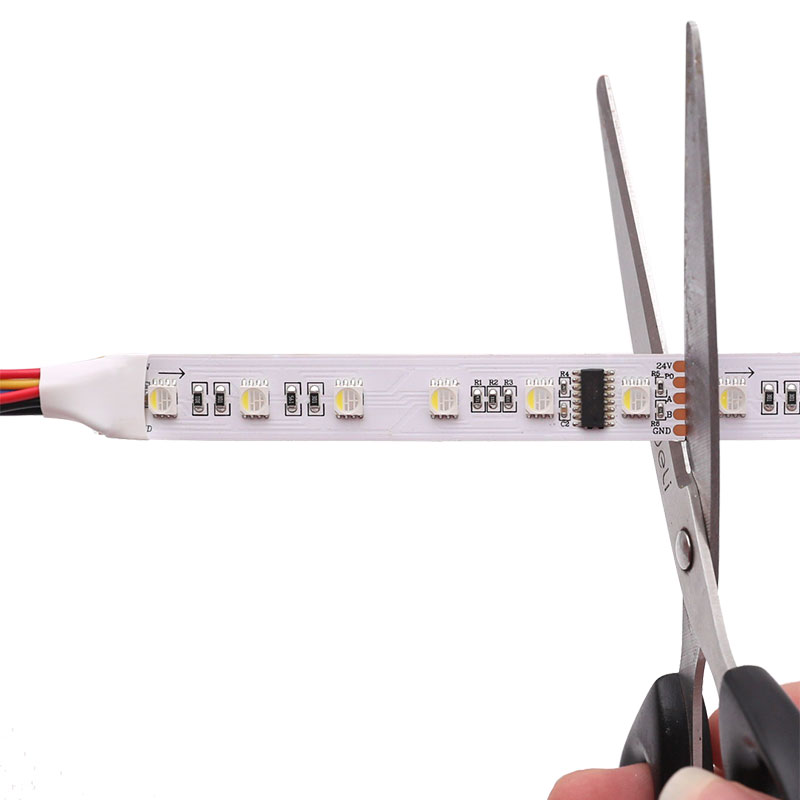

It comes with 5-PIN connectors and separated power/ground wires on both ends. Each 6LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
1.Adopt the best flexibility FPC as a substrate, FPC has good electrical conductivity, heat fast, resistant to bending, can be bent into any shape you want.
Pls Note: Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system. Otherwise,it will affect the brightness of the LEDs and the service life of the power supply.
Standards and Certifications
LED Strip Type: SMD 5050 RGBW 300LEDs/16.4ft
LED Chip: DMX512 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

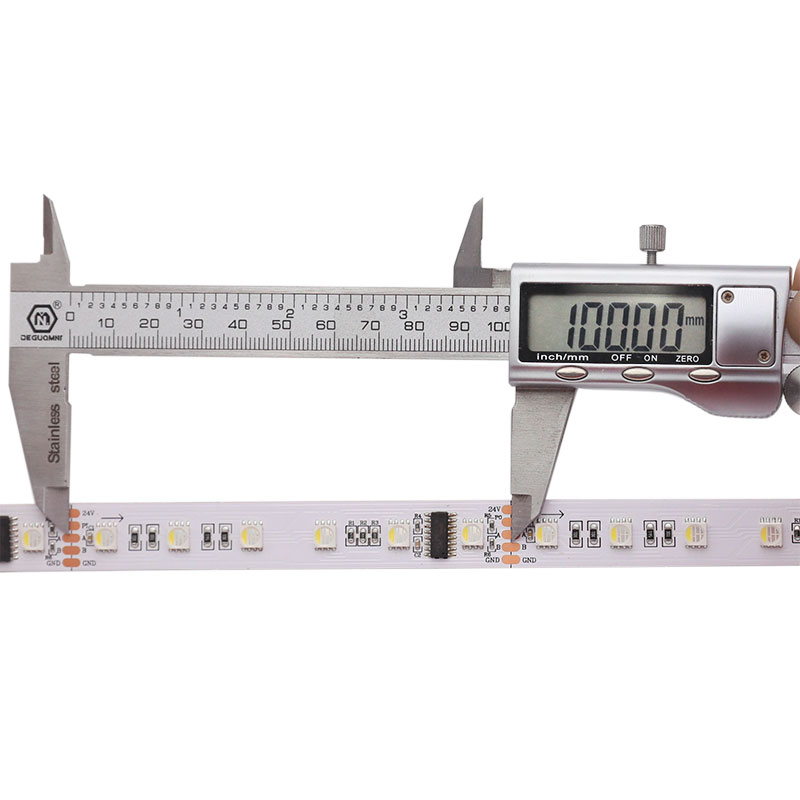

Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 10 per 1meter (3.28 ft)
Warantty: 3 years

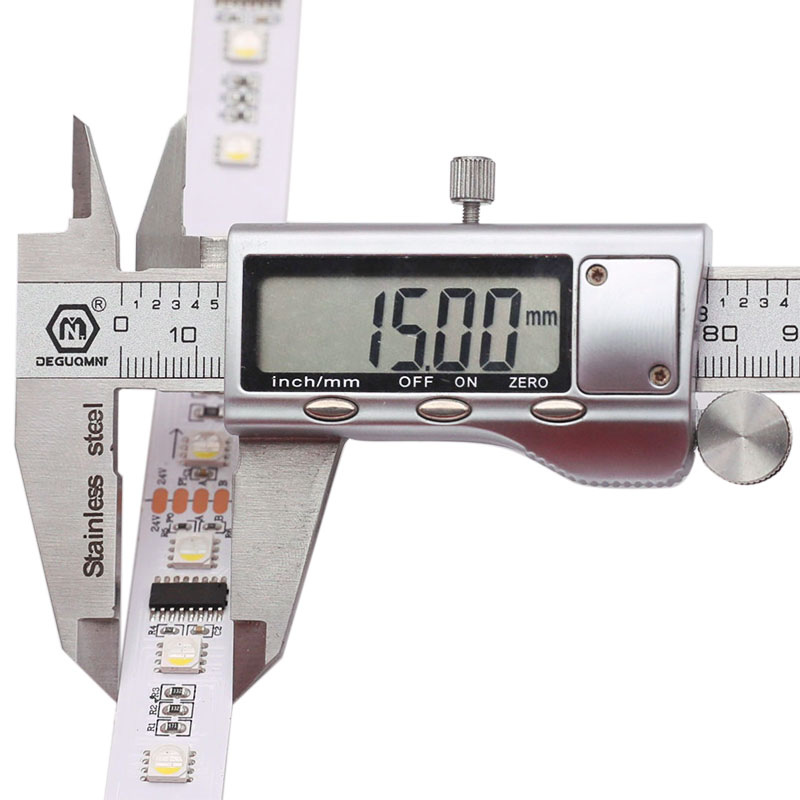

Dimensions: L500cm(127 in ) x W1.5cm(0.59 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24VDC
Working Power: 96W/16.4ft Max
Lumen Per LED: 20~22Lumen 6600lm/16.4ft 402lm/ft 91.7lm/watt Max
Beam Pattern: 120 degree
Water Proof: Non-waterproof IP20 or Waterproof IP67/IP65/IP68
Waterproof Level Description

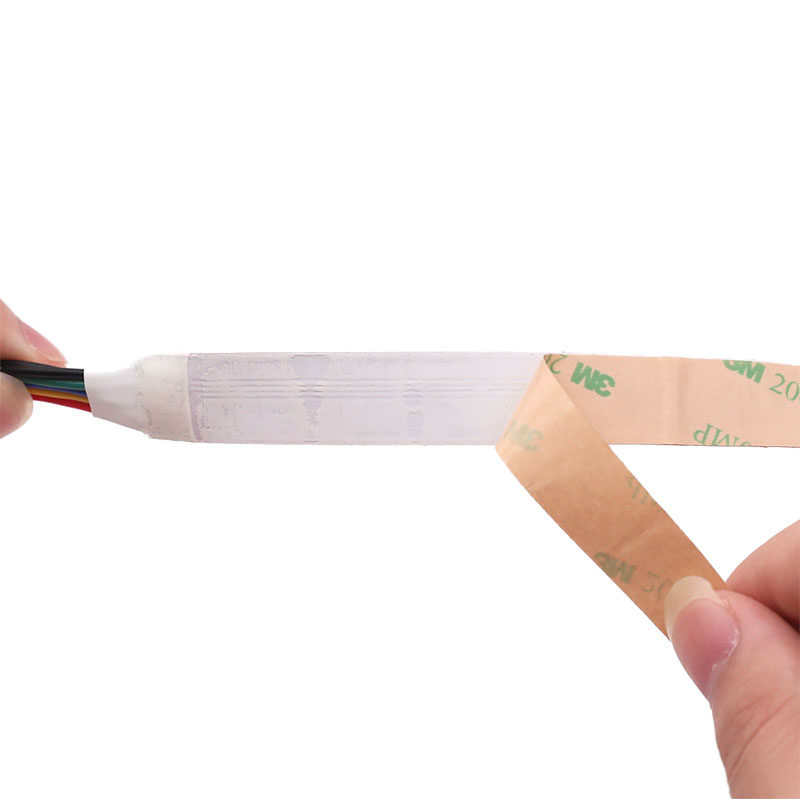

IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

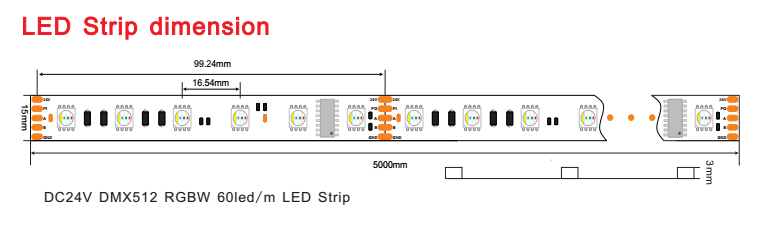

Light strip size
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
DMX512 Console Connection diagram:
