Product Information

DC12V GS8208 240LEDs Breakpoint-continue Addressable Digital Full Color Chasing Flexible LED Strips, 5m/16.4ft Per Reel.

1. The voltage of GS8208 programmable LED strips is 12V, external IC, and it is individually addressable, single-pixel single control, breakpoint- continue.

2. Dual signal line version and signal breakpoint continuous transmission. Even if one LED damage, the other LEDs will work.

3. Each LED can be cut, you can get the length you need via cutting the LED strips, easy to operate and more convenient.

4. Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.

5. Waterproof rating optional, IP20, IP65, IP67, suitable for various indoor and outdoor LED lighting projects.

GS8208 5050 RGB LED Datasheet

Standards and Certifications

DC12V

Product Specification

LED Strip Type: SMD 5050 DreamColor 240LEDs/16.4ft

LED Chip: GS8208 IC super brights Chip

Dimension: 16.4ft/roll, every 1 PCS LED can be cut

LED Quantity: 48 LEDs per 1meter (3.28 ft)

IC Quantity: 48 IC per 1meter (3.28 ft)

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )

Input Voltage(V): 12VDC

Working Power: 57.5W/16.4ft Max

Lumen Per LED: 20~22Lumen 5280lm Max /16.4ft

Wavelength NM(RGBY): 2000-2500mcd

Beam Pattern: 120 degree

WaterProof: Non-waterproof IP20, Waterproof IP65, IP67

Lifespan: 50,000+hours

Warantty: 3 years

Applications

LED programmable digital display
Hotels decoration use
Backlighting decoration
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration

Static Red Color

Static Blue Color

Static Green Color

RGB White

Color-changing Lighting

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DCFLSRGB-12V-GS8208X240

PDFDCFLSRGB-12V-GS8208X240 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

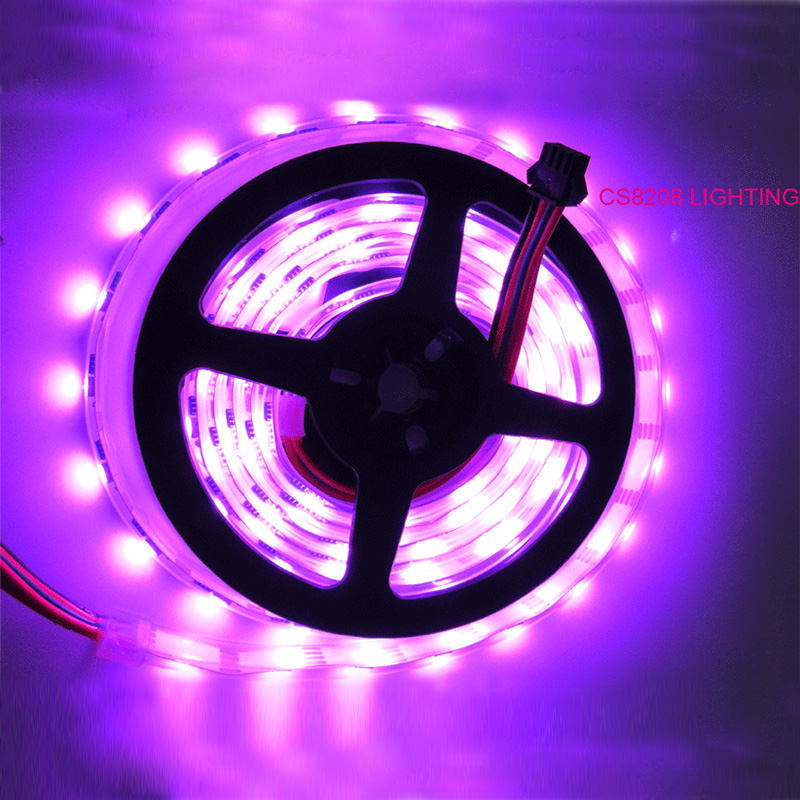

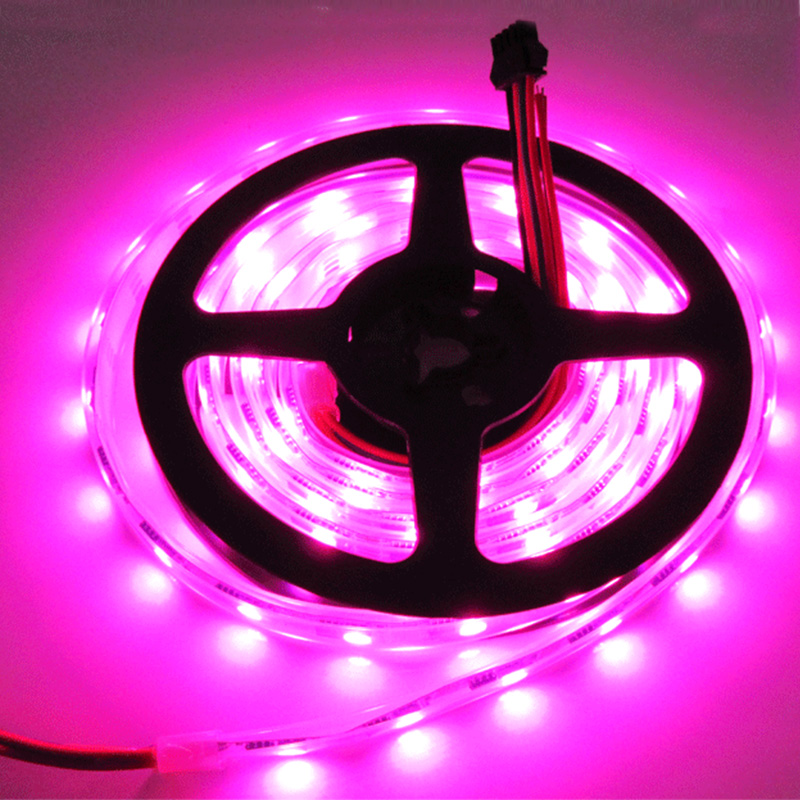

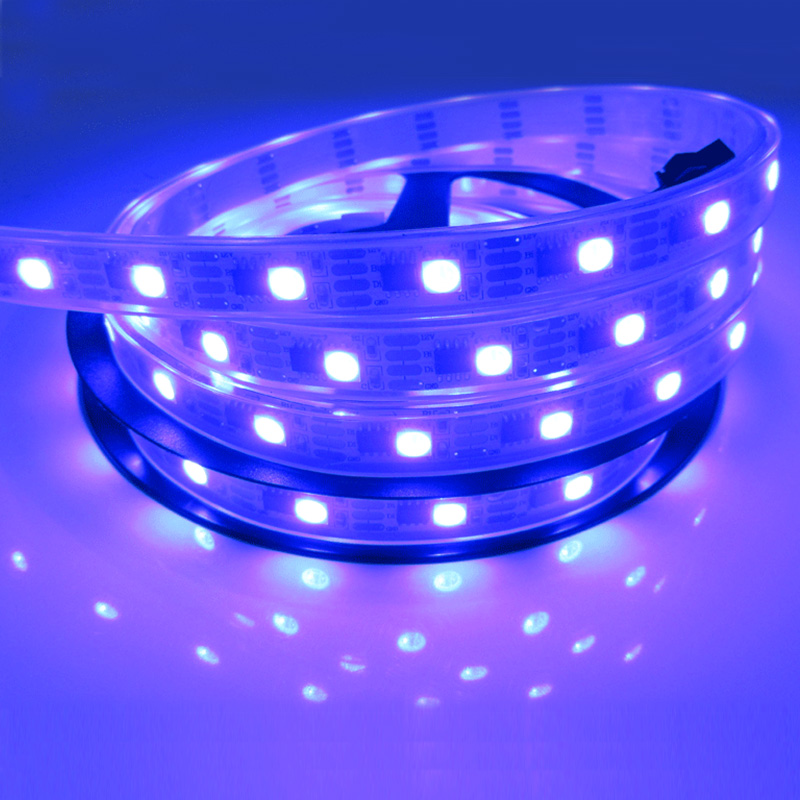

GS8208 RGB Light Strip Individually Addressable LED 12V

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - With Brackets · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 12mm (0.47in) · LED density 48 LEDs/m. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
