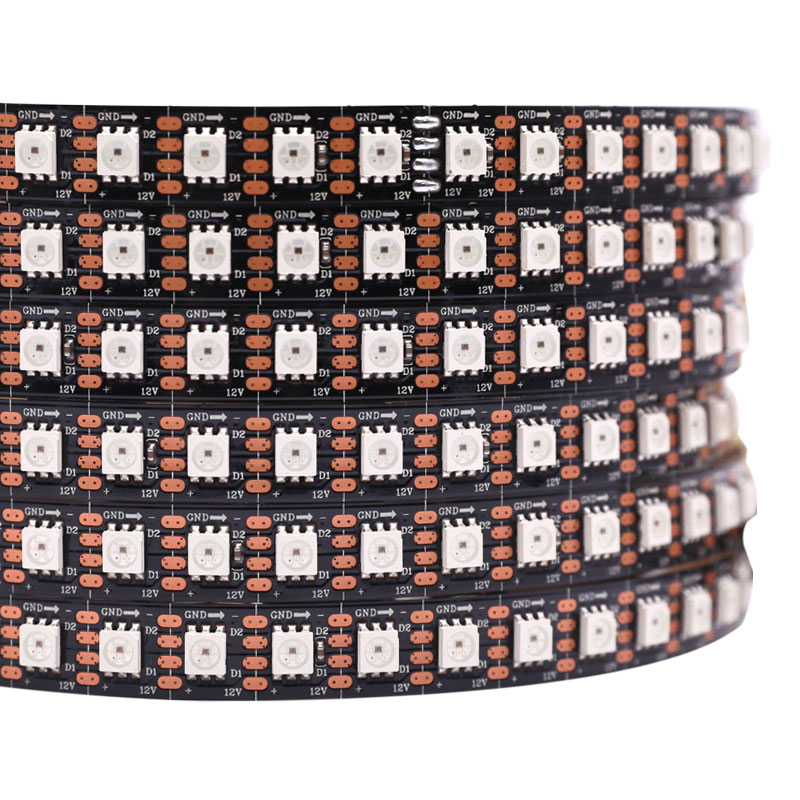

DC12V GS8208 96LEDs/m High-Density Individual Addressable RGBIC Black PCB LED Strip Light, Engineering Type

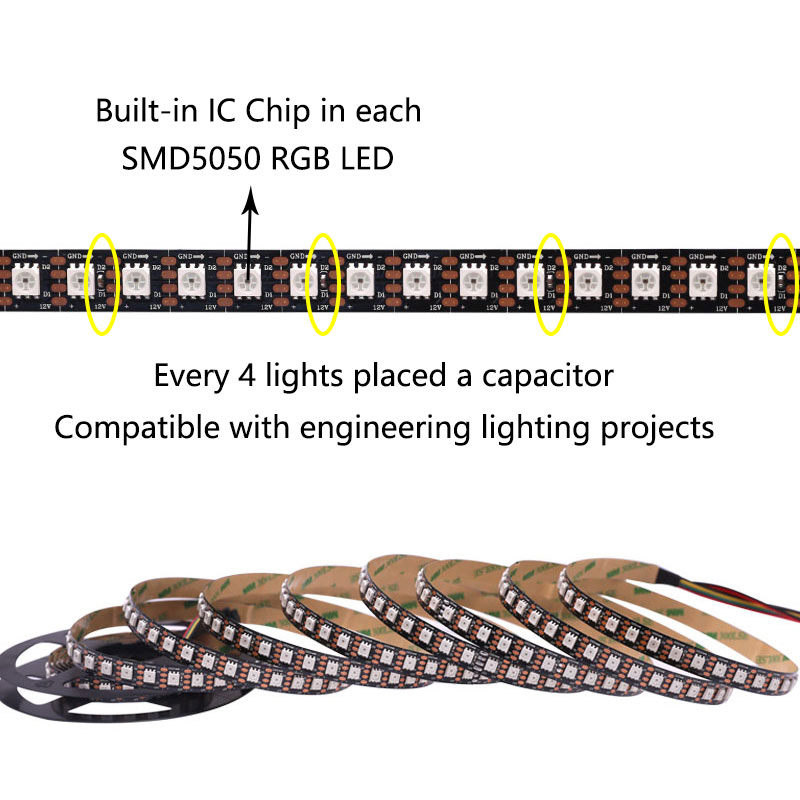

Taking the design of every 4 lights placed on a capacitor + capacitors on both ends, this high-density individually addressable led strip is totally compatible with engineering lighting projects, which has a more stable using performance than standard addressable RGBIC led strip lights, and can be connected to more digital control systems. (Typically, standard addressable led strips are controlled by regular SPI controllers in the market. ) It's also the first choice for commercial lighting like WS2815 engineering version led strips.
With more LEDs per meter, the GS8208 pixel led strip has brighter brightness and uniformer linear light. Its light performance is very good. Lighting up a 5-meter strip light, in the case of one end of the input power, it still has a constant brightness and color, even when turned on the three channels together to display white light. There is almost no voltage drop, perfect for long-distance lighting.

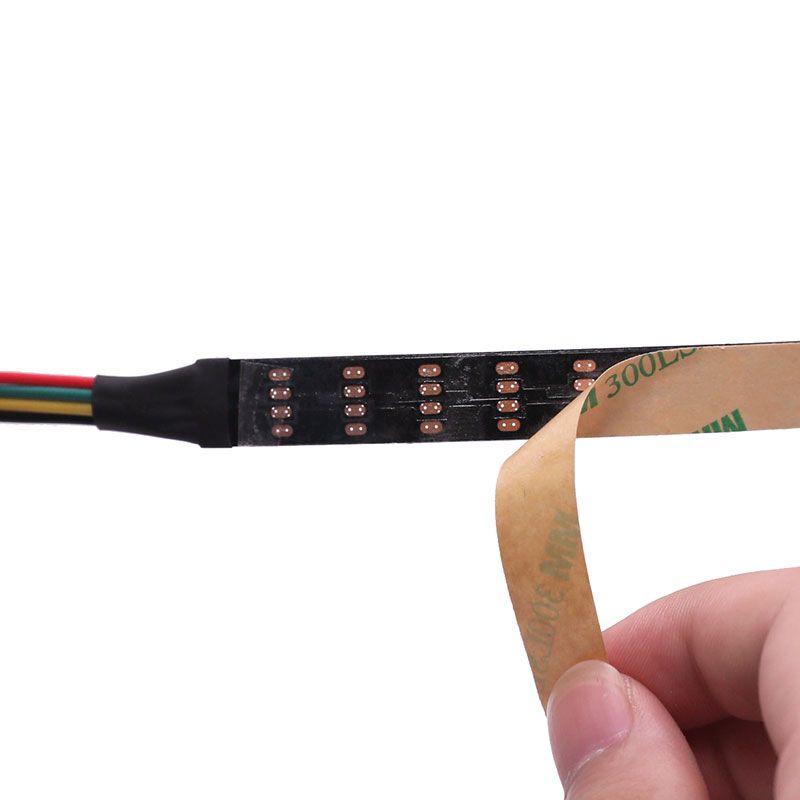

15cm/5.9" wire length at both ends of the strip, if you need connectors, please click here to buy.
Standards and Certifications
|LED Strip Type:||High-Density Individually Addressable RGBIC LED Strip Light|
|Power:||20W/m max (120W power supply for 5m)|
|LED Color:||Addressable RGB|
|LED Quantity:||96 LEDs/m, 480 per roll|
|IC Quantity:||96 IC/meter (1 IC drives 1 led)|

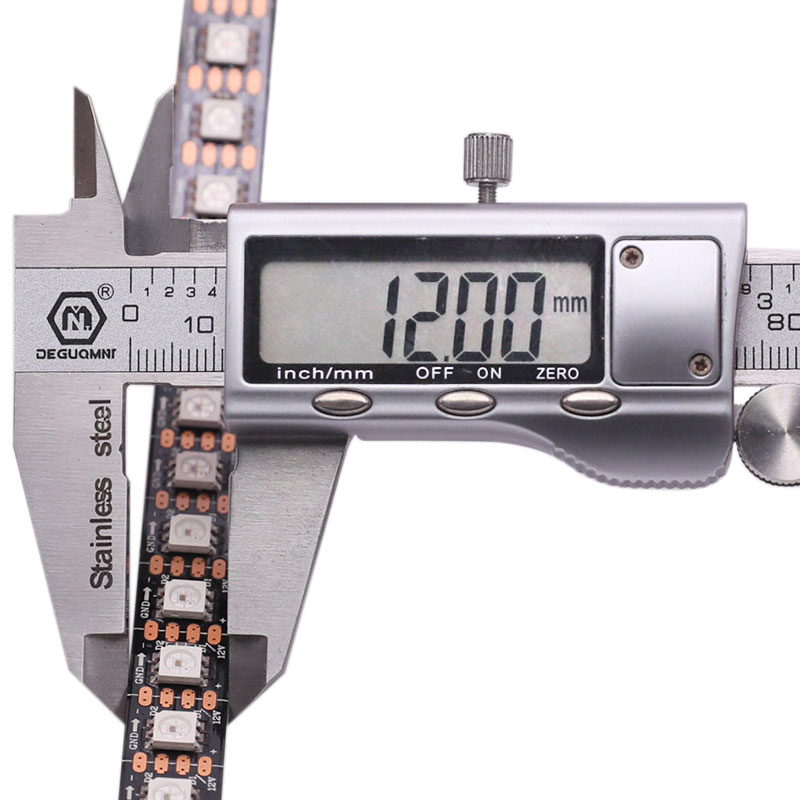

|Dimensions:||L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68|
DO/DI: Control data signal output
BO/BI: Backup data signal output
The BD/BI backup data line can be connected to the "DAT" or "GND" of the SPI controller.

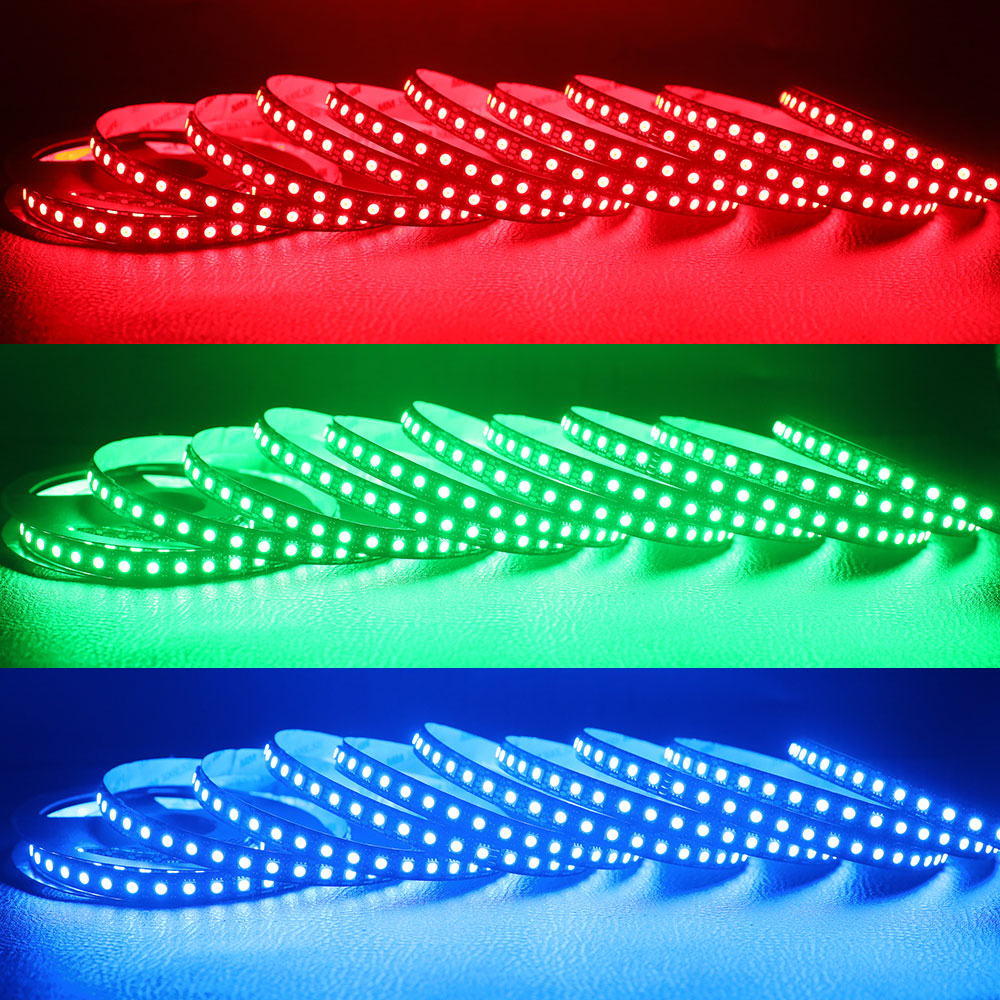

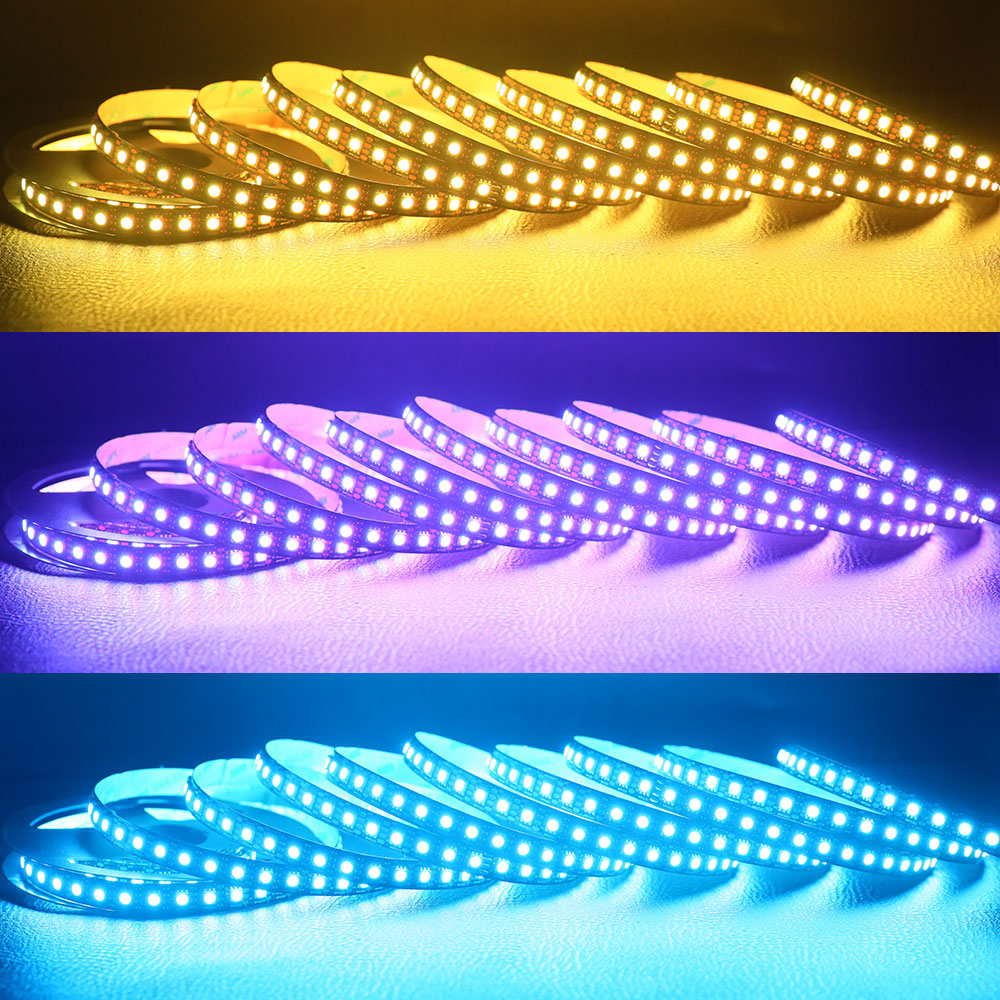

LED strip light effcts controlled by Tuya WiFi addressable LED controller:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
