GS8208 5050 RGB Color Changing Individually Addressable LED Strip Lights

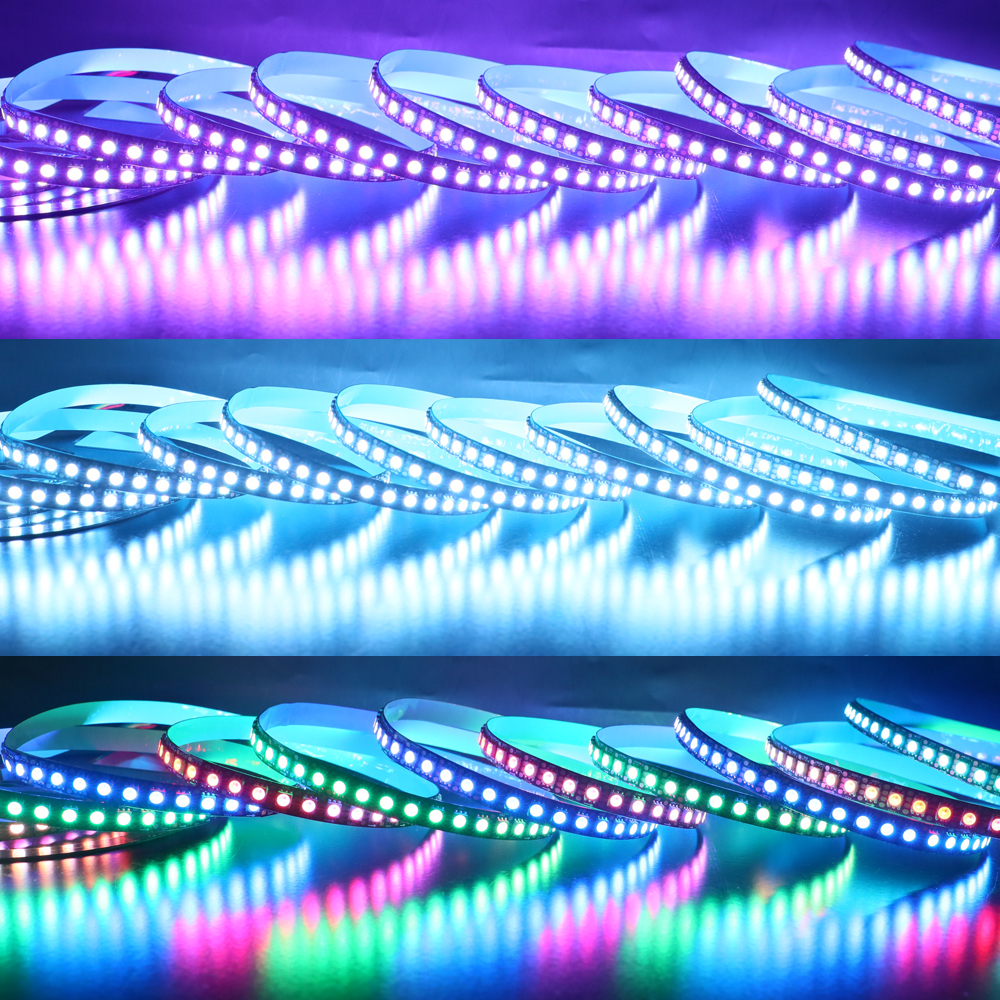

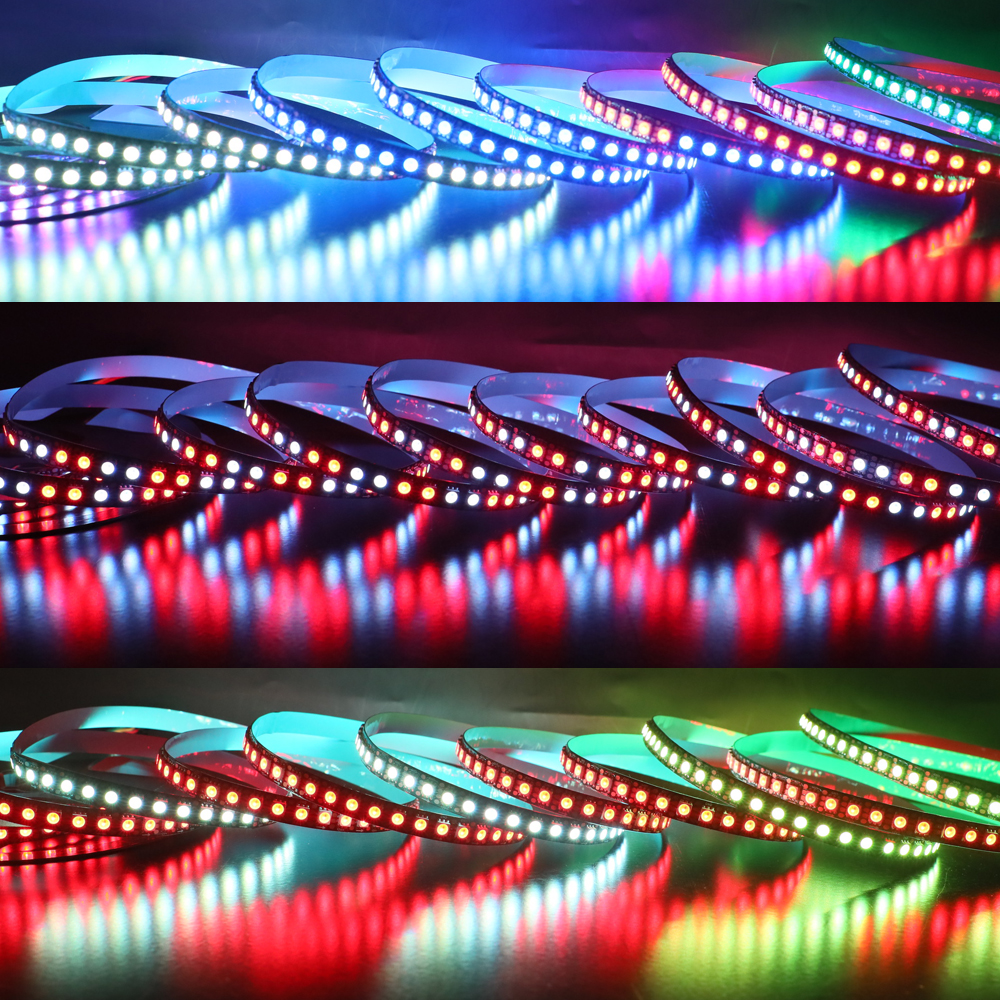

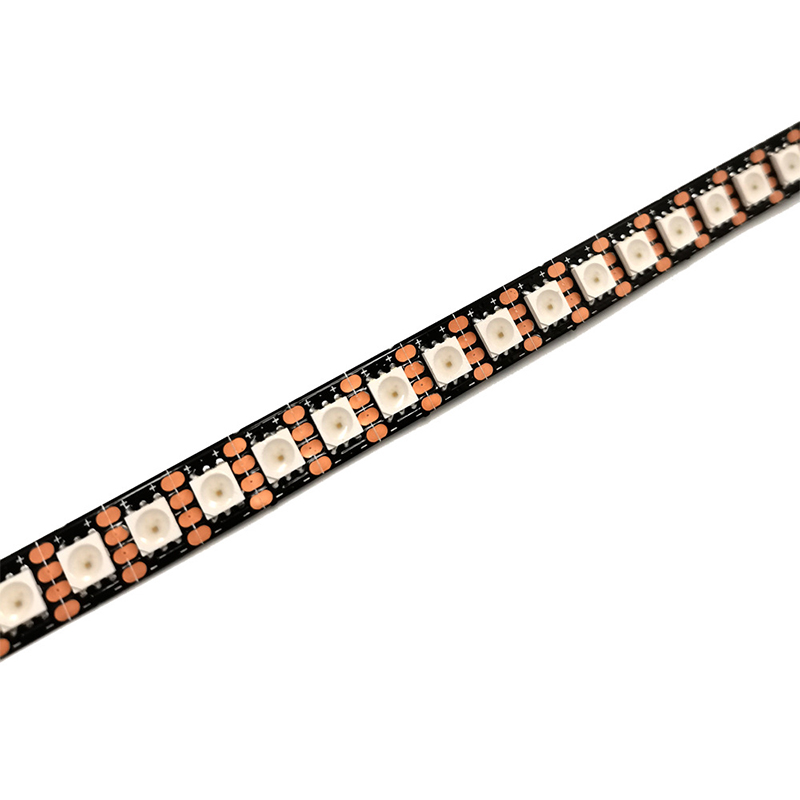

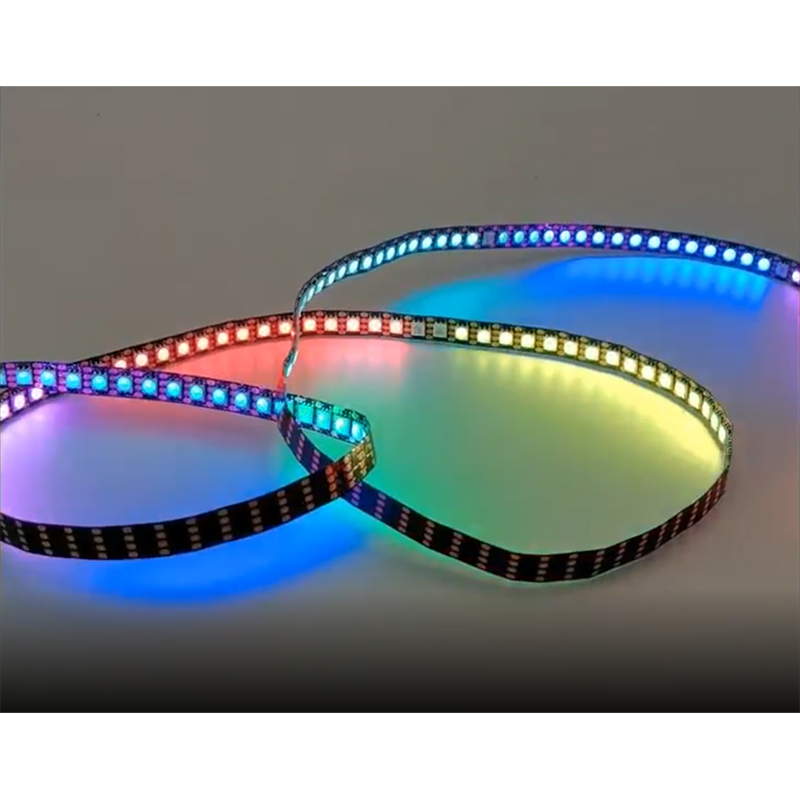

Built-in GS8208 IC, these 5050 SMD LEDs can be different colors and brightness in one led light strip at the same time. Each LED light is individually addressable, numerous dynamic color-changing lighting effects are available, adding atmosphere to your lighting environment. With 120 LEDs per meter, high brightness, the power of this 10mm width addressable led strip is 15W/m, more energy-saving than traditional incandescent lamps. DC12V working voltage, dual signal line version, and signal breakpoint continuous transmission. If one LED is damaged, the work of other LED lights will not be affected. It is equipped with a 4-pins JST-SM connector with two separate power/ground terminals. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts.
Dream Color Addressable LED Controller → Link
LED DC Power Supply → Link
If you have questions, you can read our led strip lights guide.
Standards and Certifications
|Power||15watt/meter, 75watt/roll (120LEDs/m)|
|LED Chip Model||SMD 5050 RGB|
|IC Type||GS8208 IC (1 IC drives 1 led chip)|
|Q'ty of LED||120 leds/meter|
|Q'ty of IC||120 pixel/meter|

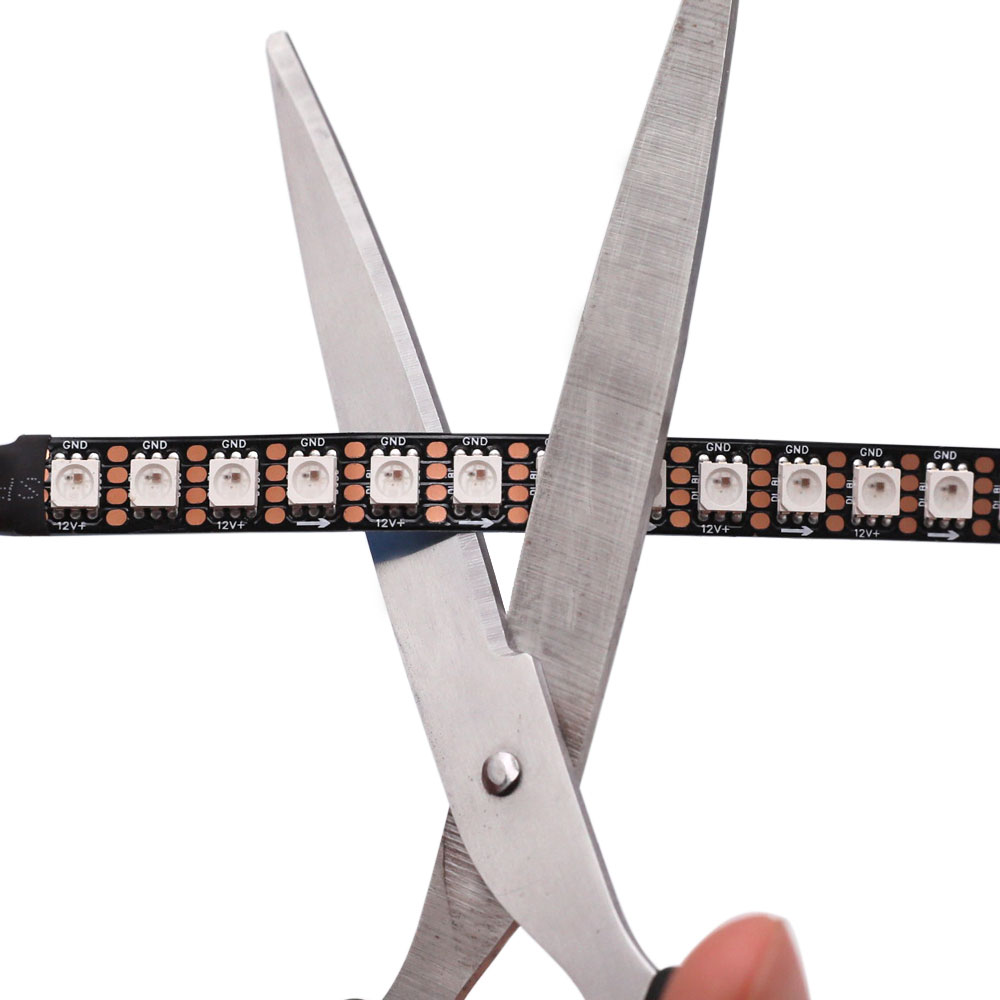

|Cuttable||Every LED is cuttable|

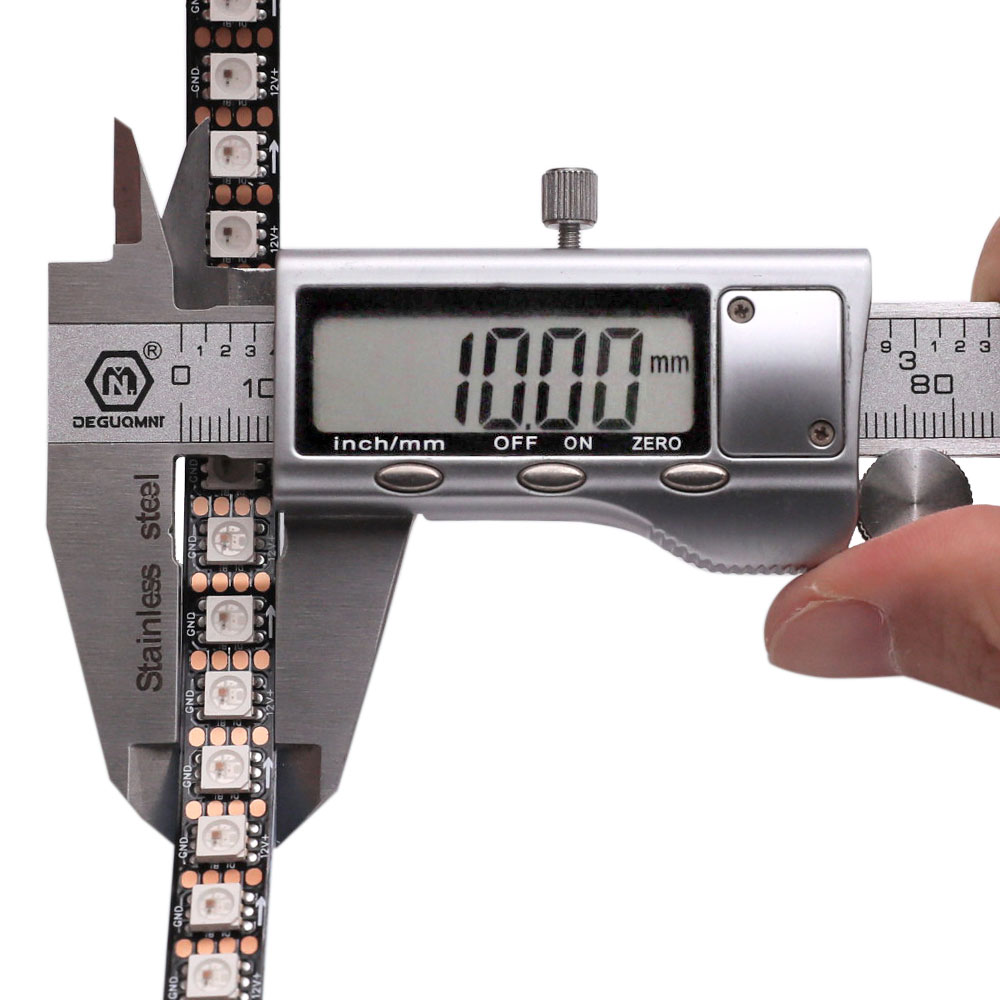

|Dimensions||L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )|
|Protection Rate||Non-waterproof IP20 or waterproof IP67 or waterproof IP68|
|Average Life (hrs)||50000Hours+|
|Beam Angle||120 degrees|
Pin Function - Ultimate Guide To Choosing The Right Addressable LED Strip
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Applications - How To Wire Addressable LED Strip Lights?
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
