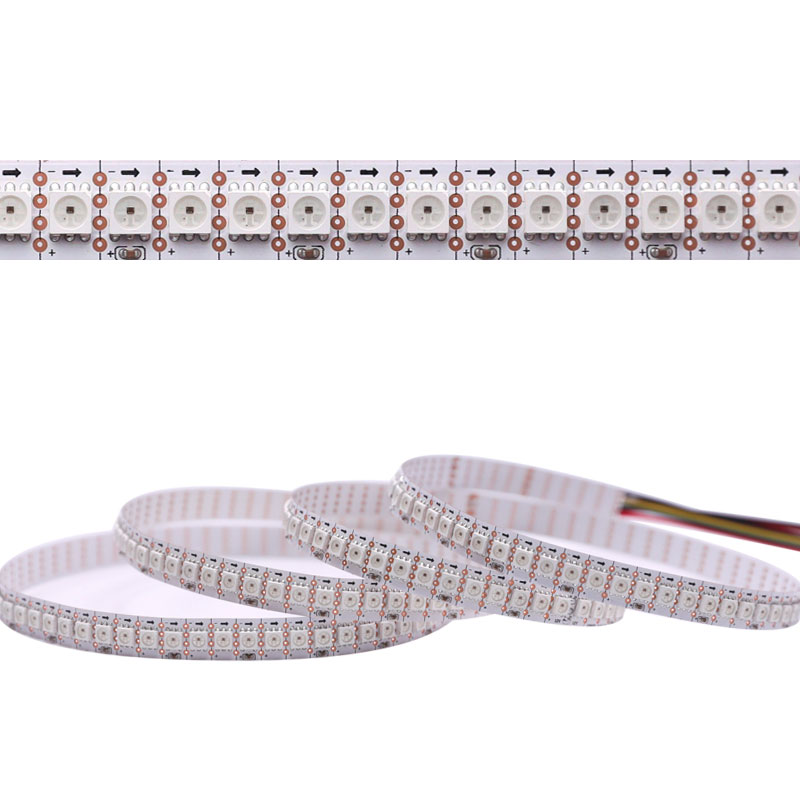

12V GS8208 Individually Addressable 144LEDs/m Engineering Digital RGB LED Strip Light
This GS8208 RGBIC led strip every three lights placed a capacitor, designed to replace the WS2815 built-in resistance version, with more stable performance for engineering lighting use. The circuit board design allows the digital RGBIC led strip to perform consistently when compatible with control board and other intelligent control systems, reducing problems such as flickering lights and unstable signals.
With newly developed GS8208 built-in IC chip that can drive a large number of LEDs and provide LED density upto 144 lights per meter, the GS8208 individually addressable RGB led strip is the ideal light solution for your next engineering project. These LED strips are great for a wide variety of commercial and industrial applications.
■ The GS8208B IC is integrated inside SMD5050 LED component to form a complete externally controlled pixel, which makes the application circuit design easier, less original parts, and small in size. Look for an addressable controller here.
■ Each diode is a pixel, LED light individually addressable.
■ The data transmission adopts DAT, BIN two-wire signal protocol, which guarantees the signal transmission when the single chip is damaged, and does not affect the normal operation of other chips.
■ Data sending rate 800Kbps synchronous refresh.
■ Grayscale adjustment circuit (256-level grayscale is adjustable).
Standards and Certifications
|LED Strip Type:||GS8208 Individually Addressable RGB LED Strip Lights|
|LED Color Temperature:||Addressable RGB|
|LED Quantity:||144 LEDs/m|
|IC Quantity:||144 IC/meter (1 IC drives 1 led chip)|

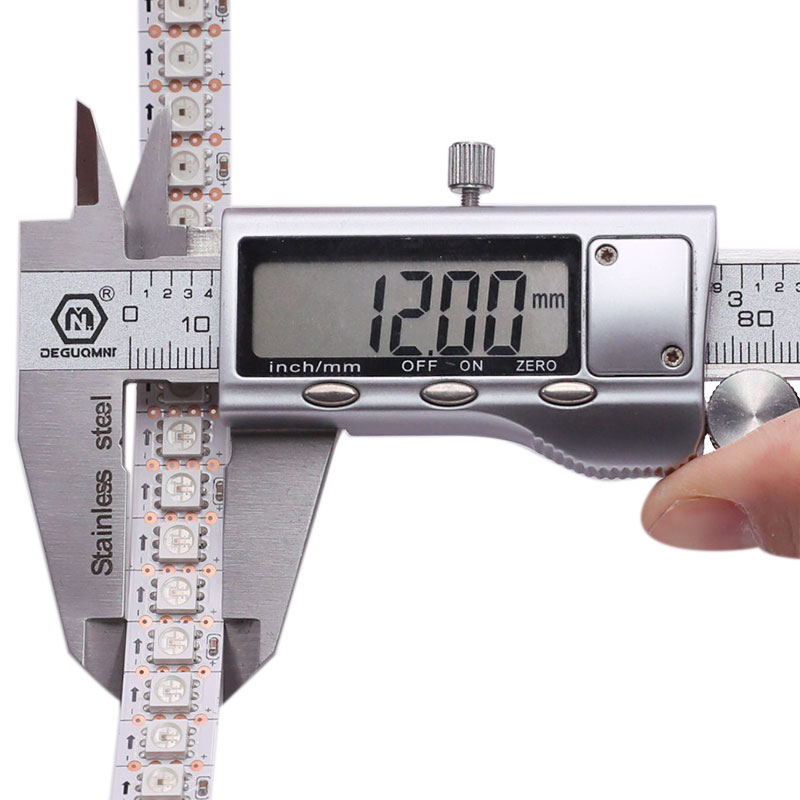

|Dimensions:||L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68|
GS8208 Breakpoint Resume LED Strip Wiring
The backup data line can be connected to the "DAT" or "GND" of the controller.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
