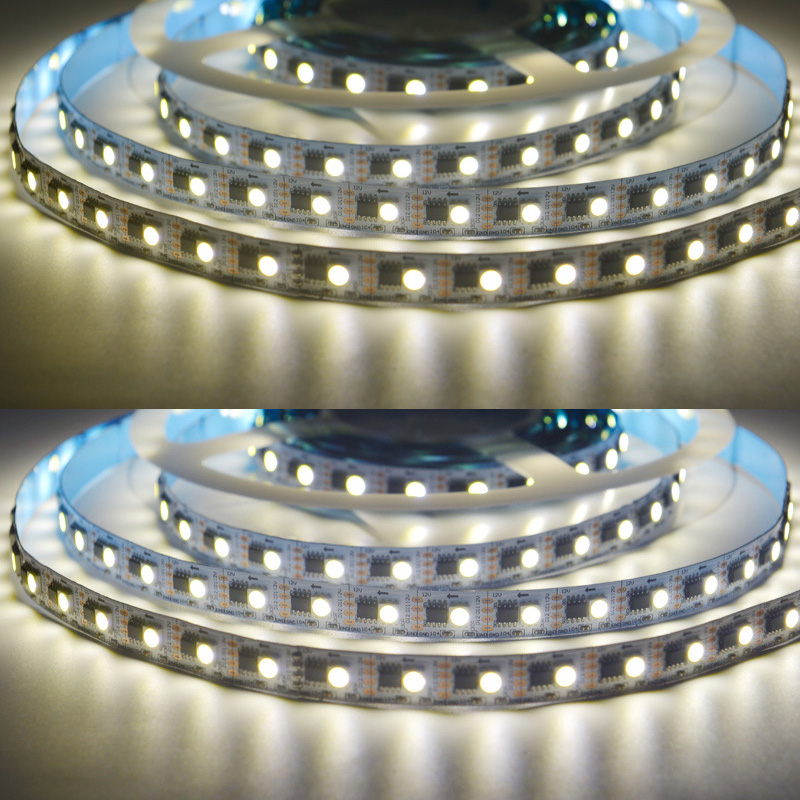

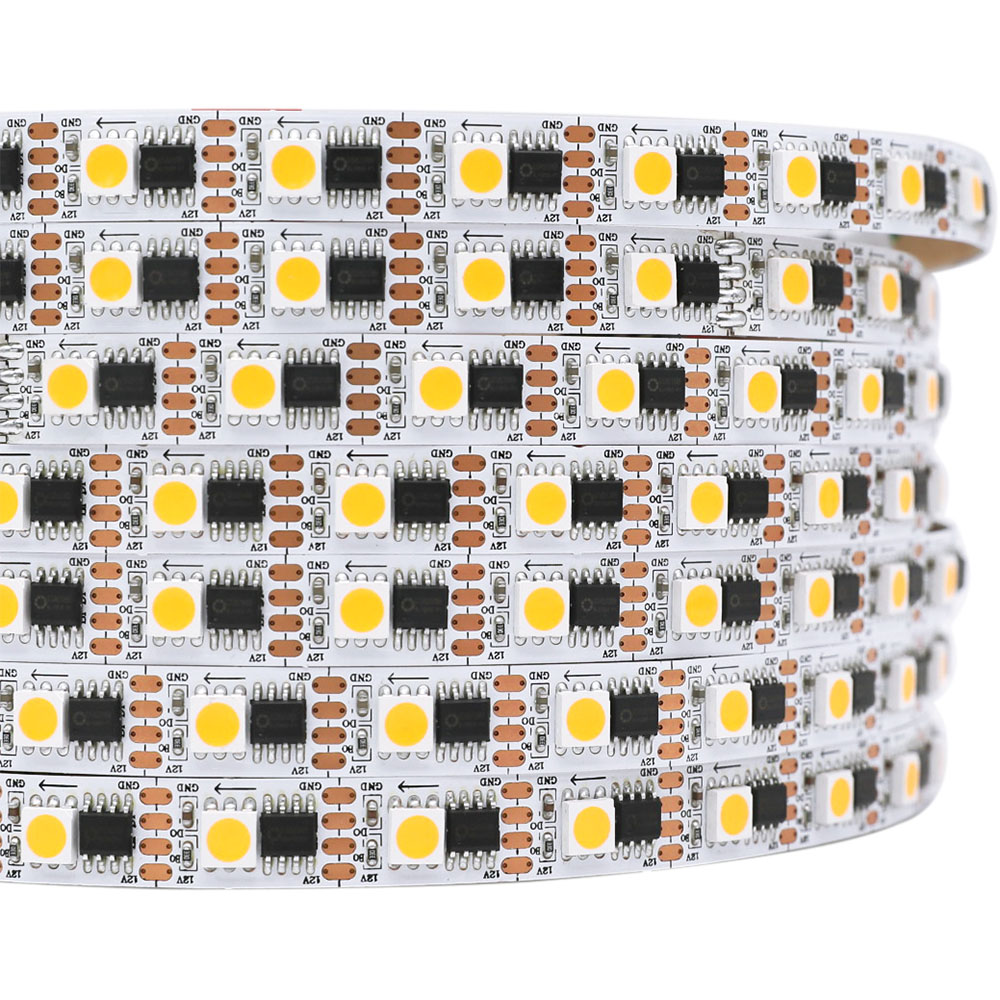

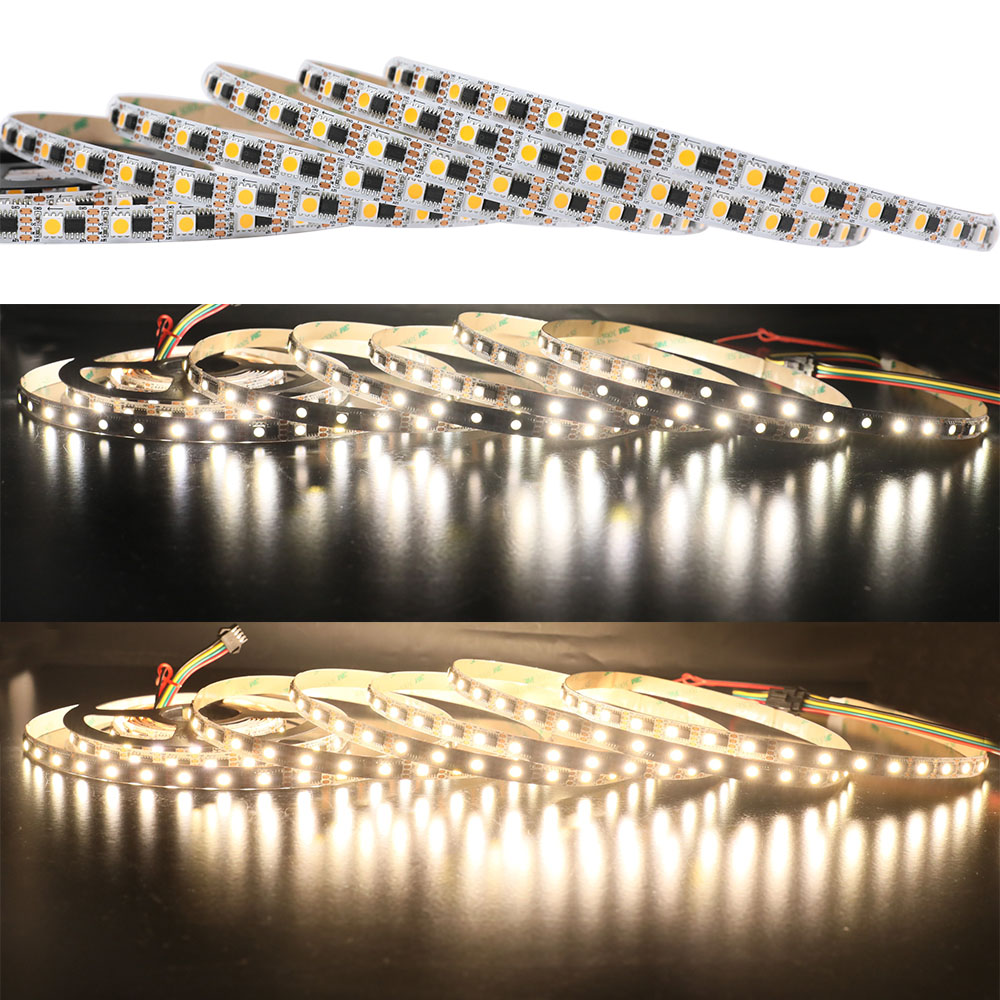

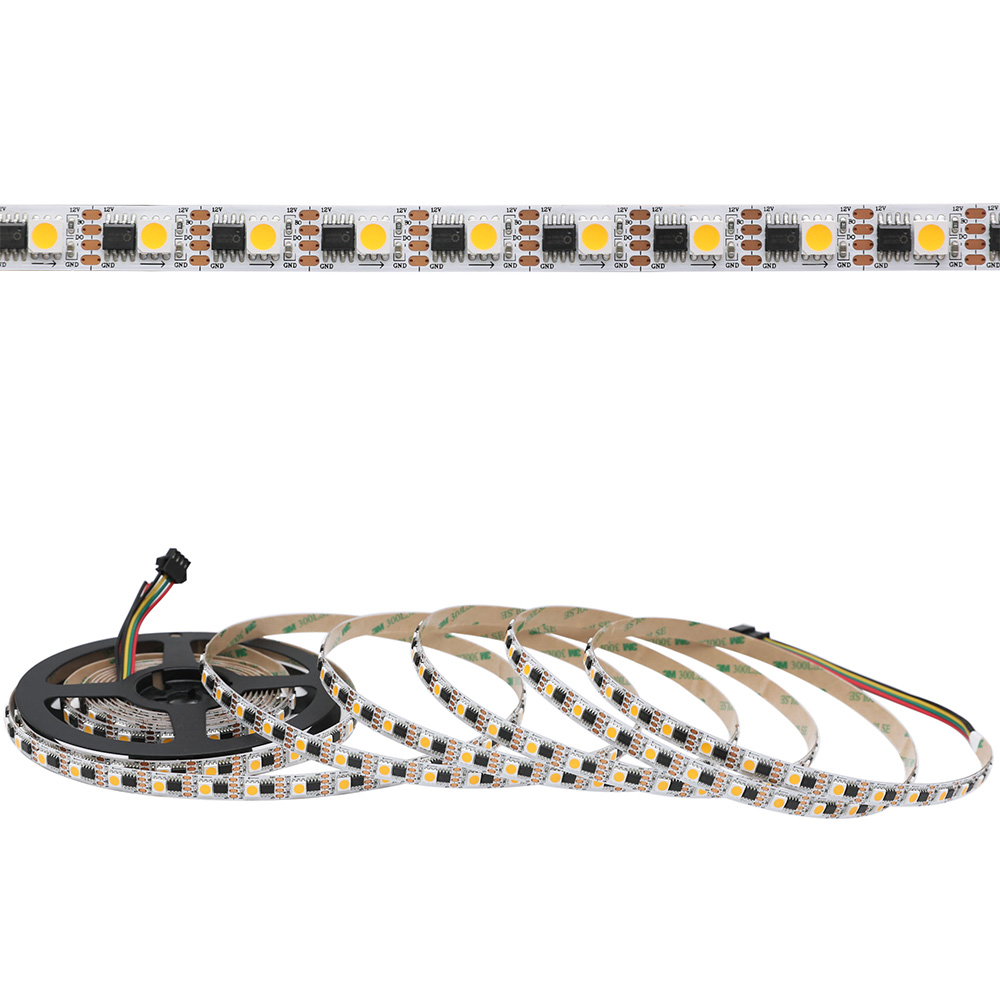

DC12V GS8208 5050SMD Breakpoint-continue, 300 LEDs Individually Addressable Single Color/RGB Digital Strip Lights, 5m/16.4ft per Roll
1. The voltage of GS8208 is 12V, external IC, and it is individually addressable, breakpoint- continue.
2. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected. It is equipped with a 4-pins JST-SM connector with two separate power/ground terminals.
3. GAMMA correction module, PWM up to 8KHZ refresh frequency and provides an output channel for current dislocation processing methods, which can reduce power clutter and electromagnetic interference.
4. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness, cleaner, lower energy consumption and more beautiful.
5. Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.
6. with the DC12V power supply, the protection rating level is more secure: IP20 IP67 IP68, no-radiation, a wide range of use, strong impact resistance, multi-color, it is a completely new generation of green high-tech products.
Standards and Certifications
Input voltage: DC12V
Power: 14.4watt/meter, 72watt/roll (60LEDs/m)
LED Chip Model: SMD 5050 RGB
LED resource: GS8208LED
IC Type: GS8208 IC (1 IC drives 1 led chip)
Q'ty of LED: 60 leds/meter
Q'ty of IC: 60 pixel/meter

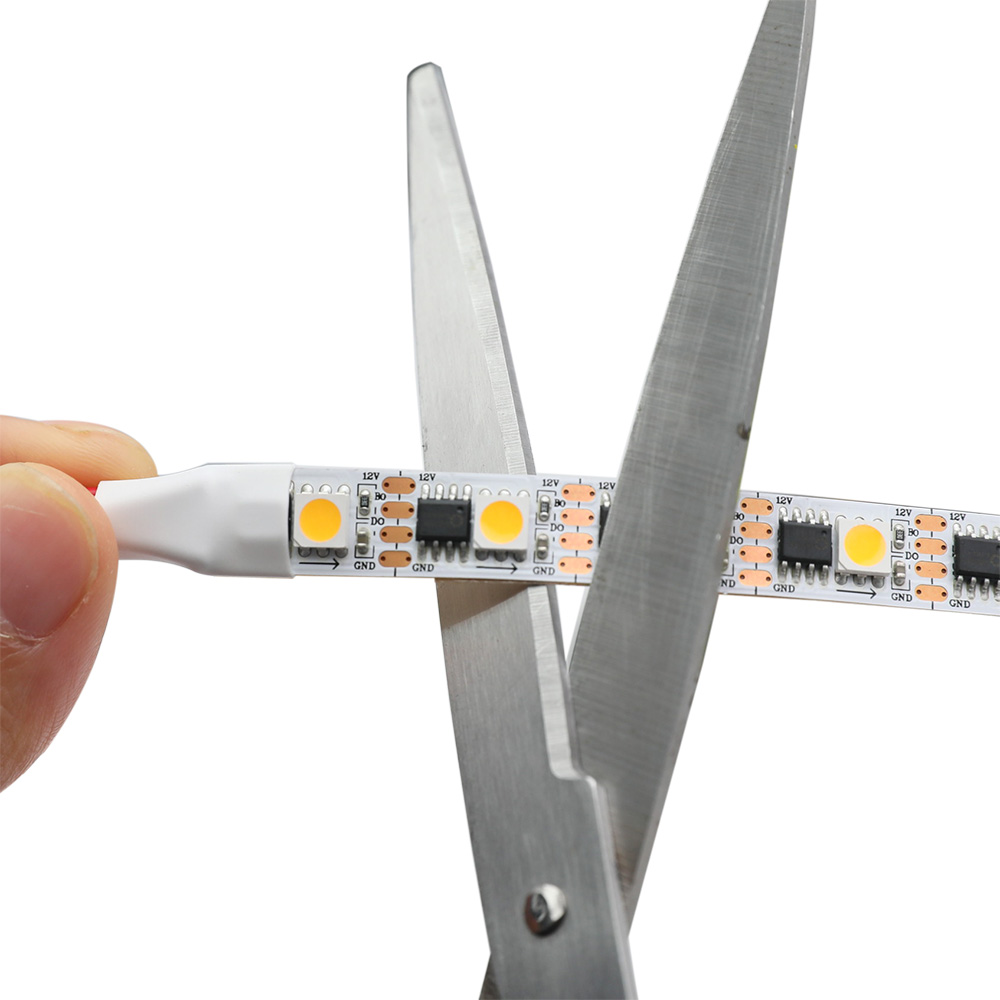

Cuttable: every LED is cuttable

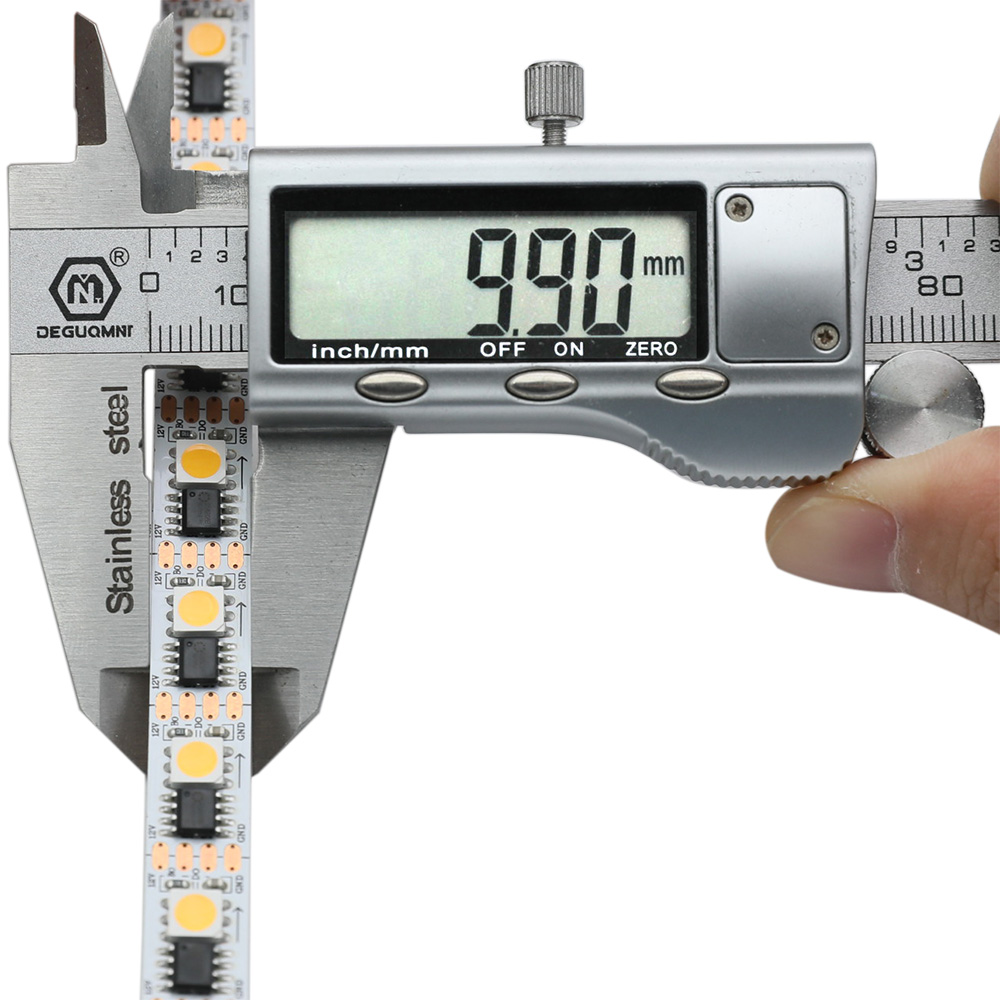

Dimensions: L500cm(196.85 in ) x W1.2cm(0.47 in ) x H0.25cm(0.1 in )
PCB color: WHITE
Protection rate: Non-waterproof IP20 or waterproof IP67 or waterproof IP68
Colors: Golden yellow/ Warm white/ Nature white/ Daylight white/ Red/Green/Blue/Yellow /RGB
Grey scale: 256
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Waterproof Level Description

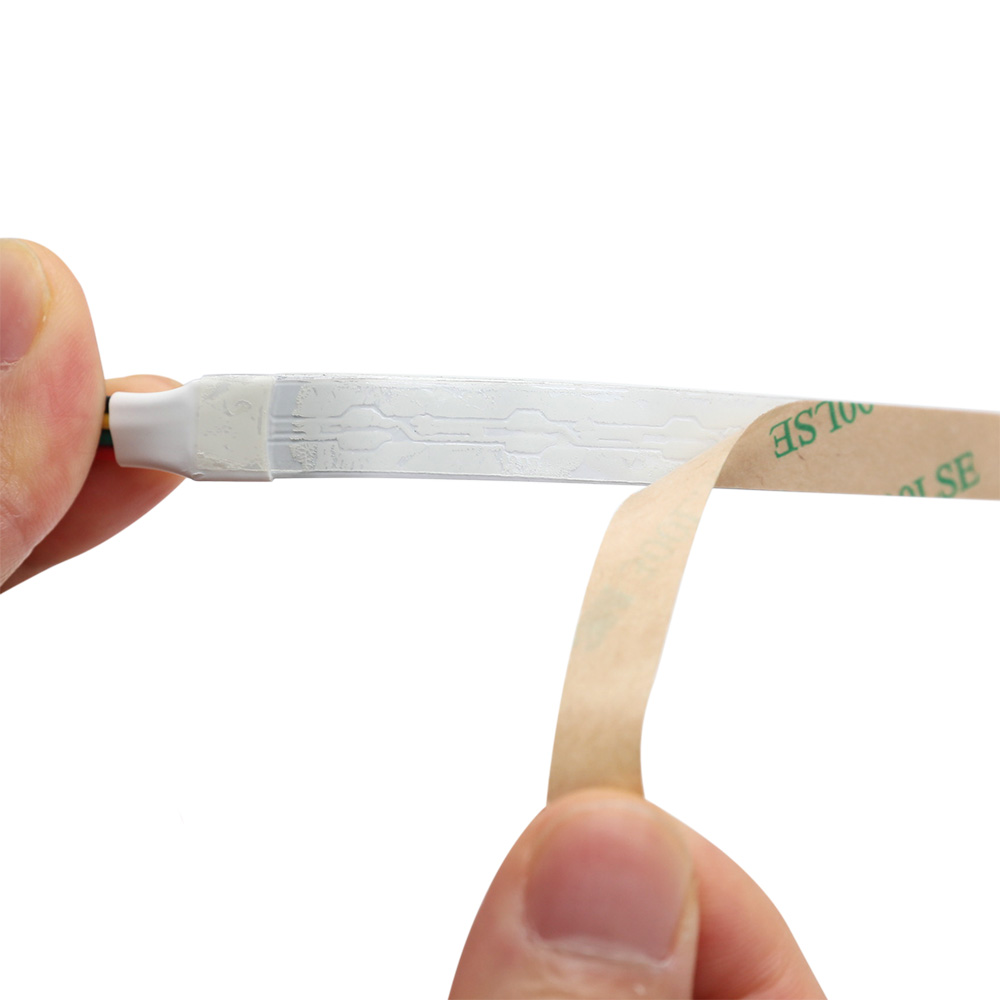

IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
