Product Information

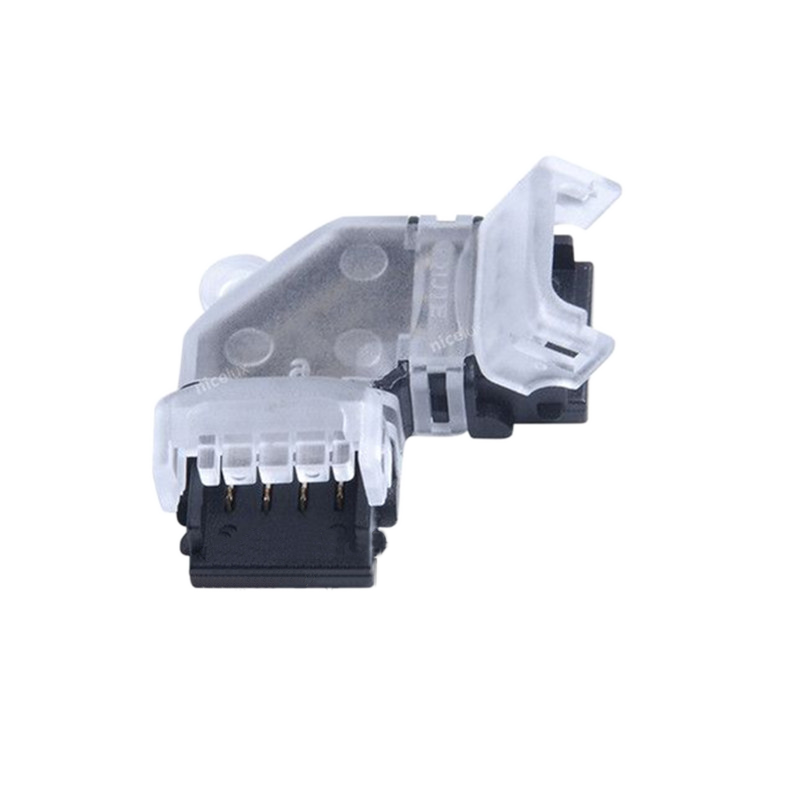

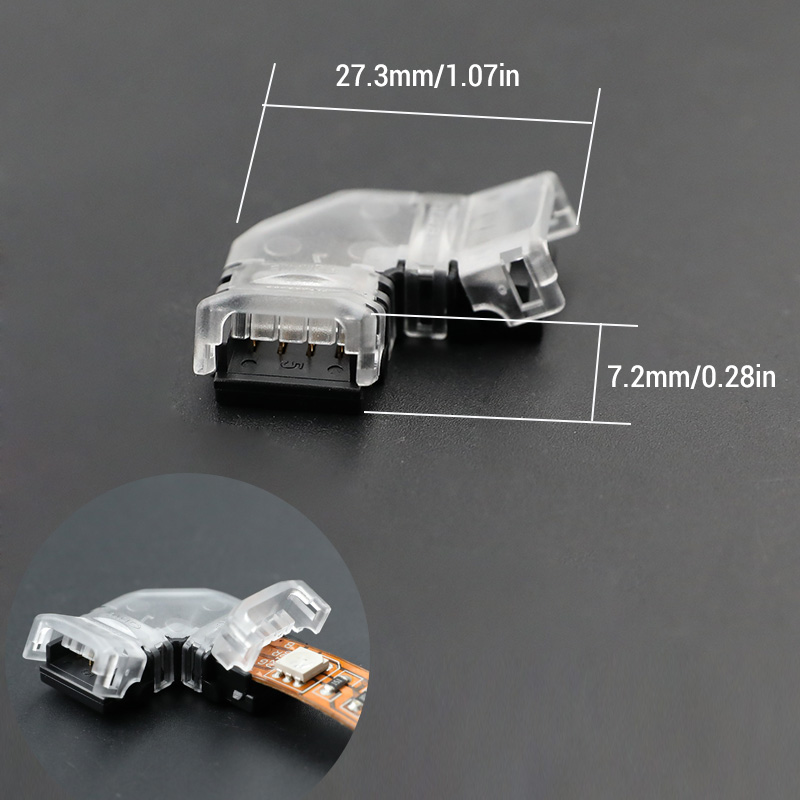

Achieve flawless, professional-looking 90-degree turns in your lighting projects with the 4-Pin 10mm L-shaped Solderless Corner Connector. Designed specifically for joining two cut segments of 5050 RGB LED strips directly, this connector eliminates the need for soldering or awkward bending. The innovative buckle design provides a strong, reliable clamp-down connection, ensuring your lights stay powered. Uniquely, this led corner connector features a central mounting hole, allowing you to secure it with a screw for maximum stability in any installation. Available in versions compatible with both non-waterproof (IP20) and silicone-coated waterproof (IP65) strips, it's the ultimate tool-free solution for creating clean, continuous lines of light around any corner.
Key Features
Perfect 90° Corner Turns
Creates a rigid right-angle connection between two LED strip segments for a clean, professional finish.
Solderless Buckle Connection
Features a secure clamp-down buckle that pierces through to the contacts, providing a strong and reliable connection without any soldering.
Direct PCB-to-PCB Design
Joins strips directly at the board level, offering a more compact and tidy corner solution compared to wire-based connectors.
Optional Screw Mounting
Includes a pre-drilled center hole for screw fixation, offering enhanced stability and preventing accidental disconnection in demanding environments.
Broad Strip Compatibility
Specifically designed for 10mm wide, 4-pin 5050 RGB LED strips, with dedicated options for both IP20 non-waterproof and IP65 surface-coated waterproof versions.
Product Specifications
| Parameter | Details |
|---|---|
| Model | RGB-ACCESSORIE-029 |
| Product Type | L-Shaped Solderless Connector |
| Shape | 90-Degree Right Angle |
| Pin Quantity | 4 |
| Compatible Strip Width | 10mm |
| Compatible LED Type | SMD 5050 RGB, or dual-signal addressable lights |
| Connection Method | Solderless, PCB to PCB Buckle |
| Material | Fireproof PC, Copper |
| Available Versions | For Non-waterproof (IP20), For Waterproof (IP65 Surface Coated) |
| Mounting | Optional center screw hole |
| Certifications | CE, RoHS |
Application Scenarios
How to Use This Solderless Corner Connector
- Ensure your power is off. Confirm you are using a 10mm wide, 4-pin RGB LED strip.
- Make a clean cut on the strip along the designated cutting line.
- Open the clasp on one side of the L-shaped connector.
- Slide the end of the LED strip into the connector, ensuring the 4 copper pads are on the 4 metal pins inside the connector. Check polarity alignment (+ to +).
- Press the buckle clasp down firmly until it snaps shut, locking the strip in place.
- Repeat steps 4-6 for the second LED strip segment on the other arm of the connector.
- For maximum stability, use a small screw (not included) to fix the connector to your mounting surface through the provided center hole.
- This connector is only for 10mm 4-Pin RGB strips. It is not compatible with 2-pin, 3-pin, 5-pin, or 6-pin strips.
- Always disconnect the power supply before installation.
- Ensure the positive (+) terminal on the LED strip aligns with the positive marking on the connector for proper function.
- Select the correct version of the connector (IP20 or IP65) to match your LED strip type.
What's in the Box
- ✓1x 4-Pin 10mm L-shaped 90 Degree Solderless Buckle Connector
