Mini 8mm WS2811 COB IC RGB Led Strip 24V Color Chasing 50 Segments Lights 60W

24V Fcob rgb led strip lights with IC chips are usually designed in standard widths of 10mm/12mm or super narrow widths of 5mm and below, this ws2811 ic rgb COB strip strikes a balance between these two widths, suitable for addressable lighting projects such as cupboards or skirting lines where both miniature width and bright light are required. The 8mm width design with 360 RGB chips per meter ensures the slimness of the cob light tape while providing enough brightness and heat dissipation to enable the RGB IC led lights to be used directly or with aluminum profiles to meet various lighting needs.

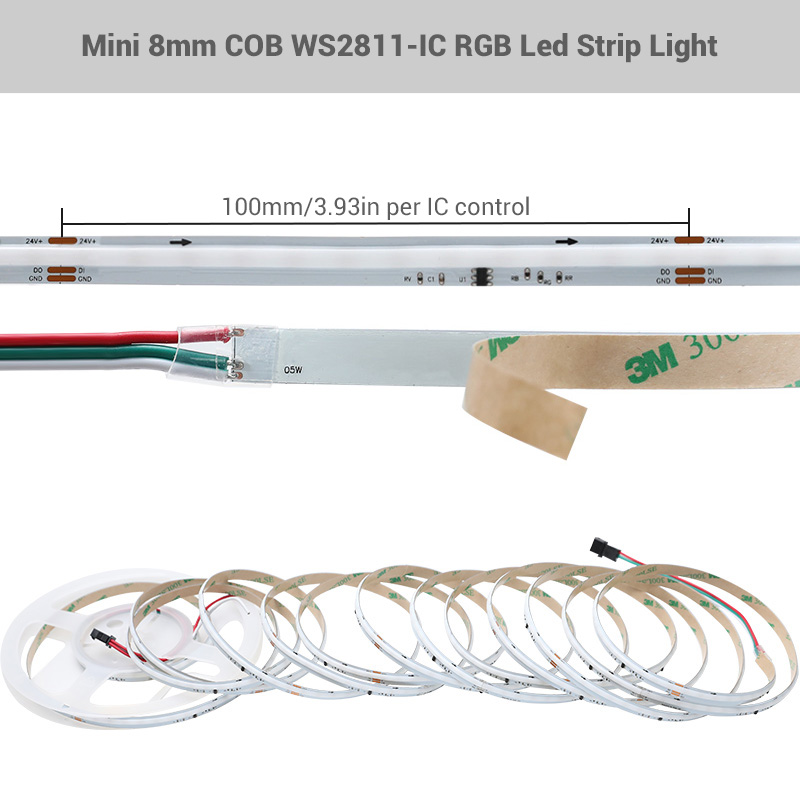

Adopting WS2811 external IC as intelligent driver, every 100mm/3.93in as a separate cut and a single IC-controlled segment, users can flexibly cut and control the lighting effect of each segment according to needs. Five meters in a roll, the 8mm mini RGB-IC led strip comes with male and female 3-pin JST quick connectors on both sides to ensure the stability and convenience of the connection, with male connector for output, female end for input with an extra 2-pin power cord. With 24V as the driving voltage, it can be adapted to all RGB+IC lighting projects with longer distances, ensuring stable brightness and color performance over long wiring distances. If you need accessories.

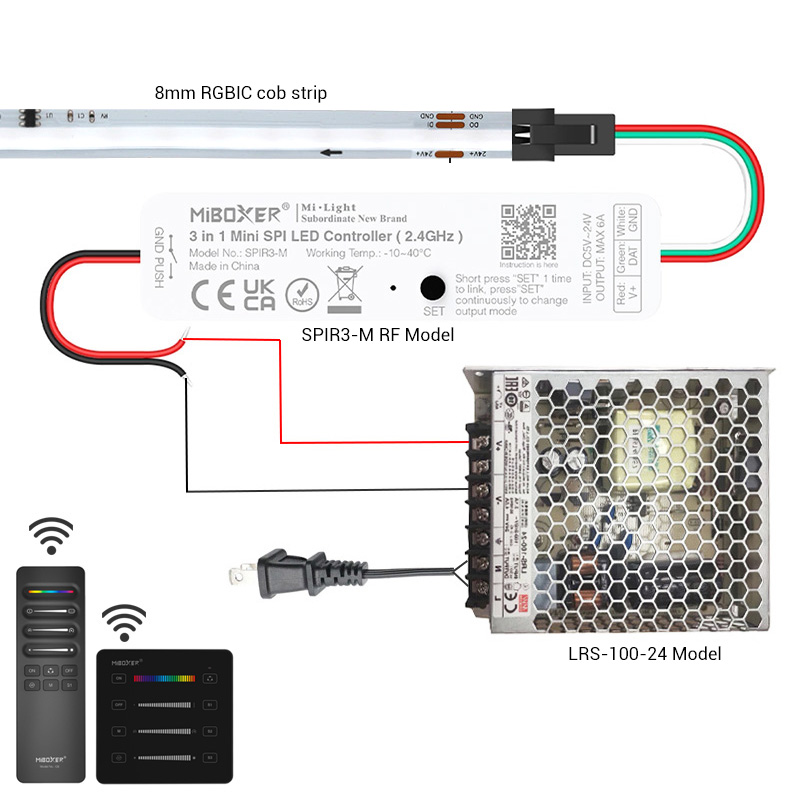

The WS2811 RGB-IC led lights are widely compatible with a variety of control systems (CAN'T USED WITH SP-SERIES LIKE SP530E), including microcontrollers such as Arduino, ESP8266, ESP32, as well as addressable led controllers with inductive or push switches, you can choose the right control solution for your needs. In the kit we provide the same mini-size SPIR3-M RF controller with C6 handheld remote control or B6 wireless wall panel and a LRS-100-24 power supply as a simple home lighting control.

We also offer a higher density version (720LEDs/m) of this 8mm mini tape cob RGB + IC light, please click to check.

Product Specification
