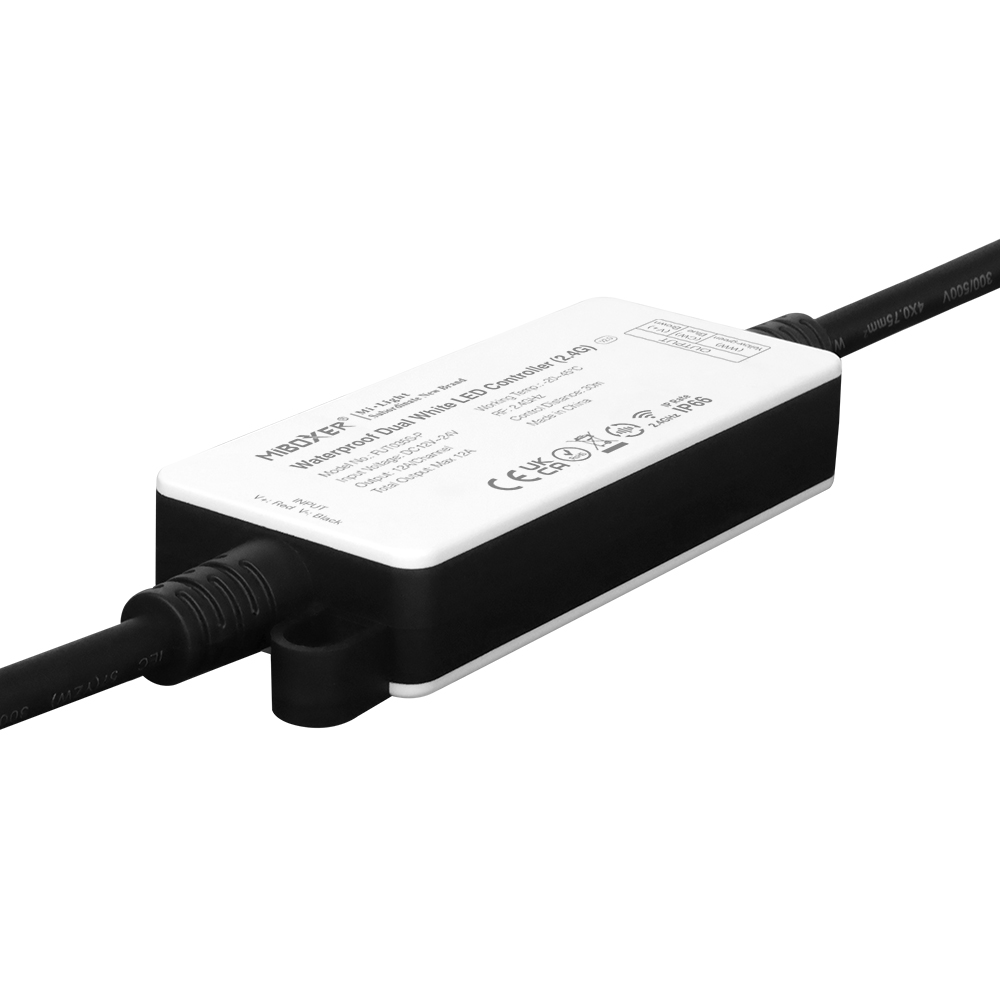

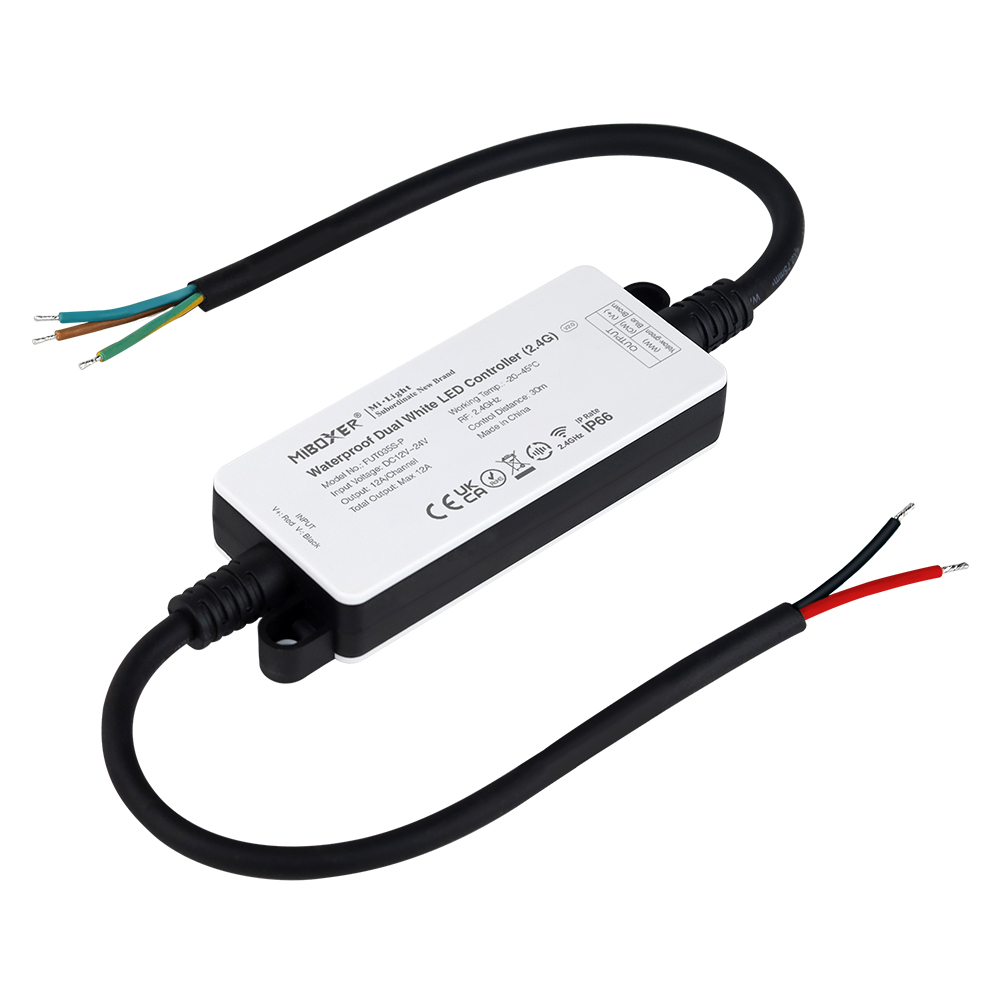

Waterproof Dual White LED Controller (2.4G) FUT035S-P

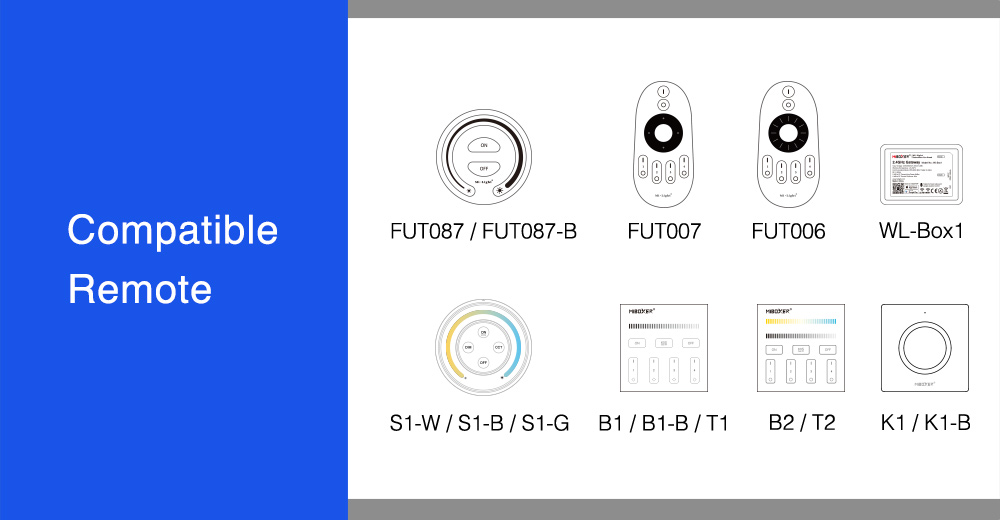

• 2.4G RF Remote controllable

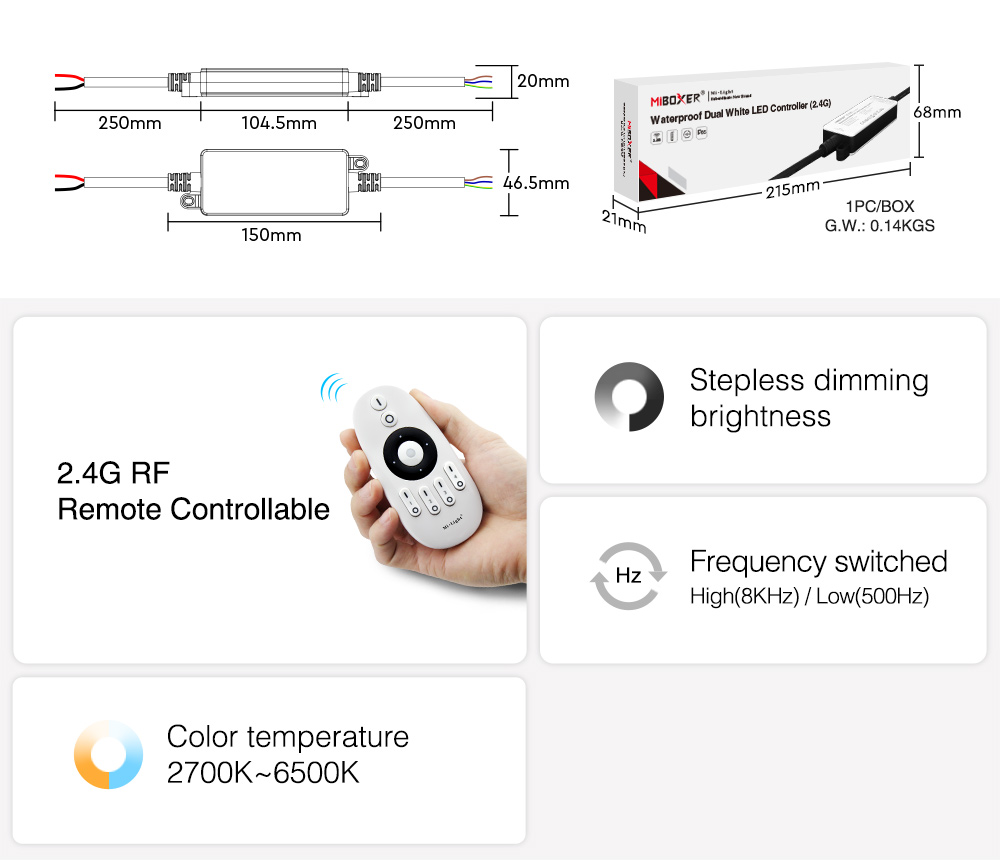

• Color temperature and brightness controllable

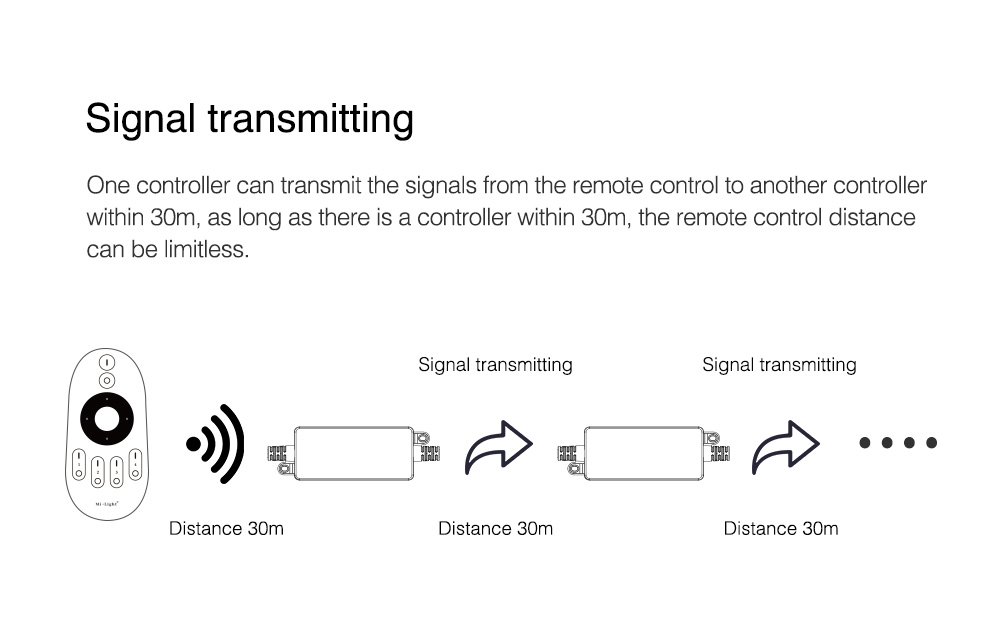

• Signal transmitting function make control distance limitless
• Support PWM high frequency (8KHz) / Low frequency (500Hz) switched
• IP66 waterproof

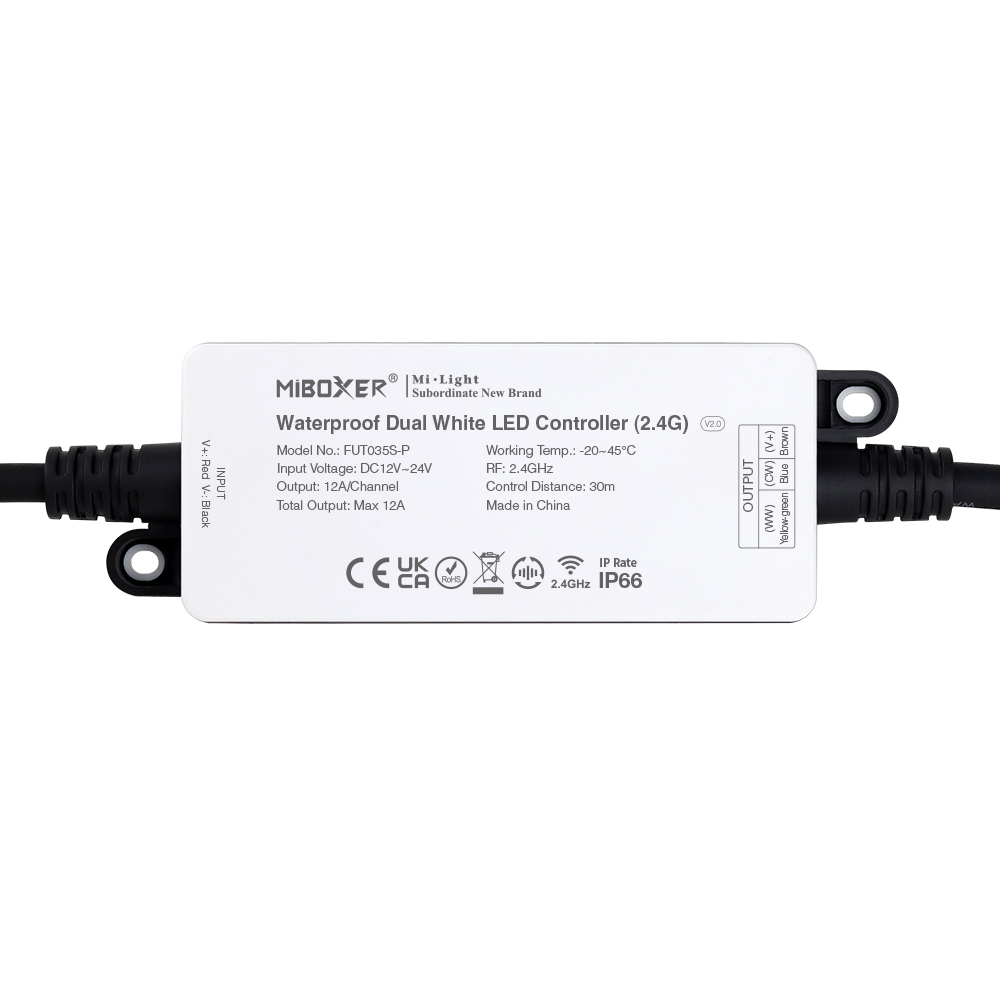

Product Name: Waterproof Dual White LED Controller (2.4G)
Model No.: FUT035S-P
Input Voltage: DC12~24V
Output Current: 12A/Channel
Total Output: Max 12A
Working Temperature: -20~45℃
IP Rate: IP66
Output Connection: Common anode
