Special Price: $6.98

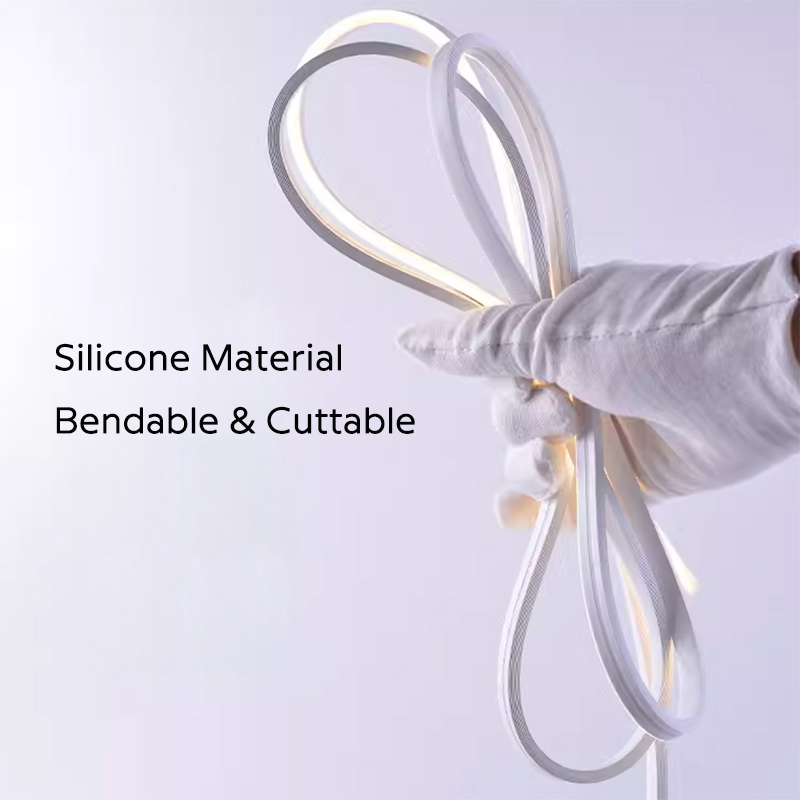

If looking for ultra thin LED tape, this side glow LED mini neon light with super narrow width must be your best choice. Available in widths from 4mm to 6mm, our small neon lights are made of high-quality silicone material, able to provide spotless and uniform illumination with excellent linearity. IP67 waterproof and flame-retardant guarantee safe outdoor use including aesthetic plant lighting. Cuttable Neon narrow led strip can be bent at an angle of 180 °, perfect for length and shape customization. Multi-colour optional allow users to create different atmospheres according to different designs. Mini led neon strip light can be used to diy neon name signs. Some people also view it as ultra slim led recessed light to do under cabinet led lighting. Here check our new 10*10mm side emitiing neon rope led light with special end caps.
12V neon LED strip can run up to 5 meters with single power supply at one end, and 10m with power supplies at both ends.
24V neon LED strip can run up to 10 meters with single power supply at one end, and 20m with power supplies at both ends.
Product Specifications
LED Product Type: | Side Emitting 4mm Ultra Thin LED Neon Flex Strip Lights |
Working Temperature: | -25°C ~ 50°C |
Light Colors: | 3000K Warm White, 4000K Natural White, 6000K Daylight White, Yellow, Blue, Ice Blue, Red, Green, Purple |
Lumen: | 800 lm/m |
LED Quantity: | 120 LEDs per meter (3.28 ft) |
Lifespan: | 50,000+hours |

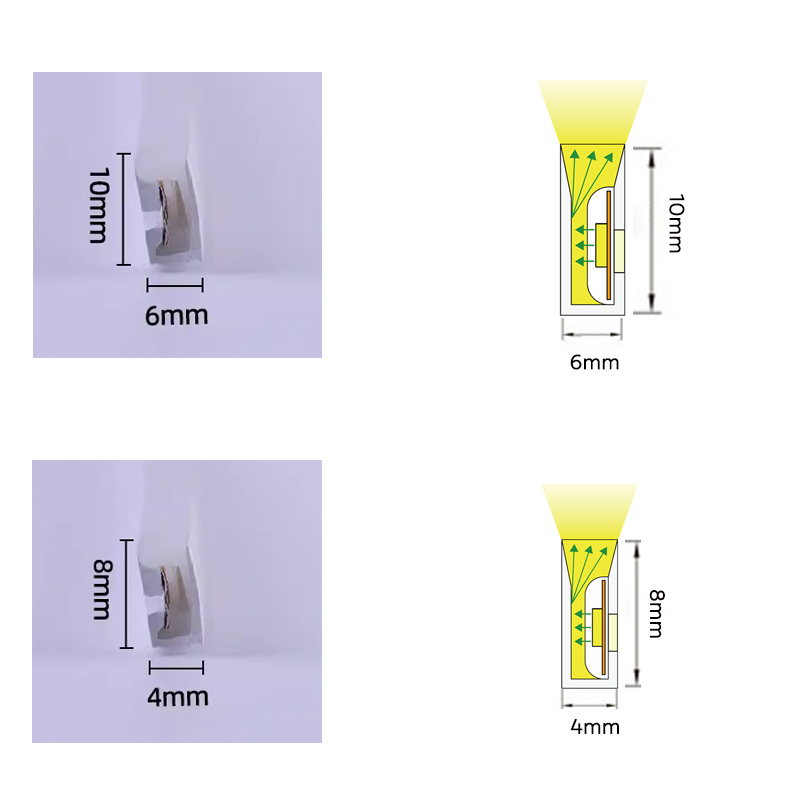

Size: | W0.4cm(0.16 in ) x H0.8cm(0.31 in ) / W0.6cm(0.24 in ) x H1cm(0.39 in ) |
Input Voltage(V): | DC 12V/24V |
Working Power: | 10W/m, 50W /16.4ft |
Material: | Food grade silicone |
Waterproof Rating: | Waterproof IP67 |
CRI(Ra>): | 90 |
Beam Pattern: | 120 degree |
LED Neon Light Kit:
If you choose Neon lights + Power Supply, we will send you SPS12-48V400W LED power supply.
If you choose Neon lights + Controller + Power Supply, we will send you DIM-PWM-SP631E controller (without remote control) and SPS12-48V400W LED power supply.
If you choose Neon lights + Power Supply(IP67), we will send PSWP-24V-100W power supply.
If you choose Neon lights + Controller(IP67)+ Power Supply(IP67), we will send FUT036S-P controller (with FUT007 remote control) and PSWP-24V-100W power supply.
Please note that depending on the length of the LED strip you select, we will choose a power supply with a different wattage for you; it does not have to be 400W. But the type of power supply will remain the same.
Neon Light Installation Methods:
There are three installation methods for the led neon strip lights. One is to install with mounting clips, per meter 2 PCS. The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
If need, please click the blue font for further study and purchase.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
