Single Row Series DC12/24V 2835SMD 300LEDs Flexible LED Strip Lights Outdoor Lighting Waterproof IP65 16.4ft Per Reel By Sale

Model: FSLSR-IP65-2835X300 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $26.98 $15.9841% off
Qty Discounts Off Price
1-19
$15.98
20-99
$15.66
100-199
$15.34
200+
$14.86
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Select Length:
Select Waterproof Rating:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

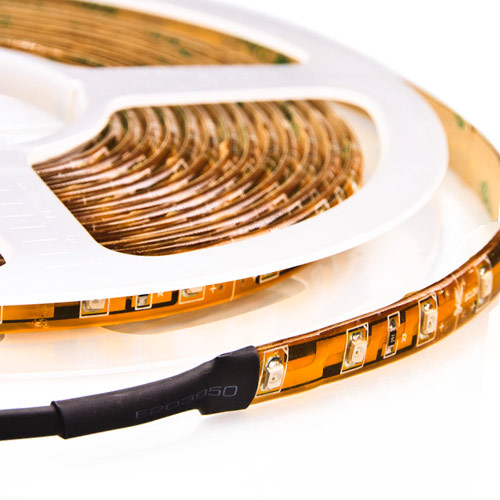

Single color super bright 2835 SMD(SMD:Surface Mounted Devices) Waterproof IP65 Flexible LED Tape strips, Epistar chip, 300LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

Our brightest super flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 3/6-LED segments, so you could cut a different length for your project and request. This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 12/24V DC operation. Dimmable - See compatible LED dimmers



Standards and Certifications

12V/24VDC CE FCC RoHS ISA SGS ISO LIFETIME waterproof-IP65

Product Specification

LED Strip Type:   SMD 2835  300PCS/16.4ft

Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

Light Color:   Warm White, Daylight White,Cool White, RedGreen, BlueAmber (optional)

Dimension:   16.4ft/roll, every 3/6 PCS LED can be cut

LED Quantity:   60 LEDs per meter (3.28 ft)

Dimensions:     L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.25cm(0.10 in )

Input Voltage(V):   12/24VDC

Working Power:   12V 5A ; 24V 2.5A  24W/16.4ft  Max

Lamp Luminous Flux(lm):   10-12lm/LEDs    220lm/ft

Beam Pattern:   120 degree

Water Proof:   Waterproof IP65 (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive back, For Outdoor & Indoor)

CRI (Ra>):  85+, 90+, 95+



how to connect single color led strip in parallel



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for FSLSR-IP65-2835X300
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Single Row Series DC12/24V 2835SMD 300LEDs Flexible LED Strip Lights Outdoor Lighting Waterproof IP65 16.4ft Per Reel By Sale

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?
This model is offered in 12VDC · 24VDC. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply
Which waterproof rating should I choose?
Available on this model: Surface Glued IP65 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Which colour is right?
This model comes in Yellow(585-595nm) · Blue(465-475nm) · Green(515-525nm) · Red(620-630nm) · Cool White(7000K) · Warm White(3000K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
Will it fit an aluminium profile, and how dense are the LEDs?
PCB width 8mm (0.31in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
