5m RGB LED Color Changing Lights Strip - 12V LED Light Strips - 60/120 LEDs/m

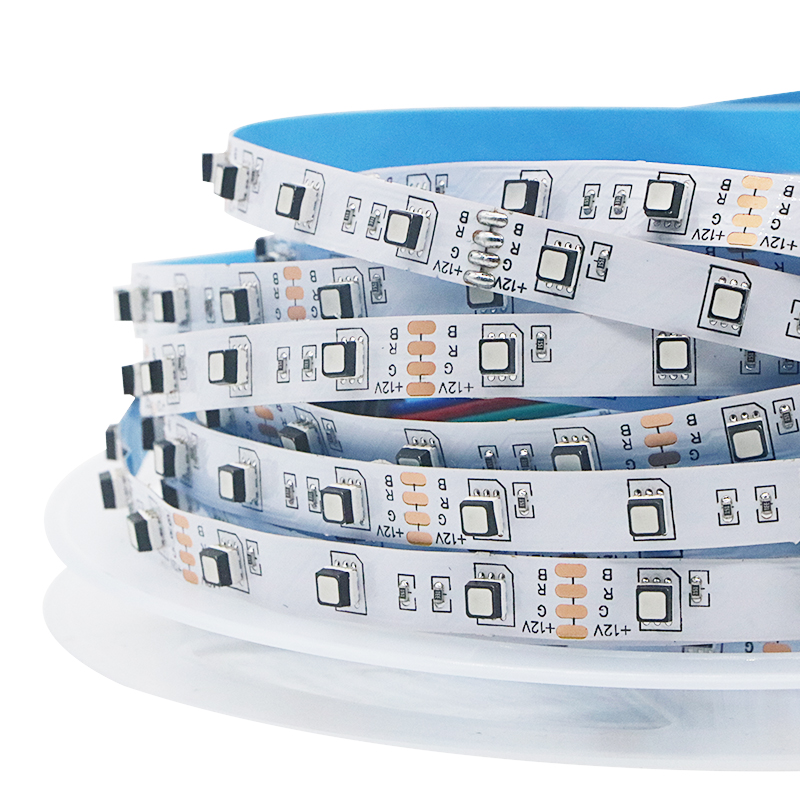

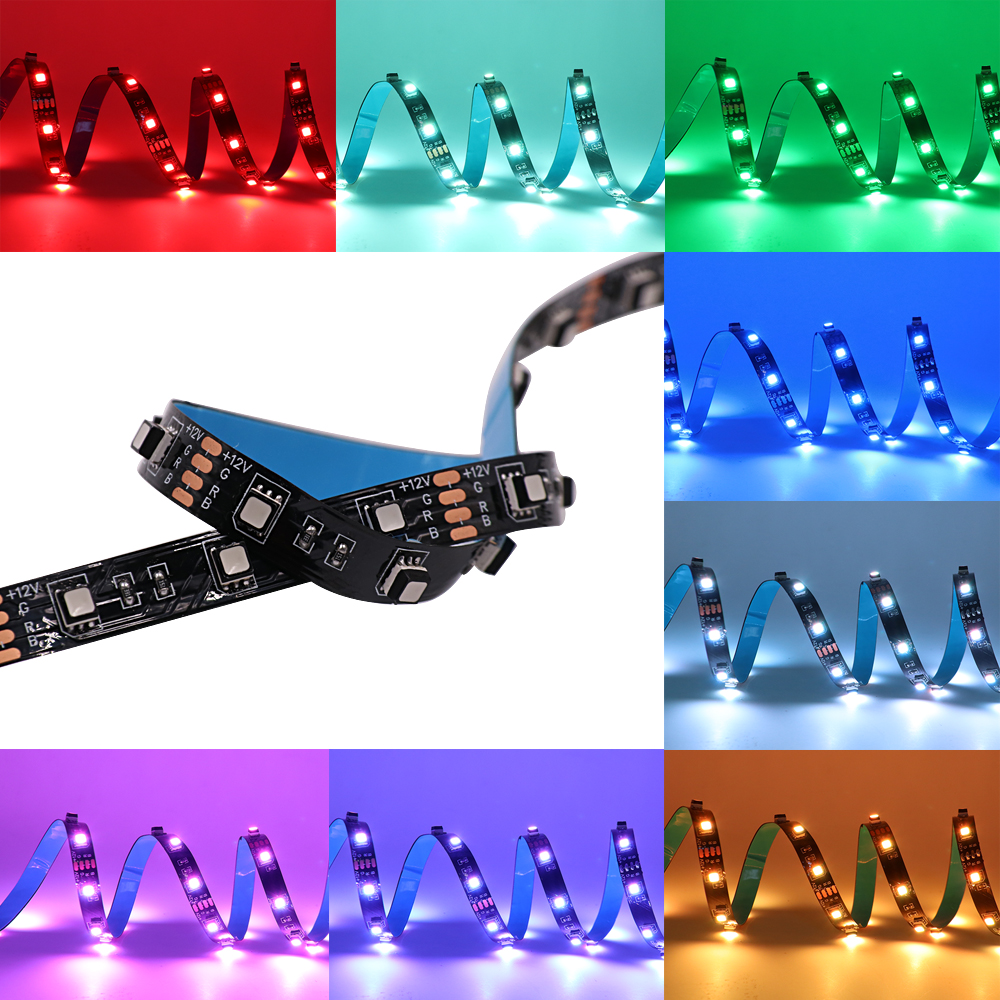

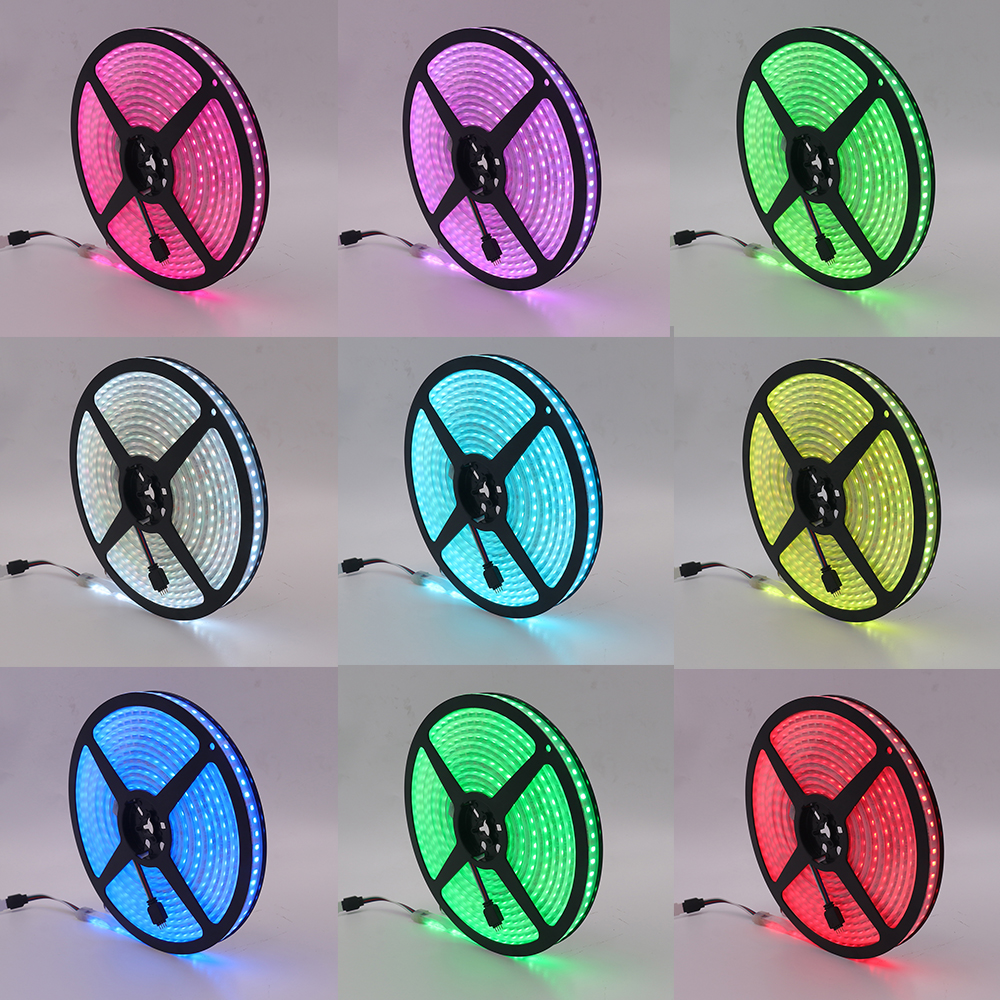

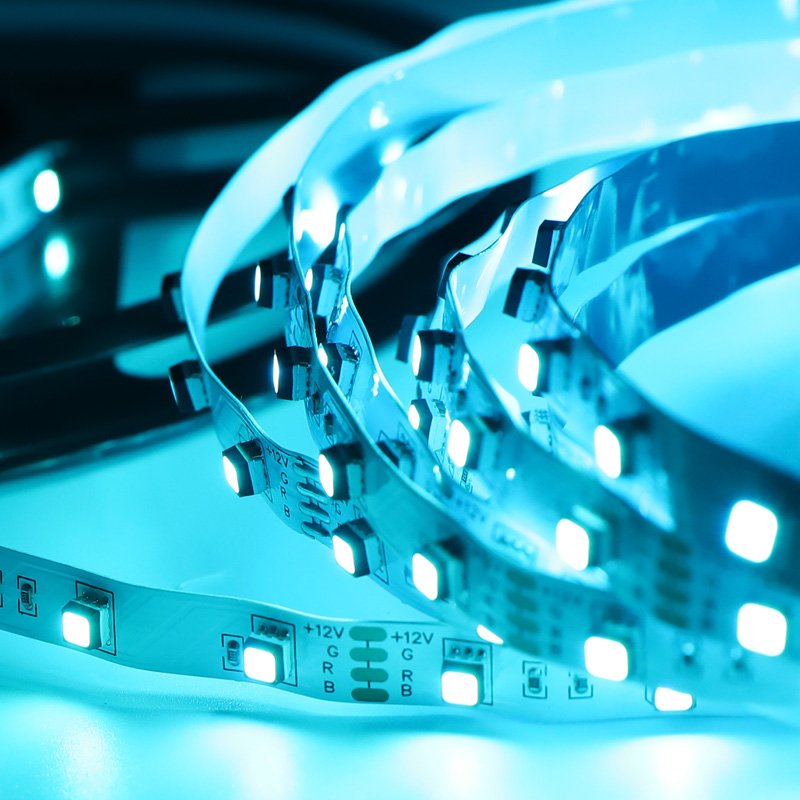

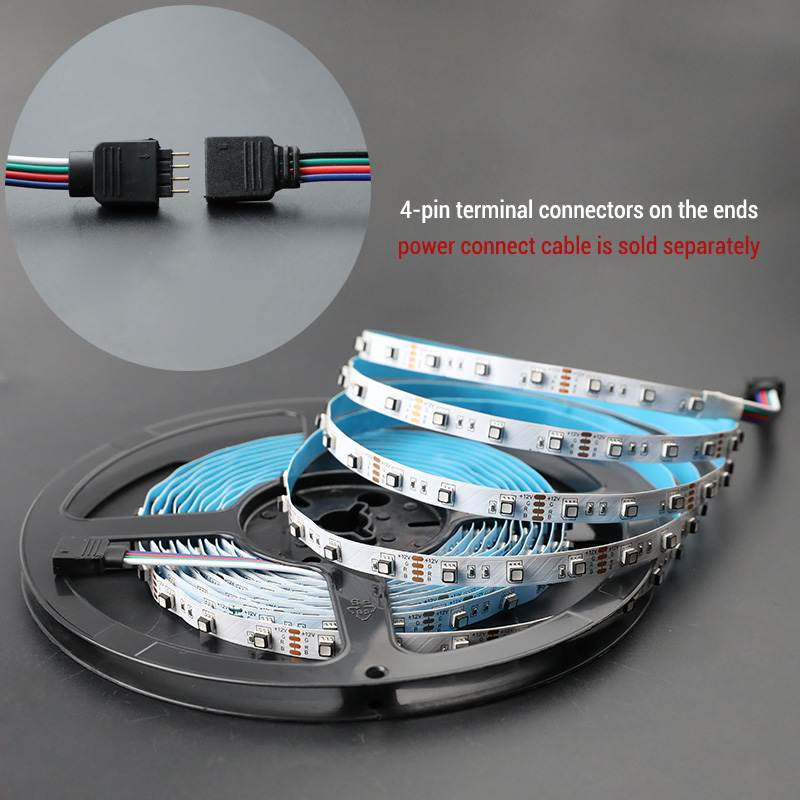

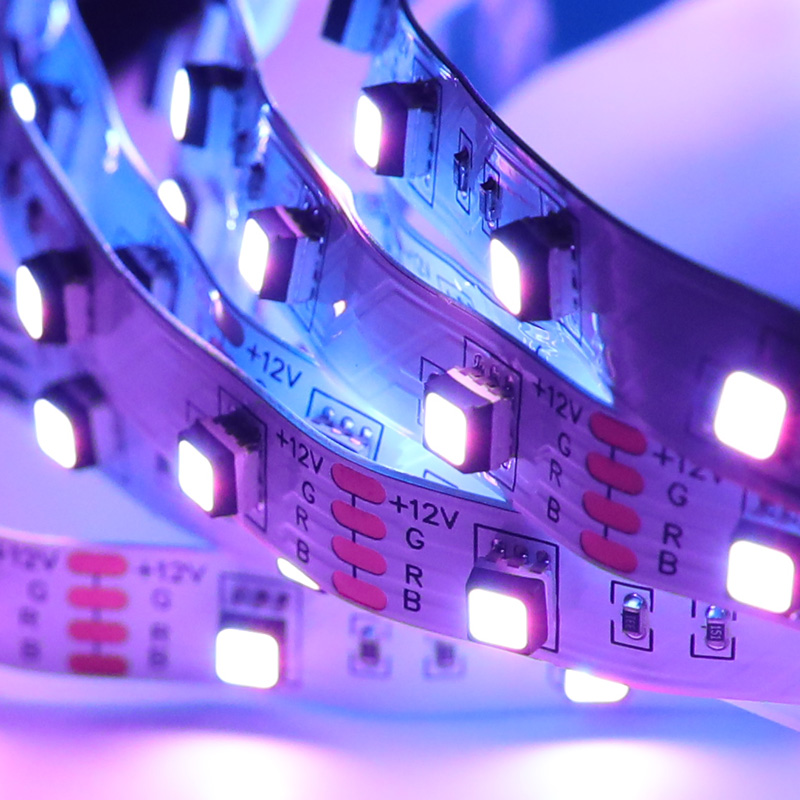

This 8mm wide RGB LED strip allows for a wide range of colors to be displayed, running a 5m this RGB light strip requires only one end to be injected with power. The color change of the RGB lights needs an RGB controller to operate, using a mobile APP or RF remote to control the LED color, brightness, and dynamic modes.
12V LED strip lights have better cutting accuracy, 3 lights for one circuit, 3 lights can be cut at a time. RGB color changing led strip lights are soft and easy bent for installation, with adhesive backing or mountign brackets and can be stuck just about anywhere, suitable for indoor or outdoor lighting.

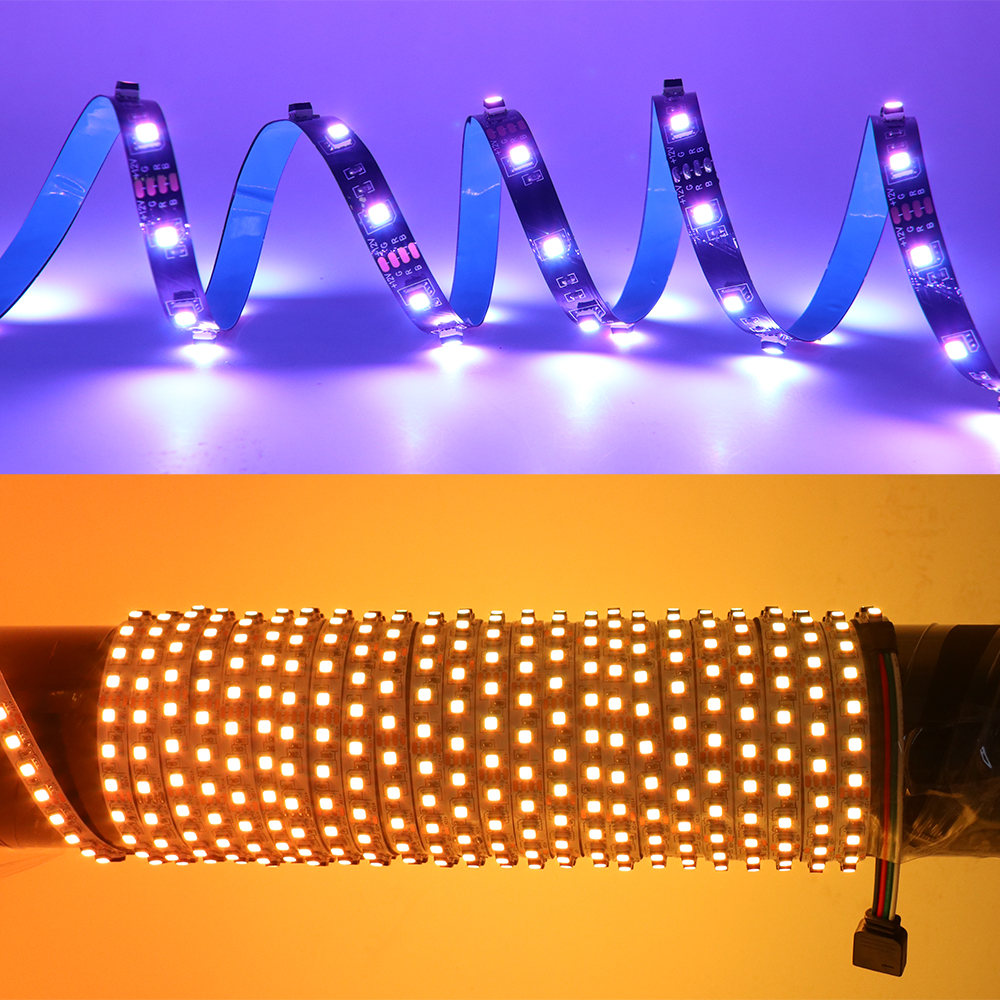

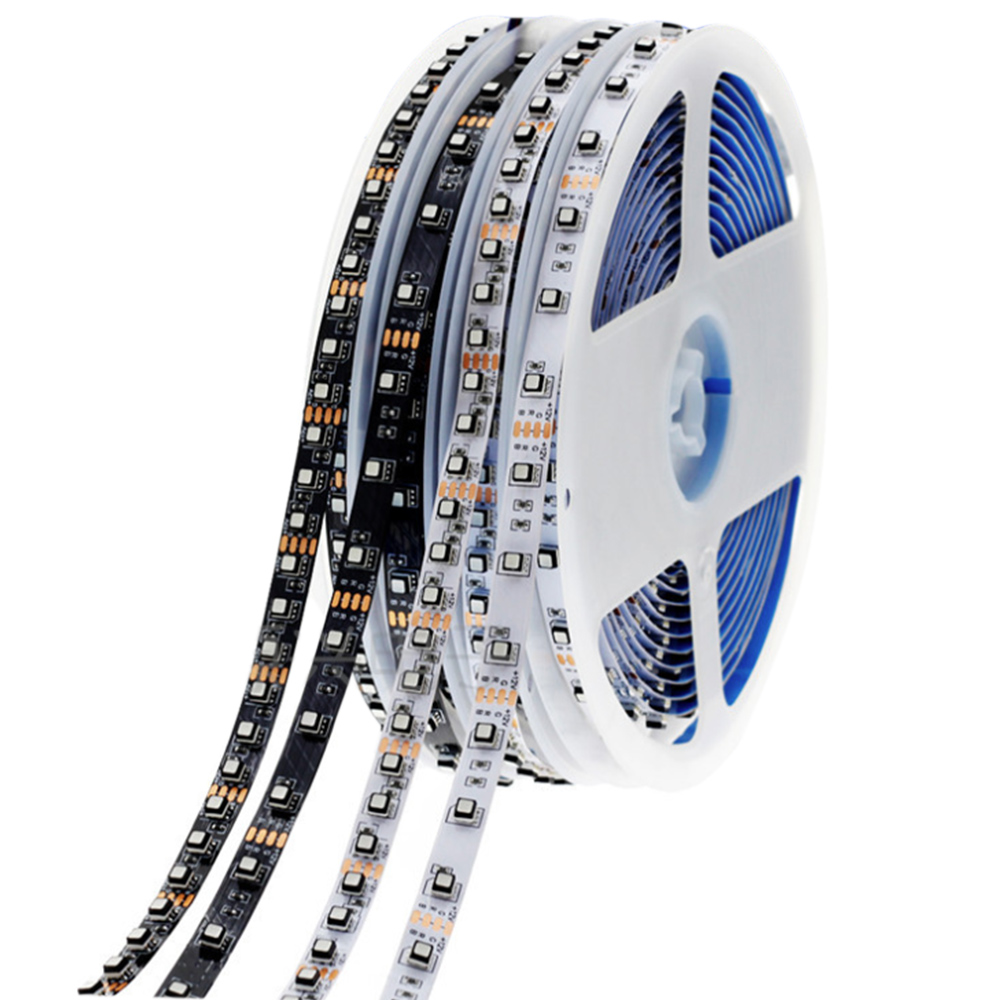

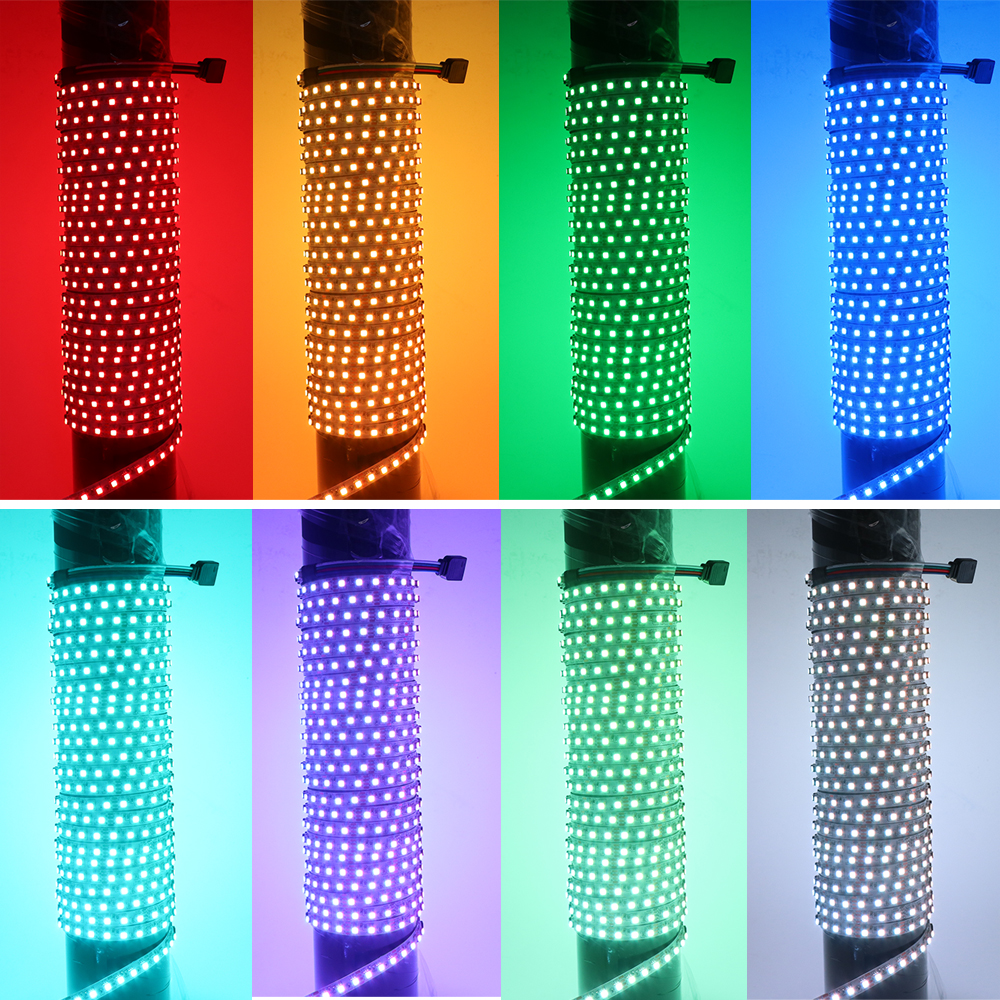

A meter of 60 lights for the standard density, suitable for general places, 120 high-density led strip for large space places. 60 density and 120 density matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
Standards and Certifications
|LED Strip Type:||SMD 3535 RGB 300LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

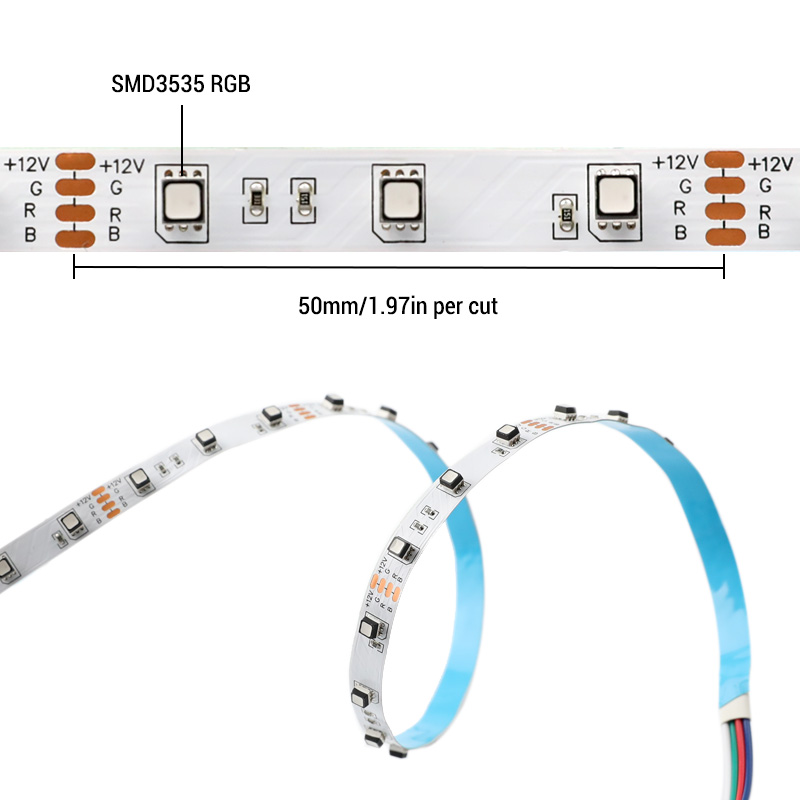

|Dimension:||16.4ft/roll, every 3/6 PCS LED can be cut|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|

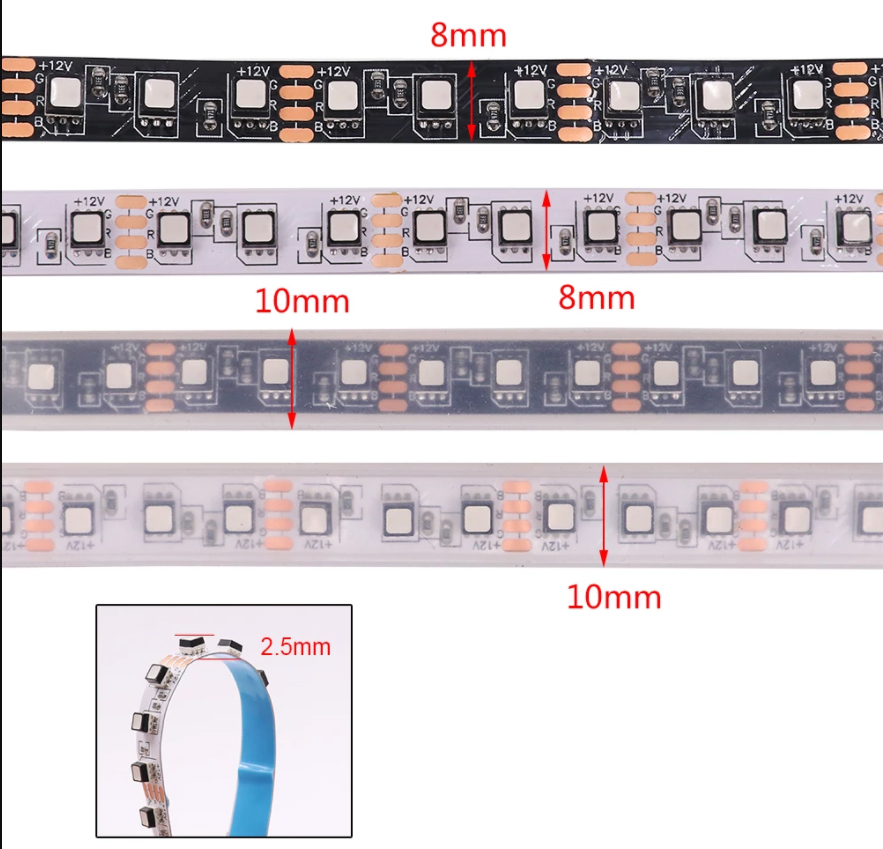

|Dimensions:||L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.25cm(0.10 in )|

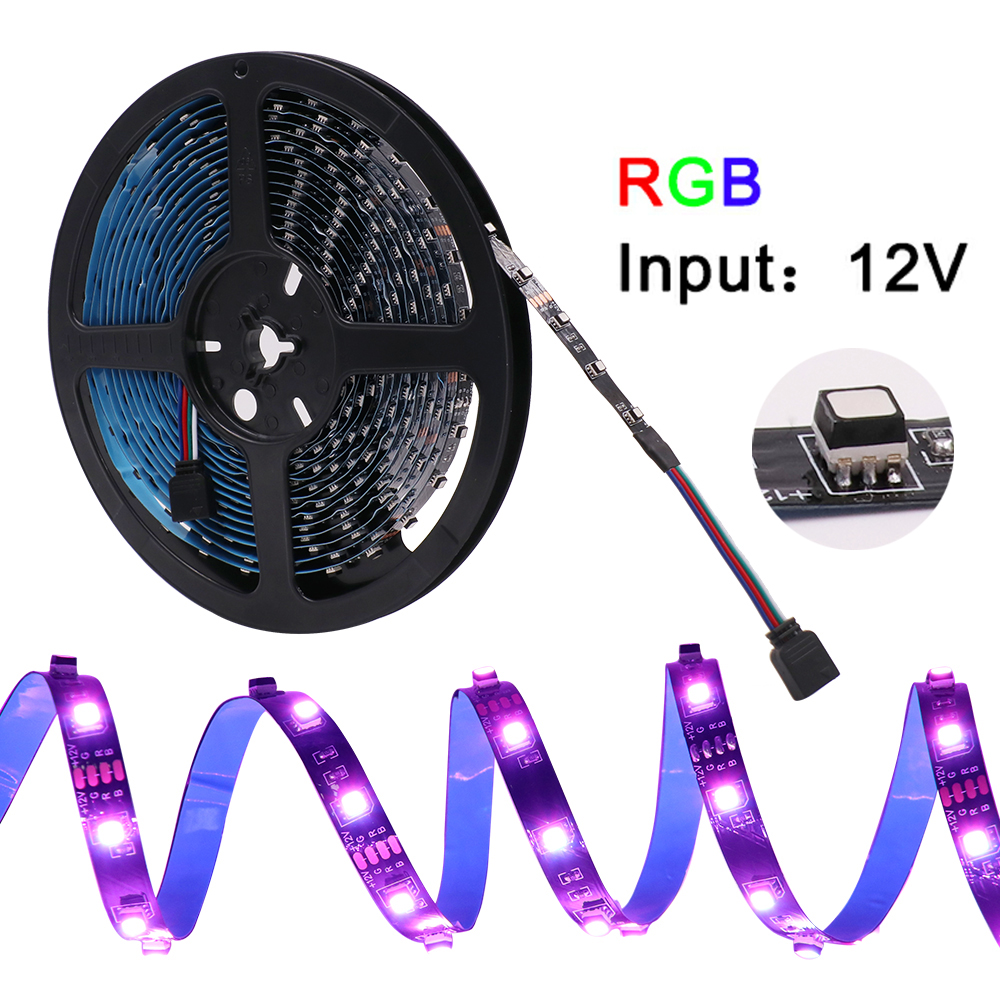

|Input Voltage(V):||12 VDC|
|Working Power:||90W /16.4ft Max|
|Lamp Luminous Flux(lm):||12 lm/LEDs 3600 lm/16.4ft|
|Beam Pattern:||120 degree|

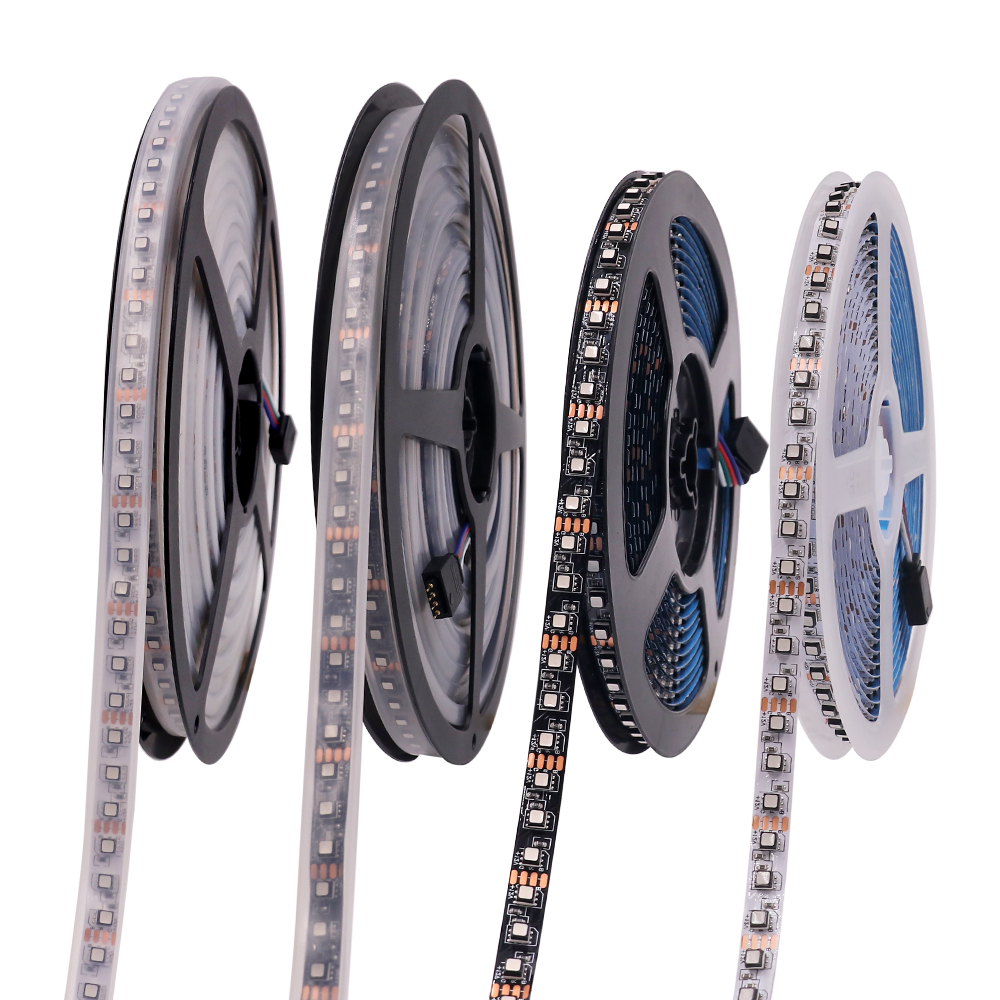

|Waterproof:||Non-Waterproof IP20, waterproof IP67|
Applications - How To Wire RGB LED Strip Lights?
LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
