4 Zones Touch panel 0/1-10V Dimmer T18-1 For led strip lights solar

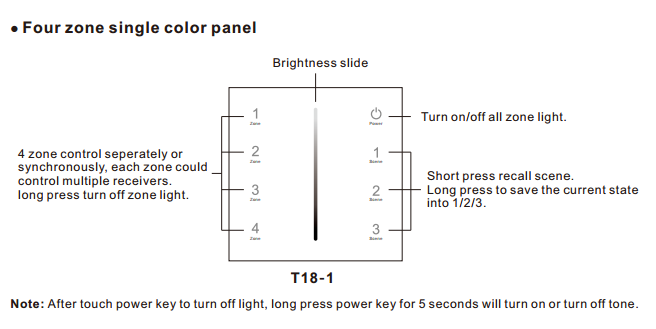

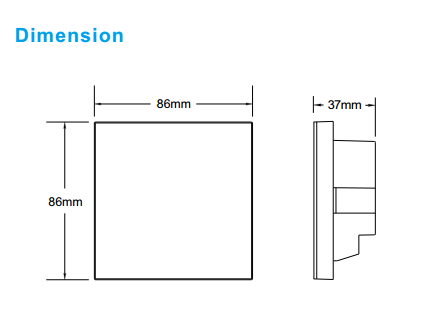

0-10V dimmer T18 / T18-1 is a full touch LED controller which outputs one or four channel 0-10V signal, offers both switch on/off and dimming functions. Adopting high strength ultra sensitive touch glass panel, fast and accurate brightness adjustment with unique design touch slide. 0.1% to 100% smooth dimming range without any flickering can be very comfortable for human eyes. Back lighting function enables the touch panel to be found even in the dark. The touch dimmer is powered by AC input and can be compatible with existing standard size 86*86mm wall boxes.
