Product Information

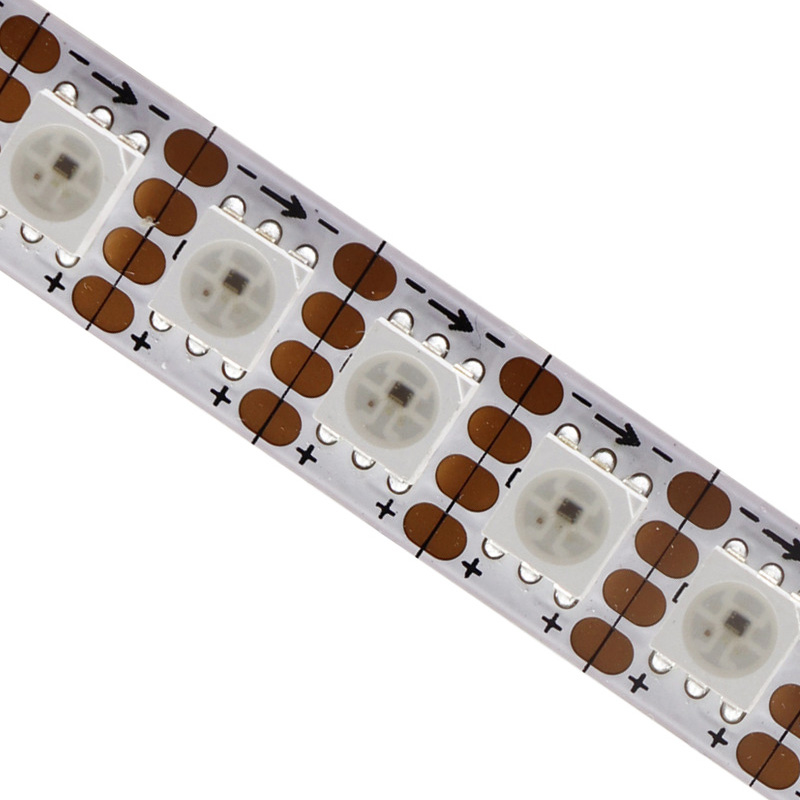

This RGB addressable LED strip is one of the most reliable LED strip lights for commercial use, controlled by SK6813 IC chips. It uses two signal lines for data transmission, with breakpoint resume function. Each LED integrates a SK6813 for independent control. And the built-in constant current driver circuit provides signal shaping and current protection.
The SK6813 LED strip operates at 12V, suitable for long-distance lighting projects. Each LED chip is externally paired with a resistor and a capacitor, which help to stabilize the voltage and suppress current fluctuations. SK6813 supports compatibility with a variety of master control chips (e.g., Arduino, ESP32), making it easy to realize a variety of dynamic lighting effects or complex display functions.
SK6813 is similar to GS8208 and WS2815. All three of them have breakpoint continuous transmission function, built-in constant current driver circuit, strong anti-interference ability, and are suitable for engineering projects requiring outstanding performance. In contrast, SK6813 is an ideal choice if you need high precision, high stability and flicker-free illumination, suitable for 5V or 12V lighting projects.
If select kit, you will receive SP530E LED controller and LRS-100-12 power supply with an AC plug.
Features of SK6813 LED strip
1. Built-in IC, Individually addressable, 256 levels of grayscale.
2. Breakpoint resume function, stronger anti-interference ability.
3. Built-in constant current driver, One resistor and one capacitor for one LED, more stable output.
4. High refresh rate, suitable for fast response dynamic lighting.
5. 12V Long-distance design instead of 5V.
6. Wide compatibility: supports a variety of control platforms (such as Arduino, and Raspberry Pi).
Product Specification
| Product Type: | Dual Signal Independently Addressable SK6813 LED Strip |
| LED Chip: |
5050SMD, SK6813 IC (1 IC drives 1 LED)
|
| Input Voltage: | DC 12V |
| Length: | 5m/16.4ft per roll |
| LED Quantity: | 60 LEDs/m, 300 LEDs per roll, each LED can be cut (16.6mm/0.65in) |
| LED Color: | Addressable RGB |
| PCB Width: | 10mm/0.39in |
| Power: | 8.3W/m |
| Beam Pattern: | 120 degree |
| Waterproof Rating: | Non-waterproof IP20, Splashproof IP65, Outdoor Waterproof IP67, Underwater IP68 |
| Lifespan: | 50,000+hours |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
4-pin dual signal SK6813 RGB LED strip wiring diagram:
