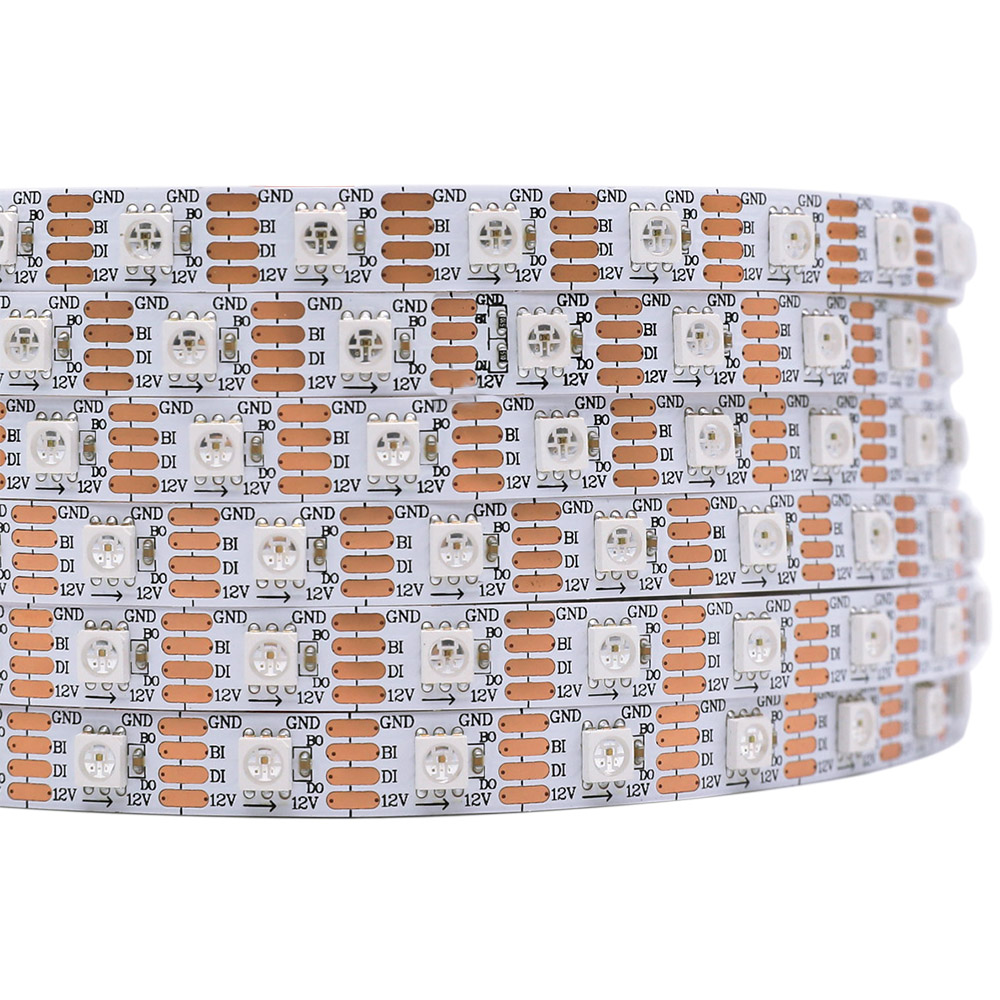

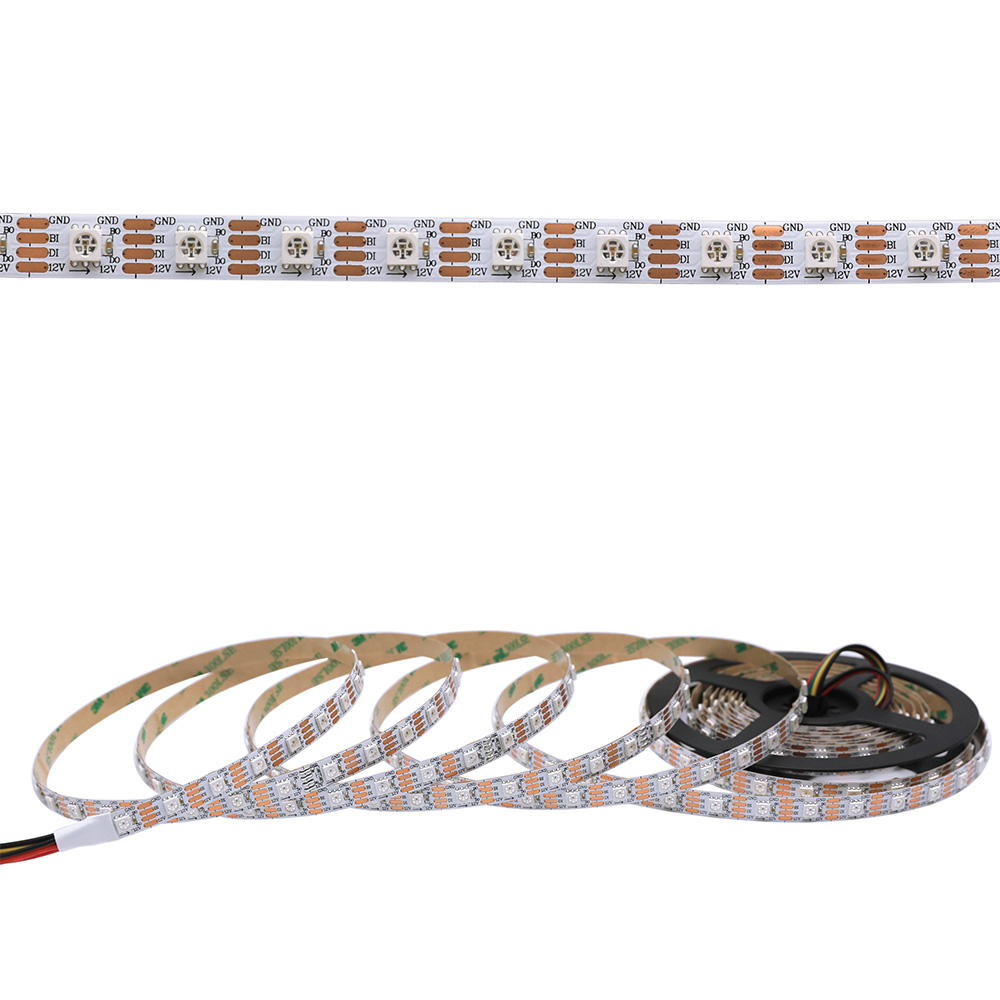

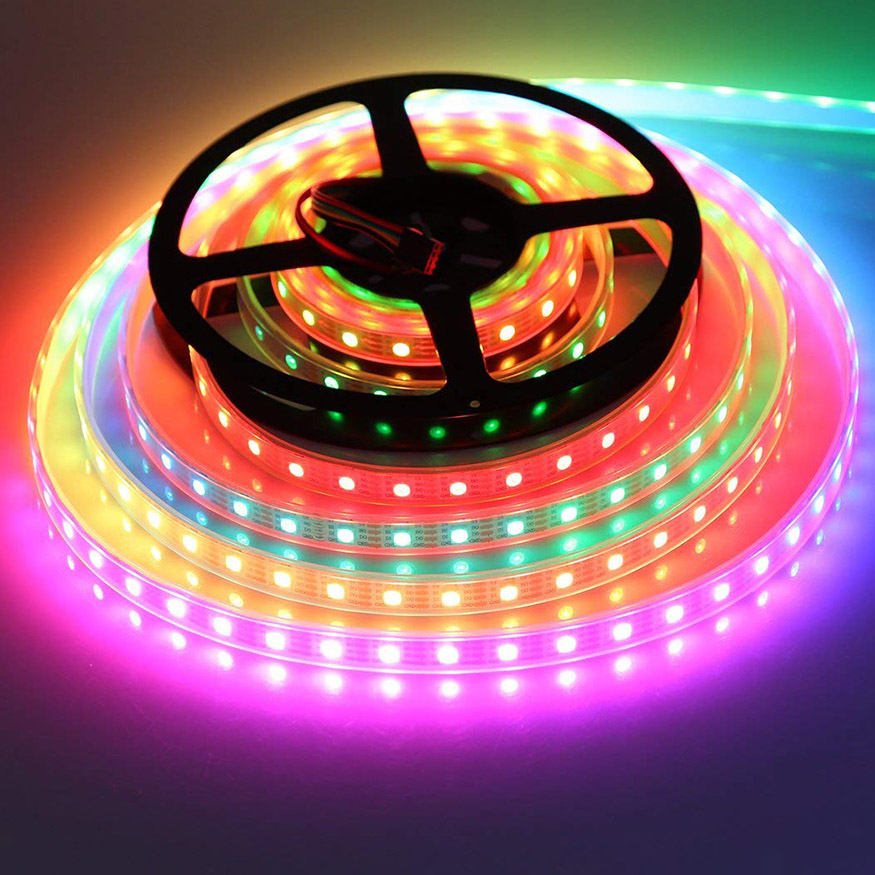

DC12V CS8812 5050SMD RGB Breakpoint Continue 300 LEDs Individually Addressable Digital Strip Lights, Waterproof Dream Color Programmable Flexible LED Ribbon Strip Lights
1. The voltage of CS8812 is 12V, without original programme, and it is individually addressable, breakpoint- continue, and it is replaced with WS2815.
2. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected. It is equipped with a 4-pins JST-SM connector with two separate power/ground terminals.
3. GAMMA correction module, PWM up to 8KHZ refresh frequency and provides an output channel for current dislocation processing methods, which can reduce power clutter and electromagnetic interference.
4. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness, cleaner, lower energy consumption and more beautiful.
5. Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.

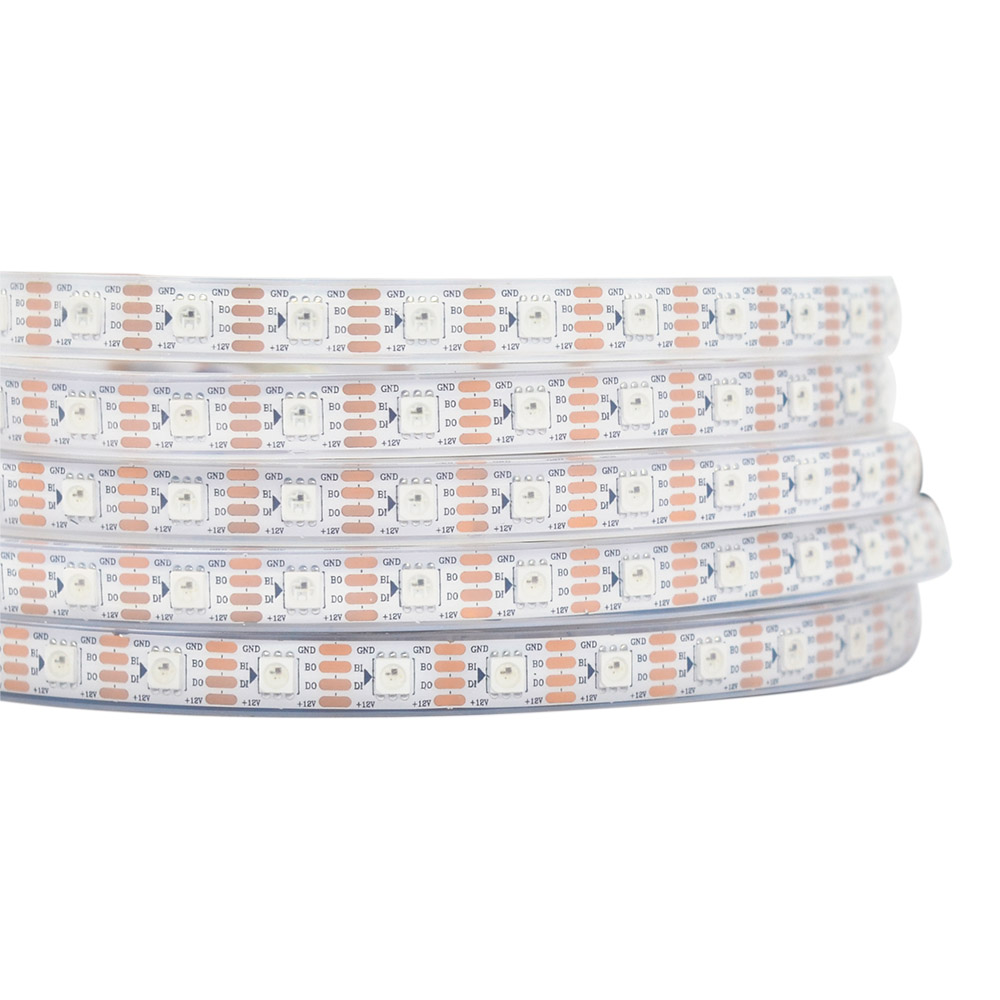

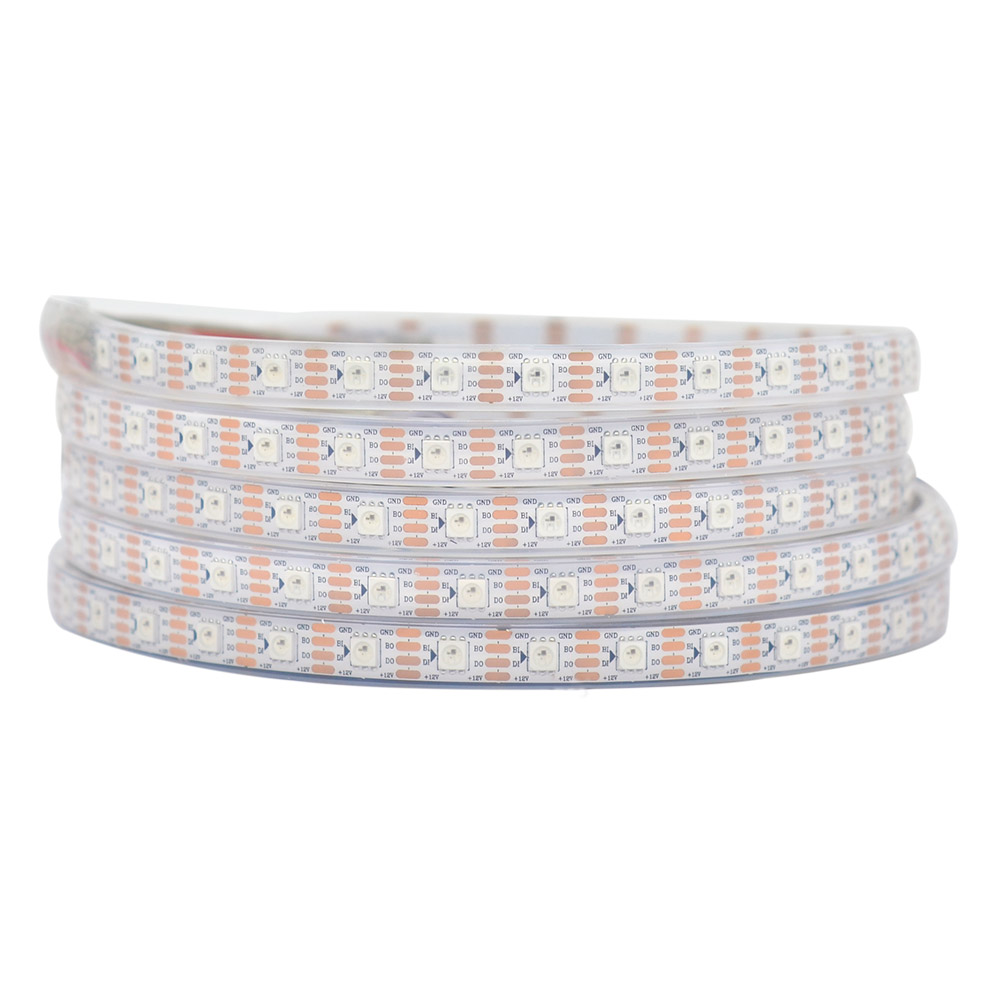

6. with the DC12V power supply, the protection rating level is more secure: IP20 IP65 IP67, no-radiation, a wide range of use, strong impact resistance, multi-color, it is a completely new generation of green high-tech products.
Standards and Certifications

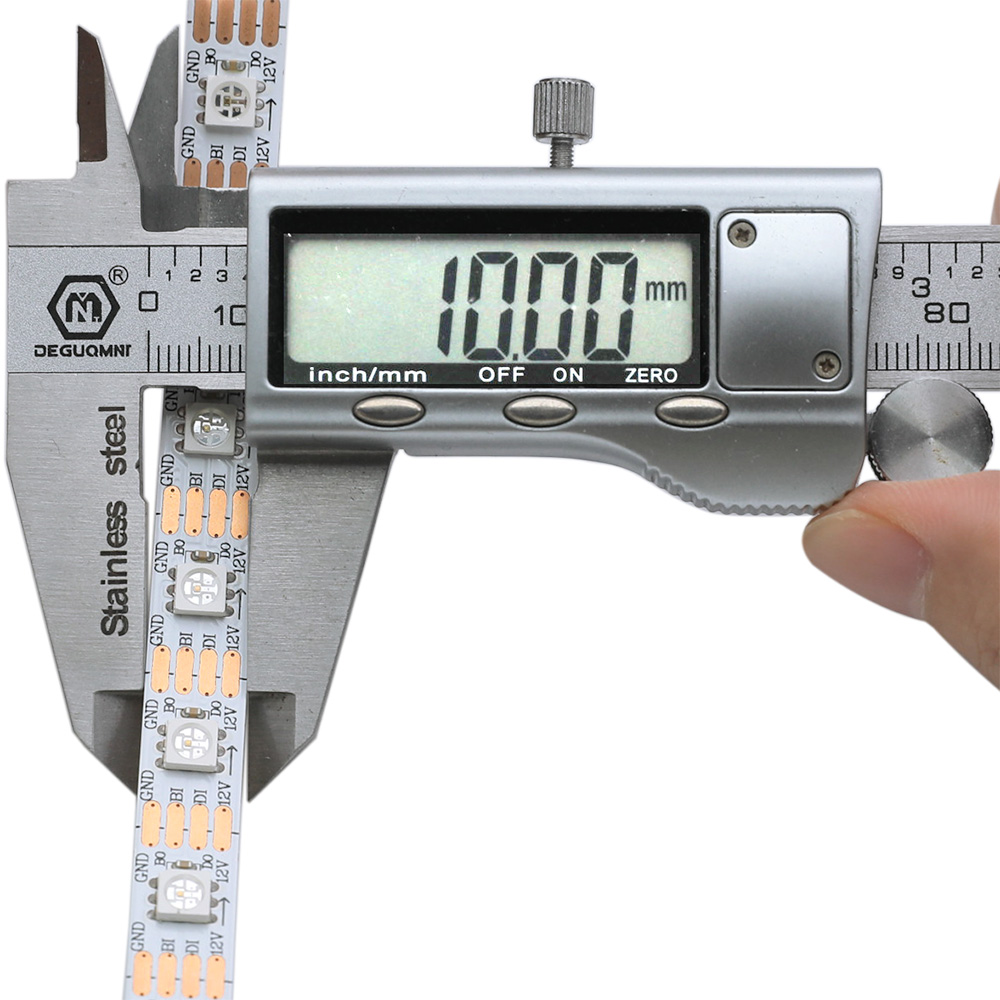

Note: Size of IP20: 12mm W* 2.5mm H, Size of IP65: 10mm W * 4mm H, Size of IP67: 12mm W * 4mm H.
Waterproof Level Description

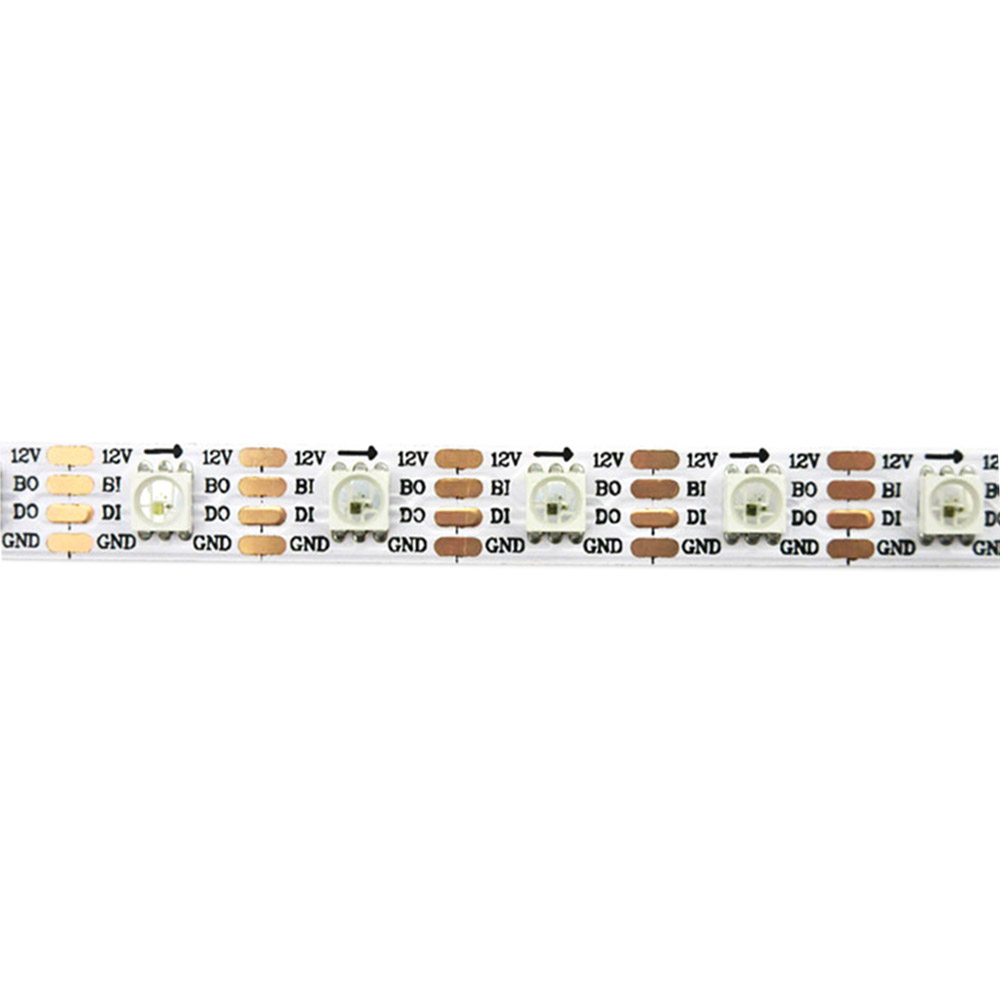

DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding

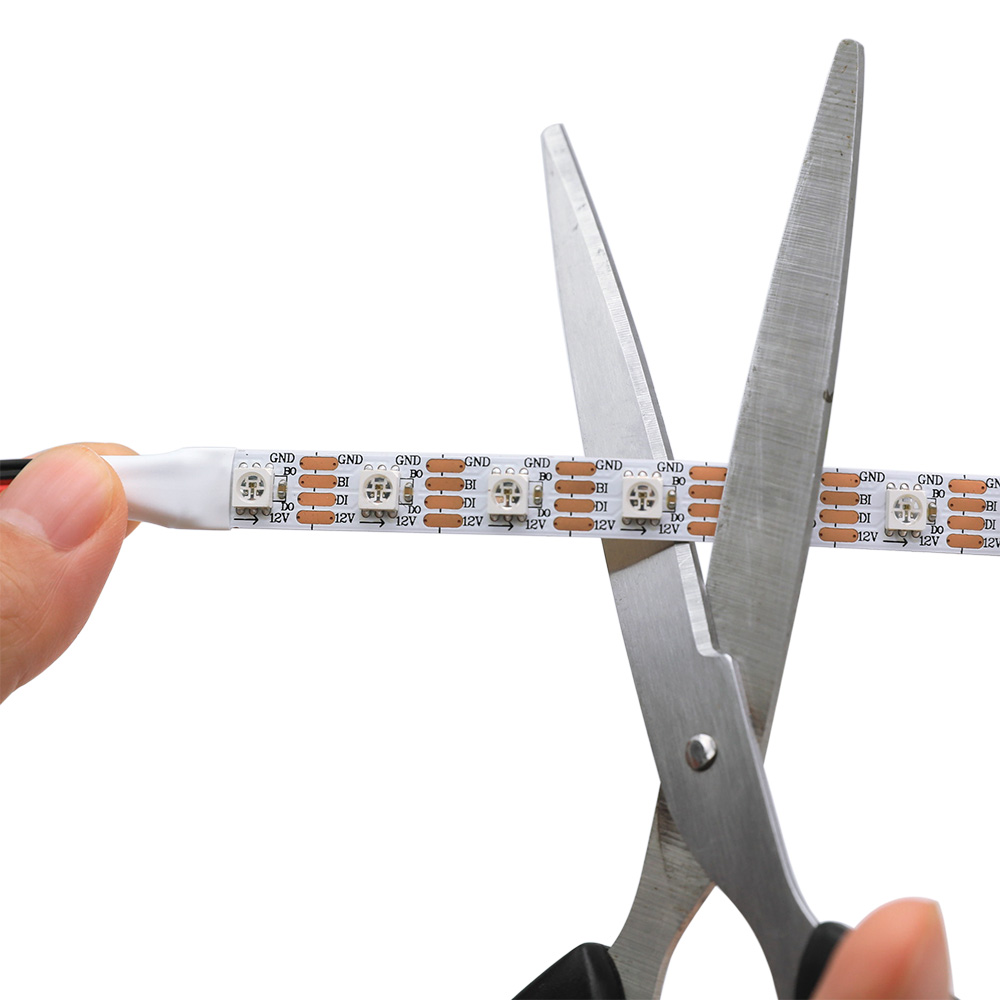

Strip cut schematic
LED strip wiring diagram

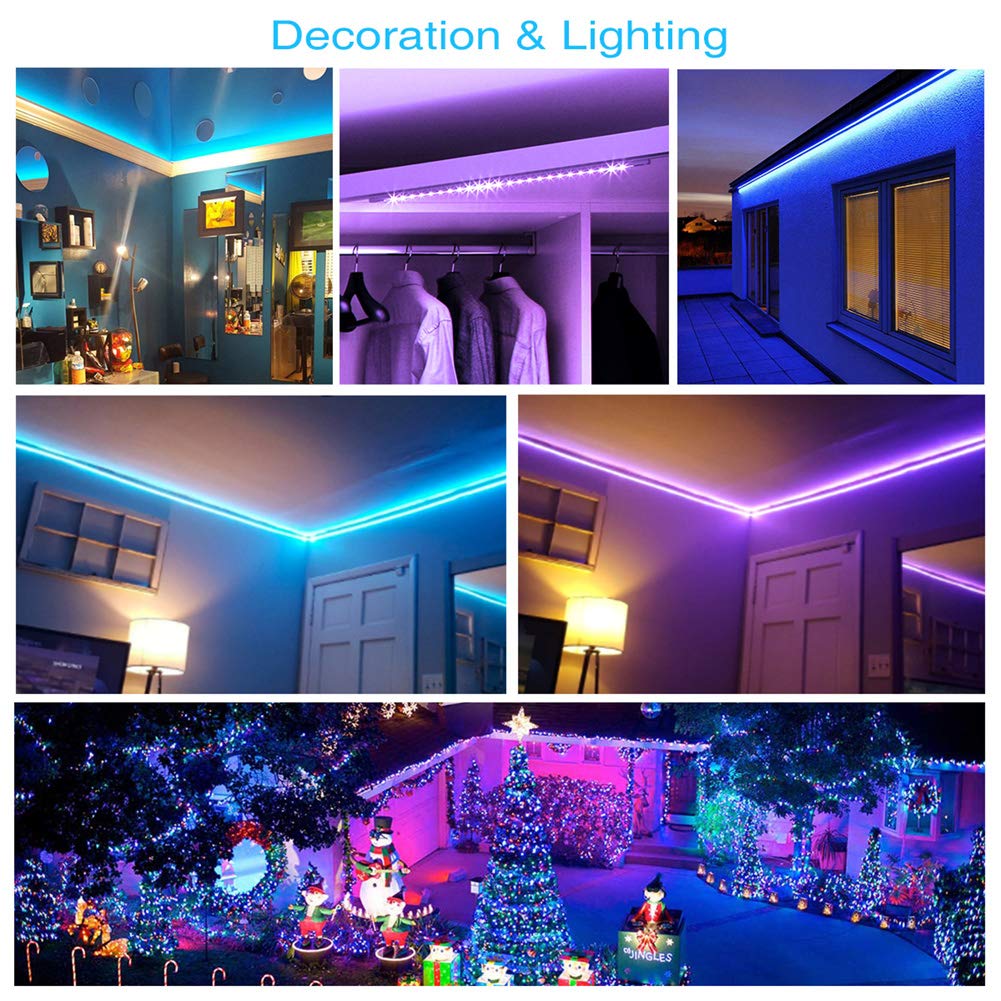

These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
