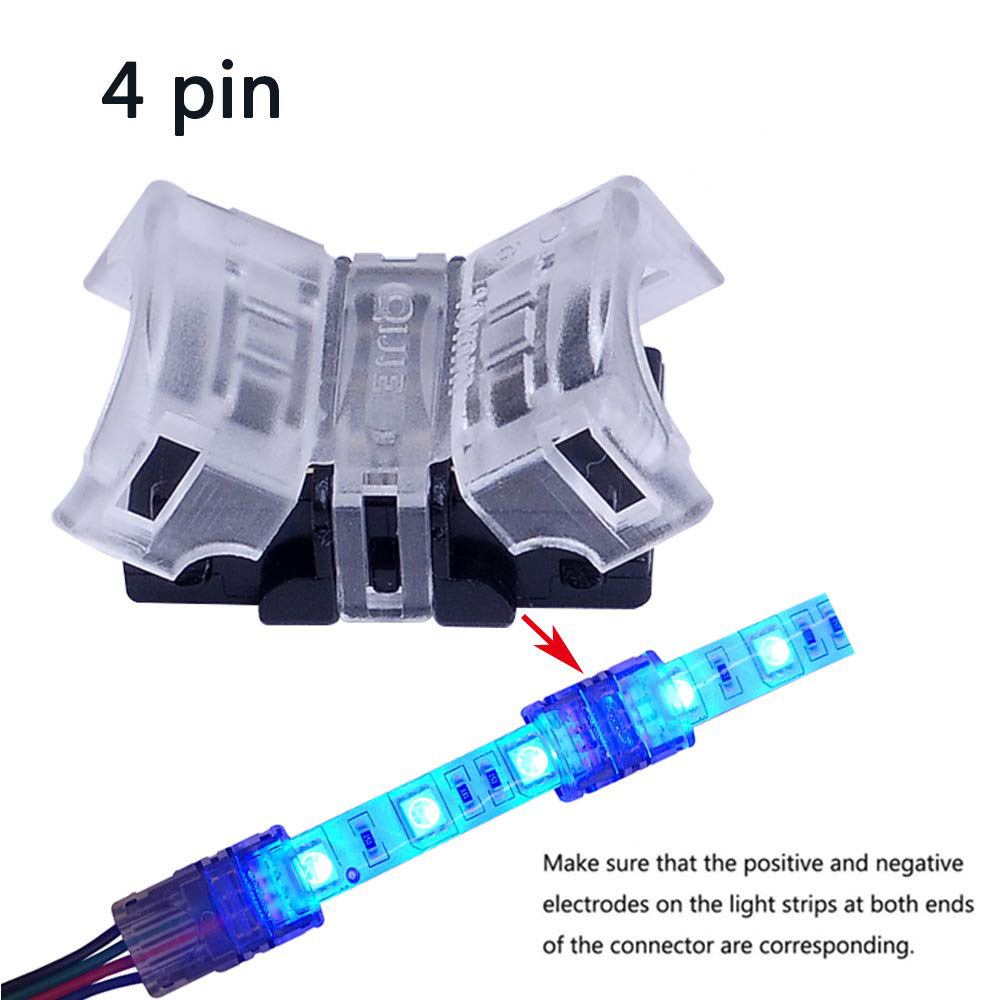

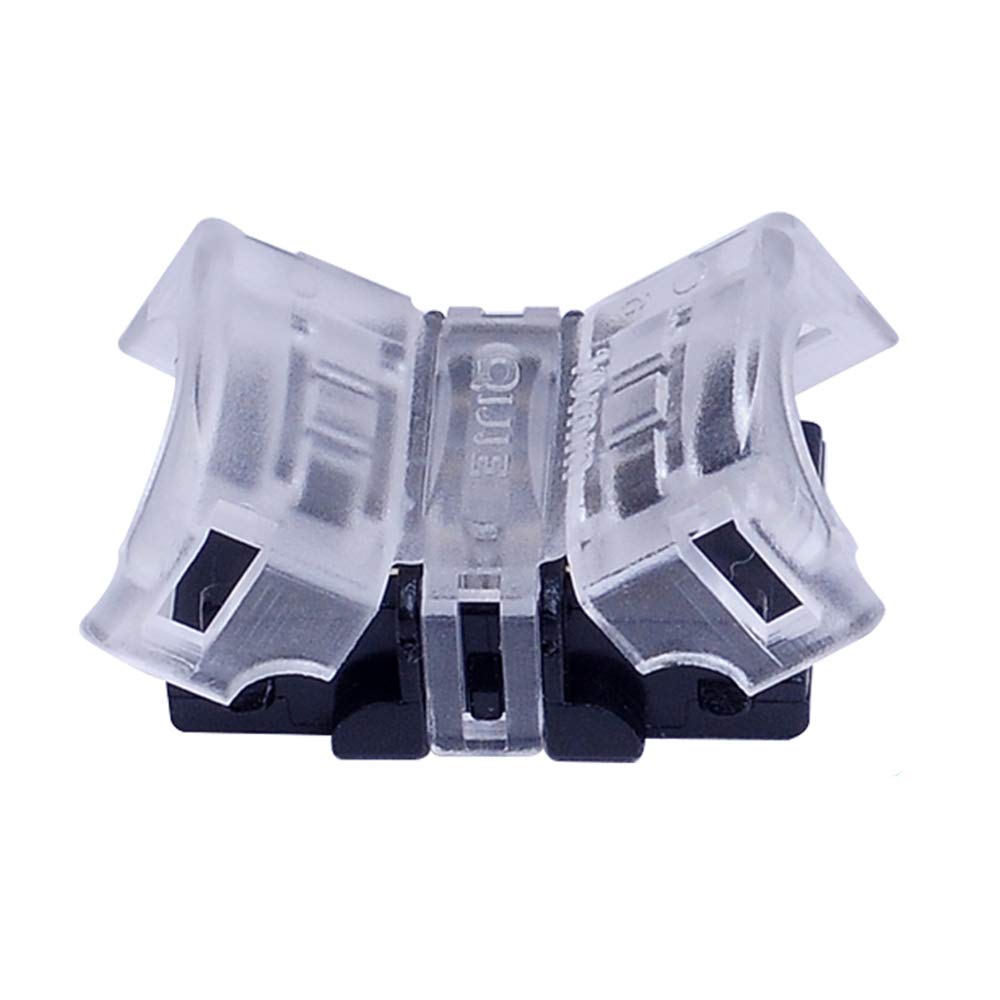

RGB LED Strip Connector 4 pin Solderless Hippopotamus Connector, PCB to PCB, Applicable to 5050 10mm RGB or WS2813 WS2815 WS2818 LED Strip Lights
This LED Strip Connector Suitable for 4 pin 10mm 5050 STANDARD WATERPROOF LED strip lights, Make strip to strip joint connection between 2 section of light strip
Connect strip to strip: Solderless, No need to peel off Silicon cover on strip lights.Quick and flexible work for LED Strip Light projects
Firmly bite through the strip, don’t like traditional connector only conductive connection, it is a solid connection and much stronger
Saves 2/3 time on strips connection and wires installation,specially mixed connection projects
Refund guarantee.Our products have a 30-day refund guarantee.If you are not satisfied with this project, we will refund your purchase price immediately.
NOTE: 1.Make sure your section of LED light strip is 10MM wide 5050 RGB STANDARD WATERPROOF LED Strip Light.
2.Updated version of LED strip connectors, assemble wire by yourself as needed, flexible to different project! No need to solder. Just clasp your prepared led strip section into the connector to get connected. Connect waterproof LED strip without removing surface coating silicon gel, compatible with 30-120 LEDs/M strip, made of flame retardant material, safely use. Support high current LED strip lights.
Strip End Connection:

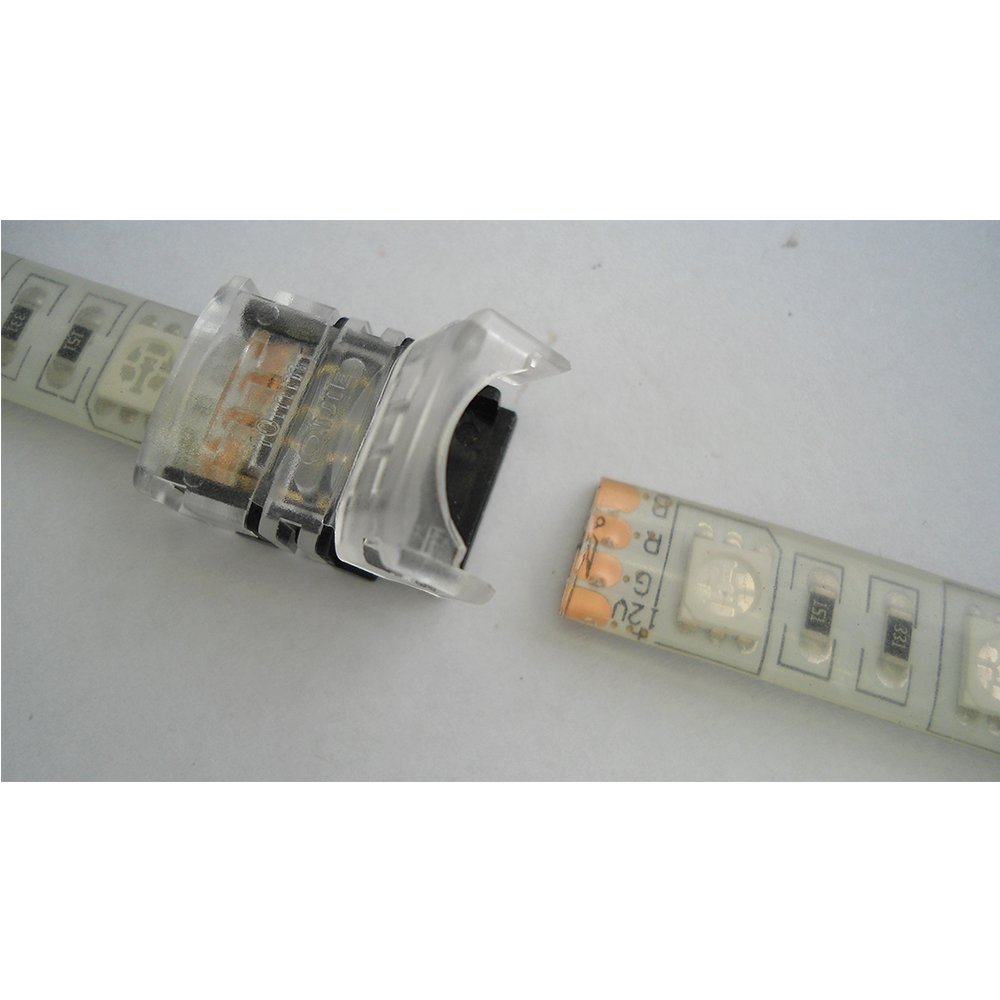

1.Open the transparent cover of connector up to 90 degrees.
2. The key to a successful connection is to make sure that the adhesive paper strips of the RGB are stripped, then the clamp is fully opened, the strip is pushed in until it touches the backing, and then completely closed.To ensure 100% water resistance, once the LED strip is clamped in, a silicone sealant can be applied to the entire clip.

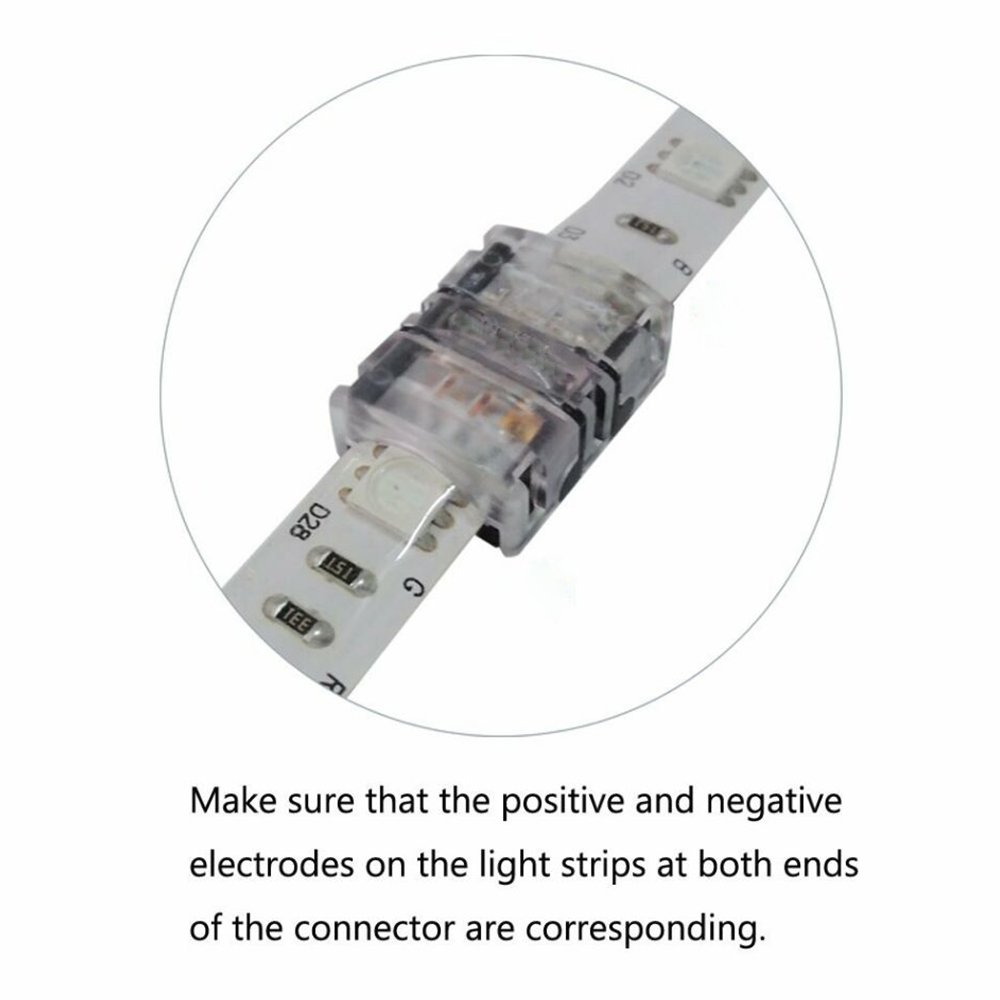

3..Ensure your section of LED light strip is WATERPROOF SMD 5050 LED Strip and has 4 contacts (+, B, R, G).All the contacts are clean.

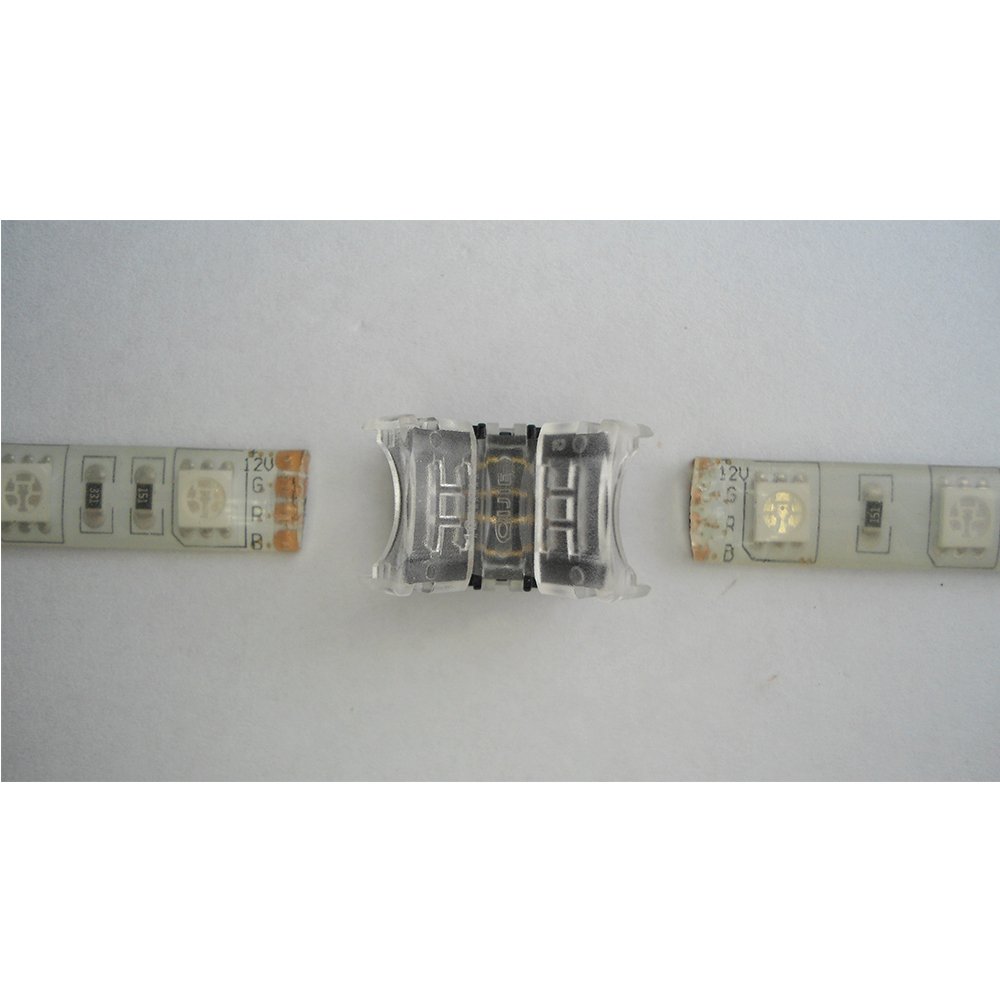

4.Insert the strip section to the end of strip side of connector, keep the PU surface face up.

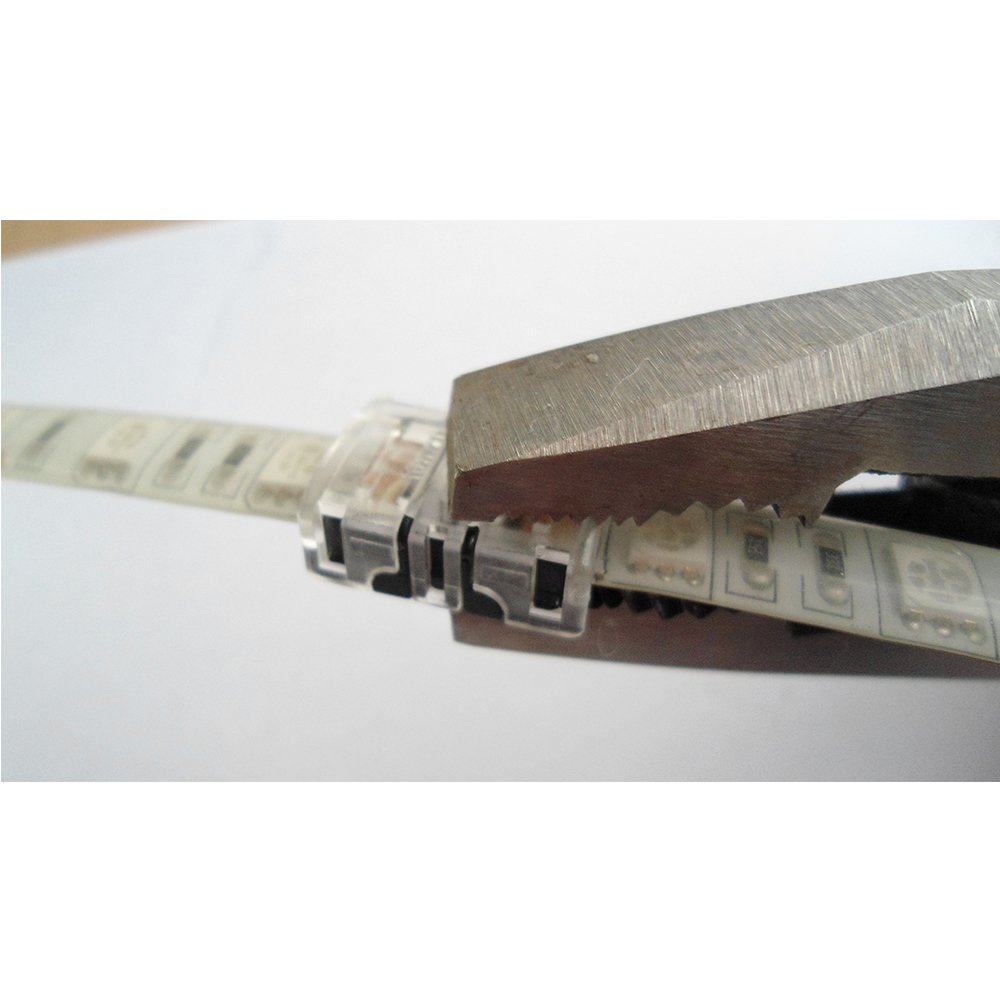

5.Close the transparent cap with a plier until it is fully seated on both sides of the bottom base.
