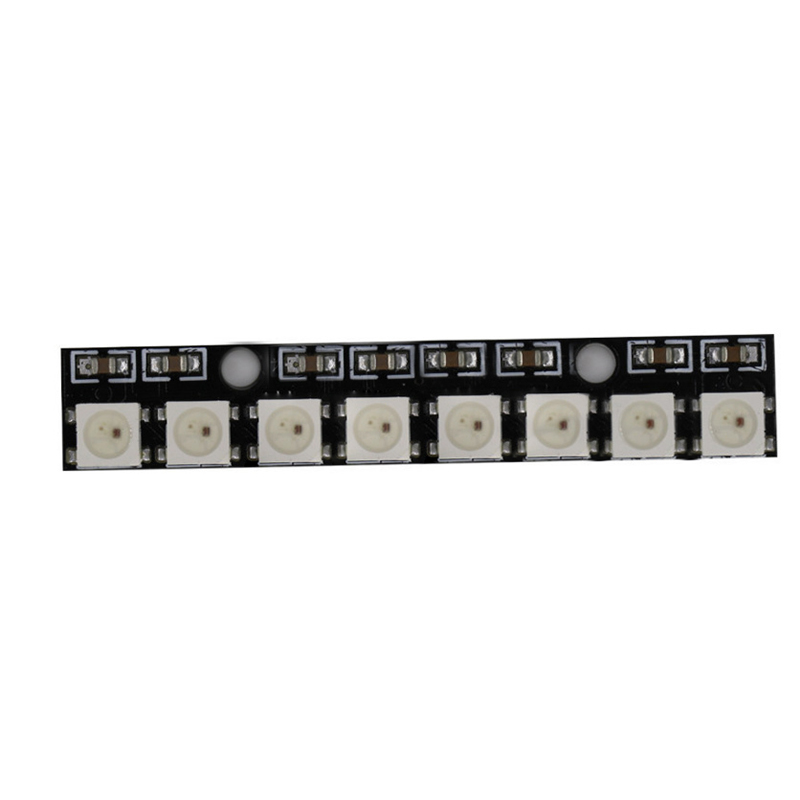

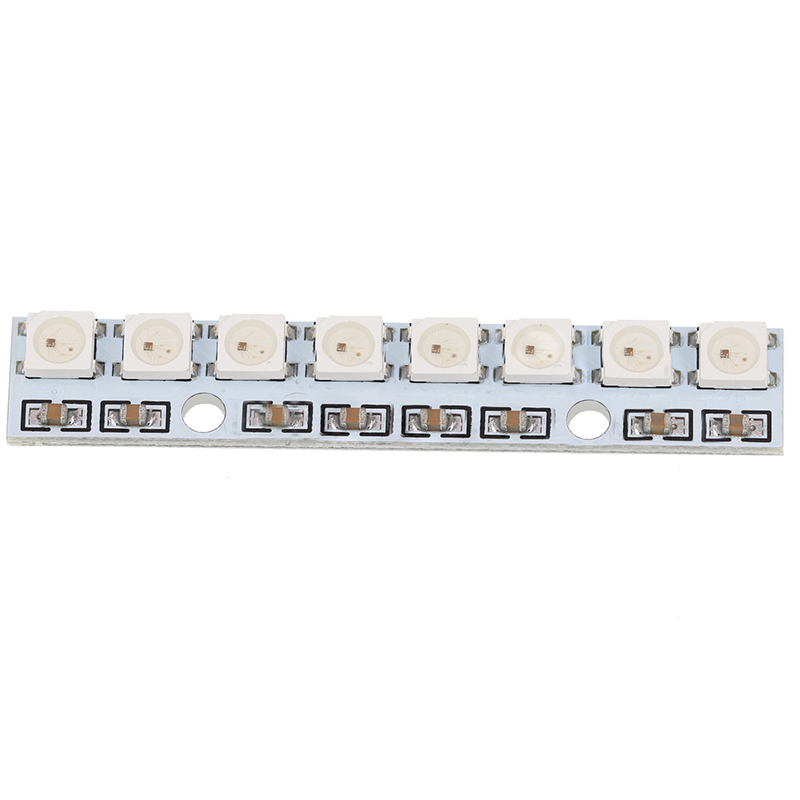

WS2812 Straight Neopixel 8*5050 RGB Addressable LED With Integrated Drivers
Adafruit neopixel with intelligent reverse connection protection, power reverse connection will not damage the IC
Neopixels's IC control circuit and LED point light source share a power supply
The control circuit and the RGB chip are integrated in a 5050 packaged component to form a complete external control pixel
Built-in signal shaping circuit, any pixel will receive the signal after waveform shaping and then output to ensure that the line waveform distortion will not accumulate
Built-in power-on reset and power-down reset circuit
The three primary colors of each pixel can achieve 256 levels of brightness display, complete the full true color display of 16,777,216 colors, and the scanning frequency is not less than 400Hz/s
RGB lights can be simply cascaded from one output pin to another input pin
Serial cascade interface, can complete data receiving and decoding through a signal line
No need to add any circuit when the transmission distance of any two points is less than 5 meters
When the refresh rate is 30 frames per second, the number of cascades is not less than 1024 points
Data transmission speed can reach 800Kbps
The driving current of each lamp is the same, so the color of each lamp is highly consistent, even if the voltage changes, it will not affect the brightness of the lamp beads.
Main application areas:
LED full-color luminous character string light, LED full-colour module, LED full-colour flexible light bar, hard light bar, LED guardrail tube.
LED point light source, LED pixel screen, LED special-shaped screen, various electronic products, electrical equipment marquee.
Standards and Certifications
Shell Shape: Straight
LED Quantity: 8leds
PCB Color: Black/White
IC Chip: WS2811
LED Model: 5050
