Individually Addressable White LED Strip WS2815 144 LEDs/m

Name: Individually Addressable White LED Strip WS2815 144 LEDs/m
Brand: SuperLightingLED
SKU: DCFLS-12V-WS2815X144-W
Price: 20.98 USD
Availability: InStock

Model: DCFLS-12V-WS2815X144-W Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $20.98

Qty Discounts Off Price
1-19 $20.98	20-49 $20.56	50-99 $19.93	100+ $18.88
* Discounts may vary based on options below

Select Specifications:

Select Light Color :

Select PCB Color :

Select Operating Voltage:

12VDC

Select Length:

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

The highest density digital WS2815 white led strip, with 144 SMD5050 LEDs per meter. DC 12V input and each white LED individually addressable. The addressable white light of this 144LEDs/m WS2815 led strip enables each LED to be independently controlled for brightness and light on/off state independently, and through reasonable programming by the digital led controller, various dynamic warm white or daylight light effects can be realized.

The flexibly controllable addressable WS2815 warm white 3000K or WS2815 daylight 6000K led strip can help mall, exhibition, stage, and building lighting to attract the people's attention and enhance the dynamic visual effect. DMX to SPI signal converter makes this white WS2815 led strip can also be connected to the DMX 512 lighting control system.

1m/roll, 2m/roll, 3m/roll, 4m/roll, and 5m/roll lengths are optional.

Please note that for black background PCB, we need 1-2 days to produce.

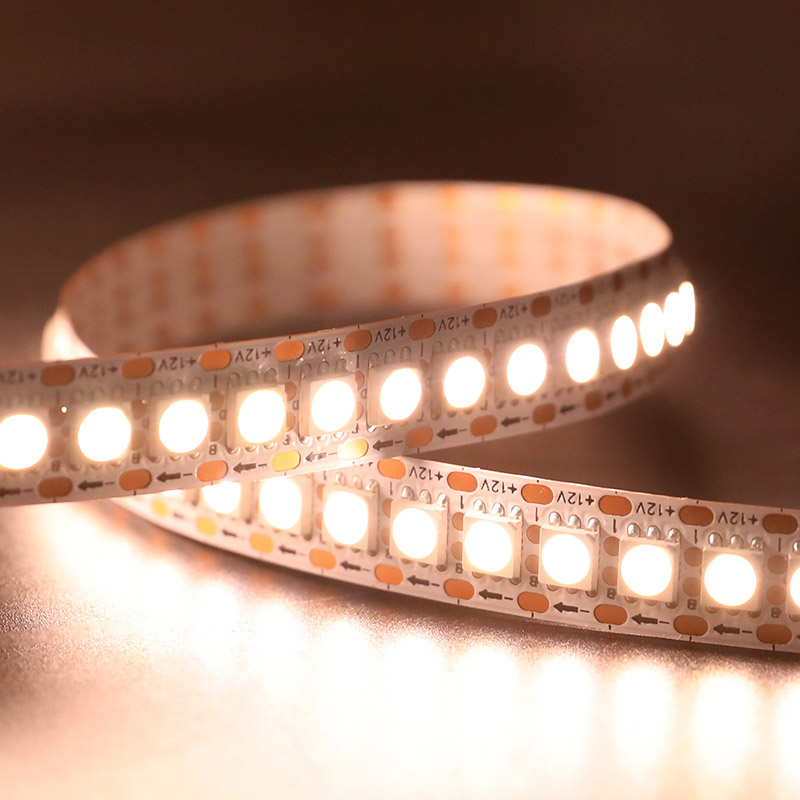

Individually Addressable Daylight White LED Strip WS2815 144 Individually Addressable Warm White LED Strip WS2815 144

WS2815 LED Strip Datasheet Download

Specifications

DC12V

LED Strip Type:	Individually Addressable WS2815 White LED Strip
LED Chip:	WS2815 Breakpoint Resume + SMD5050
Input Voltage:	DC12V
Power:	28.8W/m max
LED Color:	3000K Warm White, 6000K Daylight
PCB Width:	12mm/0.47"
LED Quantity:	144 LEDs per meter
IC Quantity:	144 IC/meter (1 IC drives 1 led chip)
Dimensions:	W1.2cm(0.47 in ) x H0.25cm(0.10 in )
Waterproof Rating:	Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68
Lumen:	20-22 lm/LED

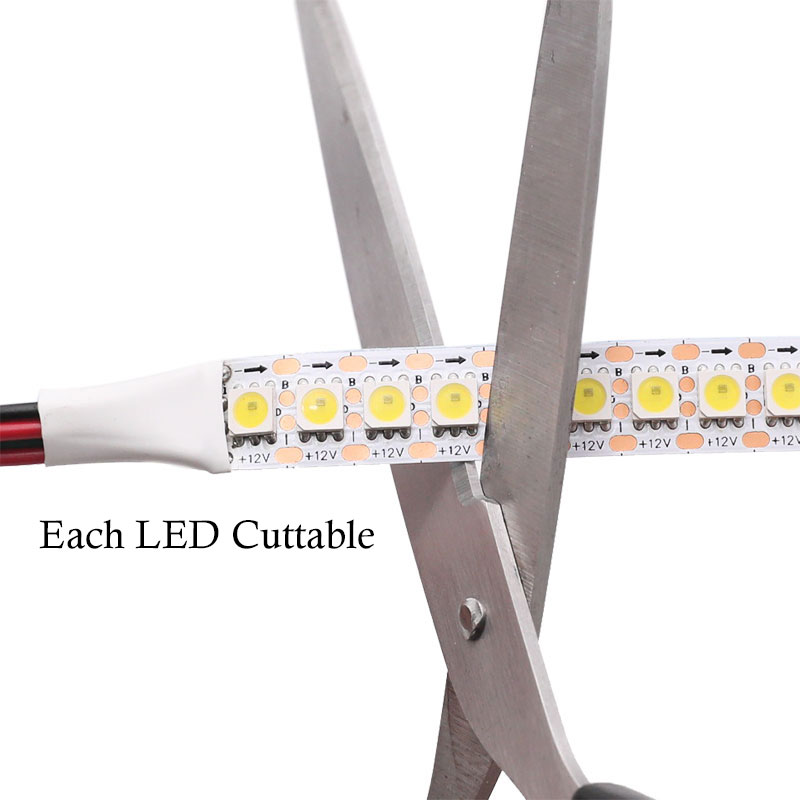

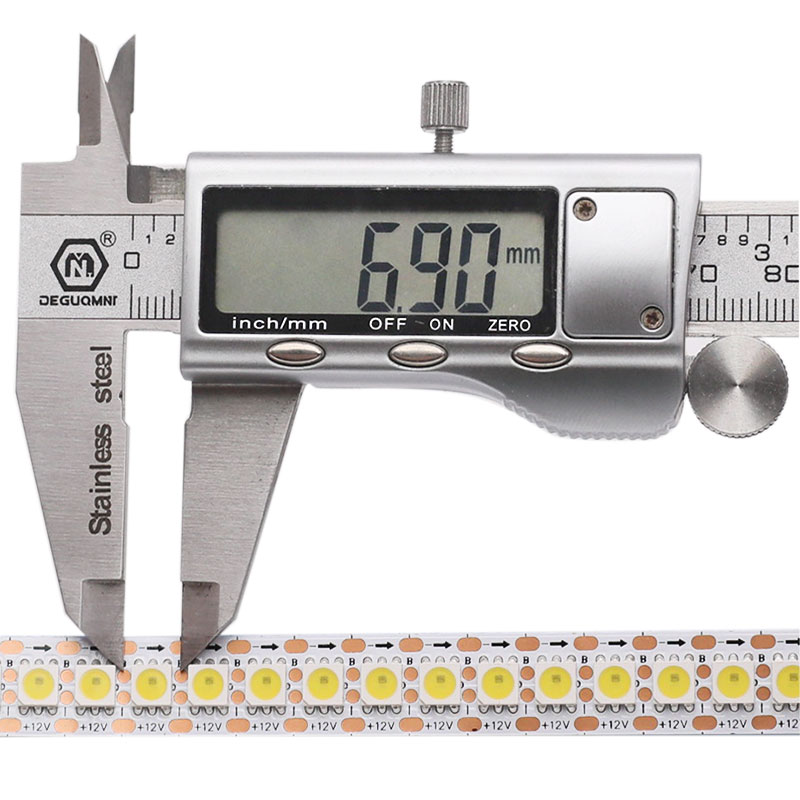

Cuttable:	1-LED, 6.9mm/0.27"
PCB Color:	White
Beam Angle:	120°
Lifespan:	≥50000hrs

WS2815 Dual Data Signal

WS2815 dual data signal

WS2815 White LED Strip Wiring

The BLACK ARROWS on the WS2815 tape tell the transmitting direction of the signal. When running more than one roll, it should be run strictly follow the Arrow point direction. If connected oppositely, the digital strip will not work.

WS2815 144leds/m led strip details

DMX Control WS2815 White Lights

DMX 512 control WS2815 led lights

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DCFLS-12V-WS2815X144-W

PDFDCFLS-12V-WS2815X144-W product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

This model runs on 12VDC. 5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
