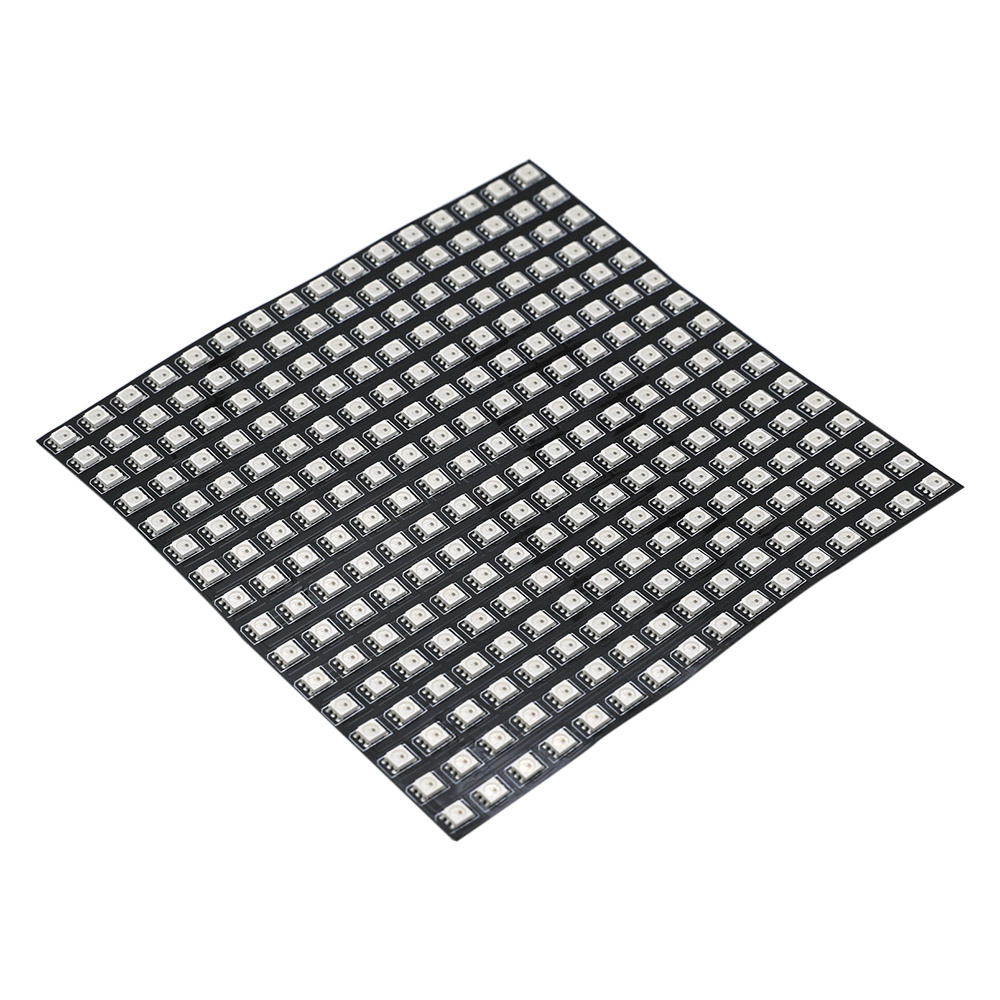

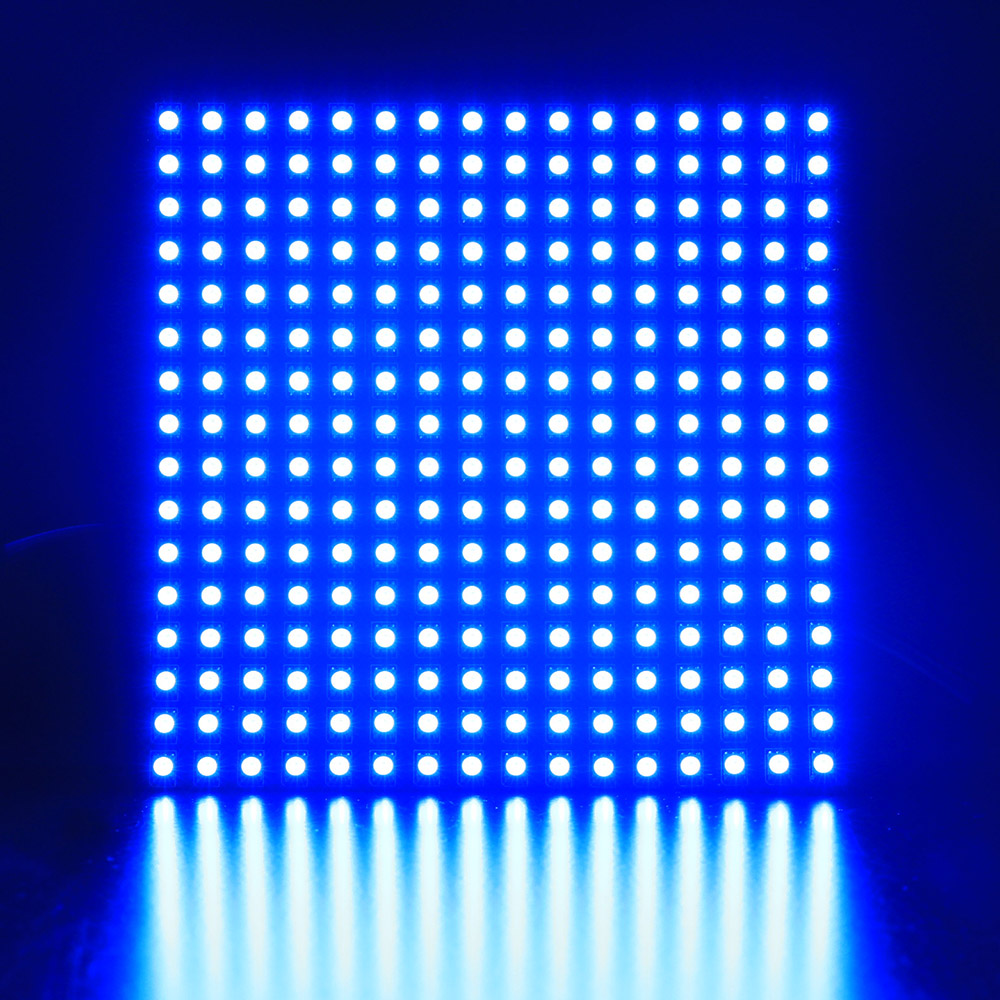

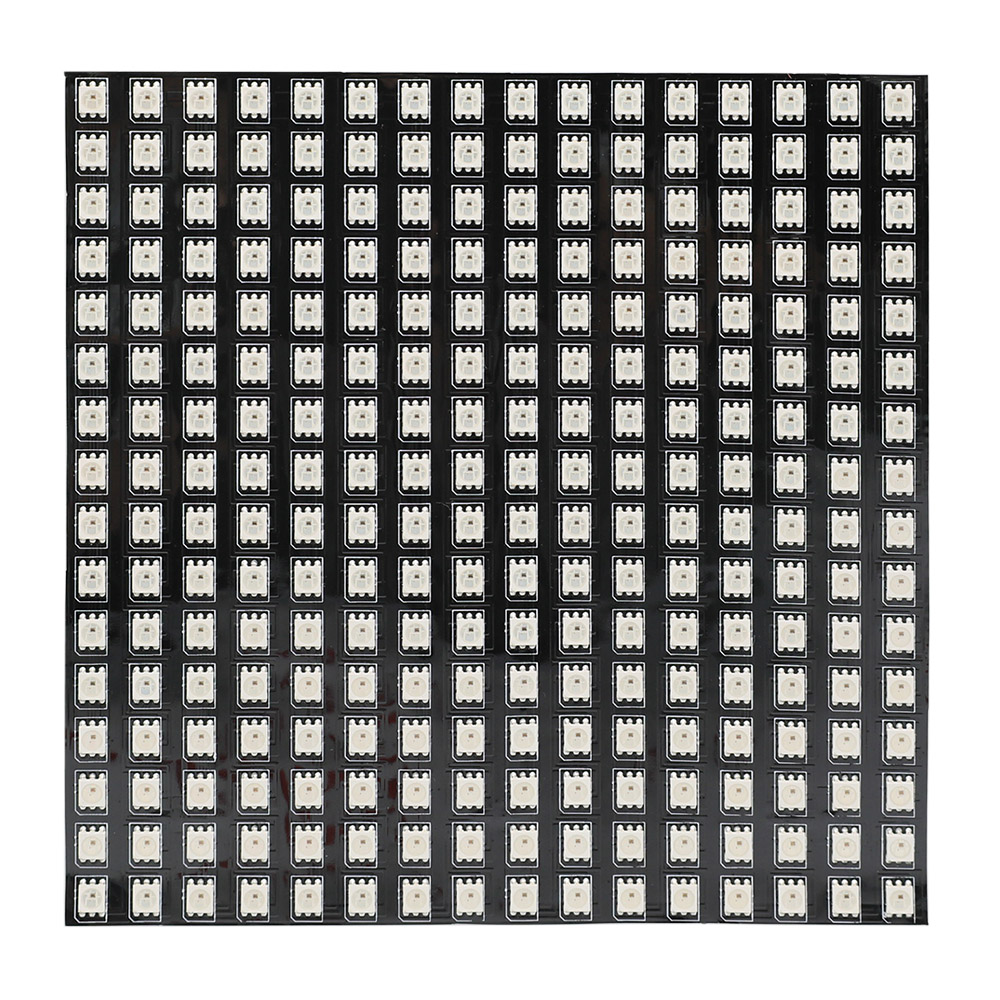

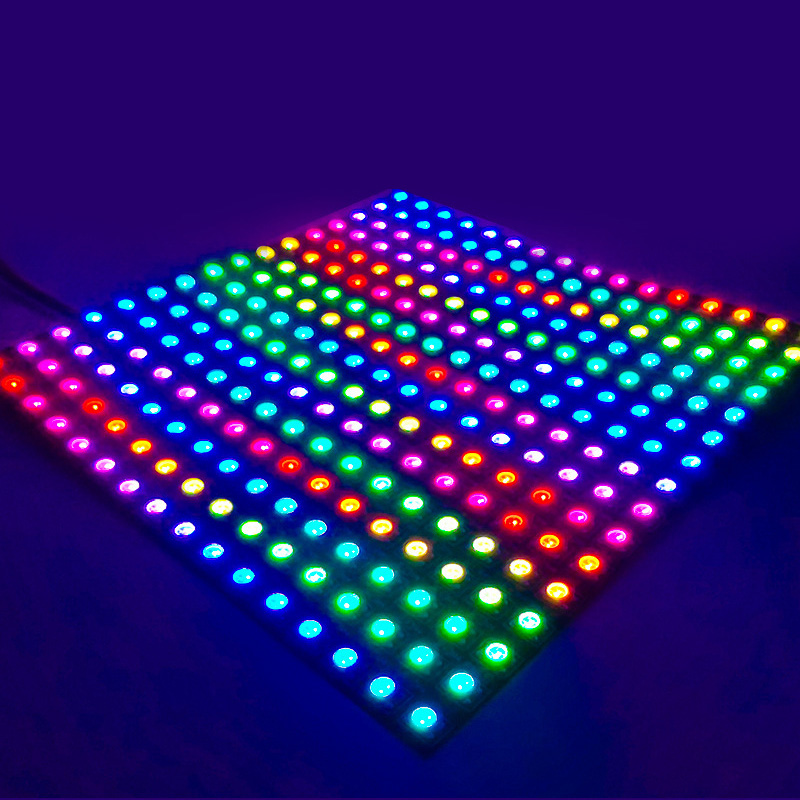

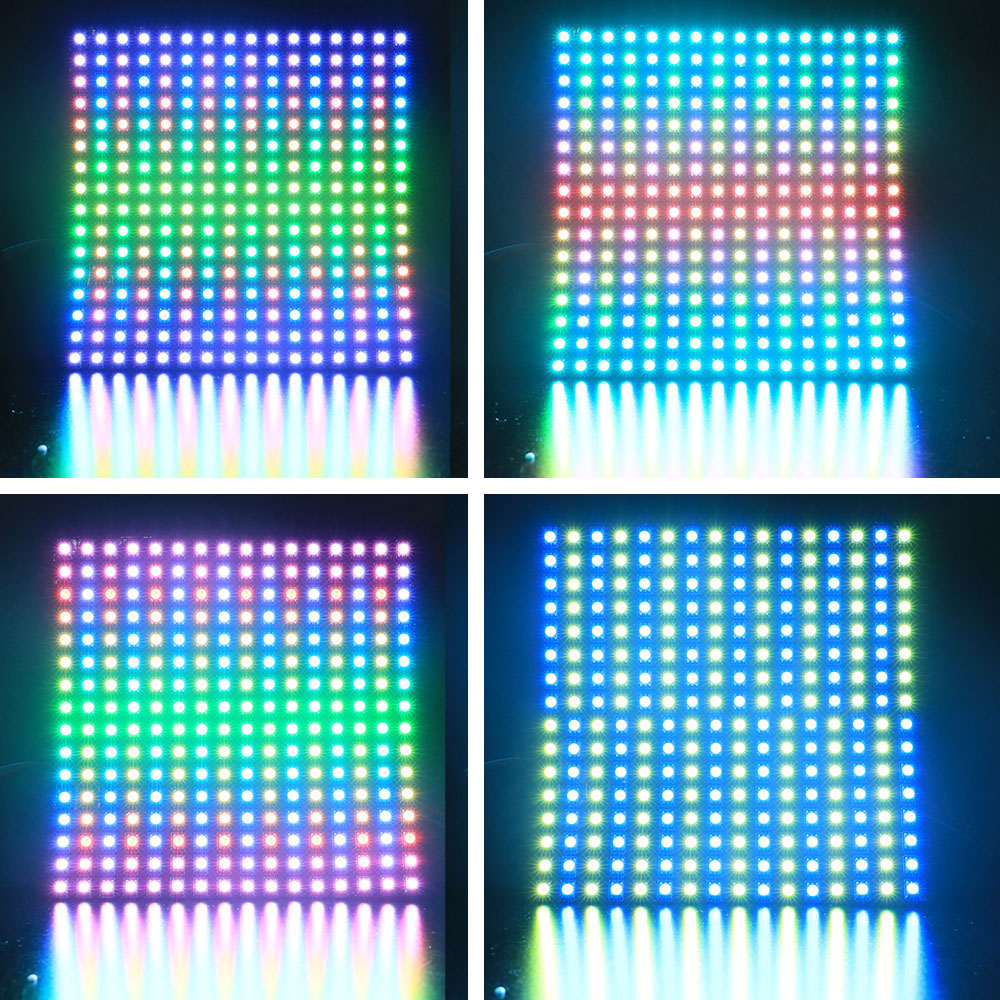

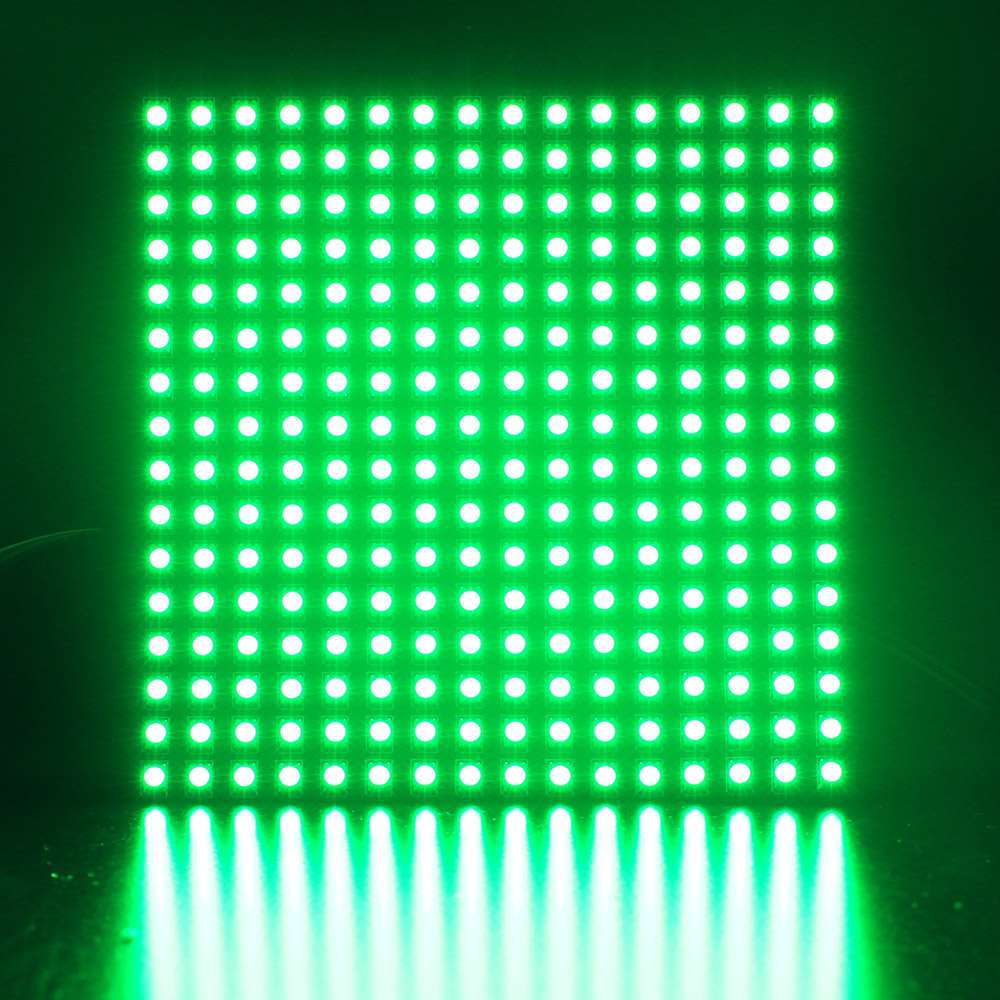

WS2815 12V 16x16 LED Matrix RGB Flexible LED Screen Panels

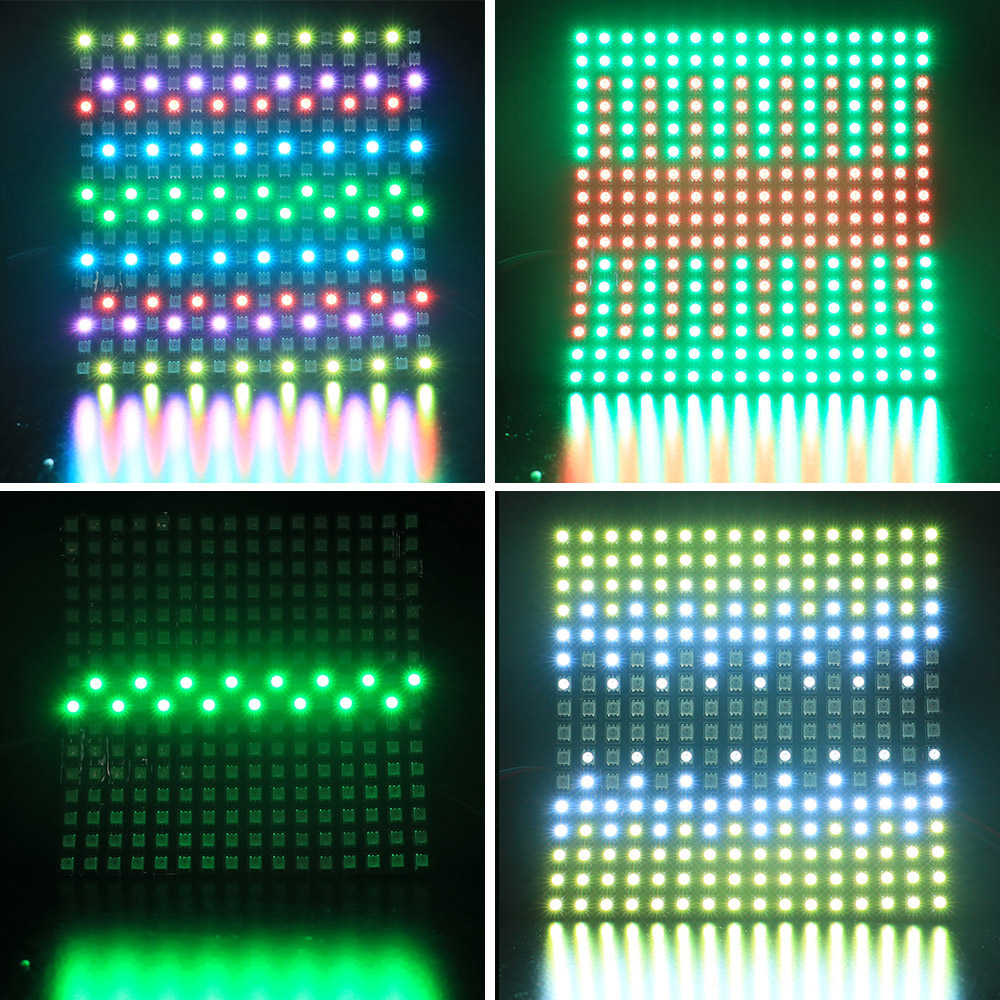

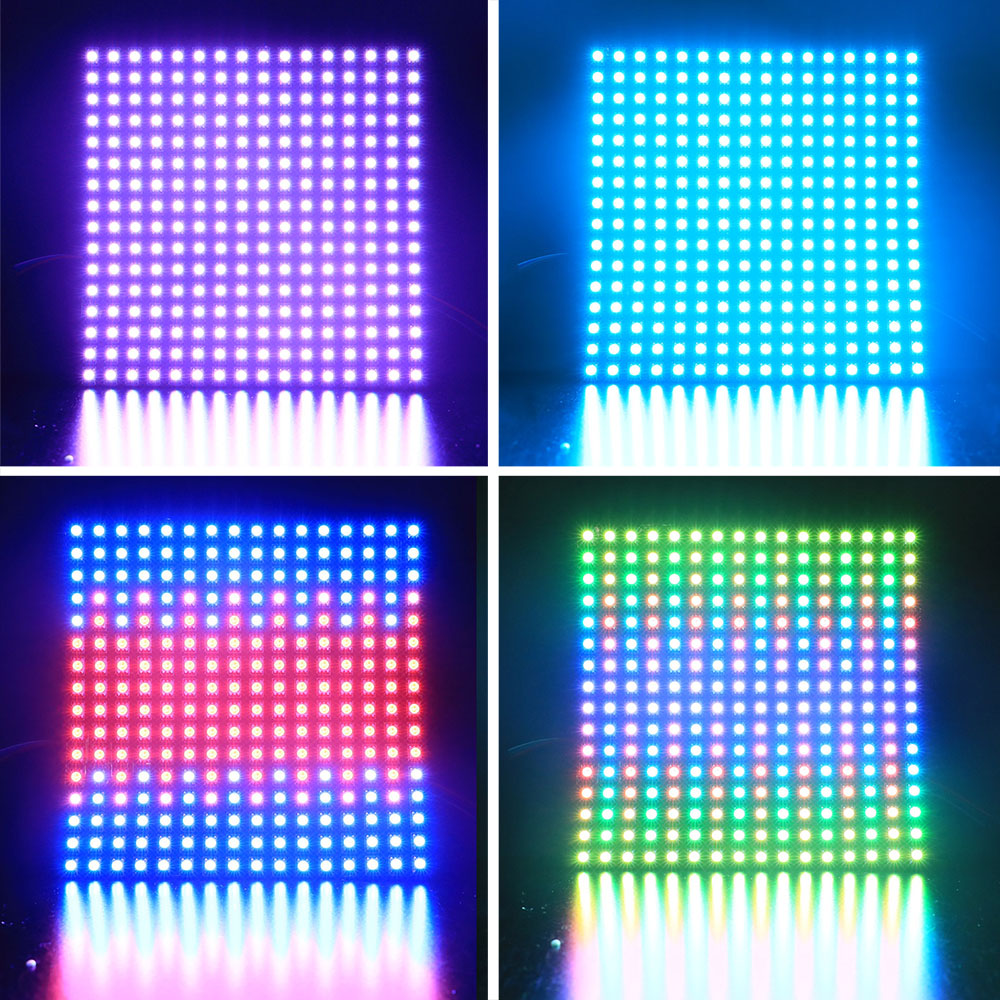

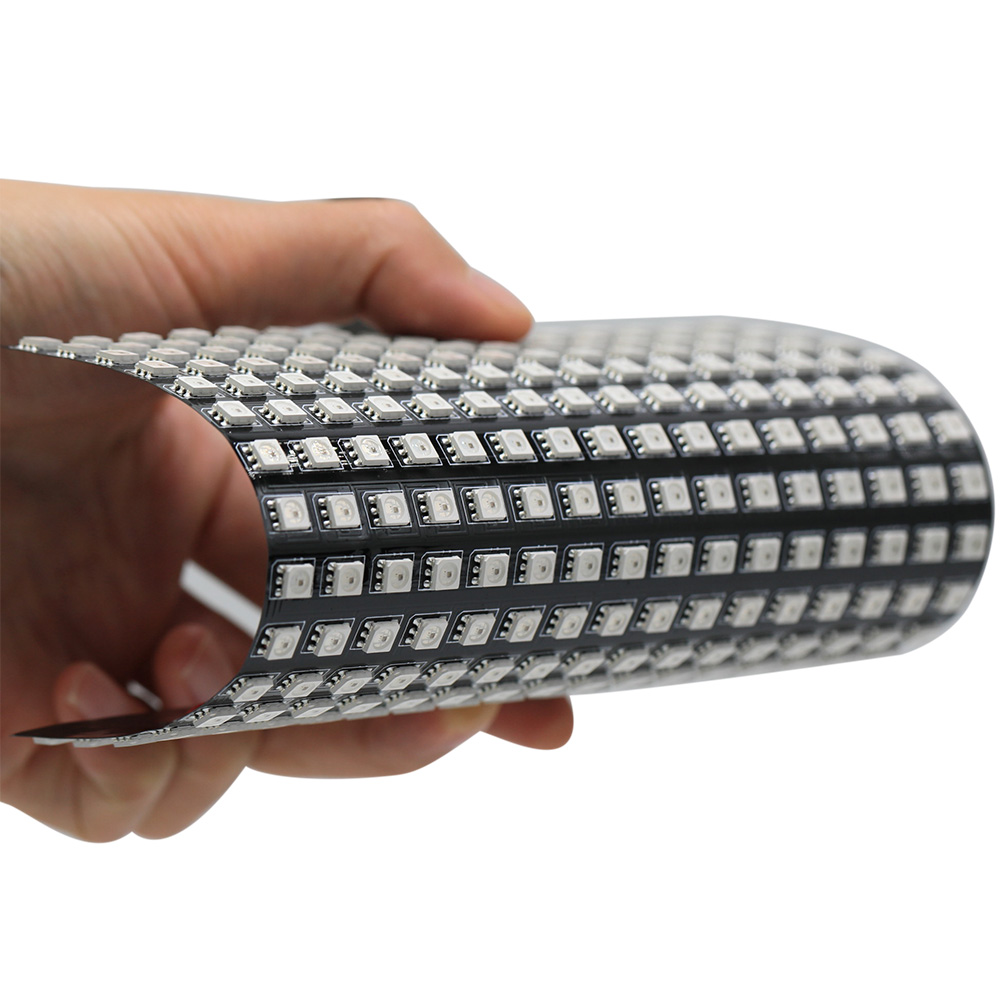

Check this flex 16x16 led matrix panel with good color consistency. Data and backup data are transferred in parallel, a single LED is damaged and will not affect using other RGB LEDs. Each 5050SMD LED is addressable. DC12V drive, smaller voltage drop, improved accuracy for long-distance transportation. WS2815 IC is built in the SMD5050 LED with a flexible PCB board, display programmable RGB color changing LED light, appear with hundreds of colorful LED light effect and animation effect, can be gently bent and flexible application to uneven surfaces. Comes with JST male and female fast connectors (one for input, and one for output) and power lines, when you use the matrix programmable led screen panel, pay attention to the direction of data flow. This WS2815 RGB modular led display panels are available in Arduino, Adafruit, Raspberry Pi, FastLED, T-1000C, K-1000S, and other WS2815 SPI LED controllers. Work with 12V LED power supply.
Wide applications: making led screen, led wall light, advertising light. Apply to hotel, KTV, bars, advertisement decoration, city lighting projects, entertainment lighting.
Standards and Certifications
LED Module Type: Full Color 5050 LED Pixel Screen
IC type: WS2815
LED quantity: 256 5050 SMDs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)

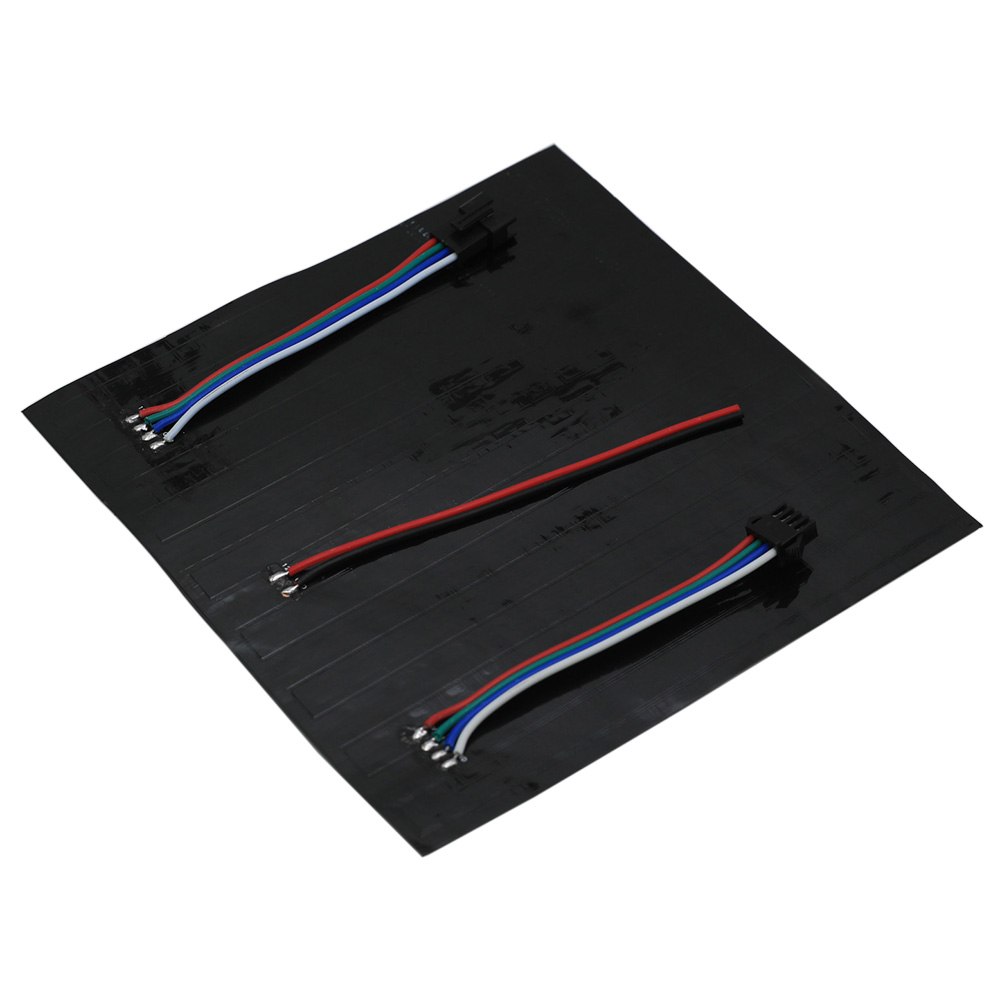

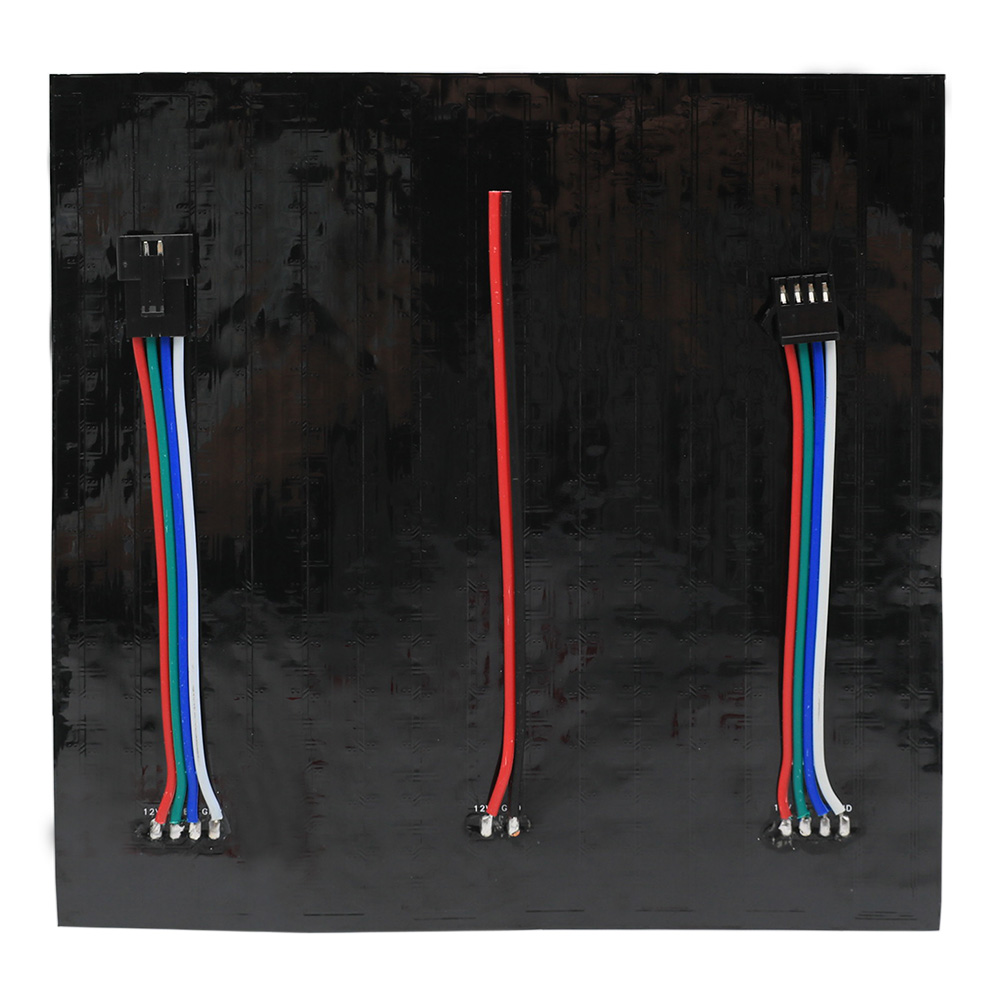

Red Wire: 12V Positive / V+
Black Wire: 12V GND / V-
White wire: GND V-
Green wire: Data
Blue wire: Backup
Dimensions: L160mm(6.3'') x W160mm(6.3'') x H5mm(0.2")
Input Voltage(V): DC12V
Grey scale: 256 levels
Wavelength: R 470 nm/G 520 nm/B 620 nm
Beam Pattern: 120 degree
MCD Per Foot: 6500 mcd/ft
