WS2812B 8 x 8 Adafruit Neopixel Neomatrix, 5050 RGBW Digital Addressable LED Light

Model: NPM-WS2812-RGBWX64 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: A$54.59 A$18.6766% off
Qty Discounts Off Price
2-14
A$18.67
15-29
A$18.29
30-49
A$17.73
50+
A$16.99
* Discounts may vary based on options below
Select Specifications:
Qty: -+Min:  2
*Mixed OFF
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

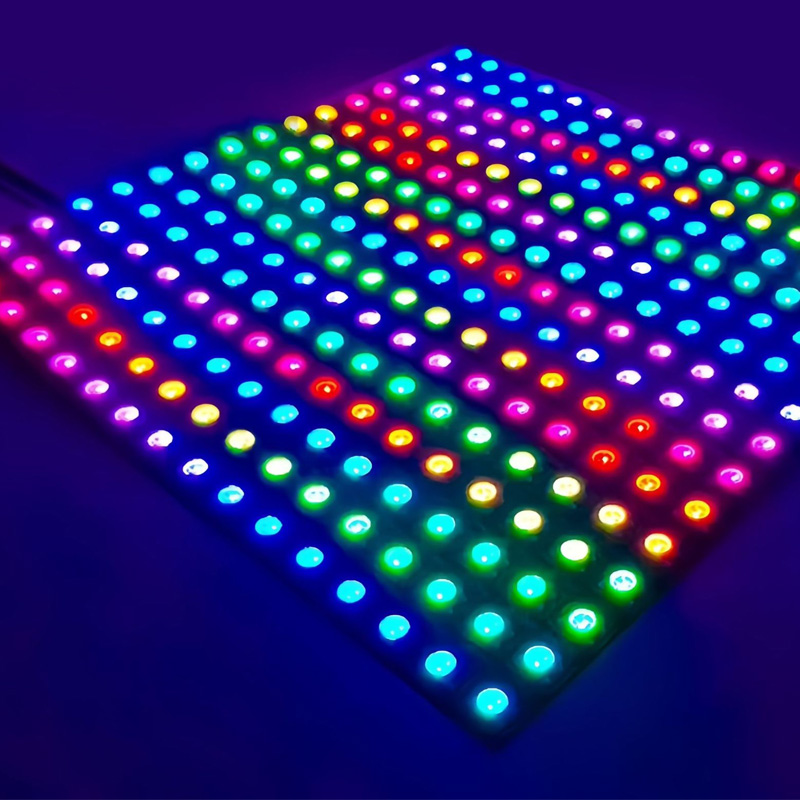

Super Bright NeoPixels are now composed of 3 basic colours plus white (red, green, blue and warm white/natural white/cool white) for excellent lighting effects. The three primary colours of each pixel can achieve 256 levels of brightness display, complete 16777216 colours of full true colour display, and the scanning frequency is not less than 400Hz/s. Neopixels can display any text, picture, animation, dance, cool, fireworks and other effects you want through the programming controller. This Superlightingled Neopixel Flexible Matrix can meet your massive needs. Neopixel Matrix can be used as accessories for party clothes, earrings, etc., and can also add a lot of colors to your project. It can also be used for car headlights, taillights, speakers, car exhaust lights and decorative lights.

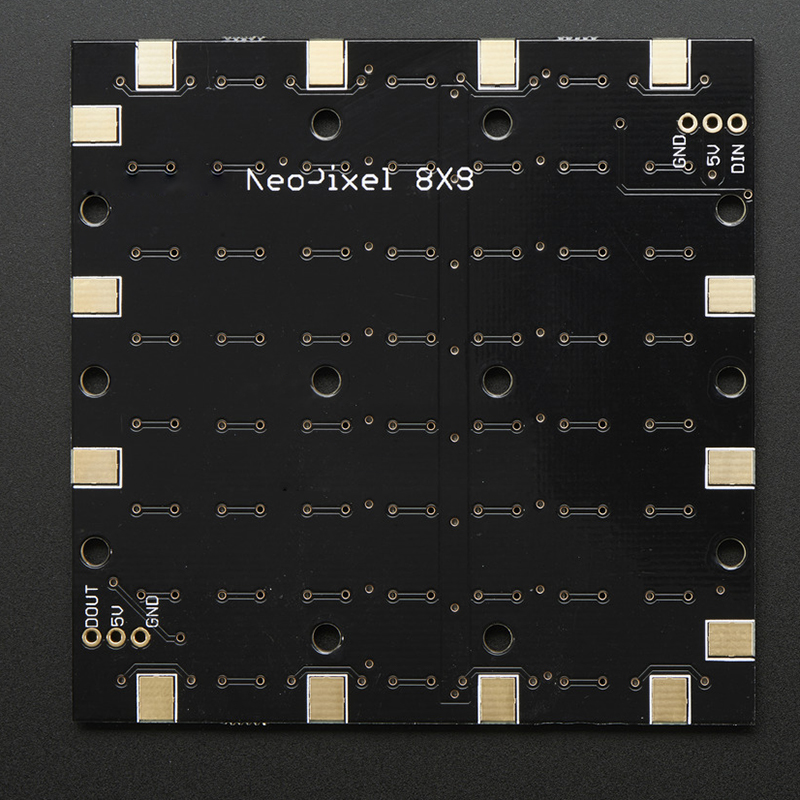

This neopixel lightsaber is simple to connect to and has two 3-pin connection ports. Solder the wire to the input port and provide 5VDC to the +5V and ground pins, then connect the DIN pin to your microcontroller. All circuits of the pixel screen are introverted, no electric shock to avoid short circuit.

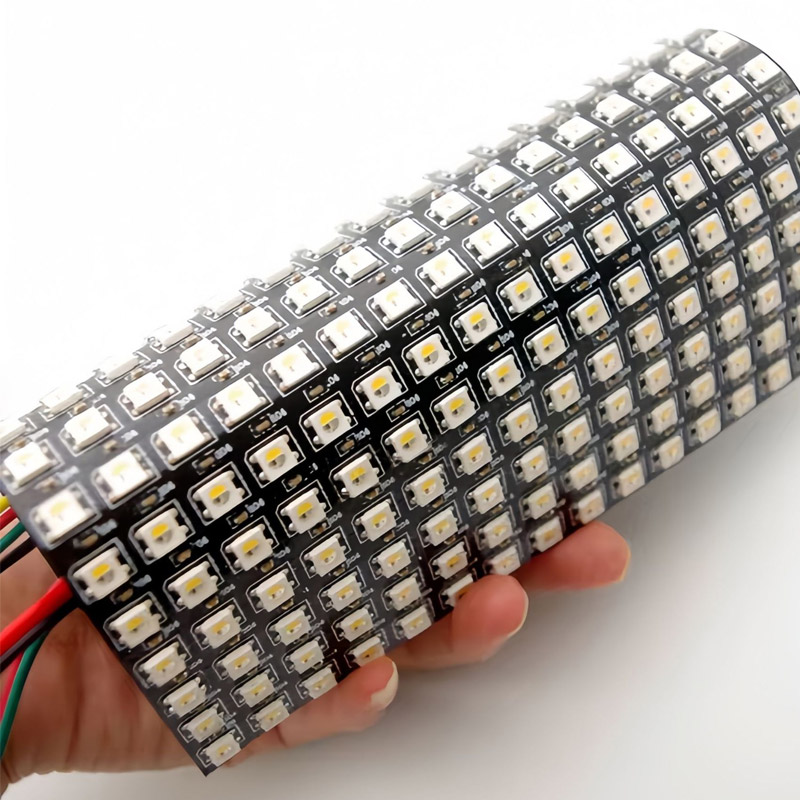

The built-in IC flexible pixel screen adopts the world's first built-in IC series lamp beads, a high-quality flexible pixel screen that drives and emits light and is composed of an epitaxial copper circuit board. Simple, powerful, and perfect flexible screen, which can output characters, run animations, run effects, etc. Addressable RGBW LED lamp beads are very stable performance and very high brightness driver lamp beads. The driving current of each lamp is the same, so the colour of each LED light is highly consistent, even if the voltage changes, it will not affect the colour of the lamp beads. The three primary colours of each pixel of Neopixel lightsaber can achieve 256 levels of brightness display, complete the full true colour display of 16,777,216 colours, and the scanning frequency is not less than 400Hz/s. 16*16 soft board pixel screen, a kind of LED dot matrix display product specially designed for LED clothing and other fields, small size, lightweight, arbitrary bending, easy to carry.



Standards and Certifications

12VDC CE FCC RoHS ISA SGS ISO LIFETIME warranty led factory



Specification

Light Source: SMD 5050 RGBW;

Plate: soft copper plate, rolled copper

Driver IC Model: WS2812B / SK6812 IC

Gray Level: 256 levels

Beam Angle: 120°;

Working Voltage: DC 5V;

Power: 0.3W ±0.01%;

Waterproof Rating: not waterproof IP20

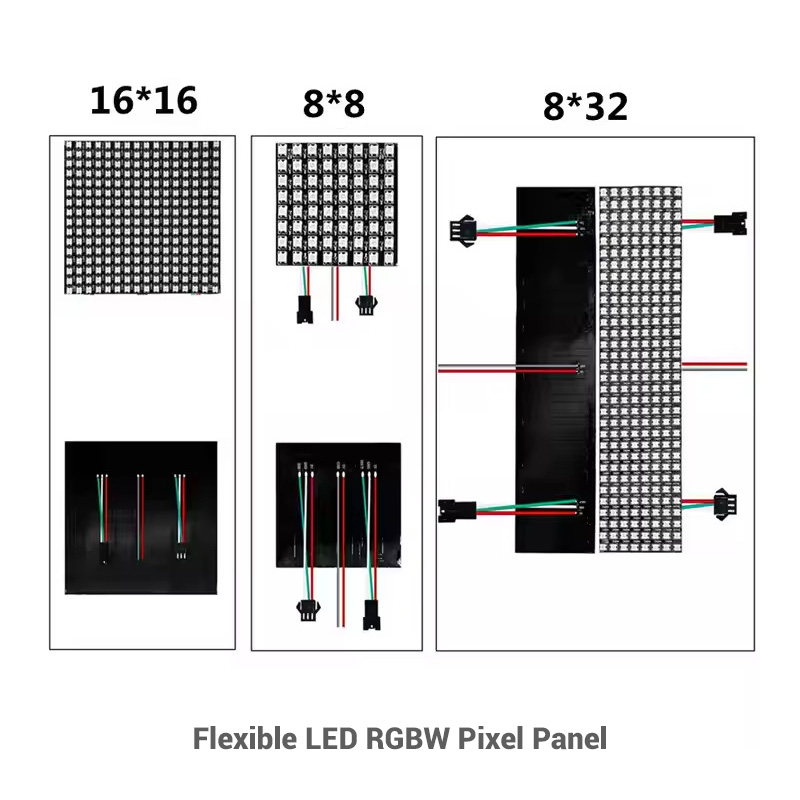

Dimensions: 8*8 LEDs, 16*16 LEDs, 8*32 LEDs

FPCB Color Shape: black, square

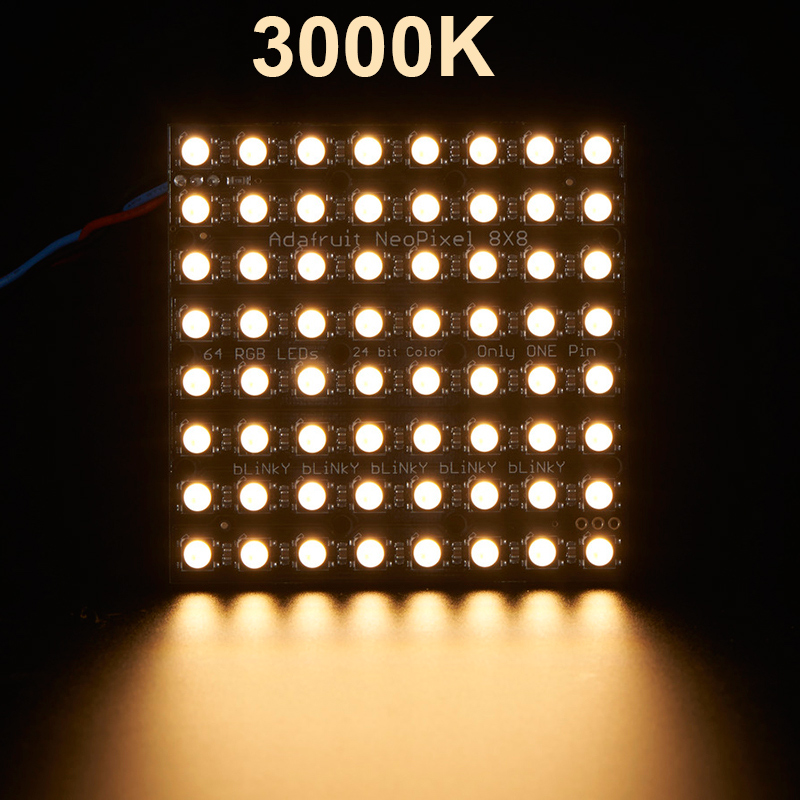

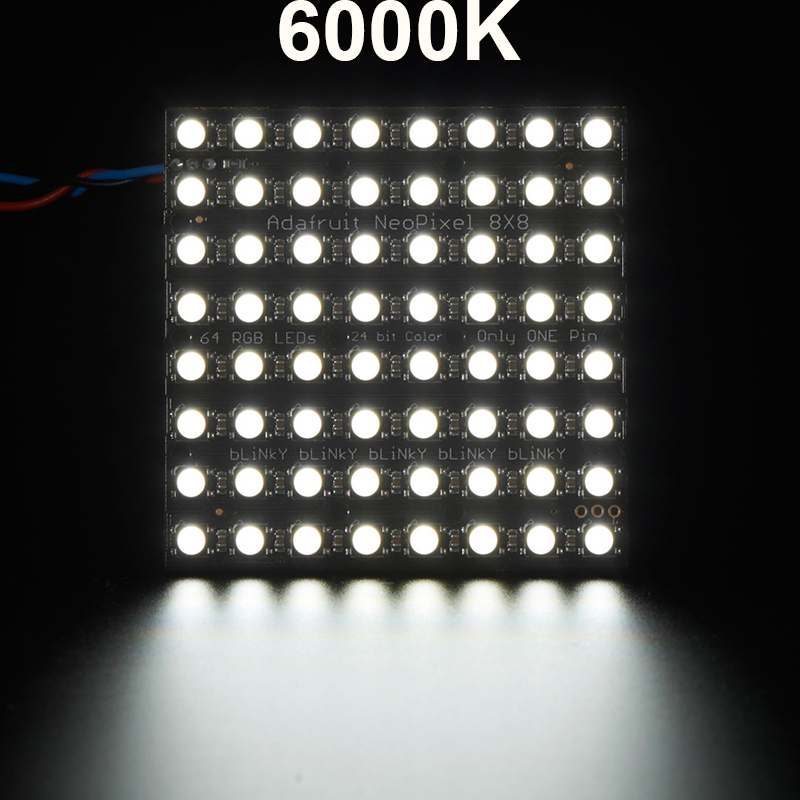

LED Color: RGB+Warm White 3000K, RGB+Cool White 6000K



 RGB+Warm White 3000K



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for NPM-WS2812-RGBWX64
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

WS2812B 8 x 8 Adafruit Neopixel Neomatrix, 5050 RGBW Digital Addressable LED LightWS2812B 8 x 8 Adafruit Neopixel Neomatrix, 5050 RGBW Digital Addressable LED LightWS2812B 8 x 8 Adafruit Neopixel Neomatrix, 5050 RGBW Digital Addressable LED LightWS2812B 8 x 8 Adafruit Neopixel Neomatrix, 5050 RGBW Digital Addressable LED Light

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
