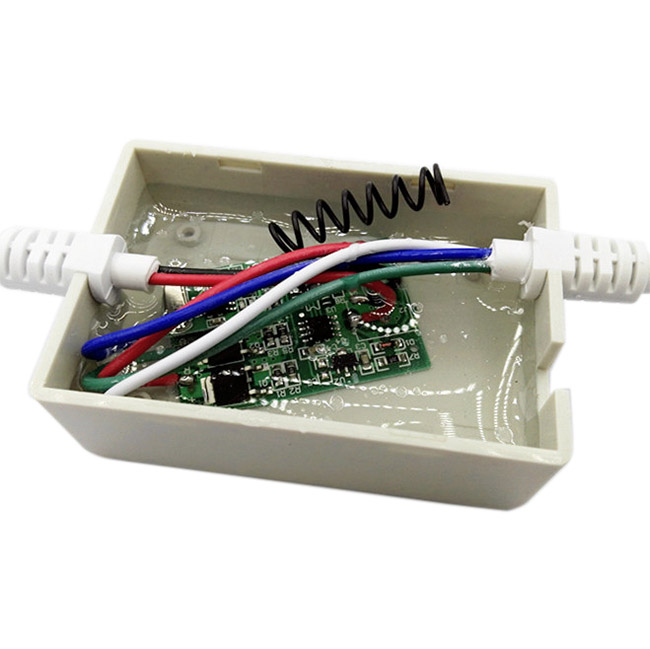

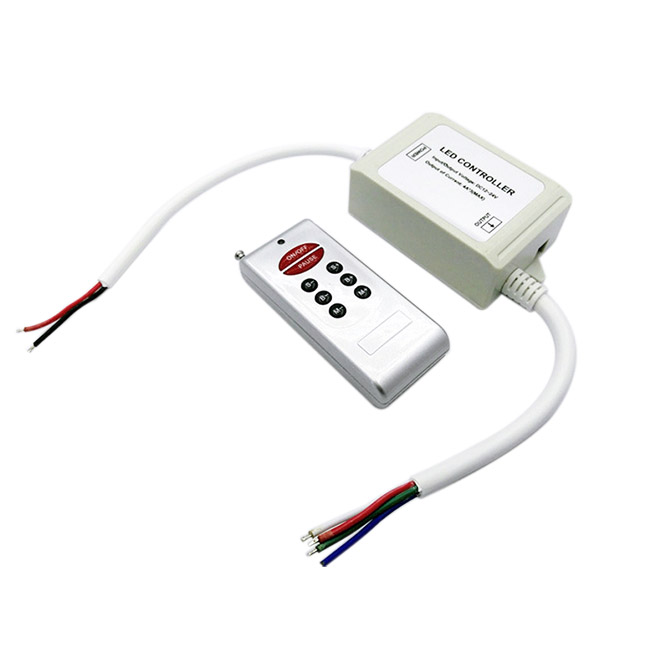

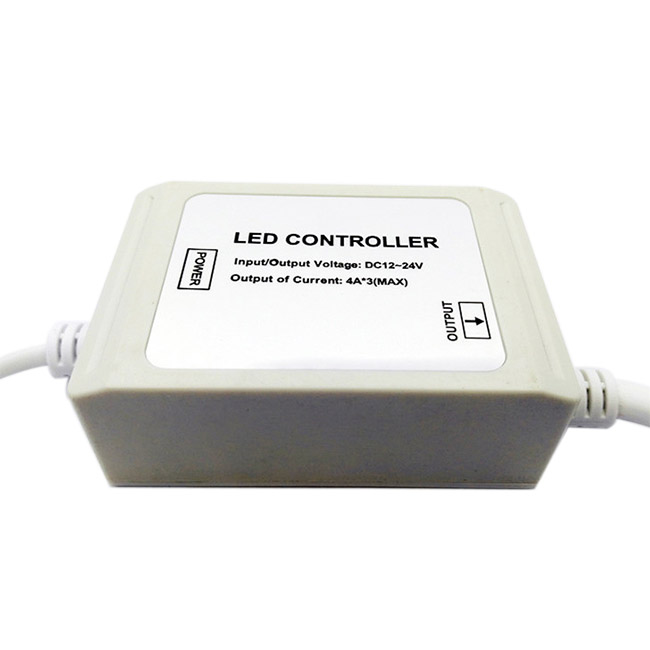

12A 12-24V DC Waterproof IP67 LED RGB Controller ABS shell Silicone filled For Waterproof Outdoor Color Change LED Light Strips
Working temperature: -20-60 ℃
Power supply voltage: DC12-24V optional (order specify the required voltage)
Output: 3 channels
Connection mode: common anode
External dimensions: L95ΧW52ΧH30mm
Pckage size: L145ΧW95ΧH50mm
Net weight: 175g
Gross weight: 210g
Static power consumption: <1W
Output current: <4A (each channel)
Output power: 5V: <60W, 12V: <144W, 24V: <288W
According to the screen prompts of RGB controller on the panel,connect the in/out signal wire by order,ensure short circuit can not occur between wire.then connect power wire for RGB controller . The specific description about the matching use of RGB controller and LED,please refer to the following: typical application.
