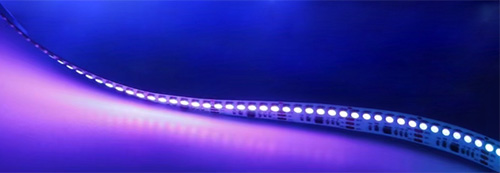

Ultra-Even, Smooth Colorful LED Presentation
We present our innovative addressable RGB lighting strip product, setting a new benchmark for seamless lighting and vibrant color performance. At its core lies the use of high-efficiency SMD2835 LEDs as the light source, meticulously arranged at an astonishing density of 240 LEDs per meter. This means the distance between LEDs is just 4.166mm, virtually eliminating any dark gaps and creating a stunning continuous “light band” effect.
While the number of 12V pixel LEDs has significantly increased, the light strip maintains a slim and universally compatible 12mm board width. The addition of more LEDs has not resulted in a wider board, making it the perfect solution for projects with limited space but high demands.
This ultra high-density DRGB (addressable RGB, digital RGB) light strip consumes only 18.6 watts per meter, demonstrating exceptional efficiency. We utilize an external FW1903PE IC chip, with one smart IC driver controlling six LEDs, resulting in 40 IC pixels per meter. If you are interested in using your phone to control these 2835 addressable RGB lights, consider purchasing the kit, which includes a 5-meter light strip, a WiFi X7 controller, and an LRS-150-12 AC-DC power supply.
The ideal choice for projects seeking perfection:
• Create a stunning neon alternative with perfectly uniform lighting effects.
• Embedded in aluminum profiles, forming smooth, professional architectural decorative lines.
• High-end interior design, automotive modifications, and any critical applications requiring smooth color gradients and uniform light distribution.
| Due to a shortage of stock board materials, we need at least 500 meters to produce this light strip free of charge. For orders of less than 500 meters, we will charge a customization fee. |
Product Specifications
| Item Type: | Extremely Dense & Uniform Digital RGB LED Strip Light |
| LED Chip: | SMD2835 |
| Input Voltage: | DC12V |
| Power: | 18.6W/m, 93W/Roll |
| LED Quantity: | 240 LEDs/m, 1200 LEDs/roll |
| Strip Width: | 12mm for IP20/65, 14mm for IP67/68 |
| IC Quantity: | 40/m, 200/roll |
| IC Chip: | FW1903PE (compatible with WS2811) |
| Cut Unit: | 6-LED, 25mm/0.98in |
| Length: | 5m/16.4ft |
| Outlet Cable: | JST SM male and female connectors |
| Beam Angle: | 120° |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP65 IP67 IP68 |
SuperLightingLED 2835 Addressable RGB LED Strips
| Model | Volt | IC | LED Qty (/m) | IC Qty (/m) | PCB Width |
|---|---|---|---|---|---|
| FW1903-12V-2835X240W12 | 12V | FW 1903 | 240 | 40 | 12mm |
| FW1903-24V-2835X168W8 | 24V | FW 1903 | 168 | 14 | 8mm |
| DCFLS-ARGB-FW1903PEX720-W5 | 12V, 24V | FW 1903 | 144 | 24, 12 | 5mm |
| DCFLS-FW1934X2835-5MM | 12V, 24V | FW 1903 | 120 | 40, 20 | 5mm |
| 12V-WS2811-2835X6.5MM | 12V, 24V | FW 1903, UCS 1903 | 96 | 32, 16 | 6.5mm, 6mm |
| DCFLS-FW1934A-96-120 | 12V, 24V | FW 1903 | 120 | 20, 10 | 8mm |
| TM1934-2835RGB-120W10-12V | 12V | TM 1934 | 120 | 20 | 10mm |
| TM1934-2835RGB-120W8-24V | 24V | TM 1934 | 120 | 20 | 8mm |
| TM1934-2835RGB-120W10-24V | 24V | TM 1934 | 120 | 20, 10 | 10mm |
| DCFLS-12V-WS2811XDS | 12V, 24V | WS 2811 | 120 | 20, 10 | 20mm fold to 10mm double side LEDs |
| DCFLS-360DS-DMX512 | 24V | UCS 512 | 120 | 20, 10 | 20mm fold to 10mm double side LEDs |
| DMXRGB-UCS512-2835X96W8 | 24V | UCS 512 | 120, 96 | 20, 10, 8 | 8mm, 10mm |
| DMXRGB-48V-2835X120 | 48V | GS 8516C (DMX 512) | 120 | 10 | 10mm |
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
DATA SHEET
Click the link above to view the full product details, technical specifications, and wholesale pricing in a printable format.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
