Product Information
This is an rgb/ic ultra thin high density LED tape light with only 5mm wide PCB board, easy to fit into narrow recesses or slits where the light source should not be visible. Featuring tight LED arrangement, these skinny FW1903 IC controllable rgb LED strip lights have a density of 120 LEDs per meter, so they are able to emit bright and evenly distributed light, showing more colors and gradient effects. The FW1934(FW1903) IC mounted on board supports single signal transmission. They perfectly control 2835 led group, with one IC controlling every 3 SMD 2835 in 12V addressable rgb led strip and 6 SMD 2835 RGB LED in 24V addressable strip, very similar to WS2811.
To command this smart LED strip light, you need to find a compatible LED controller. 5mm programmable LED tape has white PCB board, delivering stylish visual experience. 3m adhesive backing allows this slim 5mm color changing LED strip stuck into aluminum channels/ neon tubes within minutes so you can finish installation quickly. We offer non-waterproof IP20 and waterproof IP65/67/68 options, so this rgbic LED strip 5m can be waterproof and applied in outdoor environments.
Feature
1. rgb/ic super narrow LED strip lights, only 5mm wide, suitable for limited spaces.
2. Compact design, featuring high density of 120 LEDs per meter.

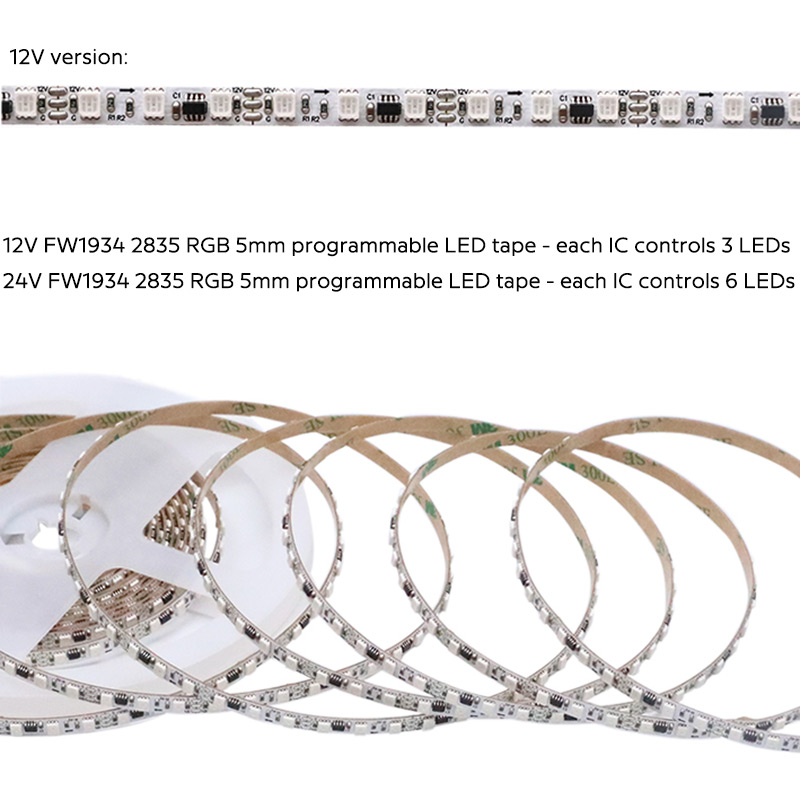

3. FW1934(FW1903) IC type, SMD 2835, one IC controls 3 LEDs in 12V strip and 6 LEDs in 24V strip.
Kit products:
LED Strips + Controller: 16.4ft LED Strip + BWCAS-HCP1-R28A4
LED Strips + Controller + Power Supply: 16.4ft LED Strip + BWCAS-HCP1-R28A4 + LRS-150-12/ LRS-150-24.
If you need lighting accessories, please click here to buy. For waterproof power supply, click here.
Standards and Certifications
Product Specification
| LED Strip Type: |
High Density 2835 RGB+IC 5mm Addressable LED Tape Strip Lights |
| LED Chip: | RGB 2835 SMD |
| IC Type: | FW1934 (FW1903) |
| Input Voltage: | DC12V/ 24V |
|

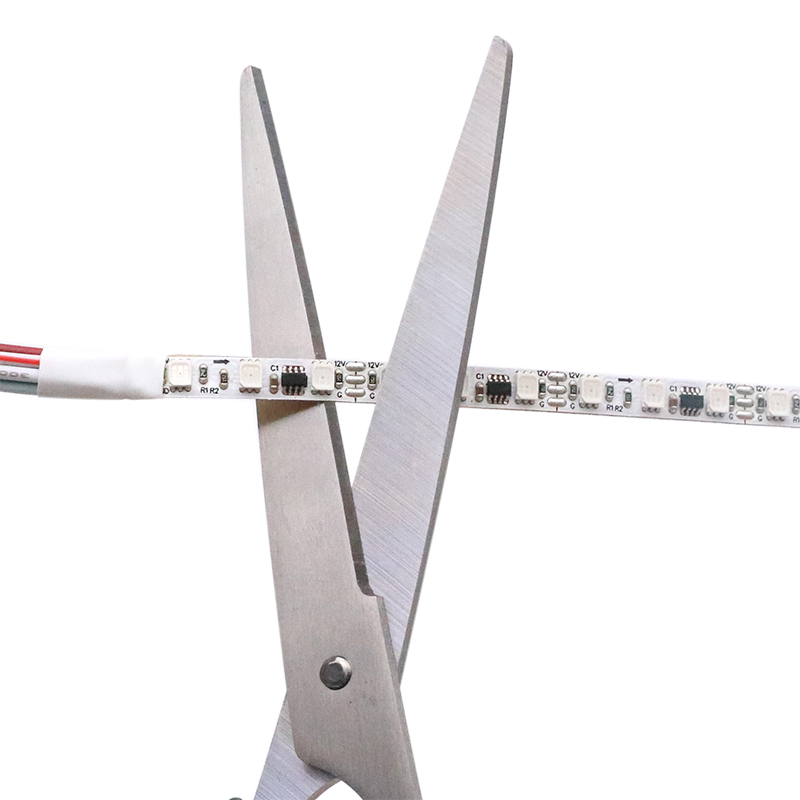

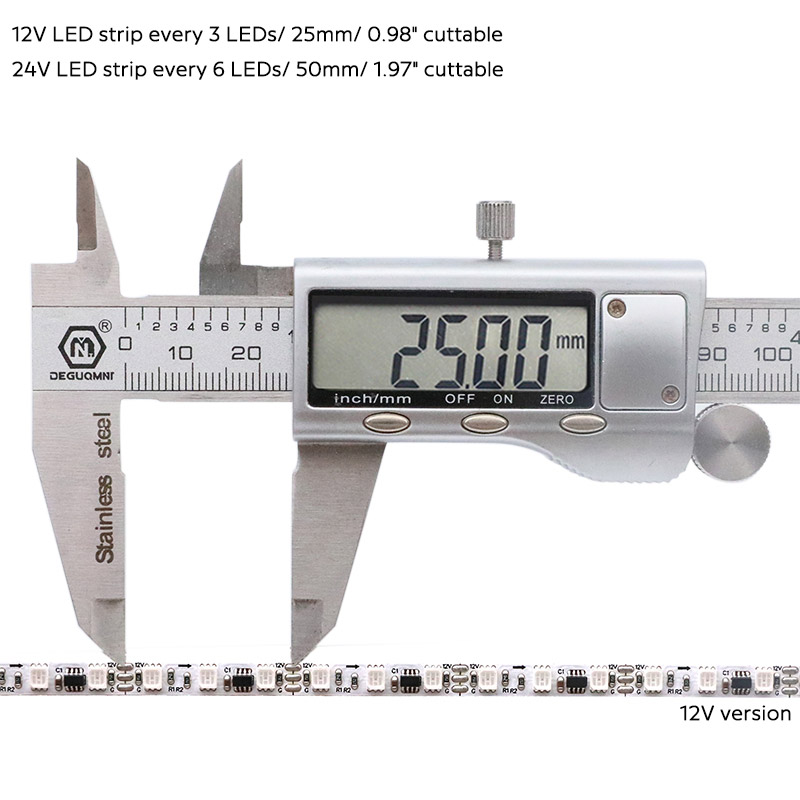

Cutting Unit: |
12V LED strip: every 3 LEDs/ 25mm/ 0.98" 24V LED strip: every 6 LEDs/ 50mm/ 1.97" |
| Length: | 16.4ft/roll |
| LED Quantity: | 120 LEDs/m |
| IC Quantity: |
12V: 40 pixels/m 24V: 20 pixels/m |
| Lumen Per LED: | 14-16 Lumen |
| LED Color: | RGB Deram Color Change |

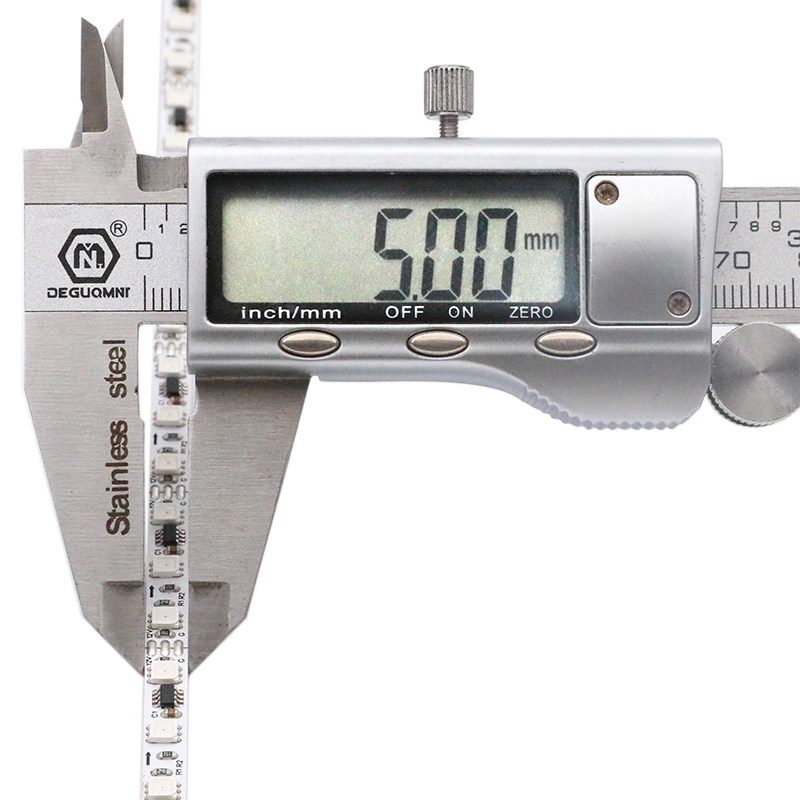

| PCB Width: | 5mm/ 0.19" |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Working Power: | 12.4W/m, 62W /16.4ft Max |
| Waterproof Rating: | Non-waterproof IP20, Waterproof IP65/67/68 |
| Beam Pattern: | 120 degrees |
| Lifespan: | 50,000+hours |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
How To Wire Addressable LED Strip Lights?
