DC5V-24V DMX512 Signal Decoder BC-802
The DMX512 Signal Decoder adopted the advanced decoding technology to convert the international standard DMX512/1990 signal into standard LPD6803 / LPD8806 / TM1809/P9813/ TLS3001/WS2801/SK6812/TM1814 signals, each decoder has 96/510 DMX output channels, and the output channels can be expanded by adding decoders, therefore, most of the LED lights can be controlled by DMX512/1990 protocol via the signal conversion, then widely used pixel light, digital tube light, floodlight, pixel screen, dancing floor light etc.

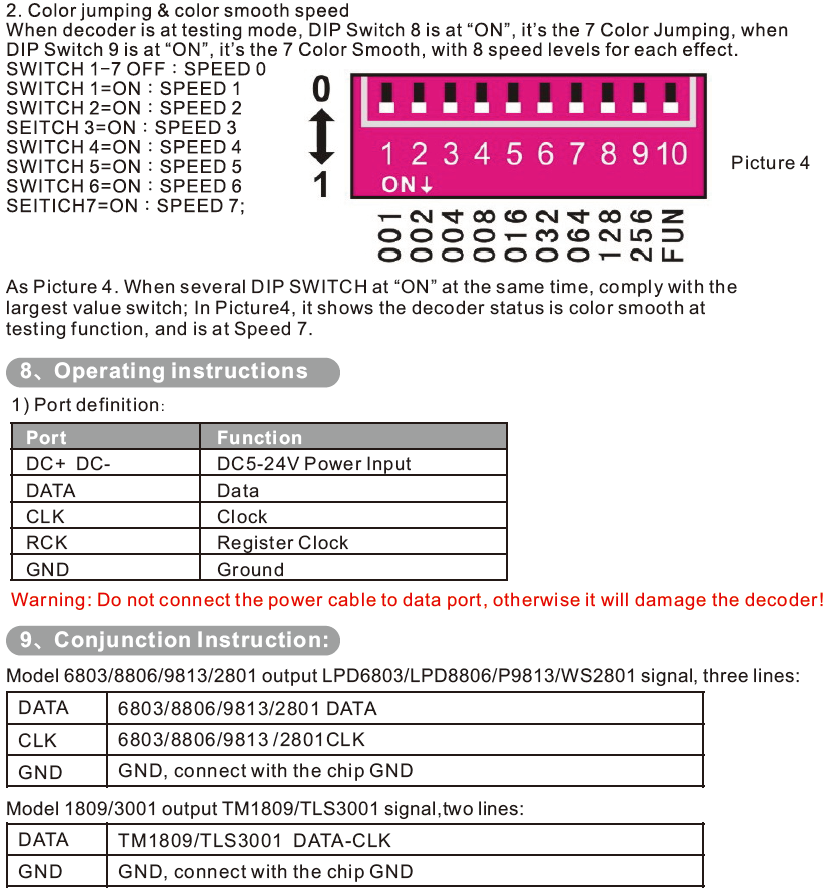

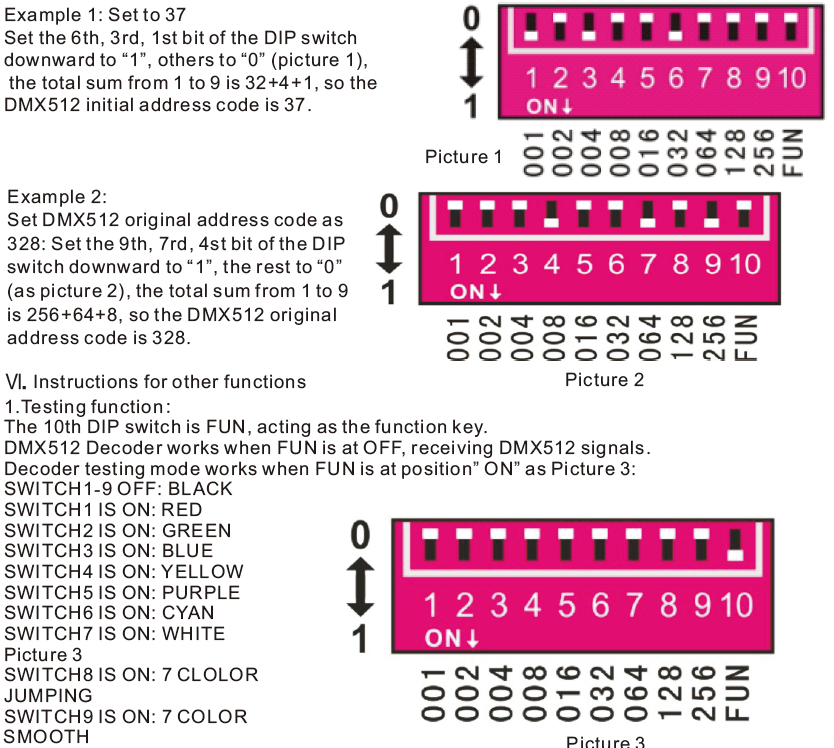

1. Input standard DMX512 protocol，Address can be set by the DIP.
2. Automatically adapt input voltage DC5V-24V.
3. Self-Changing Mode exists.
4. Output TTL Signal.
5. Power loss memory function
Standards and Certifications
From the day you purchase our products within 3 years, if being used properly in
accordance with the instruction and quality problems occur, we provide free repair or
replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect
connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of
6.Any damages caused by negligence, inappropriate storing at high temperature
and humidity environment or near harmful chemicals.
7.Product has been updated.
1.Power Source Selection
The power source must be a DC constant voltage type of power supply. Due to the efficient output
in some power supplies are only 80% of the total, so please select at least 20% higher output
power supply than the consumption of LED lights.
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a
3.Check if the voltage and power adapter suit the controller.
(please select DC5-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit
checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without
