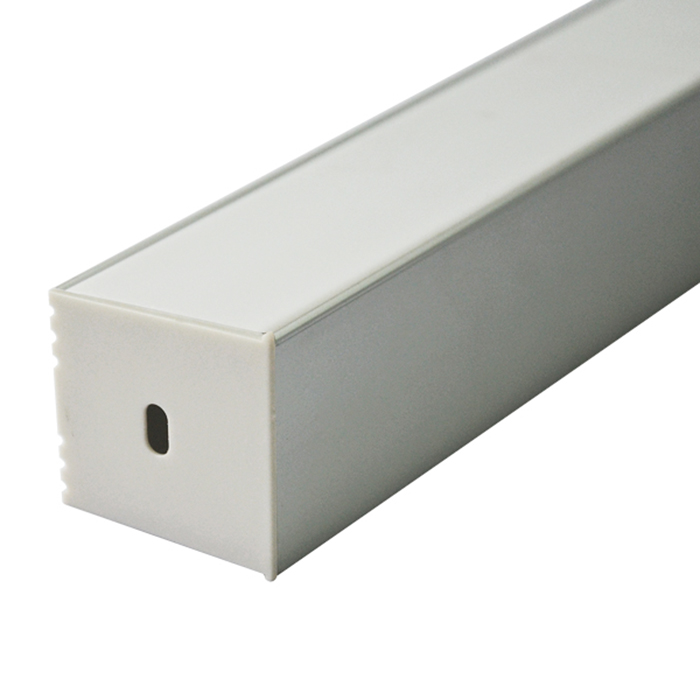

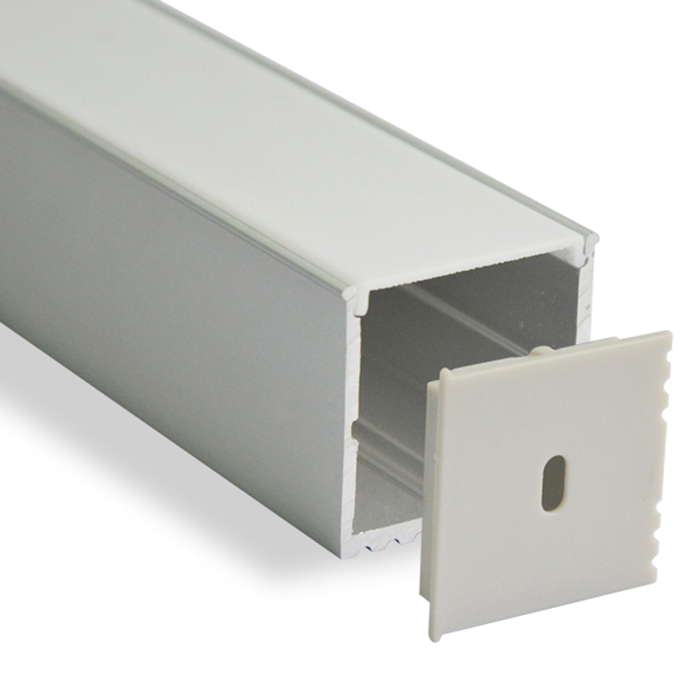

Square Aluminum LED Channel For 32mm 5050 Triple Row LED Tape Lights
This led channel diffuser is made of 6063-T5 high-quality aluminum alloy with surface silver anodizing treatment, 33mm/1.3in inner width suitable for 3528 quad row led rope lights. LED strip with diffuser with better heat dissipation and various led light effects, PC opal micro prism, PC clear micro prism, PMMA clear, PMMA semi-clear, PMMA opal matte diffuser, better led light distribution. 1m and 2m channel aluminum and length customized service are available. White and black aluminum profiles bring a variety of options for your residential and commercial LED linear lighting project. With end caps and mounting clips, the led channel can be used in homes, offices, supermarkets, malls, retails, kitchens, cabinets, etc. through surface mounted or recessed mounting. Stick the led light strip in the channel is quite easy, you can through the end cap with a hole to power or control the led strip lighting.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

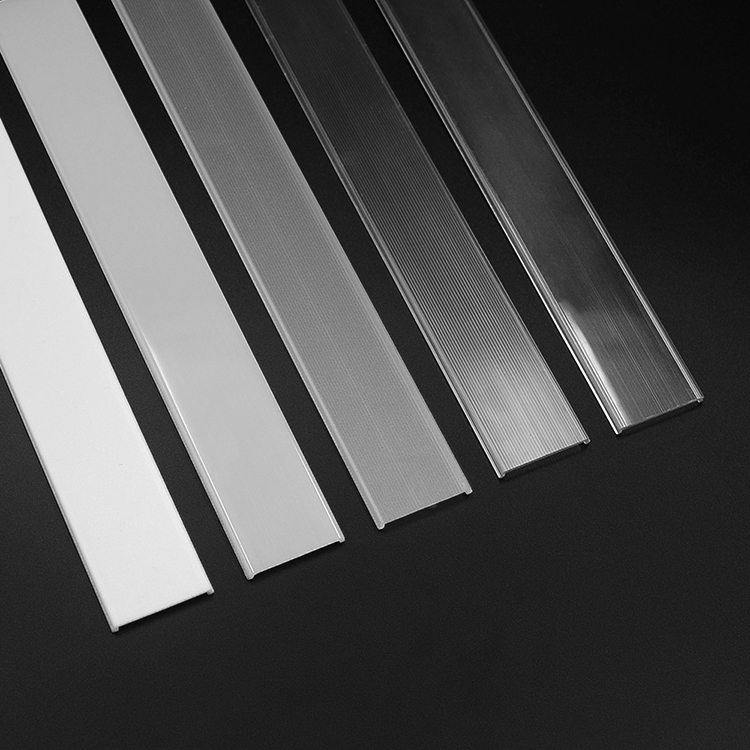

|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC clear microprism diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||3528 quad-row flexible led strip lights|

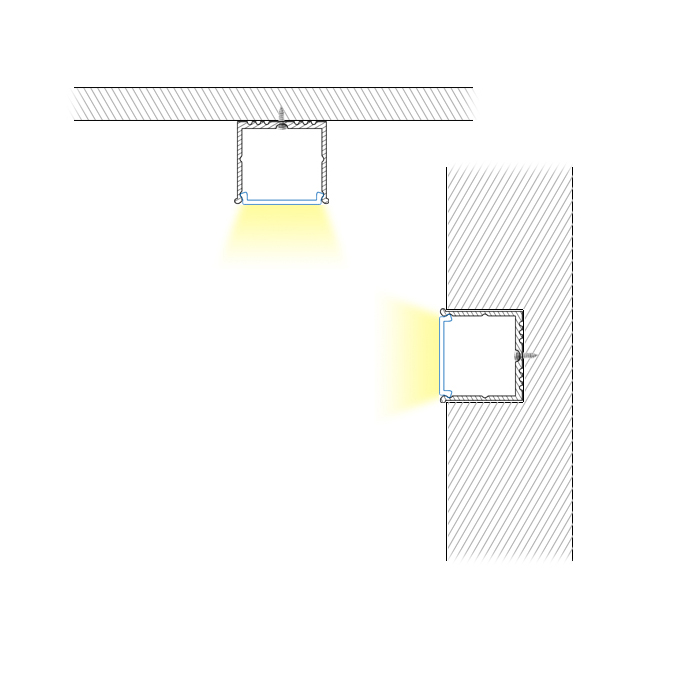

|Installation||Surface /Recessed Mounted|
1* Aluminium LED Profile With Diffuser
1* End Cap Without Hole
1* End Cap With Wire Hole
2* Mounting Clips Per Meter
Residential lighting: wardrobe, cabinet, kitchen, ffurniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
