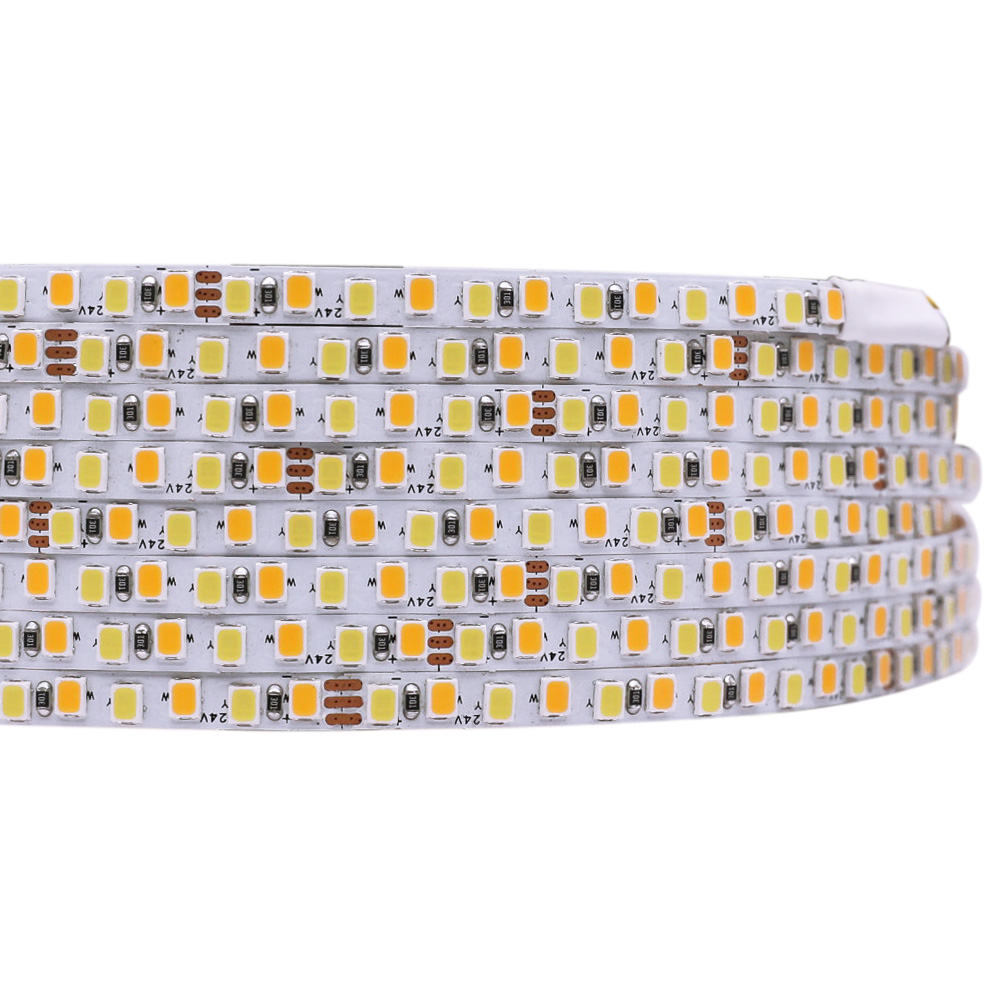

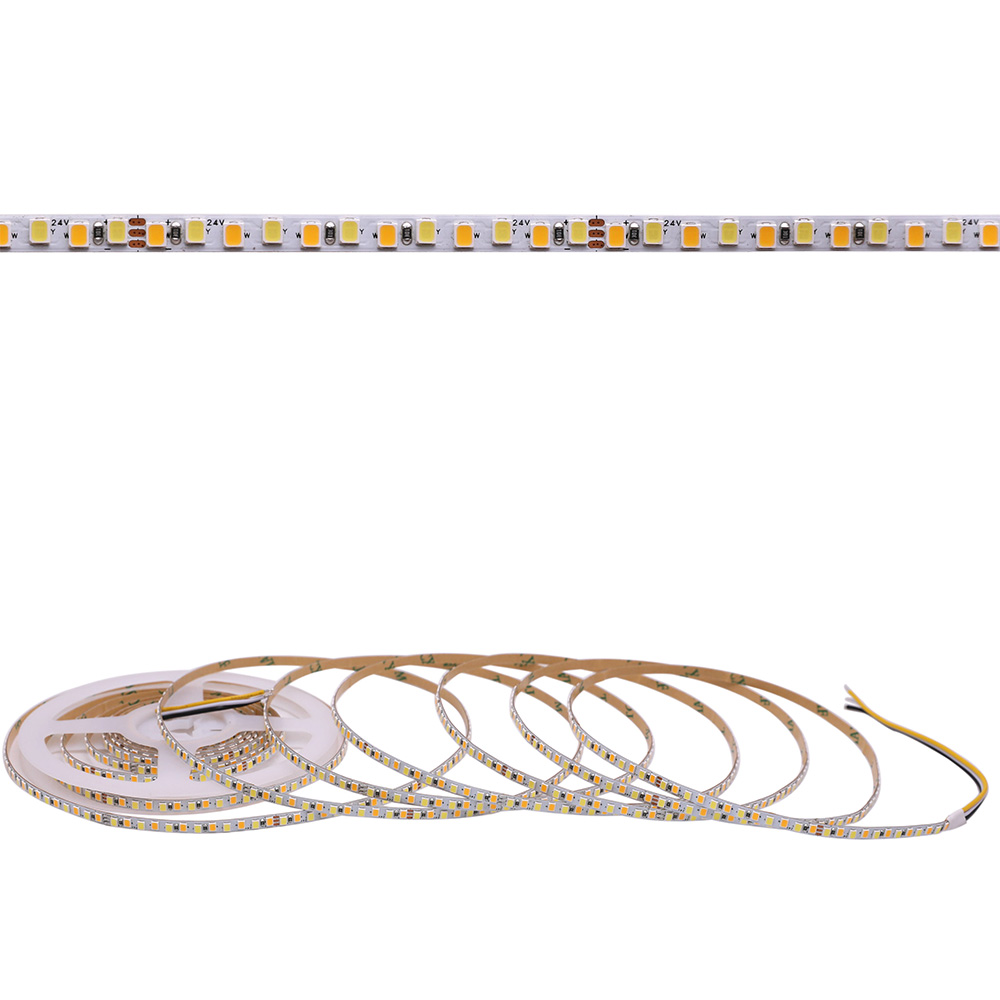

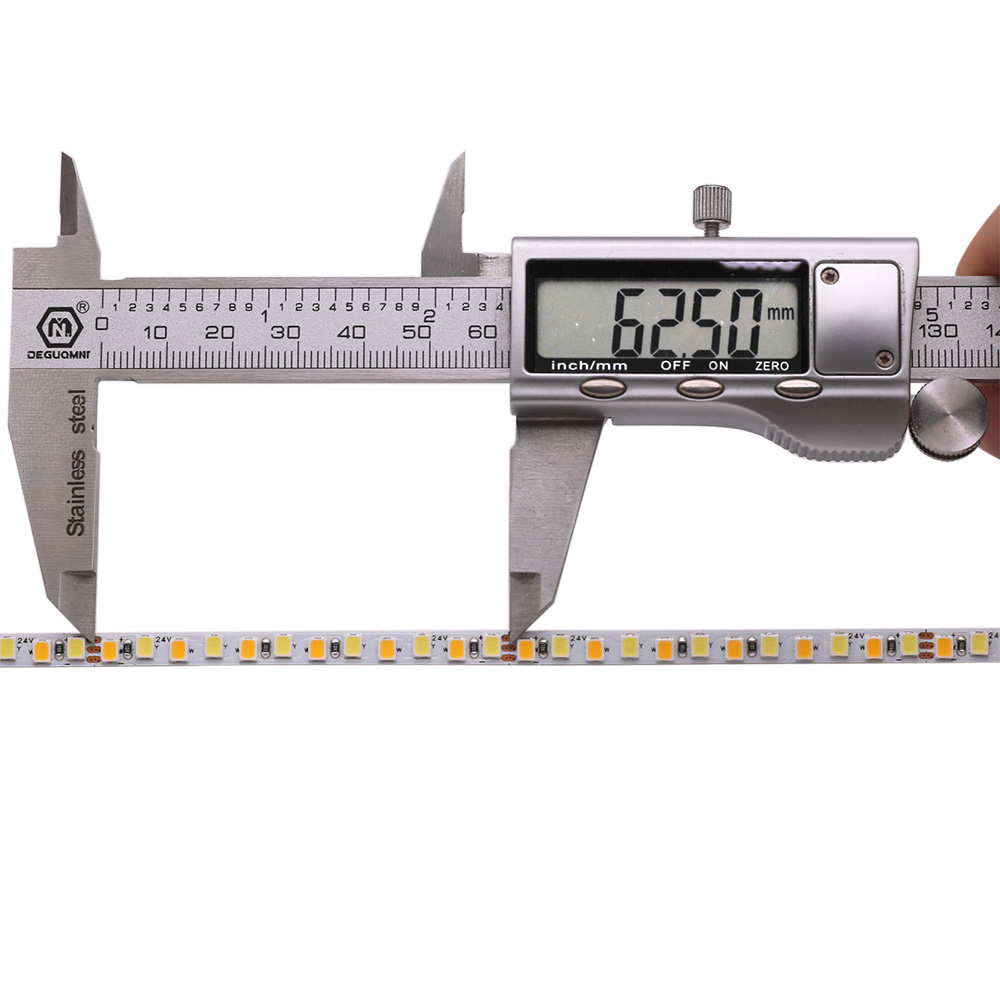

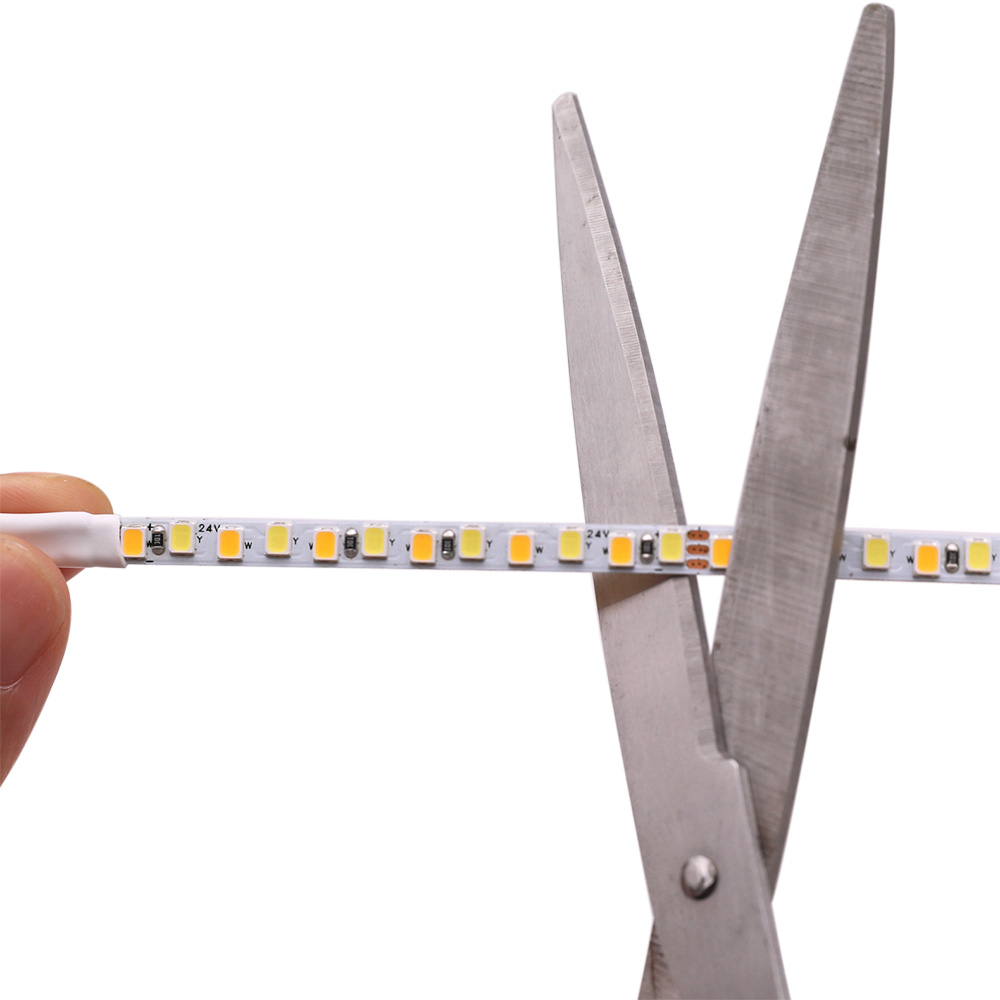

Narrow 5mm wide led strip with CCT color temperature lights (2700K warm white LEDs + 6500K daylight LEDs), adapts 2216 SMD LEDs, high efficiency. There are 192 lights per meter, each 62.5mm(12 lights) can be cut.

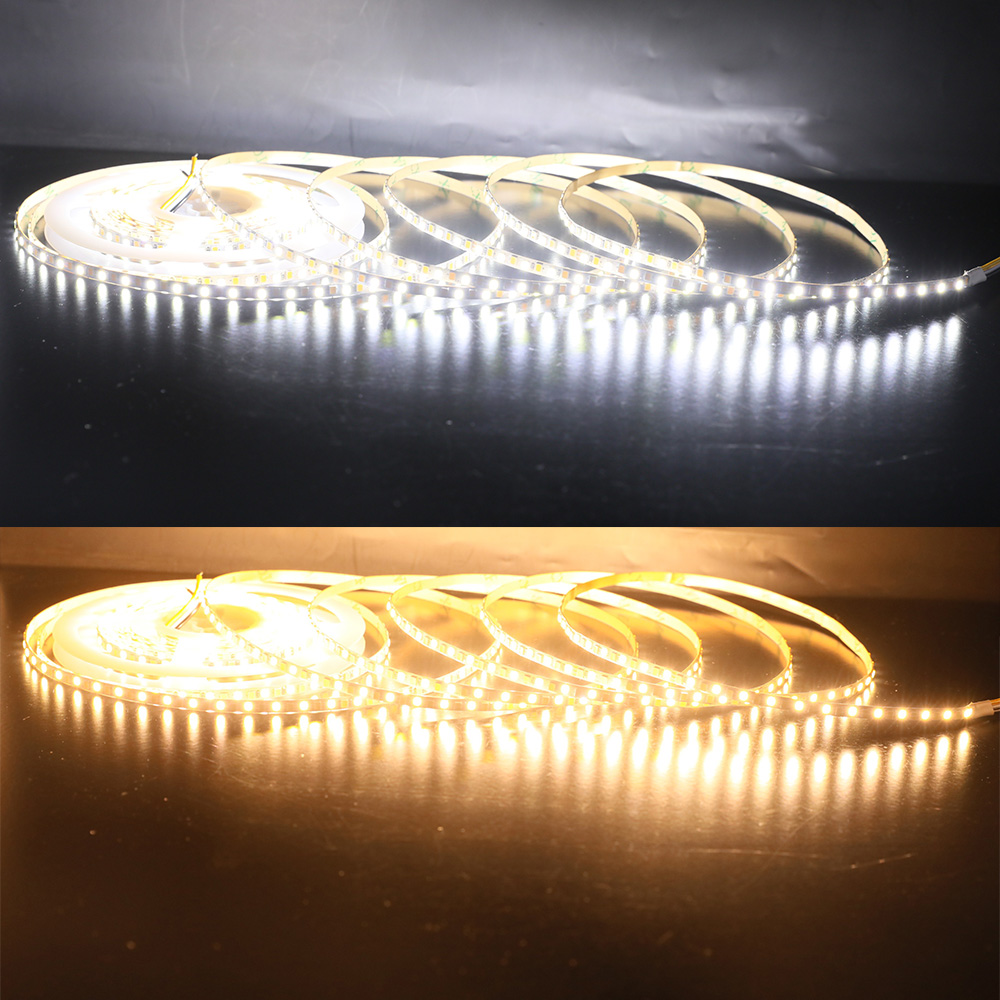

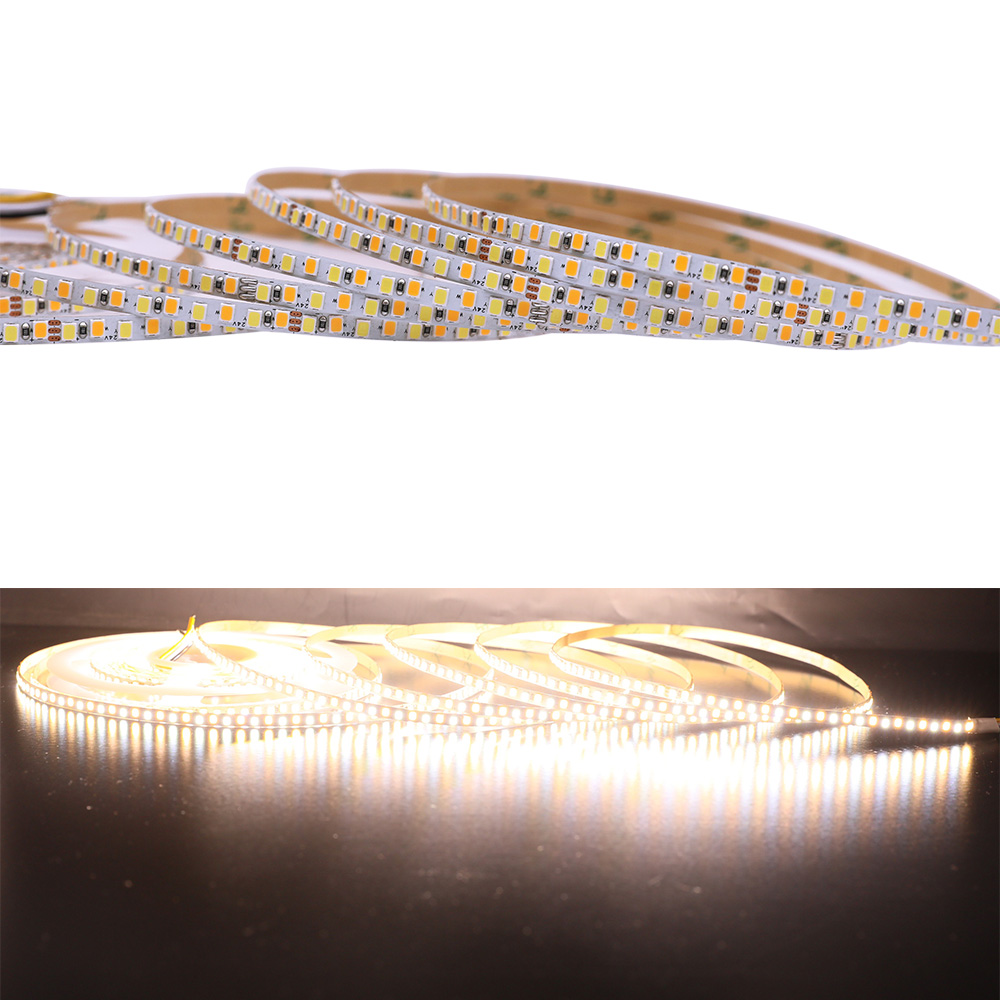

Warm white LED and pure white LED are arranged individually on the flexible PCB board, you can turn on the warm white led lights or the daylight white led lights individually, or turn on the all white lights, to suit your different activities. Warm white for rest and relaxation, and pure white for tasks.

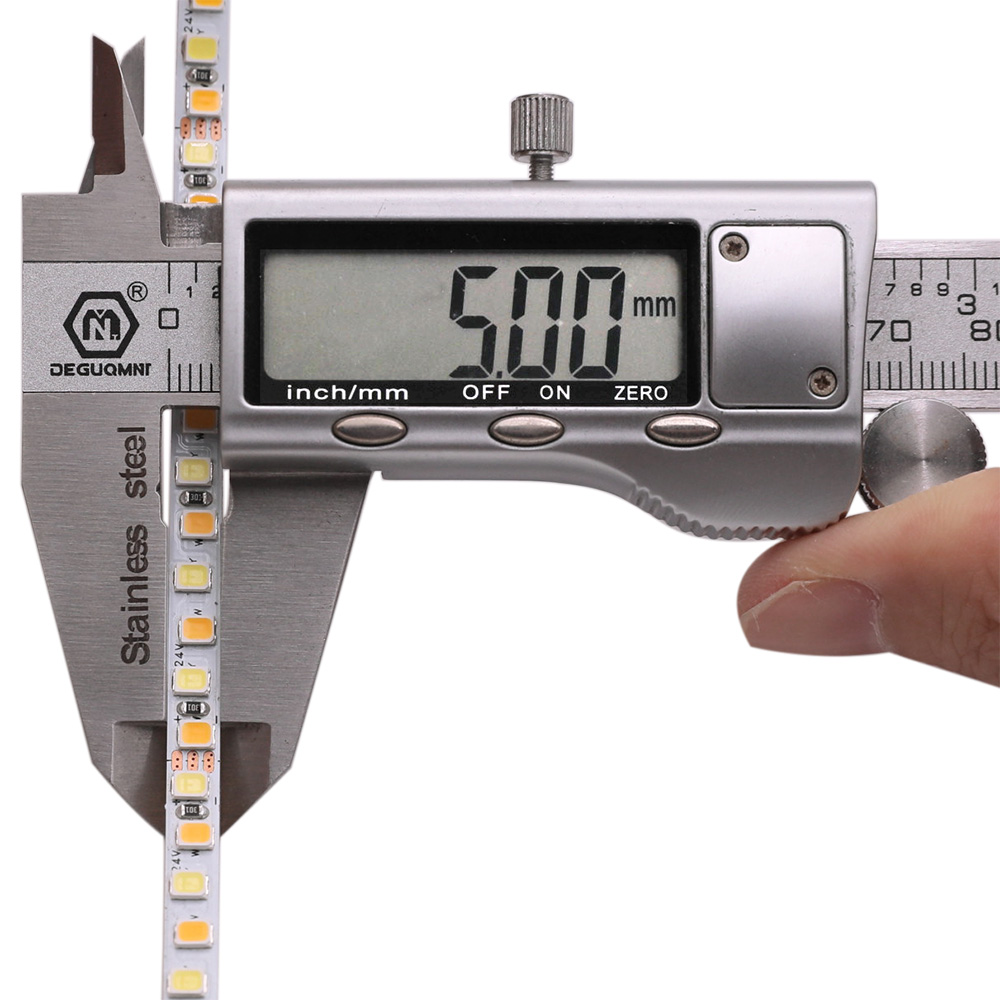

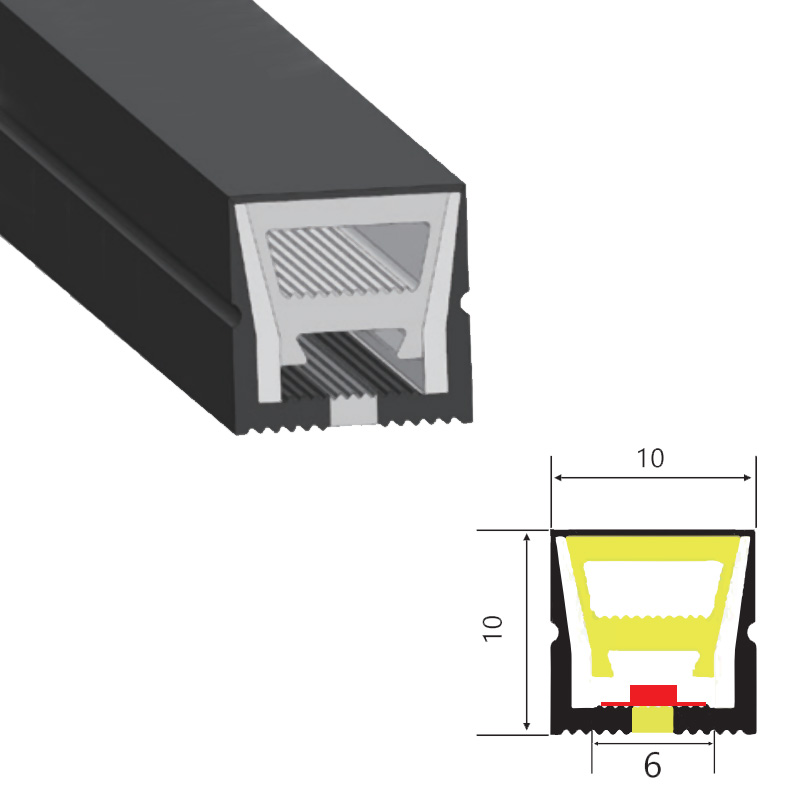

This CCT tunable led strip light is powered by DC24V low voltage, matched with 24V led dimmer and 24V DC led power supply to use. With 5mm ultra thin led strip width, it can adapt to various applications like ceilings, under cabinets, under bed, background wall, etc. And it is perfect to make led neon lights with silicone led diffuser, no light spot, soft linear light.
If you choose the kit "LED Strip + Controller + Power supply", you will receive a CCT dimmable led strip, a CCT dimmer WB5, and a power adapter.
What does CCT mean in lighting?
CCT means correlated color temperature. Usually, the warm white light and pure white light are specifically expressed by Kelvin color temperature. The white light color temperature of CCT tunable white LED strip can be adjusted with white CCT dimmers from 3000K to 6500K(warm white/soft white to natural white to daylight white to cool white).
Standards and Certifications
|LED Strip Type:||White LED Strip Lights|
|LED Chip:||SMD2216 San'an Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||2700K Warm White + 6500K Daylight White|
|Color Temperature CCT:||Warm White(2800-3500k), Natural white(4000-4500k) Daylight White(5000-6500k)|
|Input Voltage:||24V DC|
|Dimension:||16.4ft/roll, every 12 PCS LED can be cut (62.5mm/2.46")|
|LED Quantity:||192 LEDs per meter, 960 LEDs per roll (480 warm white LEDs + 480 daylight LEDs)|
|Dimensions:||L500cm(196.8 in ) x W0.5cm(0.19in ) x H0.25cm(0.10 in )|
|Luminous Flux(lm):||4~6lm/LEDs, 4825lm/16.4ft, 293lm/ft, 64lm/w|
|Working Power:||15W/m, 75W/16.4Ft|
|Waterproof Rating:||Non-waterproof IP20 / Outdoor Waterproof IP67|
|Beam Pattern:||120 degrees|
How to wire CCT dimmable led light strips?
