Tuya APP cloud control/2 Channels/Push-Dim/DC power socket input/Wireless remote control
● Used for control single color or color temperature LED strip.
● DC power socket input and 2 channel constant voltage output.
● Tuya APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/off light,
timer run, scene and music play function.
● Match with RF 2.4G remote control optional.

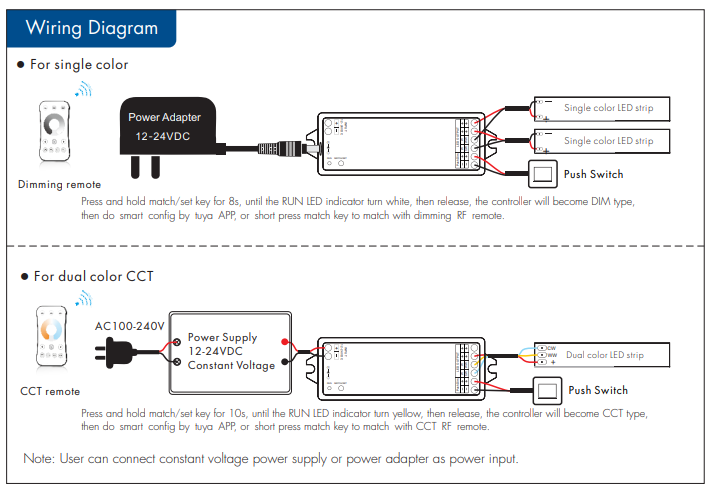

● User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.

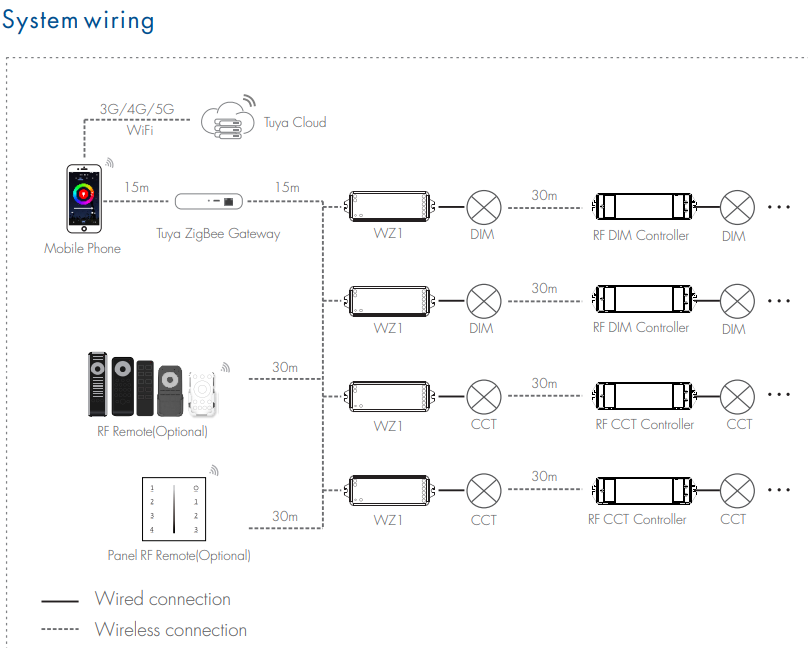

● Each WZ1 controller can also work as ZigBee-RF converter, then use Tuya APP to control one or more RF LED controller
or RF LED dimming driver synchronously.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
if you choose a controller, we will send you WZ1
if you choose single and controller+remote, we will send you WZ1+RT1
if you choose single and controller+RF remote+panel, we will send you WZ1+RT1+T20
if you choose CCT and controller+remote we will send you WZ1+RT2
if you choose CCT and controller+RF remote+panel, we will send you WZ1+RT2+T12-K
Input and Output
Input voltage： 12-36VDC
Input current： 10.5A
Output voltage： 2 x (12-36)VDC
Output current： 2CH,5A/CH
Output power： 2 x (60-180)W
Output type： Constant voltage
Input signal：Tuya APP + RF + Push Dim
Control distance：30m(Barrier-free space
Dimming gray scale：4096 (2^12) levels
Dimming range ：0 -100%
Dimming curve： Logarithmic
PWM Frequency： 2000Hz (default)
