ZigBee + Tuya APP + RF 2.4GHz WiFi 5 in1 5CH RGBCCT LED Controller WZ5
5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature, or single color LED strip.

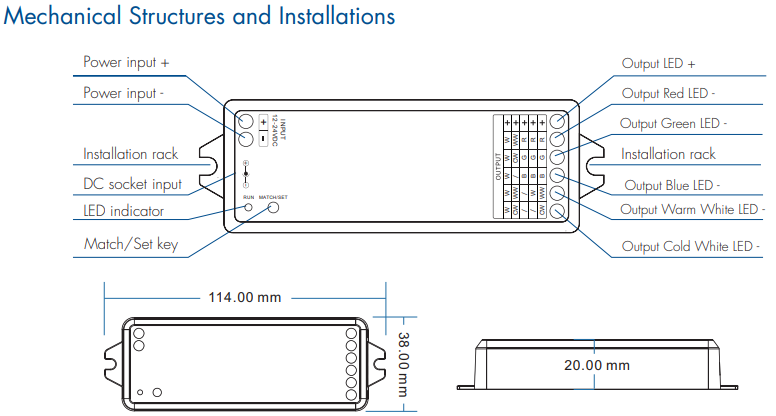

● DC power socket input and 5 channel constant voltage output.
● Tuya APP cloud control, support on/off, RGB color, color temperature, and brightness adjust, delay turn on/off light,
timer run, scene, and music play function.
● Match with RF 2.4G remote control optional.

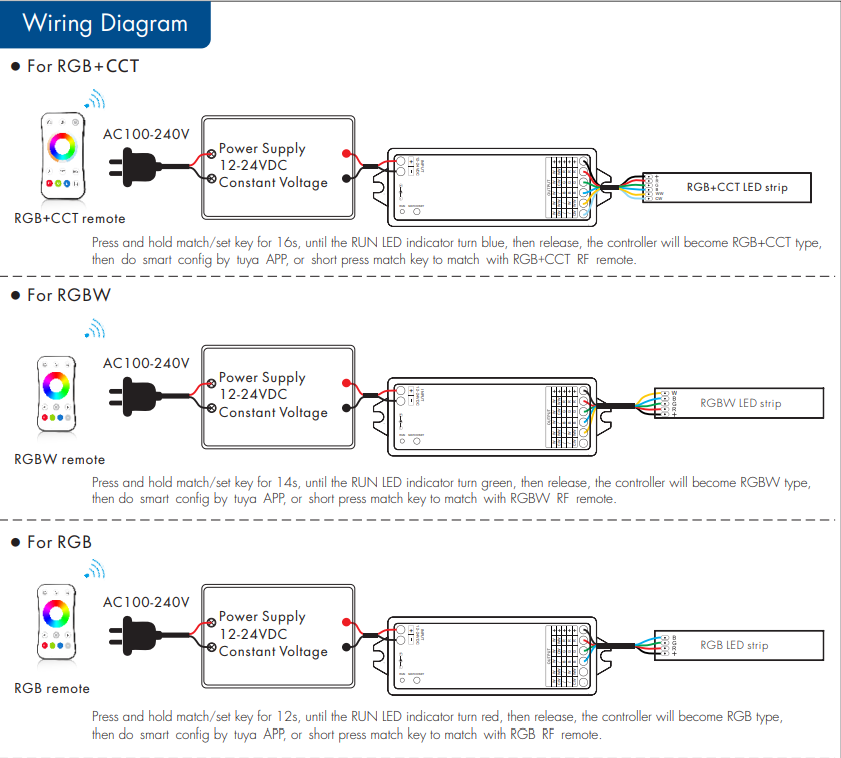

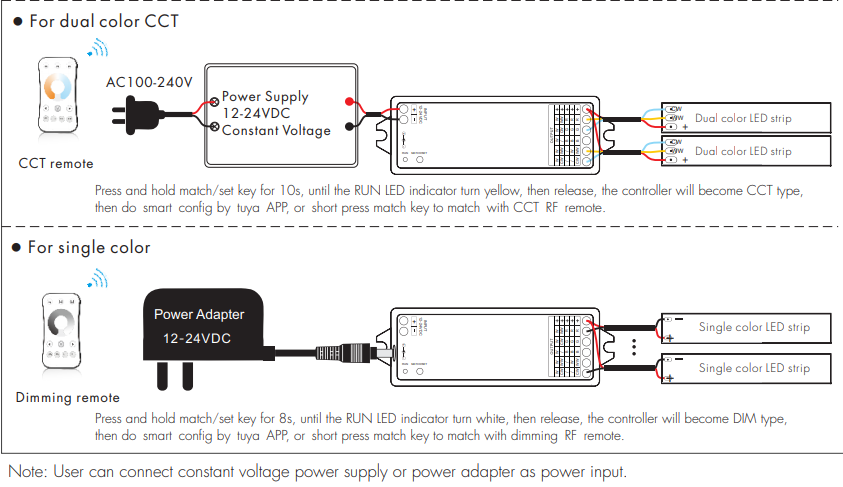

● Users need to set light to type by press the key before Tuya APP network connection and match RF remote of the same light type.

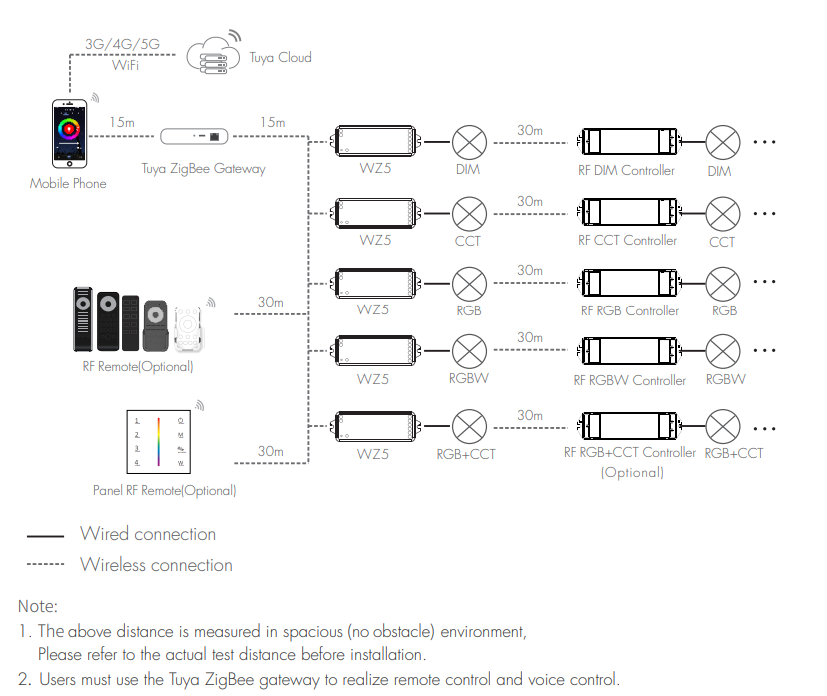

● Each WZ5 controller can also work as a ZigBee-RF converter, then use Tuya App to control one or more RF LED controller or RF LED dimming driver synchronously.
if you choose a controller, we will send you WZ5
Input and Output
Input voltage: 12-24VDC
Input current: 15.5A
Output voltage: 5 x (12-24)VDC
Output current: 5CH,3A/CH
Output power: 5 x (36-72)W
Output type: Constant voltage
Input signal: Tuya APP + RF 2.4GHz
Control distance: 30m(Barrier-free space)
Dimming grayscale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
