TM07U 2 Channel DC12-24V Low-voltage Touch Panel Colour Temperature Controller

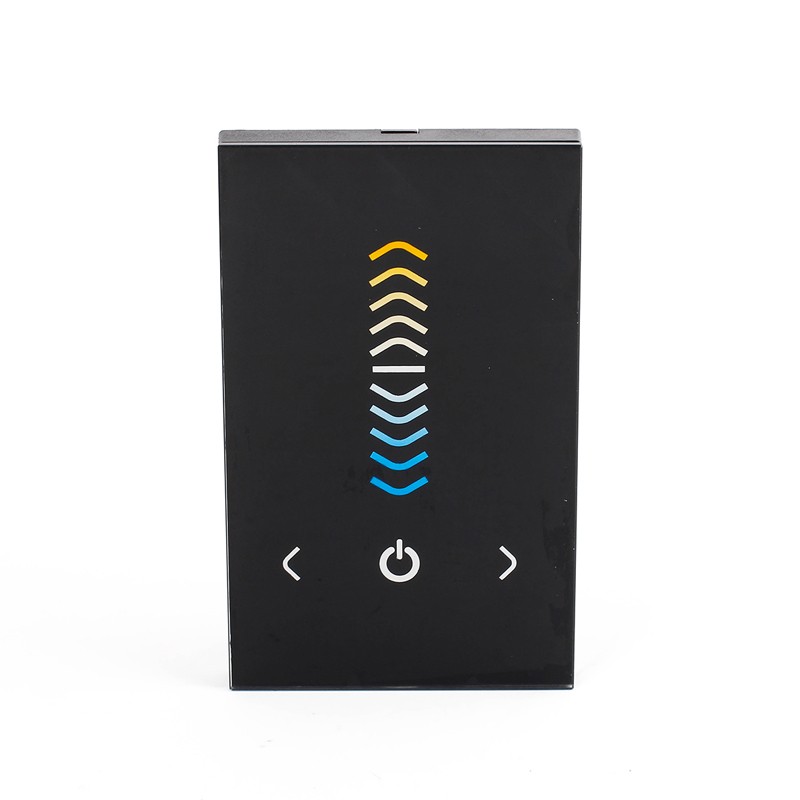

Touch panel controller is a new high-end dimmer which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.
Standards and Certifications
Working Temperature: -20-60 ℃
Supply Voltage: DC12-24V
Output Voltage: DC12-24
Output: 2 channels
Connection Mode: common anode

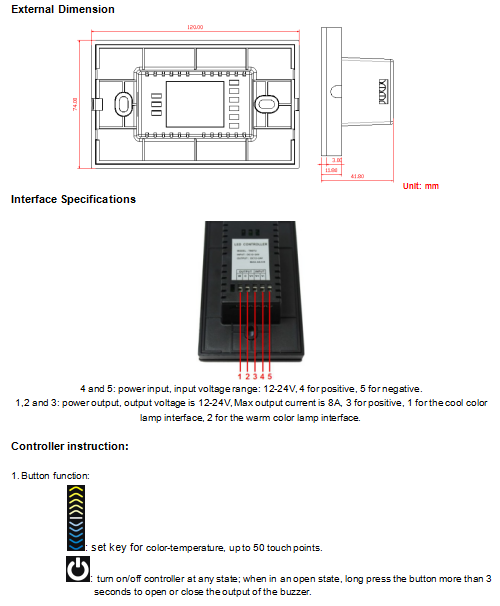

External Dimension: L74 Χ W120Χ H41.8mm
Packing Size: L150 Χ W100Χ H57mm
Net Weight: 126g
Gross Weight: 230g
Static Power Consumption: <1W
Output Current: <4A( each channel )
Output Power: 12V<96W,24V<192W
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
