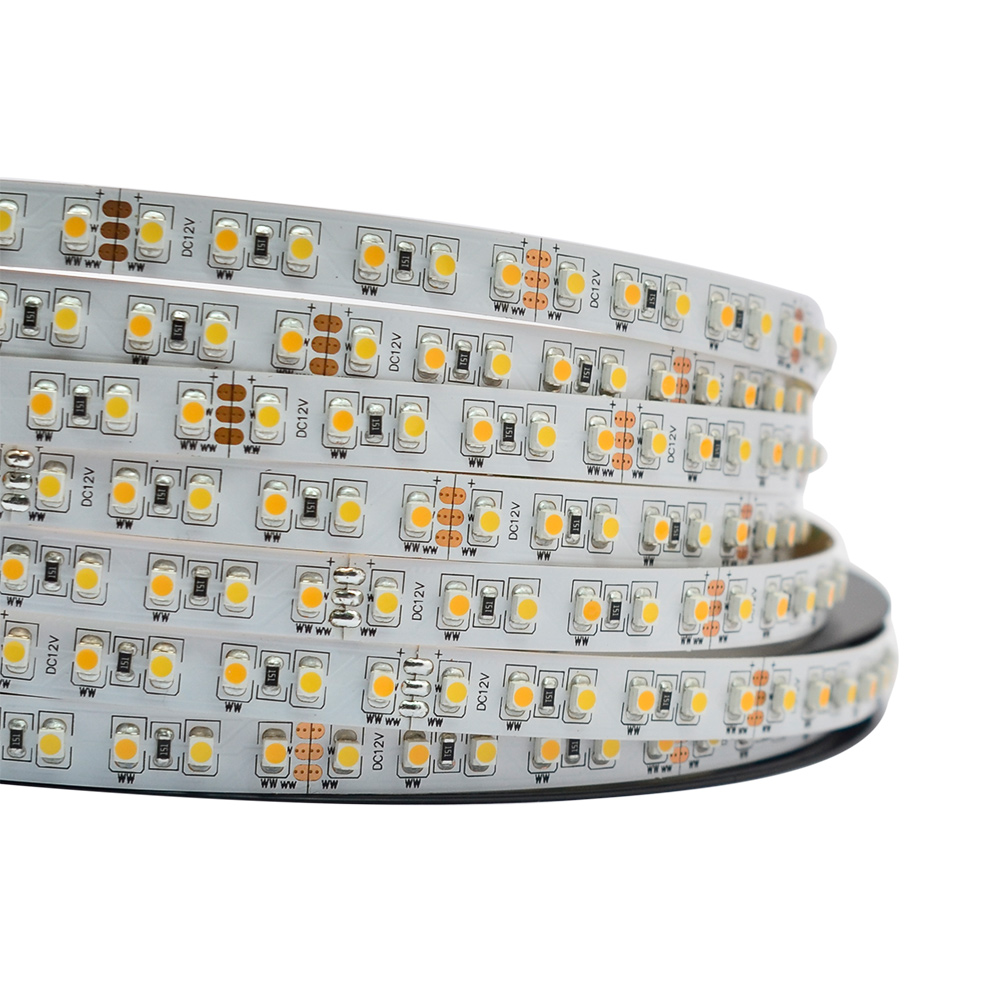

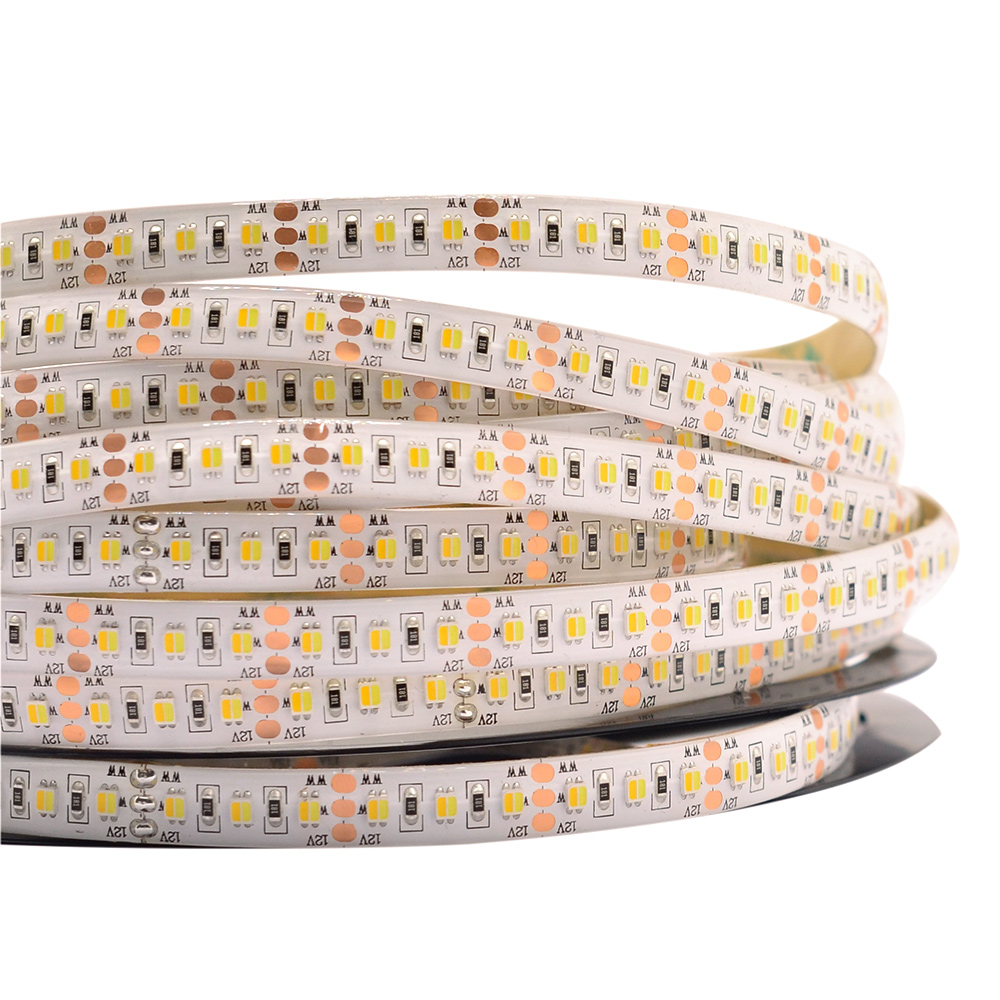

DC12V/24V 3528SMD 600LEDs 2in1 CCT Flexible LED Strip Light - Pure White+Warm White
Universal dual white color super bright Waterproof optional Dual Chip LED Variable Color Temperature high power LED flexible light strip. 5 meters (197 inches) long with 600 2-chip / dual phosphor 3528 SMD(SMD: Surface Mounted Devices) LEDs per unit, 16.4ft(5 meters) Per Reel By Sale.
Our brightest super flexible LED dual white color light Strips soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. The light strips of DC12V can be cut into 6-LED segments, the light strips of DC24V can be cut into 12-LED segments, so you could cut a different length for your project and request.
This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 12/24V DC operation. Color temperature can be adjusted with Dual white CCT dimmers (sold separately) from 2500K to 6800K. - Connect LED Dual white CCT Dimmers.
What is CCT tunable white LED strip?
CCT means correlated color temperature. Usually, the warm white light and cool white LED light are specifically expressed by Kelvin color temperature. The white light color temperature of CCT tunable white LED strip can be adjusted with white CCT dimmers from 3000K to 6500K(warm white/soft white to natural white to daylight white to cool white).
What is 3528 SMD LED?
3528 SMD(surface mounted device, an LED technology) LED is referred to its size 3.5mm*2.8mm. The 3528 LED chip name is named after the LED size. More SMD LED knowledge please read: Top 6 Considerations Before Buying LED Strip Lights
12V vs 24V LED strip lights
12V led strip lights are no voltage drop in 5-7 meters and cut 3 LED lights as a cut unit. The 12V led strip is powered at one end of five meters and needs to be powered at both ends for 10 meters. 12V light strips are also used in cars and boats.
24V led strip lights work under DC24V low voltage, have no voltage drop in 8-10 meters, and can cut 6 LED lights at a time. A 15-meter 24V led strip requires an led power supply at both ends, and a 10-meter strip can be powered at one end.
►Everything you should know before buying LED strip lights:
►Choose a suitable LED power supply and an LED dimmer CCT controller:
Standards and Certifications
LED Strip Type: SMD 3528
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White

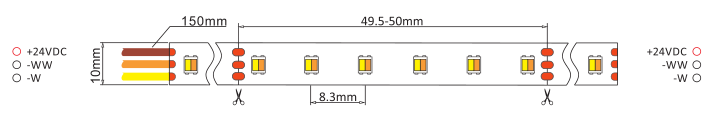

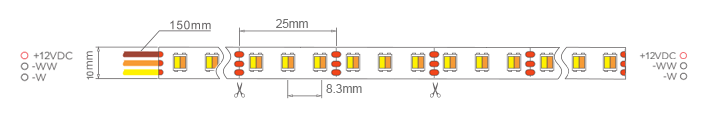

Dimension: 16.4ft/roll, every 6 PCS LED can be cut(DC12V) , every 12 PCS LED can be cut(DC24V)
LED Quantity: 1200 LEDs per 5meter (16.4 ft) [600 daylight white leds + 600 warm white leds]
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12V/24V DC
Working Power: 8A 96W /16.4ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 3600lm/16.4ft 219.5lm/ft 37.5lm/w

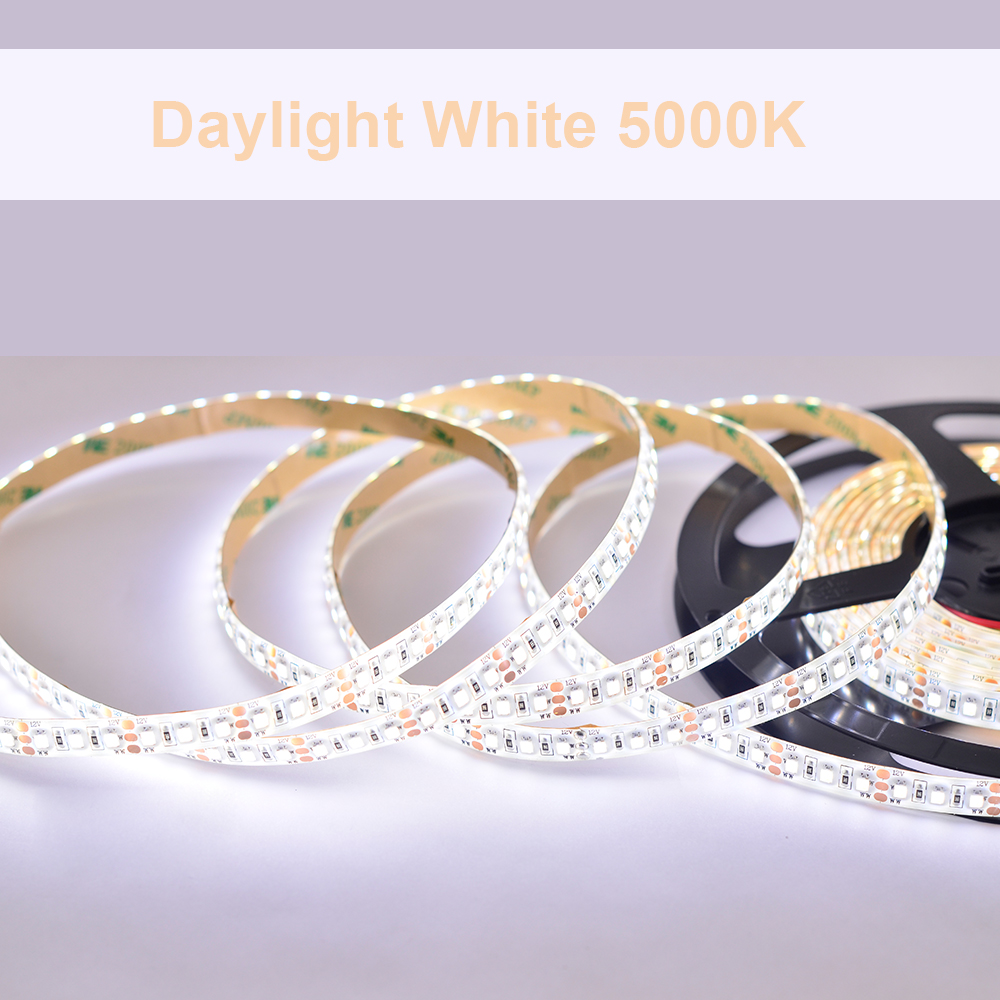

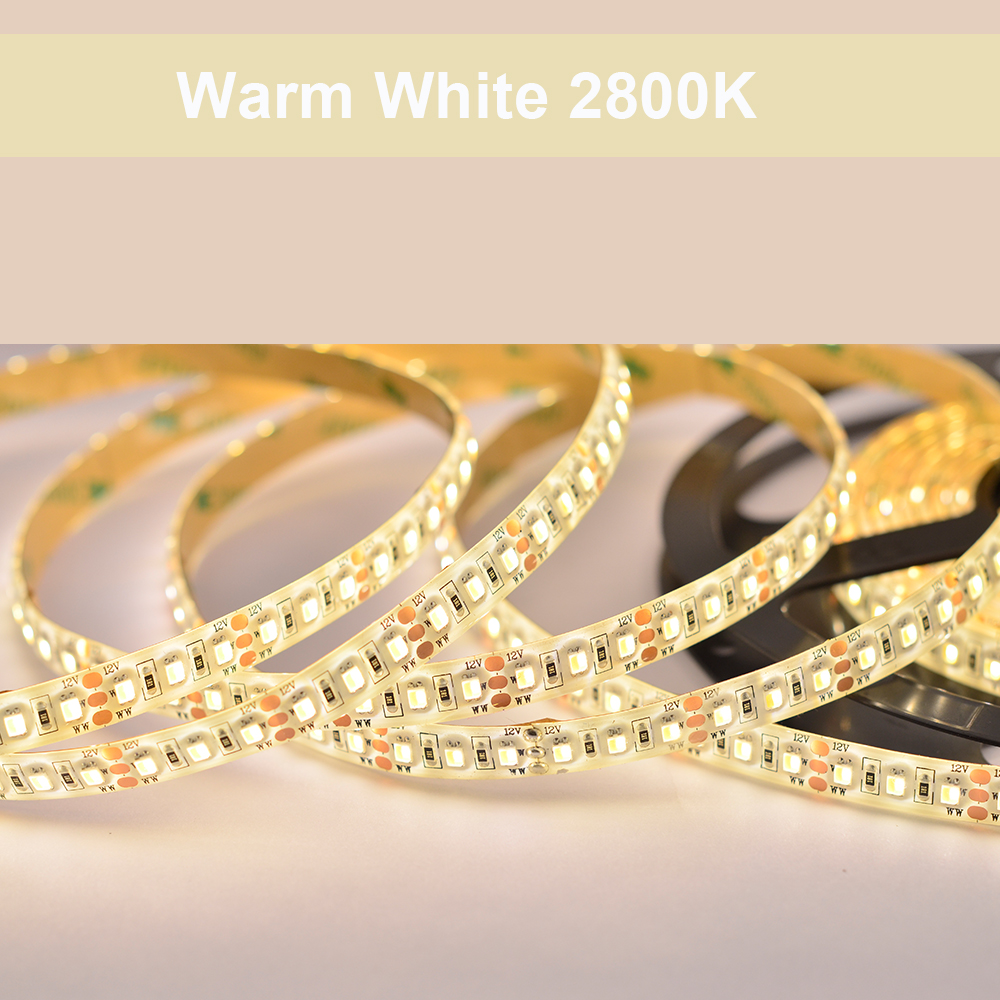

Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Waterproof Level Description(IP20 vs IP65 vs IP67 vs IP68)
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
|You can cut the strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof type which will come with mounting brackets.|
►Can you cut LED light strips and how to reconnect:

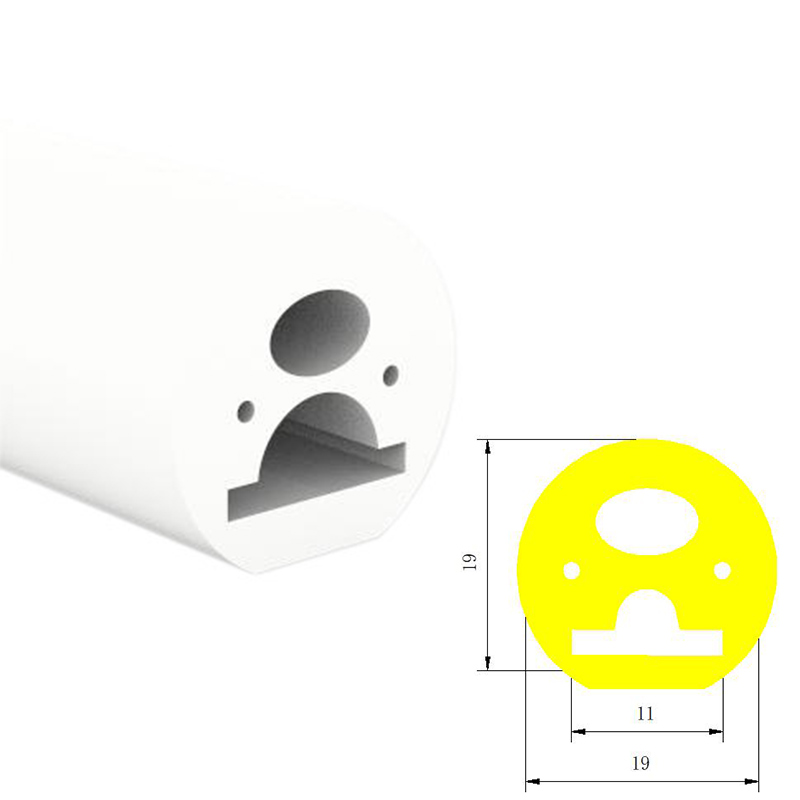

Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
The basics are all the similar. You will need a led strip light, a power supply(Please use a DC24V 150Watt power supply),/(use a DC12V 150Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: email@example.com
►Choose a suitable LED strip power supply and a CCT LED strip lighting controller:

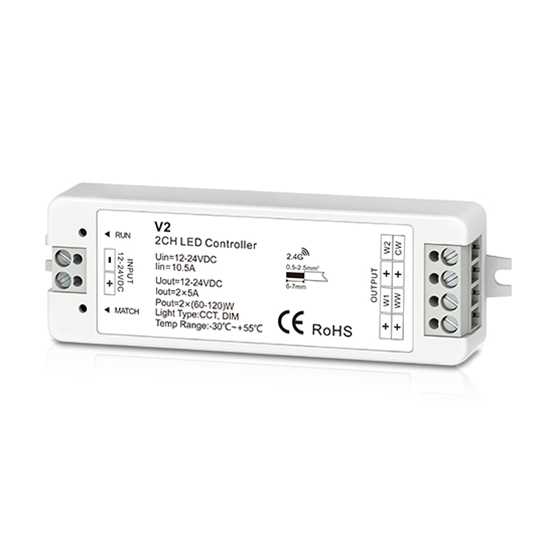

►RF wireless LED controller controls multiple CCT color changing LED white light with CCT RF remote connection method:
How to choose led strip lights
Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.

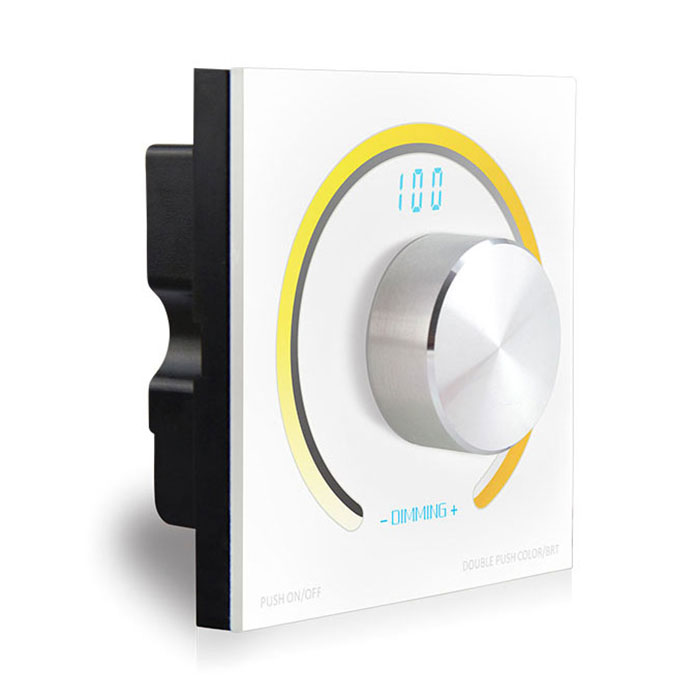

Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
