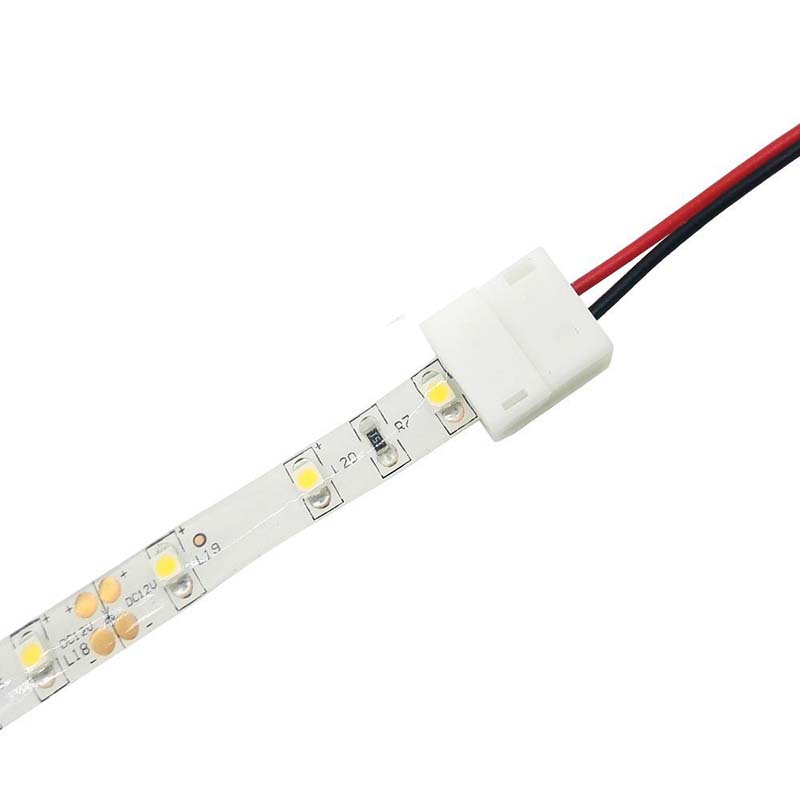

2 Pin 5/8/10mm Single Head LED Fast Wire Cable Connector For 5050/5630 Single Color Flex LED Strips Light
2 pin solderless led connector for 8mm wide SMD3528 2835 single color LED strip (Not suitable for high-intensity 120LEDs/M strips)
Working Condition: Can be able to stand up to 4A current and 0-24V voltage; Heat resistance level from -20 ~ 100 degrees C.

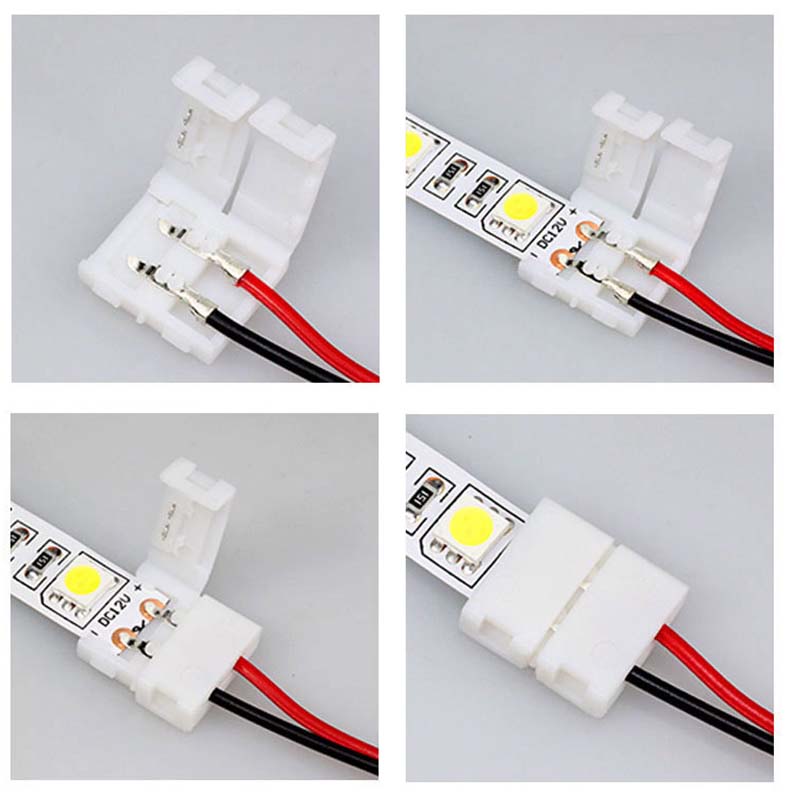

One end with a clip to strip, the other with wires as lead; Solderless quick snap down
Compatible with both waterproof and non-waterproof light strips (Please peel off silicon on the surface around soldering line area when installing waterproof strips )

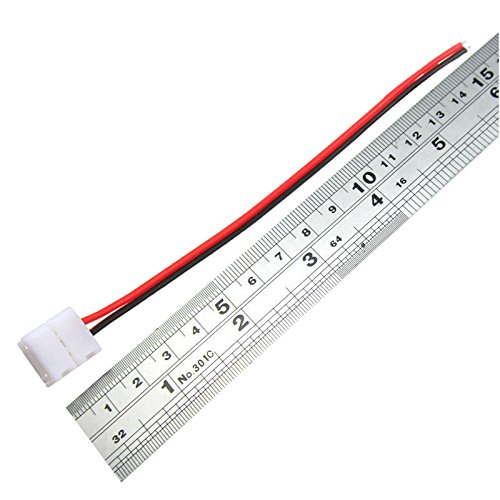

Product Dimensions: 6.3 x 0.5 x 0.2 inches
Assembled Height: 0.2 inches
Assembled Length: 6.3 inches
Assembled Width: 0.49 inches
Material: Plastic, Metal
Voltage: 12 volts
Light Direction: Up/Down Light

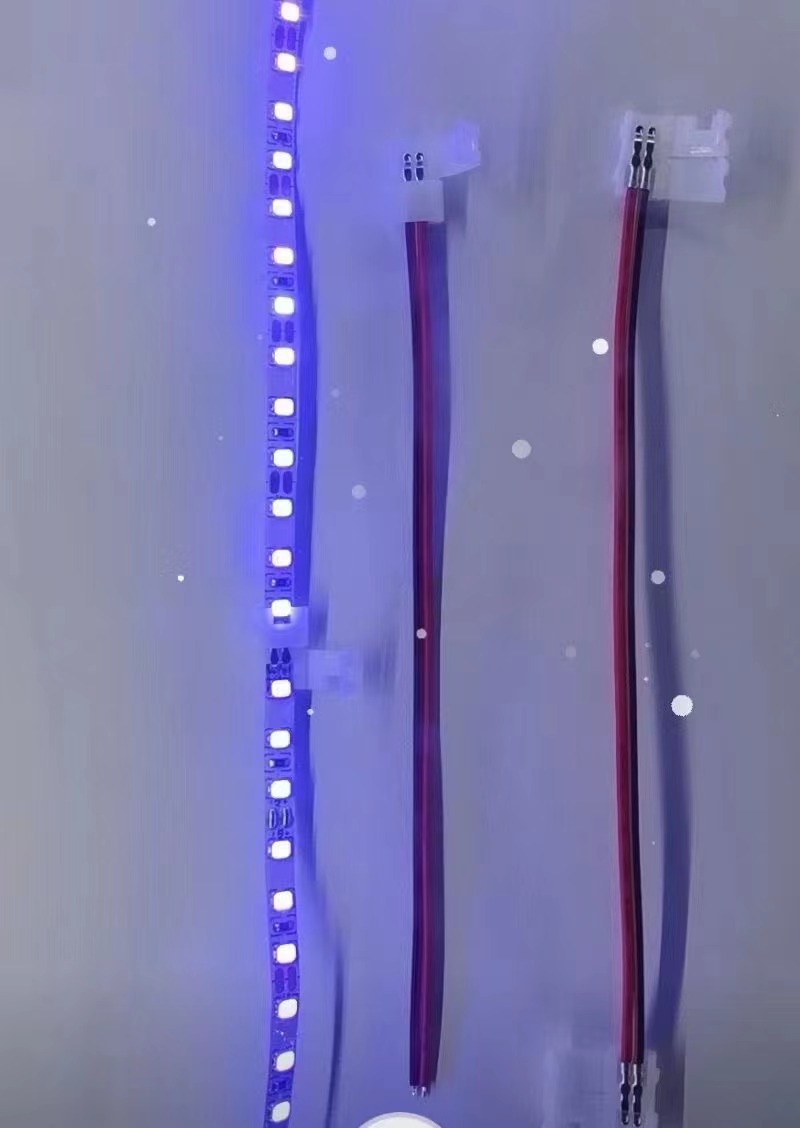

5mm LED fast connector:
