4CH*(150-500mA/350-1200mA) 12-48VDC Constant Current DALI Dimmer DA4-C (DT6)
4 Channel Constant Current LED DALI Dimmer. DA4-C(150-500mA) / DA4-C(350-1200mA). 1-4 DALI address selectable/4 Channel/Constant current/PMW dimming/Numeric display.
● 4-channel constant current DALI LED Dimmer with digital display, 150-500mA or 350-1200mA per channel.
● 1-4 DALI address quantity is selectable, and 4 channel work separately.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207, and in compliance with DALI products from other international incorporation.
● DALI address can be manually assigned and shown on the digital display or automatically assigned by the DALI master.
● PWM digital dimming, standard DALI logarithmic dimming curve.
● PWM frequency 1000/2000/4000/8000Hz selectable.
● Over-heat / Short circuit protection, recover automatically.
● With fast self-testing function.
Standards and Certifications

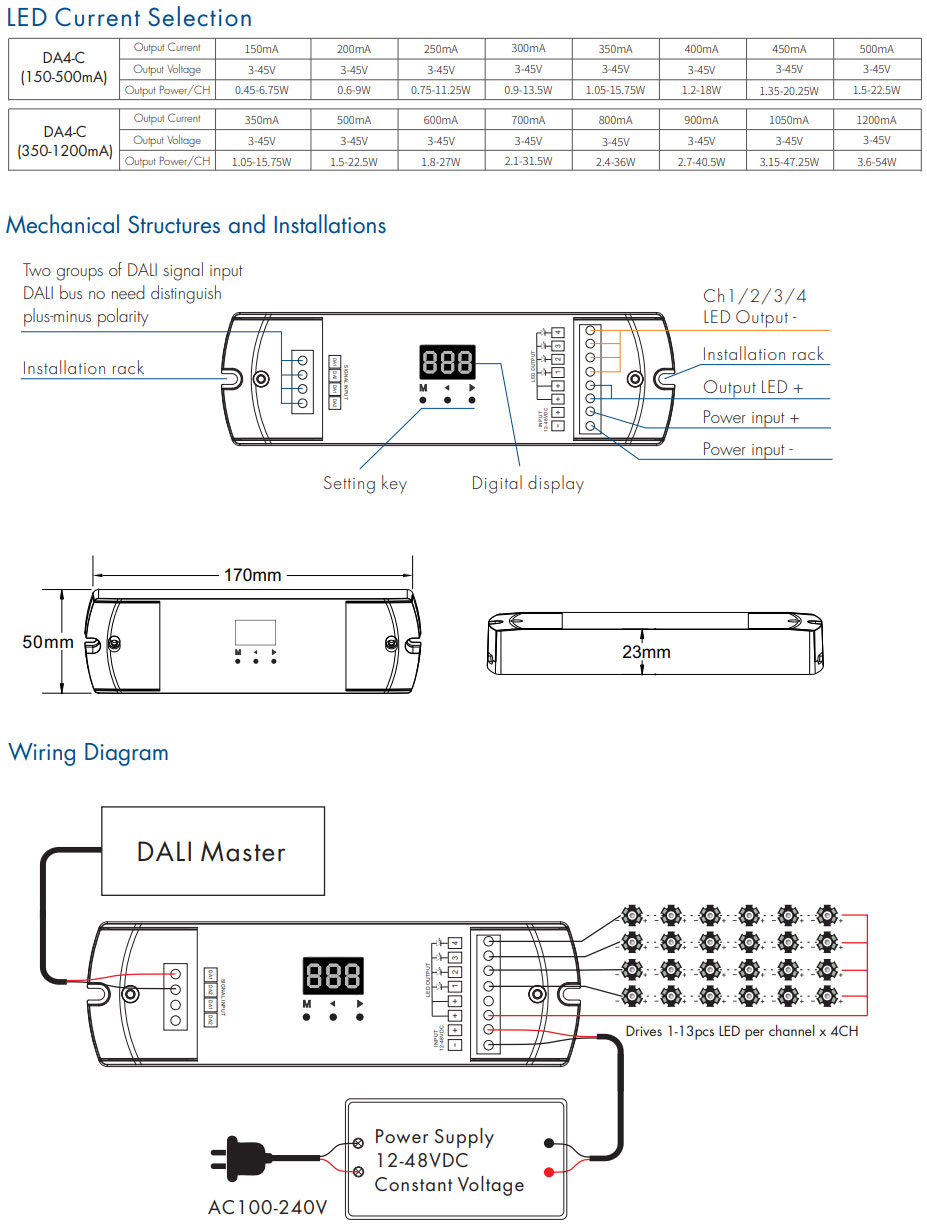

|Output voltage:||4 x (3-45)VDC|
4CH,150-500mA or 350-1200mA/CH
4 x (0.45-22.5)W (150-500mA)
4 x (1.05-54)W (350-1200mA)
|Output type:||Constant current|
|Dimming range:||0 -100%|
|Operation temperature:||Ta: -30℃ ~ +55℃|
|Case temperature (Max.):||Ta: +80℃|
