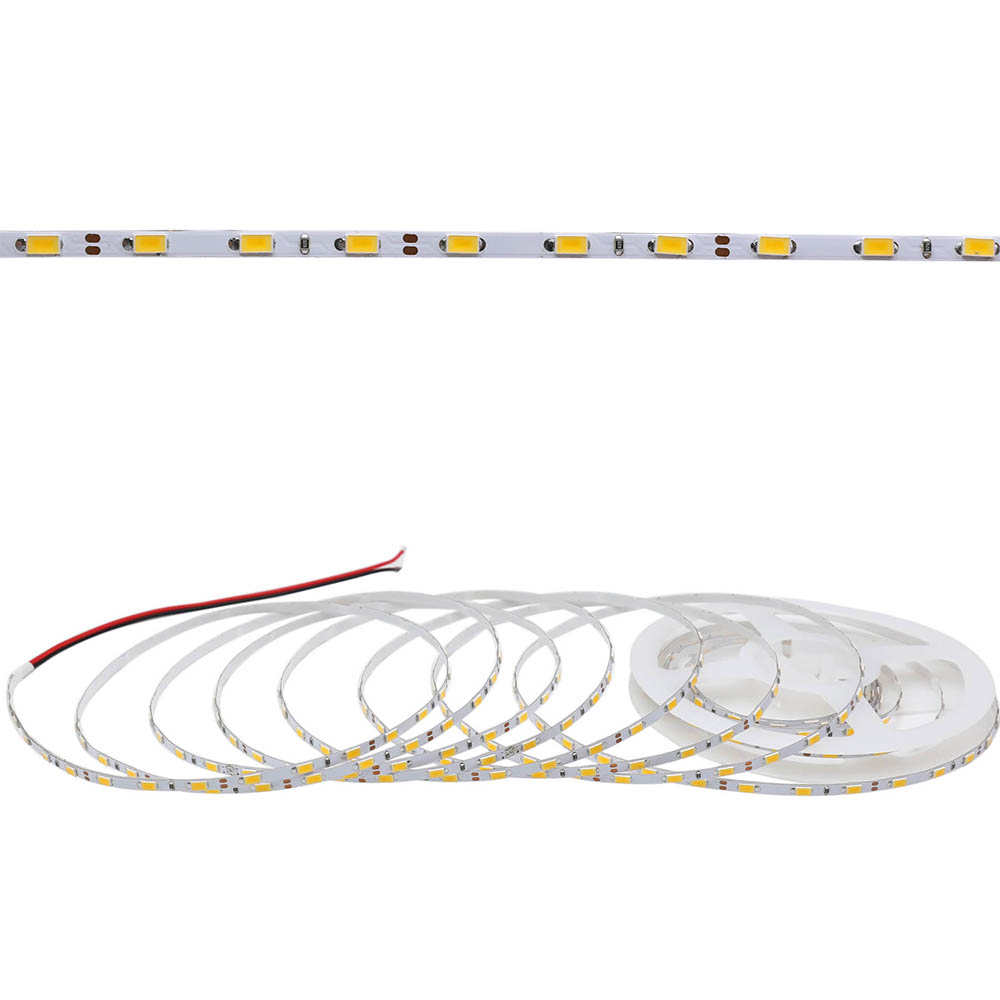

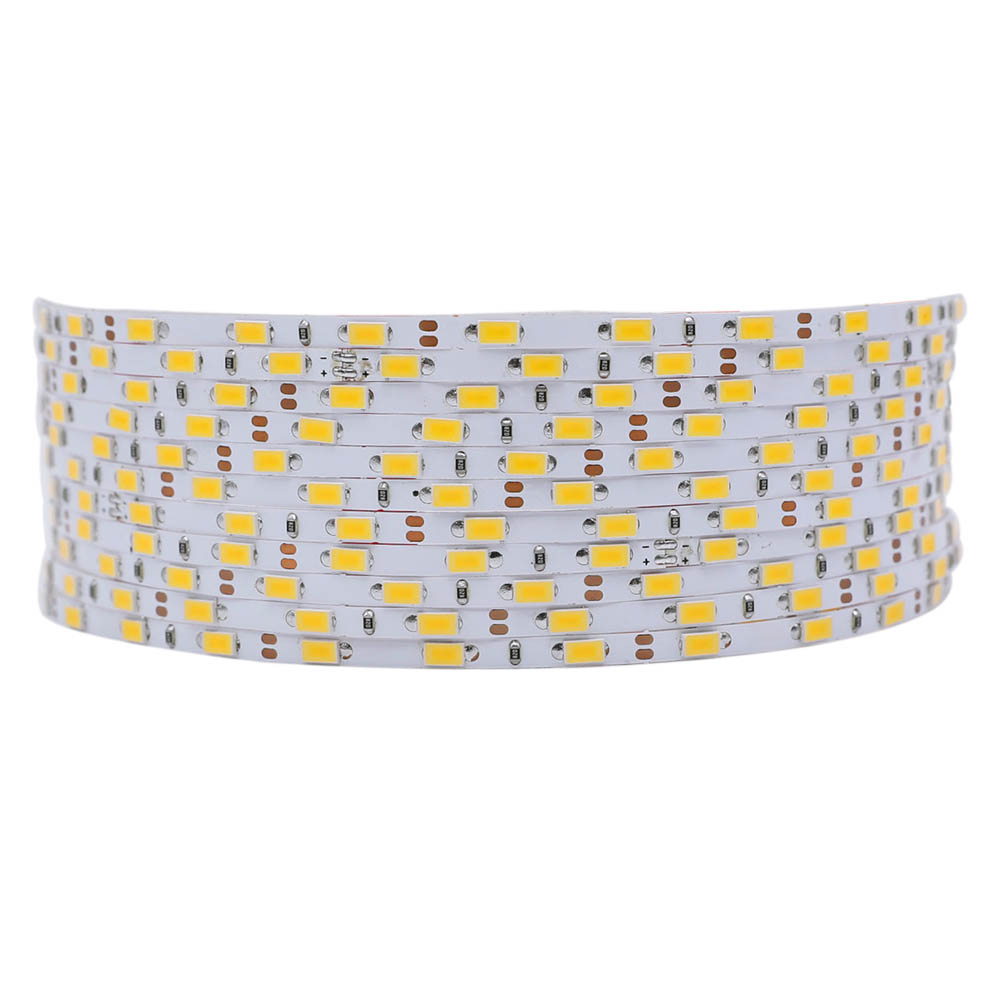

Super Narrow 4mm Width 5730SMD Parallel column 300LEDs Flexible LED Strip Lights Home Lighting 16.4ft Per Reel By Sale
Universal single color super bright 4mm super narrow 5730 SMD(LED size: 5.7mm*3.0mm) flexible ultra narrow LED Tape lights, multi LED light colors optional, 3000K warm white, 6000K daylight white, 7000K cool white, red, green, yellow, pink, purple, blue. - 3000K warm white vs 6000K pure white vs 7000K cool white, what is the difference.
12VDC operation. This ultra thin led strip can be cut into 3-LED segments, so you could cut a different light strip length for your lighting project and request.

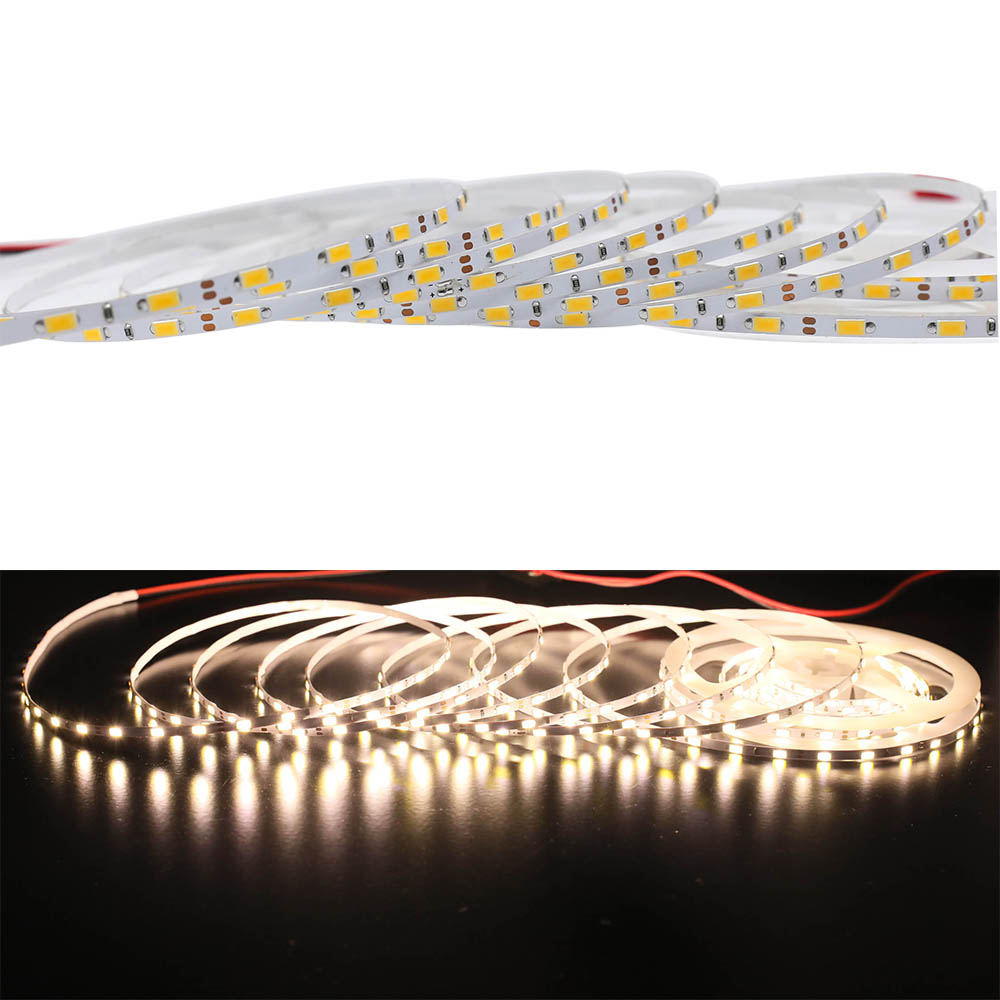

Our super thin flexible LED light strip is soft and easy bent for installation. Available in 5 meters (197 in) with adhesive backing and can be stuck just about anywhere. For outdoor waterproof lighting projects, we provide IP67 waterproof rating of this ultra slim led light.
This ultra narrow LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography, or any indoor and outdoor applications where presentation, appearance, and depth of color are critical, suitable for the average home lighting as well as lighting professionals.
►Everything you need to know before buying led strip lights:
Standards and Certifications
LED Strip Type: SMD 5730 300PCS/16.4ft
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Yellow, Pink, Purple (optional)
Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 66 LEDs per 1meter (3.28 ft)
Warantty: 3 years

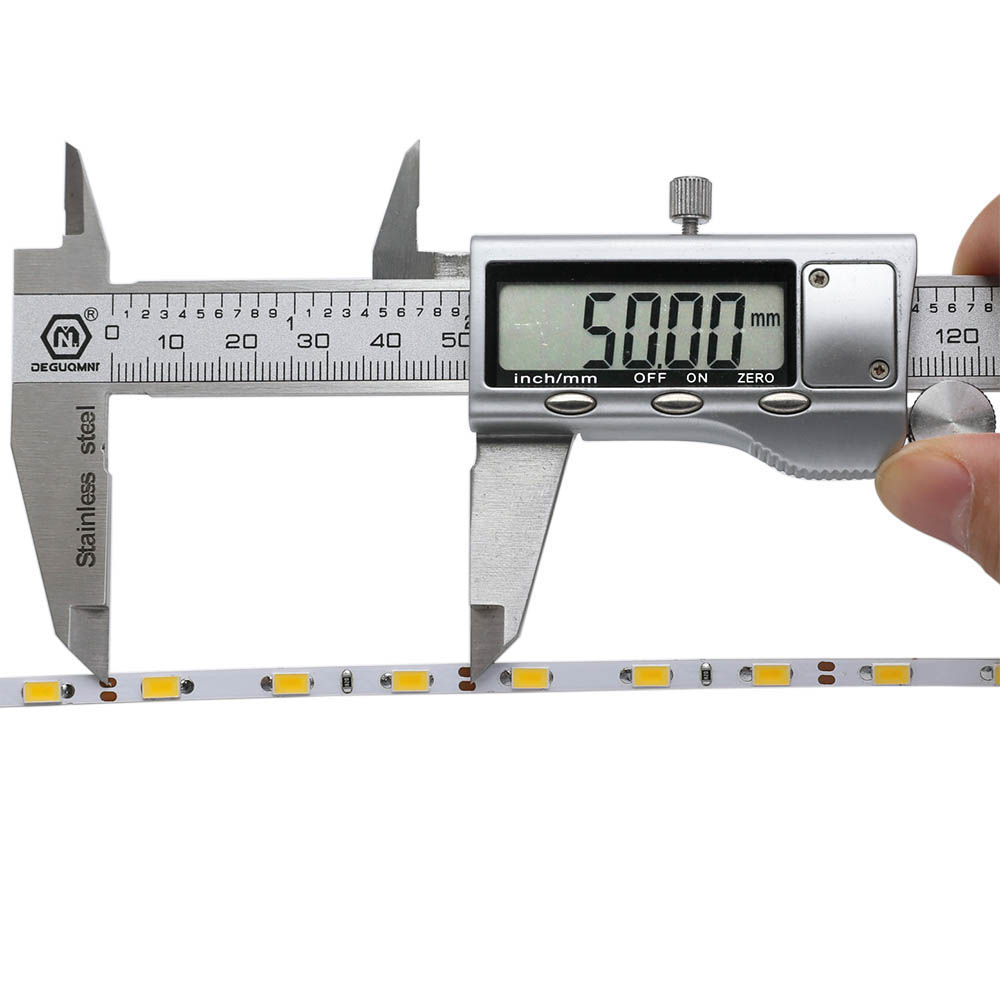

Dimensions: L500cm(196.8 in ) x W0.4cm(0.17in ) x H0.25cm(0.10 in )
Input Voltage(V): 12V DC
Working Power: 5A 60W /16.4ft Max
Lamp Luminous Flux(lm): 24~26lm/LEDs 7,200lm/16.4ft
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k), Cool White(7500-10000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP67 Optional
CRI (Ra>): 90
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP67 waterproof ultra narrrow led strip will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

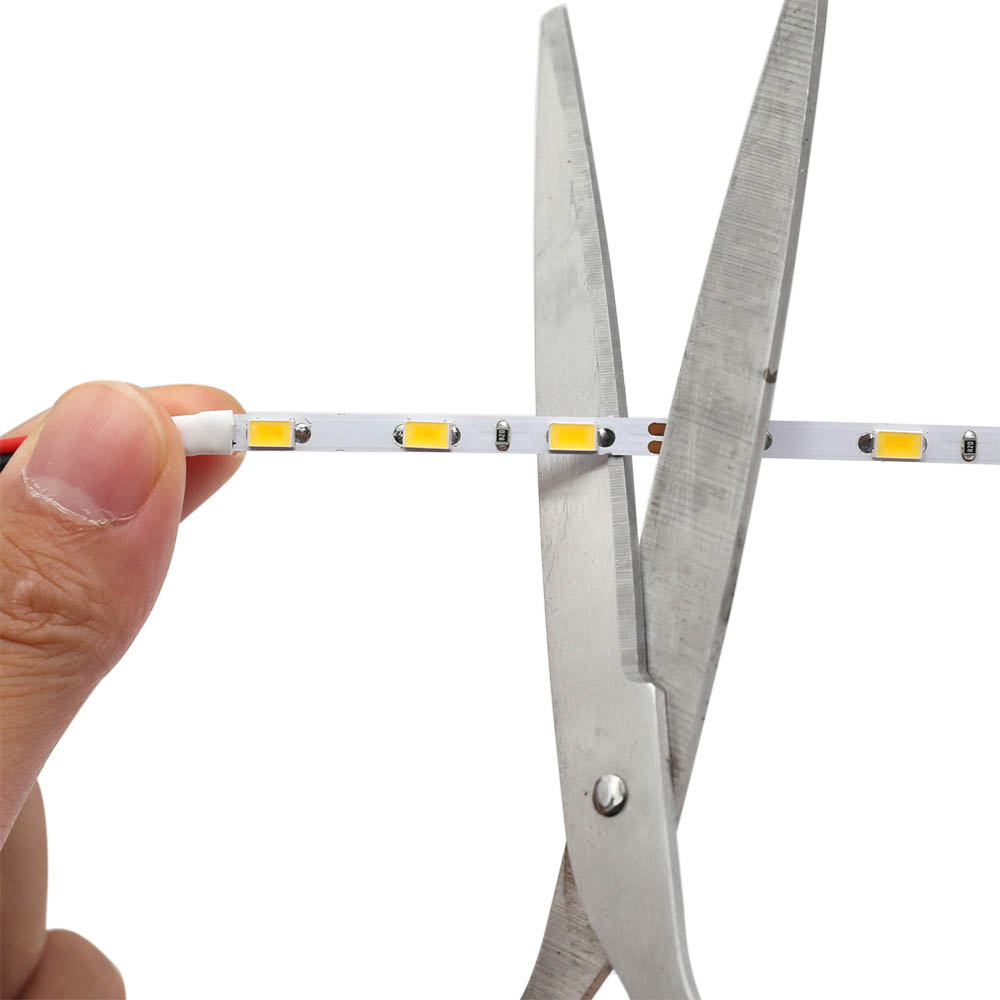

You can cut the single color LED lights every few inches(6 LEDs), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.

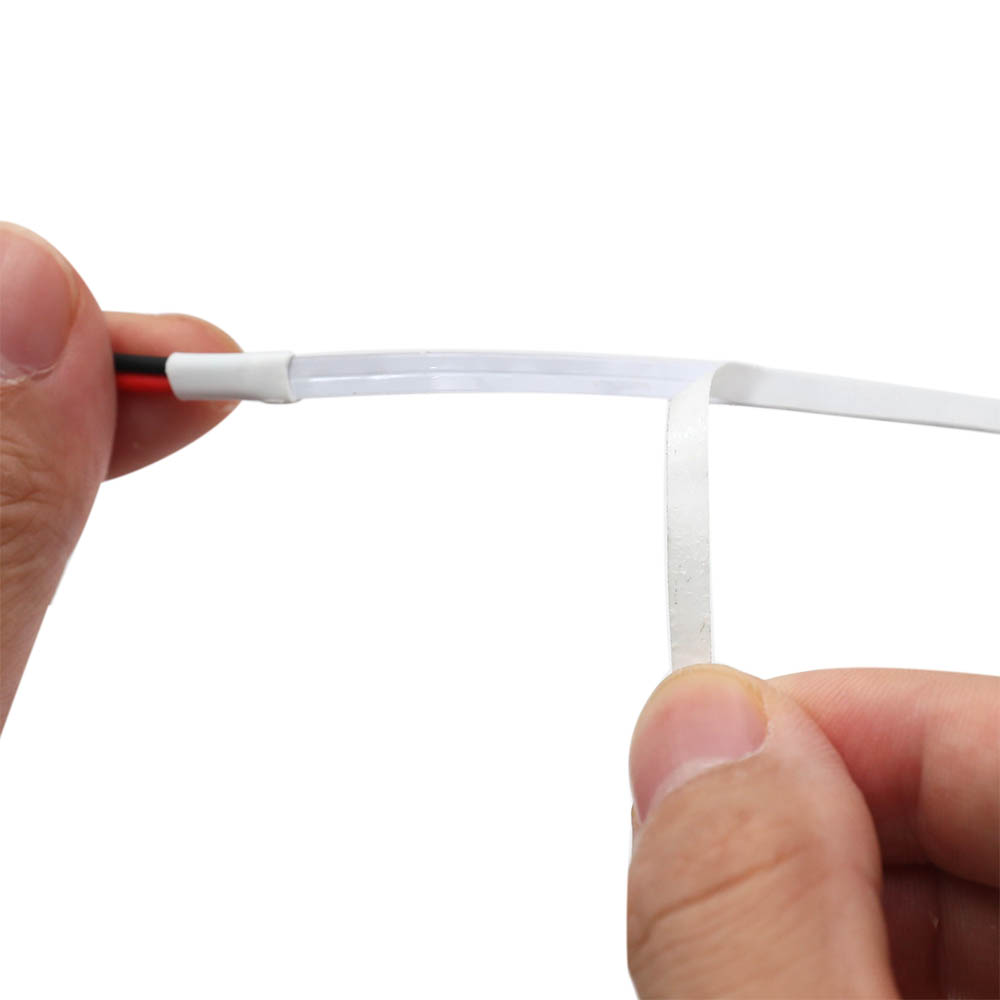

The back of the white LED strip is fitted with a strong 3M tape, allowing you to peel and stick the LED lights to anywhere.
IP67 waterproof LED type which will come with mounting brackets. And all the LED strip lights can be installed with LED aluminum channel to get an uniform, soft, and no light spot LED lighting effect.
How to wire single color led strip lights?
Single color narrow led strip lights wiring diagram:
*Click the wiring diagram picture to know more detail.
