2-Pin Dupont Male Female LED Connector For Single Color LED Strip Lights

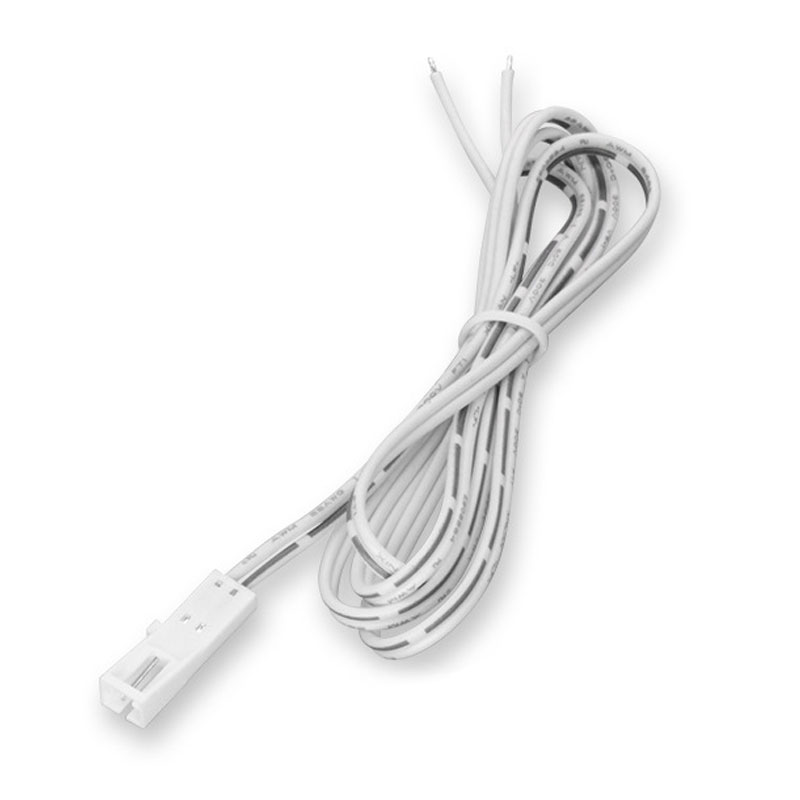

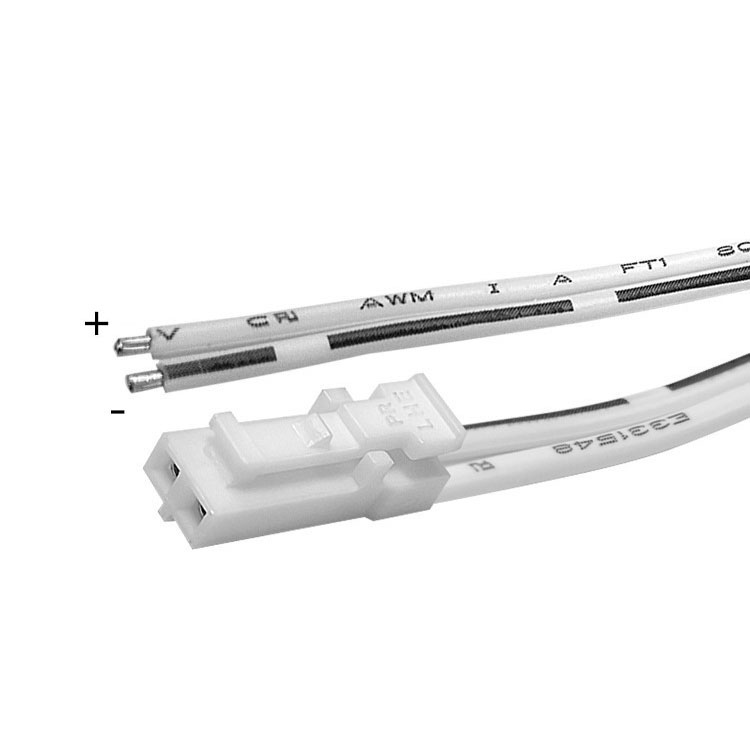

This is a type of solderless fast connector for single color led strip lights. One end with male/female plug, and the other end with 2-pin power wire. Cable with black marks is the negative pole, and cable with writing is the positive pole.

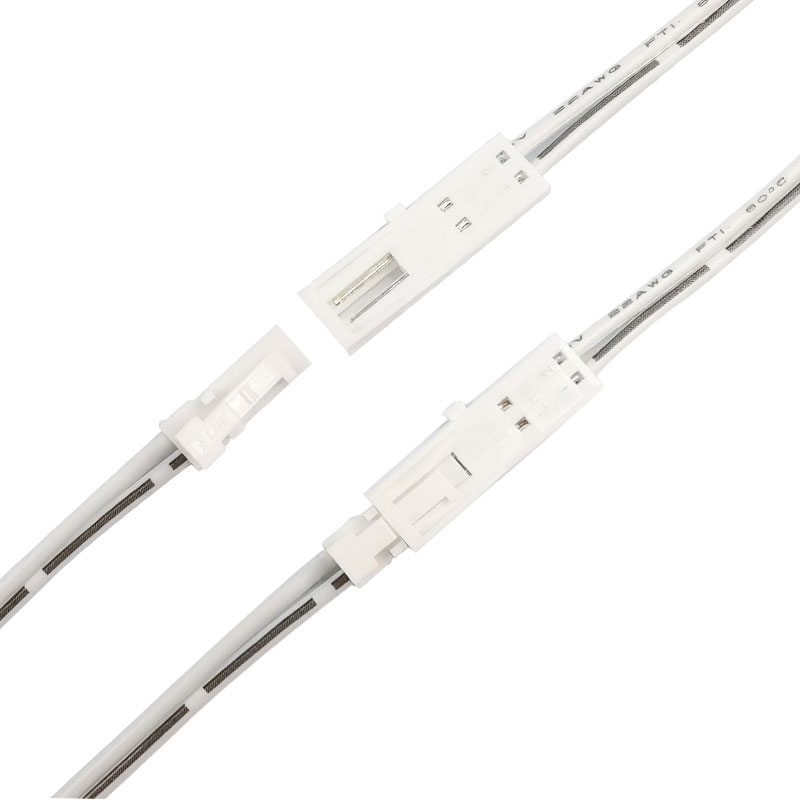

The product includes a dupont female connector and a dupont male connector.
If your strip light is no wire at the end, you can use a board-to-wire type connector to connect the strip with this cable, and then connect to LED controller or power supply. You can choose a suitable wire length to suit the distance between your controller/driver and the strip lights.
Model: Dupont LED Connector
Material: Pure copper + RVB
Length: 15cm/0.5ft, 1m/3.28ft, 2m/6.56ft, 3m/9.8ft, 4m/13ft, 5m/16.4ft
Wire Size: 22AWG
