DC12V Super Narrow 6*12mm SMD2835 Single Color Flexible Neon LED Tube Lights, 120LEDs/m 1m/3.28Ft Per roll
DC12V Super Narrow 6*12mm... $3.98
DC12-24V 20A 1CH*20A... $24.98
Mean Well LRS-100-12... $30.00 $25.9813% off
96W8A DC12V Plastic Shell... $21.99
Single Color LED... $19.98 $18.985% off
100W8.3A DC12V Constant... $35.98
DC12V Super Narrow 6*12mm...
DC12-24V 20A 1CH*20A...
Mean Well LRS-100-12...
96W8A DC12V Plastic Shell...
Single Color LED...
100W8.3A DC12V Constant...

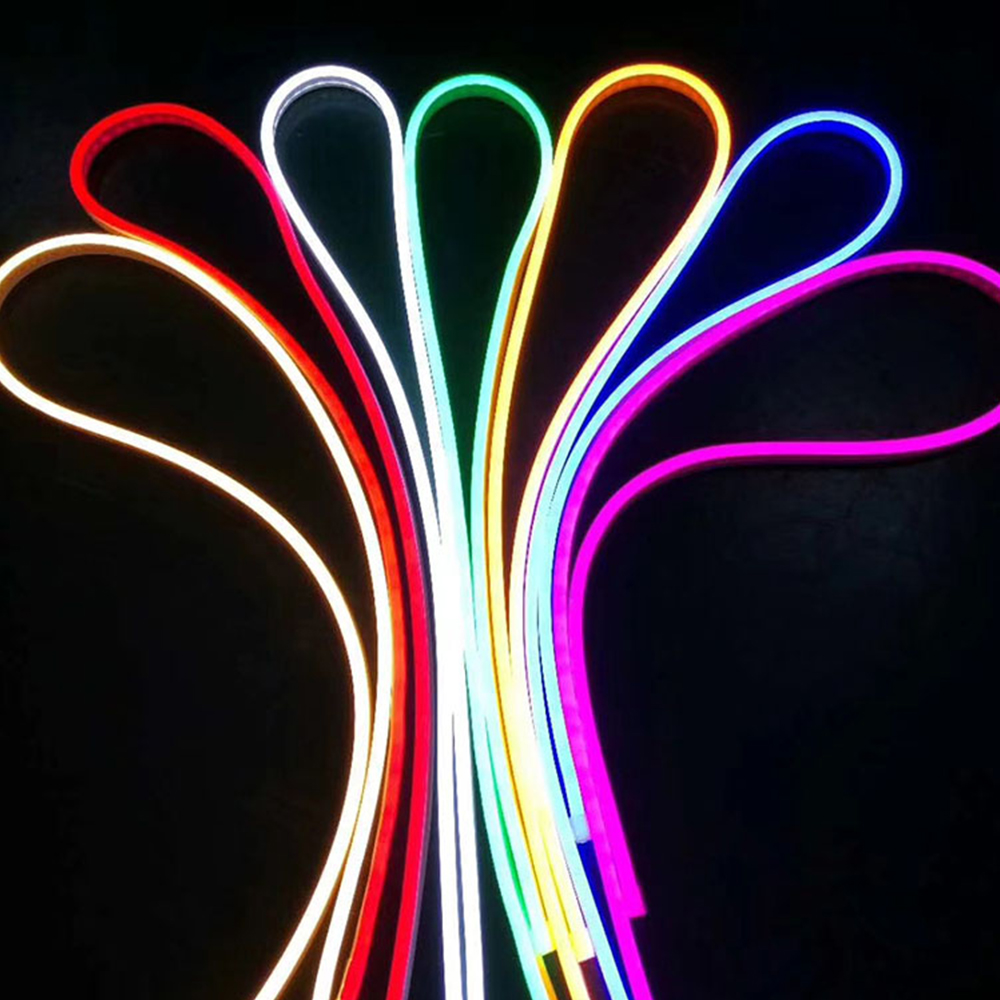

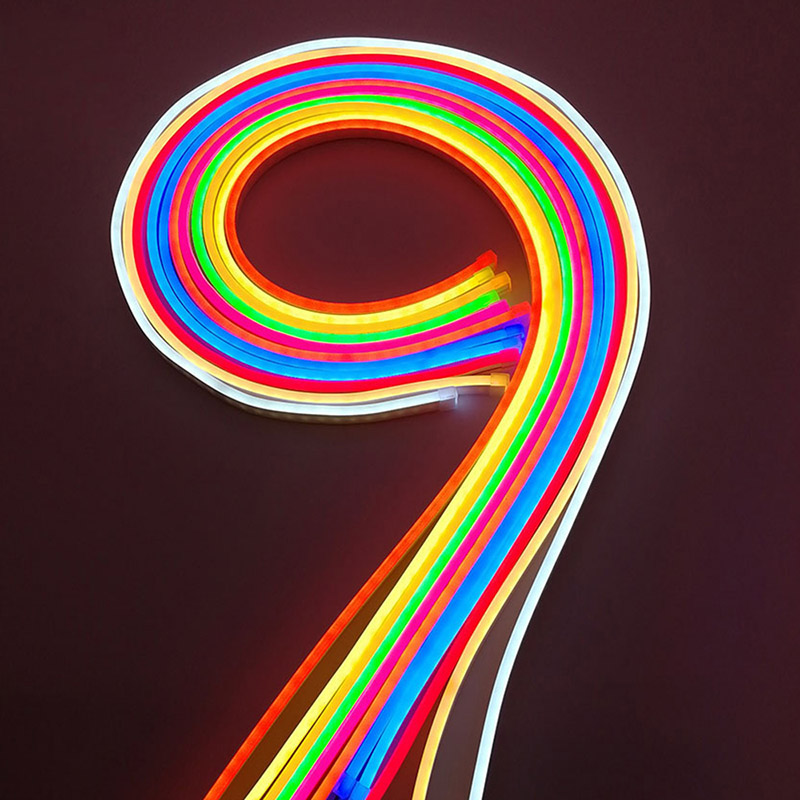

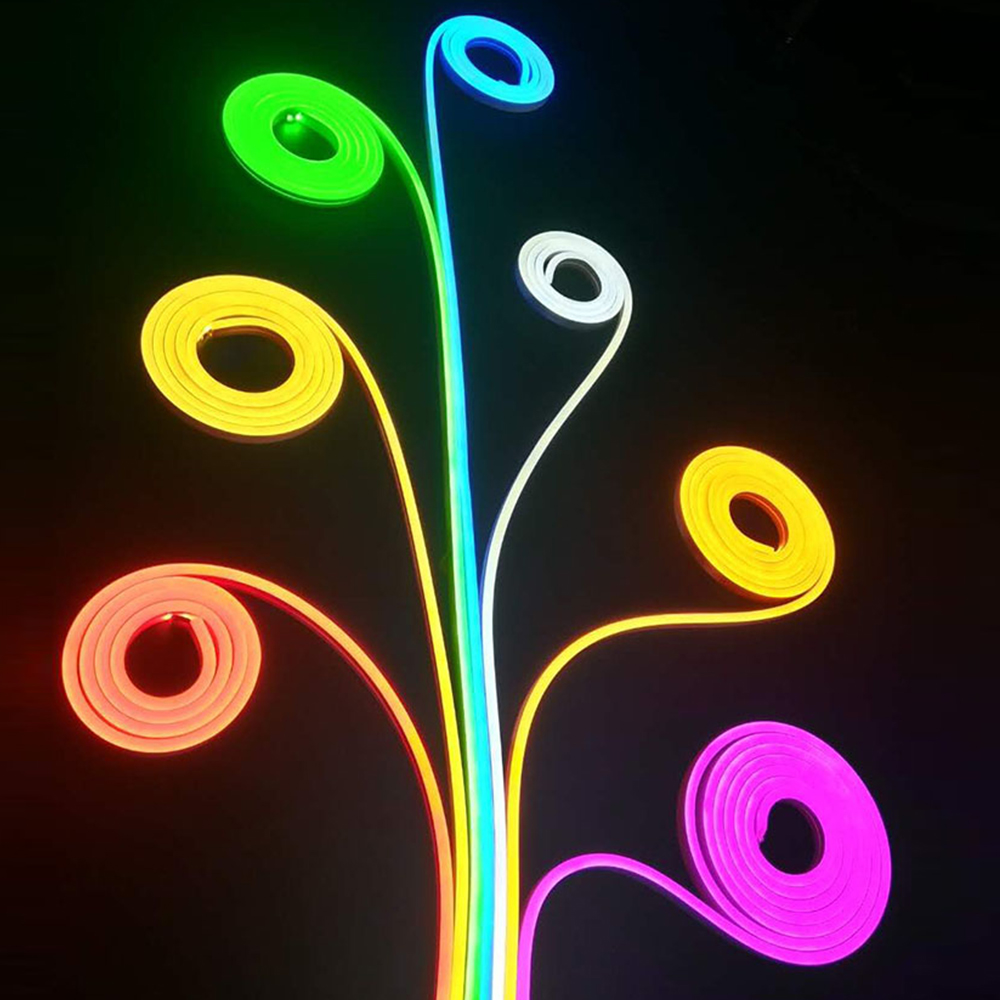

Here is the 6*12mm or 8*16mm narrow LED neon signs lights with various color temperatures and solid light colors, warpped 2835 LED strip lights in the flexible silicone diffuser channel, soft linear light, no light spot. Using food grade silicone material, the led neon lights are IP67 waterproof, suitable for advertising lighting, making neon signs (you can use this soft neon sign lights to diy neon name signs, neon sign font, etc.), and apply for outdoor lighting.
Here you can purchase the neon white light sign, red neon sign, green neon sign, blue neon sign, ice blue neon sign, pink neon sign, purple neon sign, and golden neon sign.
Note: DC12V 5-meter no voltage drop, but if you need a 20-meter DC12V neon light, in order to ensure that you use this light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each 10-meter.
Standards and Certifications
|LED Product Type:||Neon Signs Lights 06*12mm/08*16mm Mini Size|
|LED Chip:||2835 SMD LED|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Colors:||2700K-3000K warm white, 6000K-6500K daylight white, 7000K-9000K cool white, red, green, blue, ice blue, pink, purple, golden|
|Lumen Per LED:||12lm/LED, 439lm/ft|
|LED Quantity:||120 LEDs per meter (3.28 ft), every 25mm/0.98'' can be cut|
|Size:||W0.5cm(0.19in ) x H1.2cm(0.47in ) / W0.8cm(0.31 in ) x H1.6cm(0.63in )|
|Input Voltage(V):||12 VDC|
|Working Power:||8W/m, 40W /16.4ft Max → Informations About LED Power Supply|
|Material:||Food grade silicone|
|Waterproof Rating:||Waterproof IP67|
|Beam Pattern:||120 degree|
How To Install LED Neon Lights?
1. cut and install led neon sign light:
There are three installation methods for the led neon strip lights. One is to install with mounting clips, per meter 2 PCS. The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?

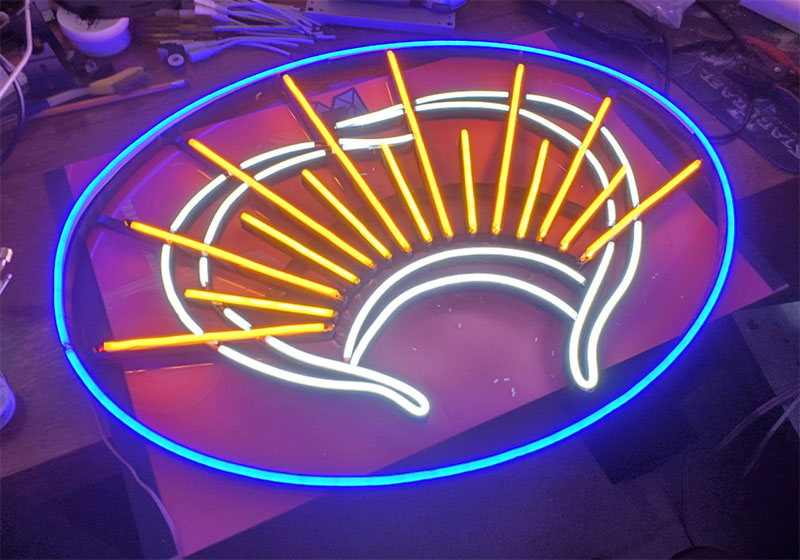

4. How to Make Neon Signs? Single color LED neon light signs wiring diagram:
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
