850nm InfraRed 5050SMD DC12V 35LEDs 10W Flexible IR LED Panel Light - Apply For Security Monitoring

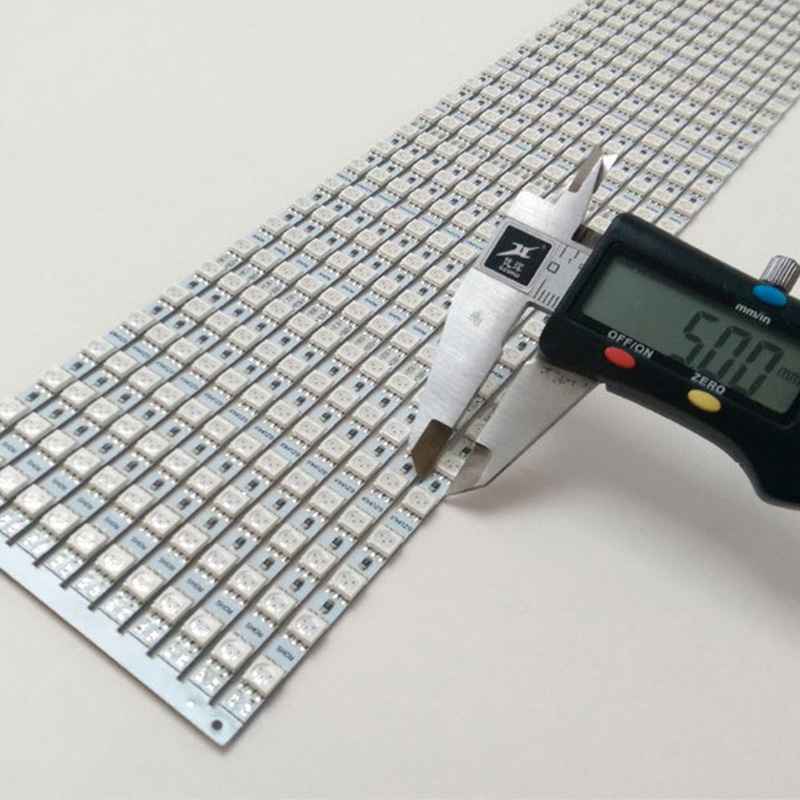

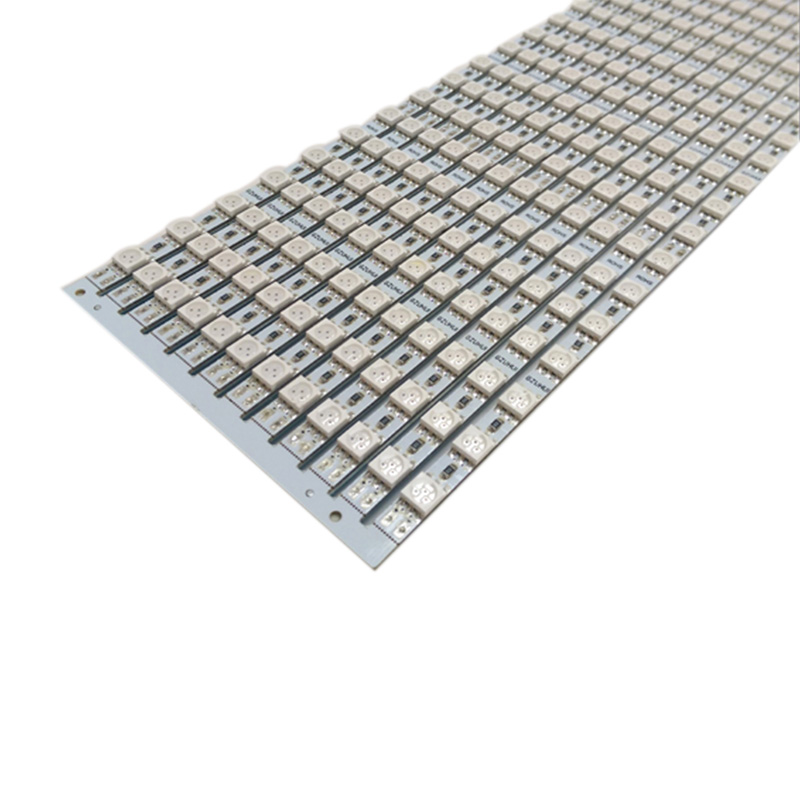

1. 850NM infrared LED light bar is a professional-grade linear light source, an infrared LED light bar customized for the light guide plate flat-panel light-emitting module, with 5mm ultra-narrow circuit board width, 5mm light-emitting surface, high thermal conductivity, extendable docking, etc, distinctive features.
2. The product consists of two main parts: imported Dingyuan chip LED lamp beads and high-precision PCB. The production process strictly implements the lead-free process in compliance with the ROHS directive.
3. Widely used in infrared photography surveillance lighting, infrared automatic inspection, and detection lights, and other fields.
Please Note: Since they are super narrow LED strips, so the working temperature will be higher than the common LED strips, please install the IR LED lights in the aluminum channel to get better heat dissipation.
Standards and Certifications
LED Strip Type: SMD 5050
LED Chip: Epistar super brights Chip
Light Color: Pink
Dimension: every 7 PCS LED can be cut

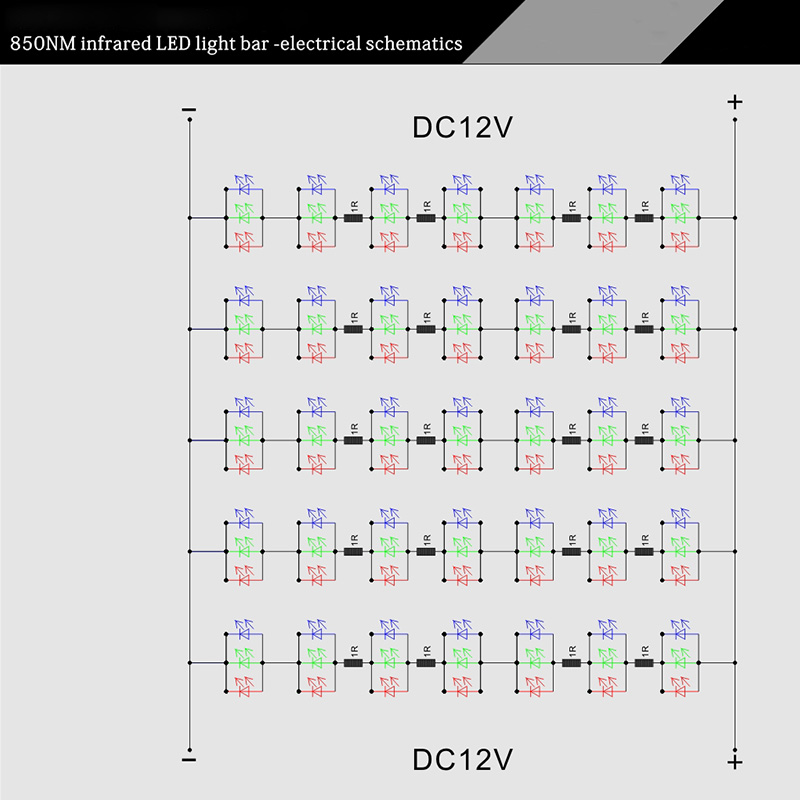

LED Quantity: 35 LEDs total ( 7 LEDs in series, and 5 pieces in parallel)
Warantty: 1 years
Dimensions: L425mm(16.73 in ) x W5mm(0.19 in ) x H3mm(0.12 in )
Input Voltage(V): 12VDC
Working Power: 10W Max
Wavelength NM(RGBY): 850NM Infrared
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20
Working Temperature: 50°C
Beam Angle: 140 degree
*For surveillance or security
*For Night Version Light
*For the multitouch display
*For infrared automatic inspection and detection light.
