Product Information
An ultra-narrow IR light bar emitting wavelength 850nm infrared light, using high efficiency SMD 2835 as the infrared LED light source and a rigid PCB board width of only 3.5mm. This super narrow infrared light bar is 240mm (9.45") long with a total of 40 850nm IR light sources. The 850nm rigid IR light bar comes with a 2pin power cable at one end for easy 12V DC power injection, and can be connected to a dimmer for dimming.
The 850nm infrared light bar is designed for use in infrared lighting and monitoring applications. Infrared light at 850nm is invisible to the human eye, but many infrared cameras and monitoring devices are able to sense and utilize this wavelength of light to provide visibility at night or in low light conditions.
Features
1. 850 nm wavelength, excellent illumination effect, better image quality.
2. Super narrow unbending rigid board, 3.5mm wide, 2.5mm lighting surface.
3. SMD2835, high brightness, can be connected to extend length.
4. High heat conductivity, efficient heat dissipation.
5. Wide range of applications: light guide plate, security cameras, medical devices, industrial automation etc.
6. Adhesive backing, easy to peel and stick.
Product Specification
| LED Strip Type: | Rigid 850nm LED Infrared IR Light Bar 12V |
| LED Type: | SMD2835 |
| Input Voltage: | DC12V 0.8A |
| Power: | 12-20W |
| Light Wavelength: | 850nm |
| Dimensions: | L240mm(9.45in)*W3.5mm*H2mm (Can Not Cut) |
| LED Quantity: | 40 |
| Waterproof Rating: | Non-waterproof IP20 |
|
Warantty:
|
1 year
|
| Lifespan: | 50,000 hours + |
| Beam Angle: | 120° |
| Applications: | Infrared photography, security monitoring, infrared inspection, light guide plate |
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for FSLSR-IP20-2835X850IRImages
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
48W4A DC12V Plastic Shell Enclosed Power Supply Adapter For LED Strip …$5.99

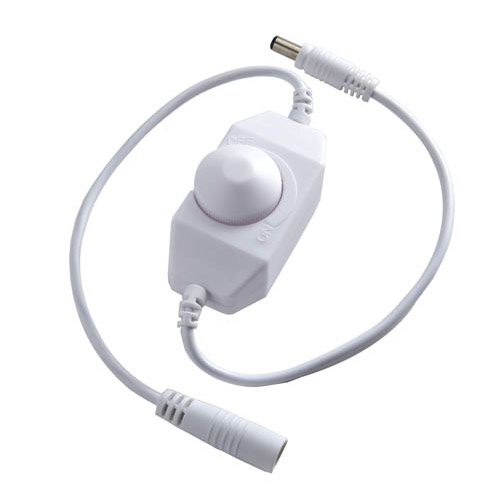

DC12/24V Max 2A 24-24W, Mini Manual rotation LED Dimmer, ABS Shell, Fo…$6.99
