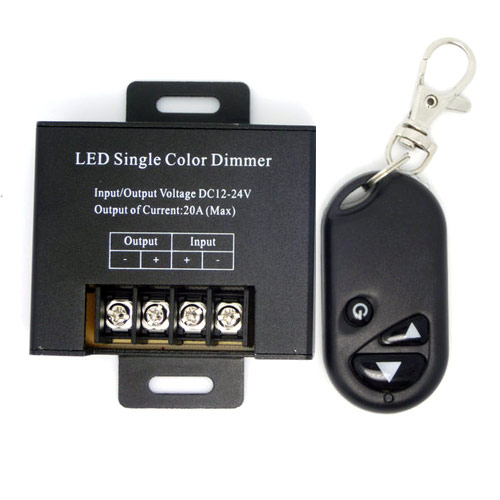

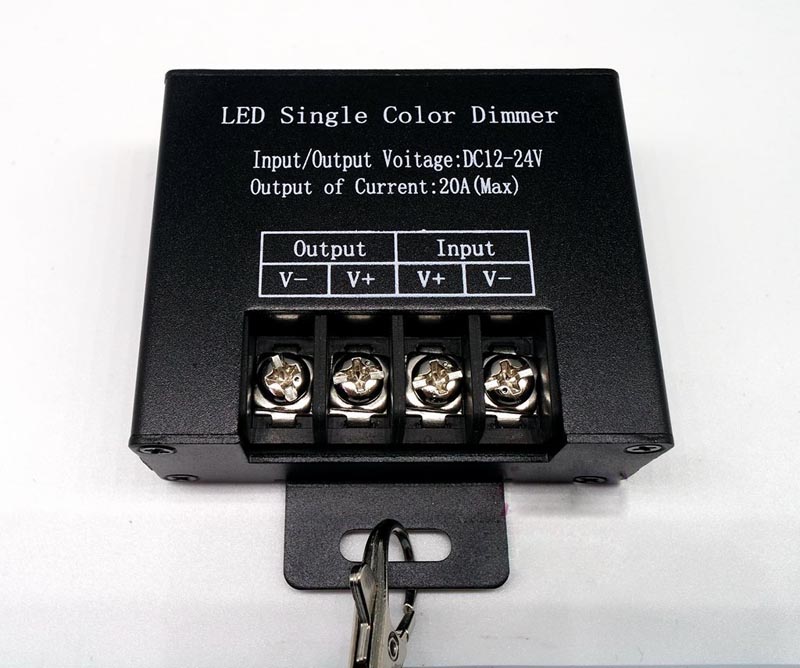

DC12/24V Max 20Ax1CH, Universal LED Wireless RF Remote Controller For Single Color Led Strips or Modules
This dimmer Input Voltage: DC12-24V. Max Current: 20A. Max Power: 240W (12V), 480W (24V). Max remote distance:15-20 meters. Remote need ALKALINE BATTERY 27A (battery not included). PWM Dimming LED single color dimmer is a controller that can adjust brightness infinitely
Its control mode is wireless control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.
It is constant voltage dimmer, not constant current dimmer. It is suitable for DC 12V or 24V LED light (max 20A), not suitable for high power LED (because it is constant current). Please note it. Thanks.
Input voltage: DC 12~24v
Output channels: 1 channel
Max load current: 20 Amps/Ch
Transmission/Receiving frequency: 433 Mhz
External dimension: L80
Dimming range: 0 to 100 percent
Max output power: 240 watt at 12V, 480 watt at 24V
Static power consumption: lower than 1 Watt
Operating temperature: -20°C ~ +60°C
Product dimesion: 108*73*38mm
Gross weight: 108g
1x RF LED Single color dimmer
1x Piece of User's Manual
