AC220~240V High Voltage RGB Dimming LED Driver
This item is made by 2.4G wireless transfer technology with low consumption and anti-interference. It supports PWM dimming without any flashing and it’s built-in power driver which is easy to power on the device and protect the led chip.There is overload protection.
Product Name: High Voltage RGB Dimming LED Driver
Model No.: HF3-P400V210

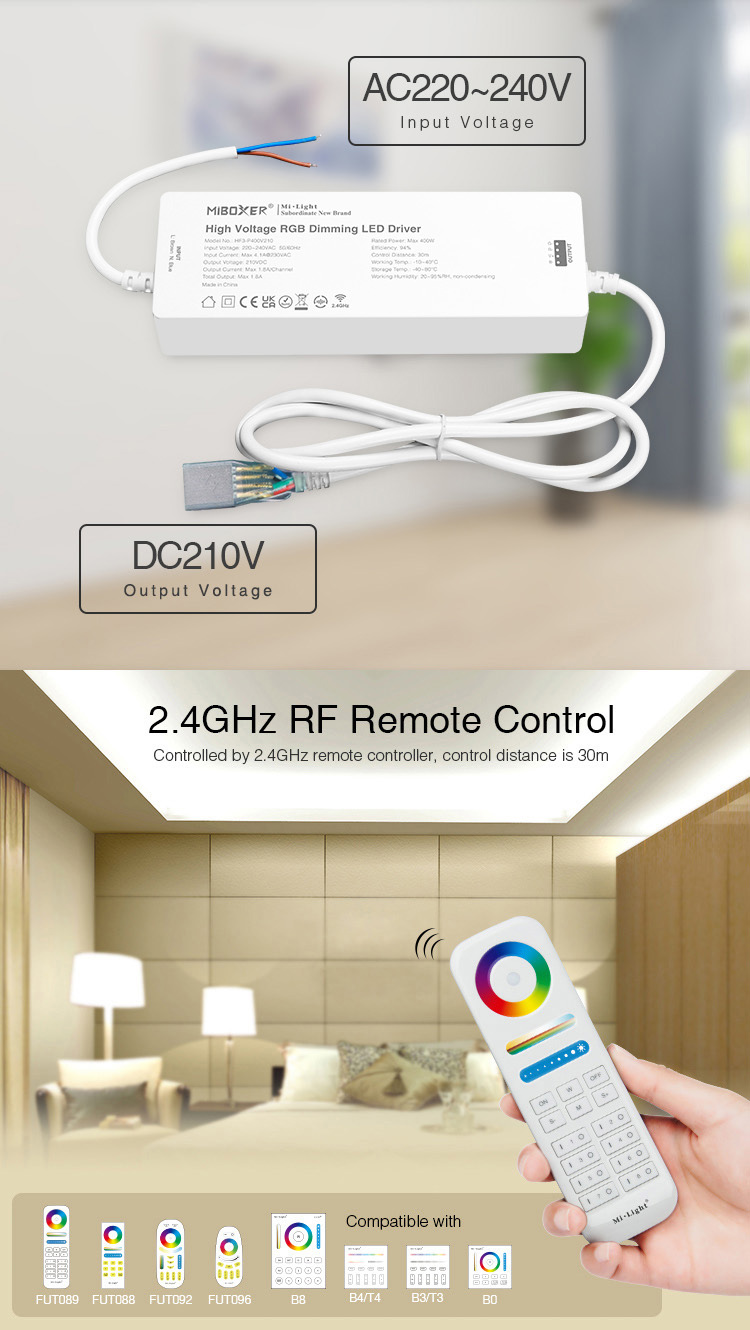

Input Voltage: AC220~240V 50/60Hz
Input Current: Max 4.1A@230VAC
Output Voltage: DC 210V
Output Current: Max 1.8A/Channel
Total Output: Max 1.8A
Rated Power: Max 400W
Working Temperature: -10~40°C
Storage Temperature: -40~80°C
Working Humidity: 20~95%RH, non-condensing
Overload Protection: Limited power
Control Distance: 30m
1. Please check whether the input voltage supply is in accordance with the strip light driver.
2. Non-professional users cannot dismantle the strip light driver directly, otherwise, it may and electric shock.
3. The working temperature is -10~40°C; do not use the device to direct sunlight, moisture, and another high-temperature area.
4. Please do not use a strip light driver around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
