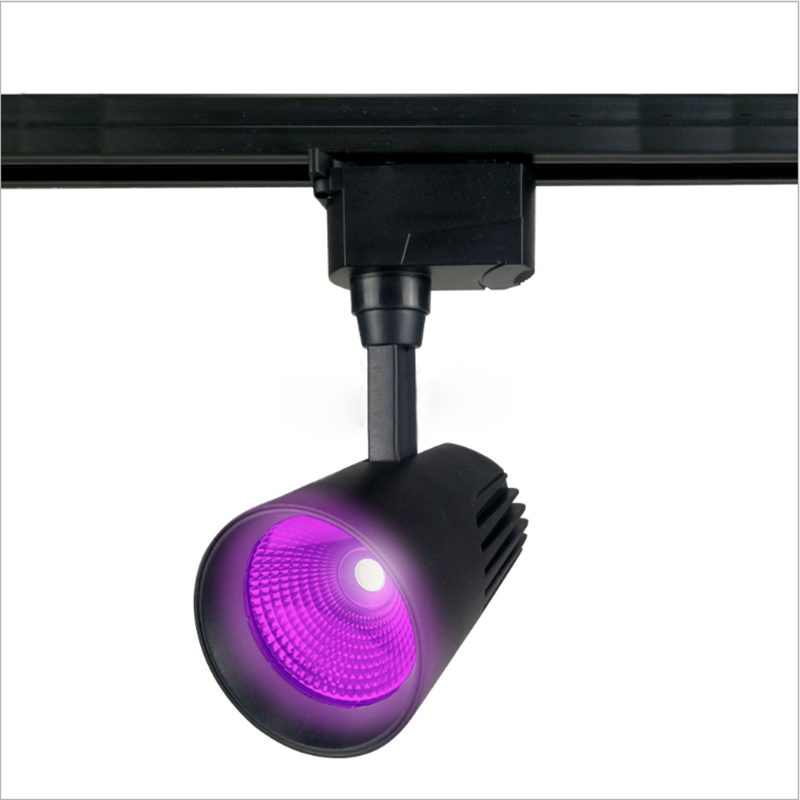

AC85-265V 12W/15W/20W UVA 395nm UV LED Track Light

Model: TACKLIGHT-UV Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $28.98
Qty Discounts Off Price
1-19
$28.98
20-49
$27.53
50-99
$26.08
100+
$23.76
* Discounts may vary based on options below
Select Specifications:
Note:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The TACKLIGHT-UV is a line-voltage directional 395nm uv light fixture engineered for 2-wire commercial and residential lighting track rails. Emitting a concentrated 24-degree beam at the UVA 395-400nm peak, this fixture generates powerful fluorescence across reactive dyes, neon paints, minerals, and security markers without the excess heat or short service life of mercury vapor lamps. Operating directly on AC85-265V (compatible with 90-265V AC systems), each fixture incorporates a solid aluminum body for effective passive heat dissipation. Whether deployed in art galleries, fluorescent display exhibits, indoor bouldering gyms, escape rooms, or themed entertainment venues, this uv led black light spotlight provides adjustable target illumination.

Key Product Features

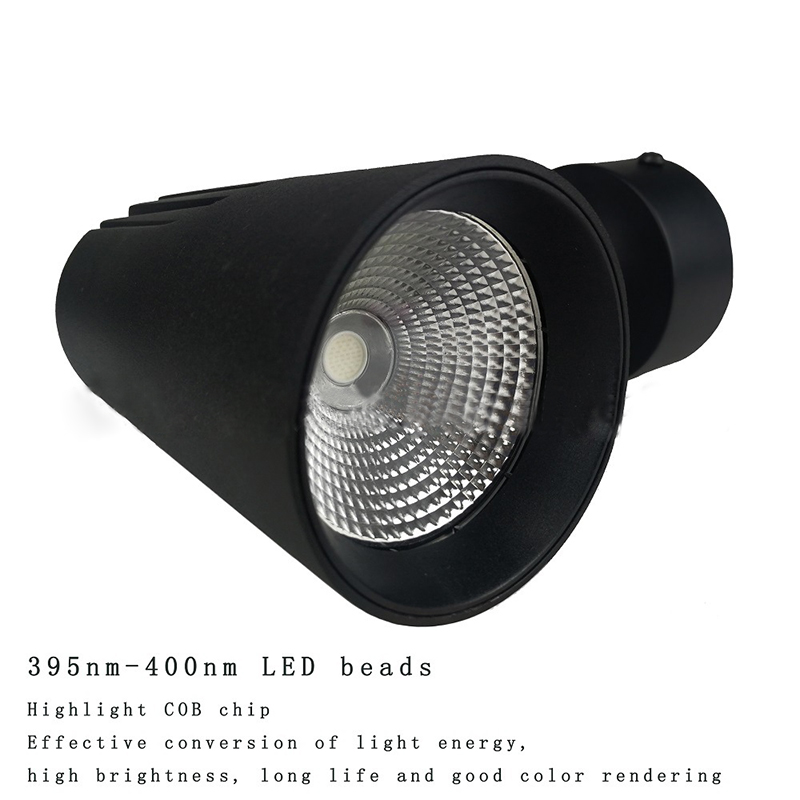

True 395nm UVA Output

Emits targeted 395-400nm ultraviolet radiation to trigger strong fluorescence in reactive pigments, posters, body paints, and glow materials.

Direct Wide-Voltage Driver

Integrated internal driver operates on AC85-265V 50/60Hz, tolerating grid voltage fluctuations without requiring external transformers.

Precision 24-Degree Optical Lens

Delivers focused directional blacklight projection to accentuate artwork, displays, or aquarium features from ceiling track height.

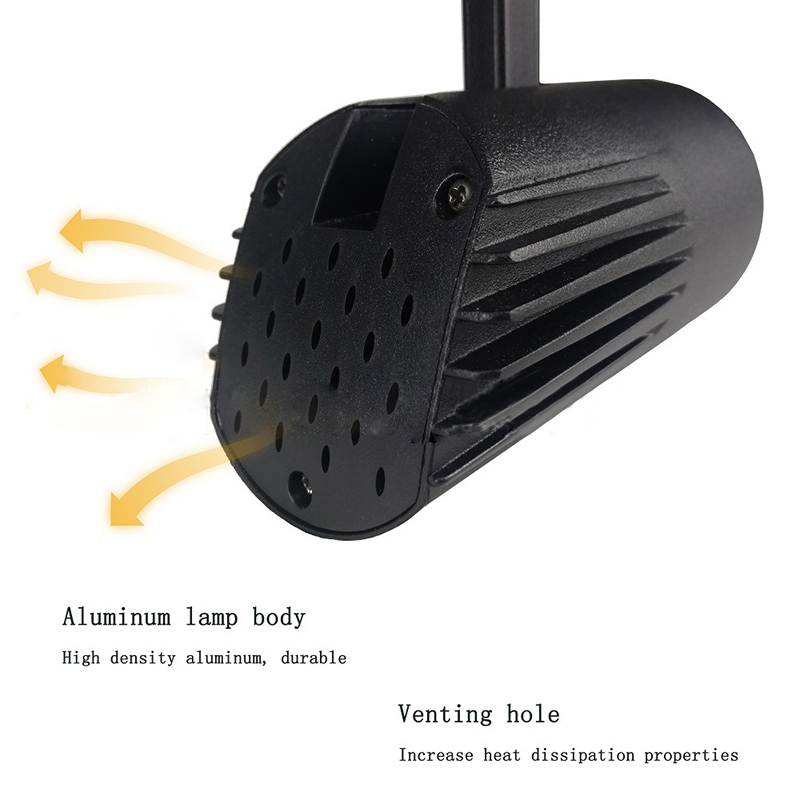

Die-Cast Aluminum Heat Dissipation

Machined aluminum housing channels heat away from the ultraviolet emitter core to maintain stable radiant output over extended run times.

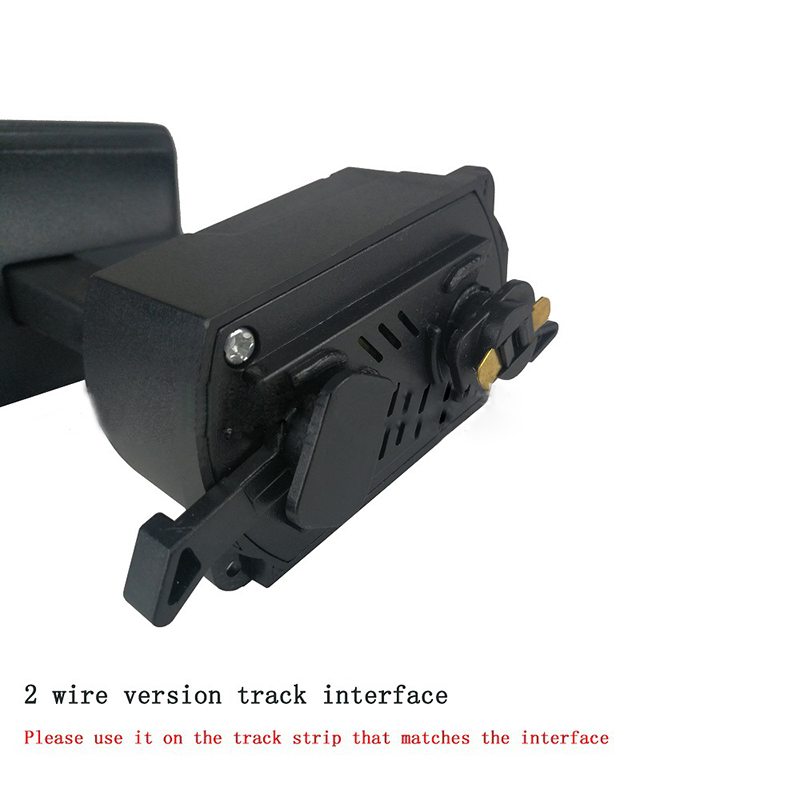

2-Wire Track Rail Compatibility

Equipped with a standard 2-wire single-circuit track adapter that locks securely into commercial and residential track sections.

Adjustable Aiming Bracket

Swivel bracket and rotating base enable quick directional aiming across vertical walls, display plinths, and suspended installations.

Technical Highlights & Engineering Details

  • Narrow 24° optical distribution ensures long-throw ultraviolet irradiance with minimal ambient spill light.
  • UVA 395nm to 400nm peak delivers an optimal balance between vivid fluorescent excitation and mild visible violet glow.
  • Unlike a diffuse LED UV flood light or wide-angle LED strip UV light, this track unit provides concentrated directional spotlighting.
  • Heavy-gauge aluminum barrel construction serves as an integral heatsink, keeping internal junction temperatures within safe limits.
  • Wide-input AC power electronics prevent flickering and protect internal LED chips from line voltage surges.
UV Glue Curing LED Spotlight

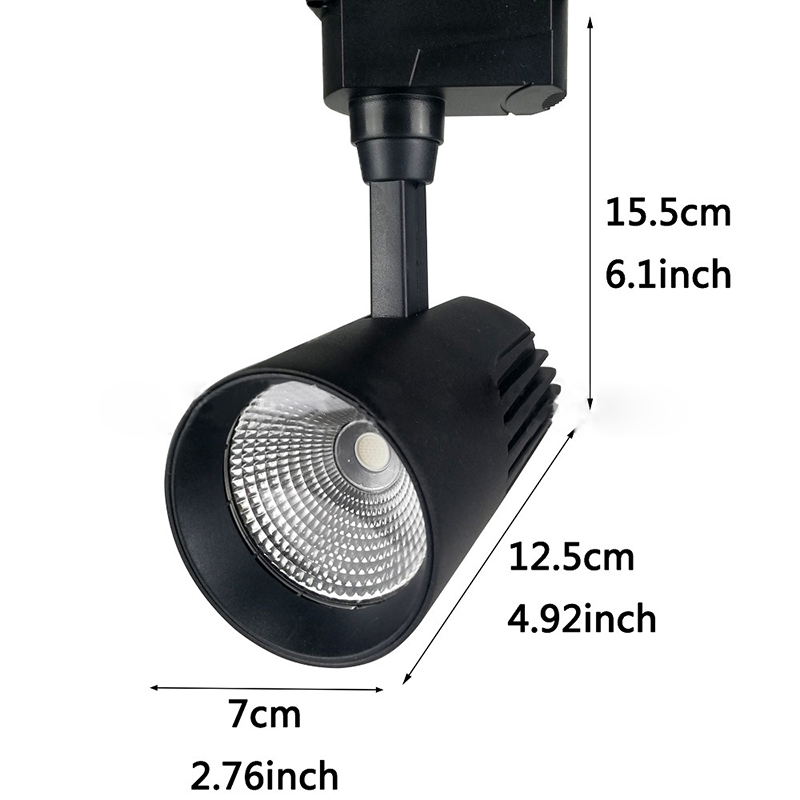

TACKLIGHT-UV blacklight track fixture dimensions and aluminum housing profile
UV Glue Curing LED Spotlight - photo 4
24-degree optical beam projection and 2-wire track mounting adapter

Product Specifications

ParameterDetails
Product ModelTACKLIGHT-UV
Product ID3541
Input VoltageAC 85-265V (90-265V AC nominal), 50/60Hz
Ultraviolet Wavelength395-400nm (UVA band)
Selectable Power Options12W, 18W (7W available on custom request)
Beam Angle24°
Fixture MaterialDie-Cast Aluminum
Body ColorBlack
Track Type2-Wire, 1-Circuit (Orbit style)
Dimensions (7W)Diameter 70 mm × Height 125 mm
Dimensions (12W)Diameter 100 mm × Height 185 mm
Dimensions (18W)Diameter 115 mm × Height 185 mm

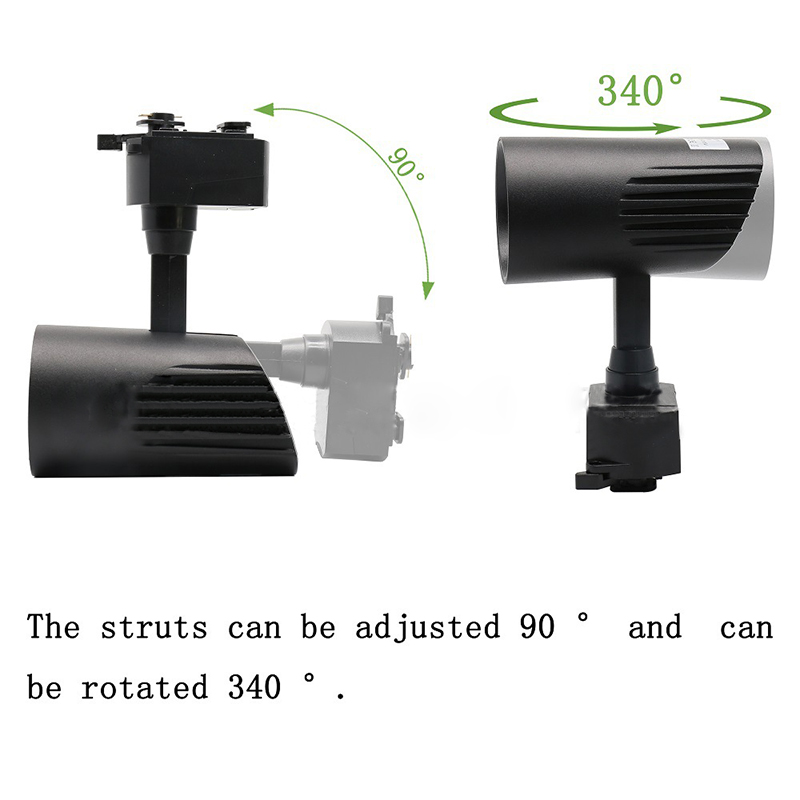

Adjustment Angle350° horizontal rotation, 90° vertical tilt
DimmabilityNon-dimmable
Operating Temperature-20℃ to +45℃
Ingress RatingIP20 (Indoor dry locations only)
Manufacturing Lead Time7-8 Workdays to Customize

Application Scenarios

Art Gallery and Museum Fluorescent Displays Highlight UV-reactive art paintings, fluorescent mineral exhibits, and historical ink markings using focused 24° blacklight beams without flooding adjacent dark galleries.
Indoor Glow Sports and Gymnasium Facilities Provide consistent blacklight illumination over climbing walls, trampoline courts, and indoor bowling lanes to energize fluorescent tape markers and active wear.
Themed Entertainment, Escape Rooms, and Halloween Mazes Cast mysterious ultraviolet light across hidden props, secret clue symbols, and spooky murals to create immersive dark-room special effects.
Aquarium Coral Fluorescent Accentuation Mount along ceiling track rails above open-top marine aquariums to induce vivid coral protein fluorescence during evening visual viewing cycles.
Specialty Curing and Industrial Inspection Position directional 395nm UV light over assembly workstations for targeted UV adhesive curing, dye penetration inspection, and conformal coating validation.

How to Install & Use This Light

  1. Confirm track rail compatibility: Verify your ceiling track is a standard 2-wire single-circuit track system operating on AC85-265V line voltage.
  2. Disconnect main power: Switch off circuit power at the electrical service panel before touching track rails or inserting fixtures.
  3. Align track adapter: Turn the locking lever on the fixture base to the unlocked position and align the copper contact pins with the track rail channel.
  4. Insert and secure: Insert the track adapter into the rail groove and rotate the locking lever 90 degrees until it clicks firmly into position.
  5. Aim the beam: Loosen the fixture tilt knuckle slightly, aim the 24° lens at the designated target surface, and tighten the thumb screw.
  6. Restore power and test: Switch the line voltage circuit back on and verify immediate 395nm ultraviolet illumination on fluorescent targets.
⚠ Precautions
  • Voltage verification: Ensure track rail voltage is within AC85-265V 50/60Hz. Do not connect to low-voltage 12V or 24V track systems.
  • Track compatibility: Built specifically for 2-wire orbit track systems. Do not force into 3-wire or 4-wire tracks without a compatible mechanical adapter.
  • Dimmer caution: This unit uses a non-dimmable internal driver; do not connect to wall-mounted phase-cut or TRIAC dimmer switches.
  • Enclosed rating: Install only in open or ventilated track environments. Do not install in fully enclosed canisters or sealed display cases where heat cannot dissipate.
  • Eye and skin safety: UVA radiation at 395nm is concentrated; avoid staring directly into the optical beam during close-range operation.

What's in the Box

  • ✓1 × TACKLIGHT-UV Ultraviolet LED Track Light Fixture (12W or 18W according to selection)
  • ✓1 × Integrated 2-Wire Track Rail Adapter Base
  • ✓Optional Track Rails (Selectable at checkout): 1.64ft (0.5m) or 3.28ft (1m) 2-wire track rail section
  • ✓1 × Quick Installation and Aiming Guide

Frequently Asked Questions

Q: What is the difference between 365nm and 395nm UV light?

A:A 365nm emitter produces very little visible light and excites deep fluorescence, whereas a 395nm UV light produces a visible purple cast along with intense excitation for glow-in-the-dark paints, fluorescent posters, and party materials.

Q: Does this track light include the track rail?

A:The base fixture includes the track head and integrated 2-wire adapter. Track rails are available as optional bundle add-ons in 1.64ft (0.5m) and 3.28ft (1m) lengths, or you can mount it directly to your existing 2-wire track.

Q: Can I dim this UV LED track light with a standard wall dimmer?

A:No. The built-in AC85-265V wide-voltage driver is non-dimmable. Connecting it to a TRIAC or phase-cut dimmer may cause driver buzzing, flashing, or premature component failure.

Q: Why is the lead time listed as 7-8 workdays?

A:Each UV track fixture is customized and tested to order to ensure wavelength calibration at 395-400nm and verified driver stability before packaging. Transit time begins after dispatch.

Q: How wide is the light spread at a 3-meter distance?

A:With its 24° optical beam, the spotlight projects a beam circle approximately 1.28 meters in diameter at a distance of 3 meters, delivering high irradiance onto the target.

Q: Can this fixture replace a screw-in blacklight bulb?

A:Yes. While a screw-in led uv light bulb disperses light in all directions, this track spotlight focuses the entire output into a directional beam, delivering higher UV energy onto specific display walls.

Q: What track rail type does this fixture require?

A:It is equipped with a standard 2-wire, 1-circuit track adapter head. Ensure your ceiling rail uses a compatible 2-wire orbit profile.
