Bluetooth Smart Wireless Switch PS-BLE01

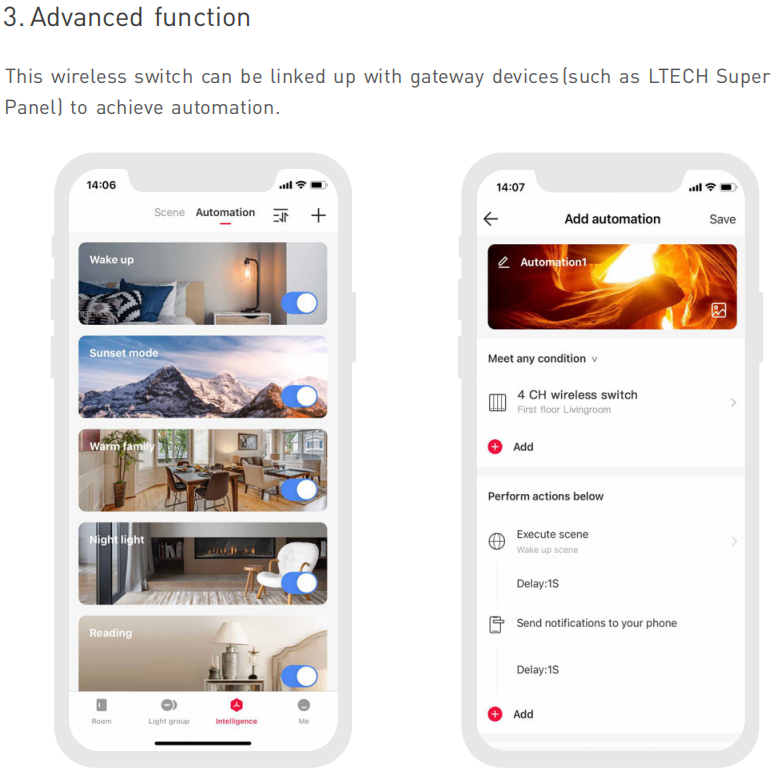

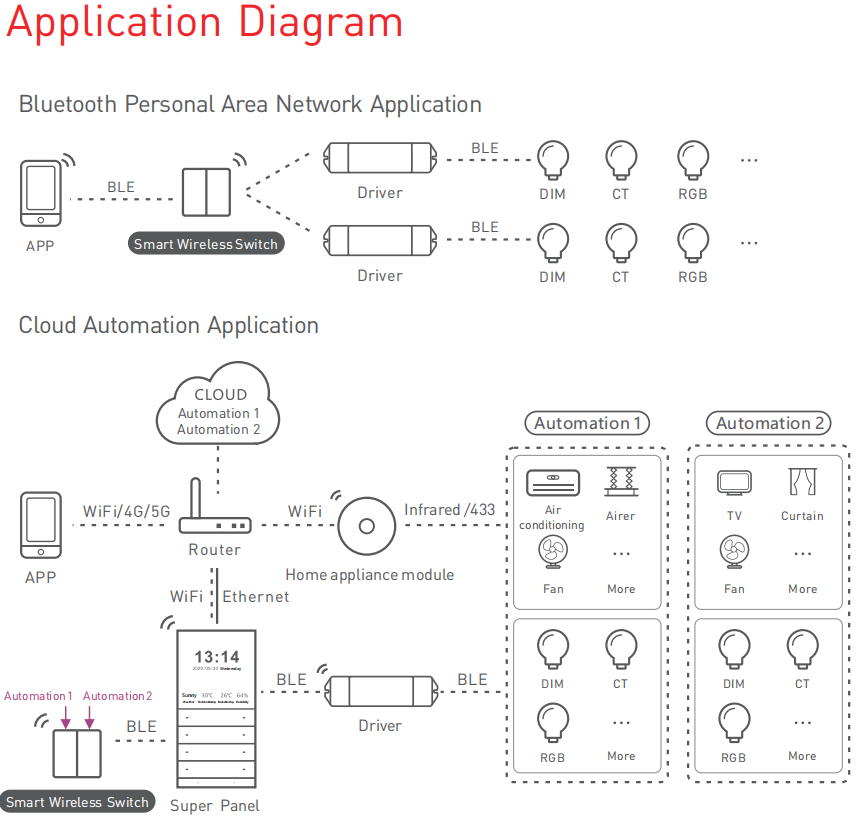

Xiaolei Bluetooth smart wireless switch is a key type switch that adopts Bluetooth 5.0 SIG Mesh technology. Powered by batteries, it’s easy to install a wireless switch in the junction box or place it anywhere as needed, such as pasting on the wall, counter or table. It can work with a Bluetooth wireless driver to adjust the dim level or color temperature. Also, it works with gateway devices to achieve automatic control modes. Programmable settings m ake the life smarter and easier.
Product Name: Bluetooth Smart Wireless Switch
Wireless Protocol Type: Bluetooth 5.0 SIG Mesh
Working Voltage: 3Vdc (Button battery CR2032)
Working Temperature: -20 C~55 C
Package Size (L×W×H)：90×90×24(mm)
