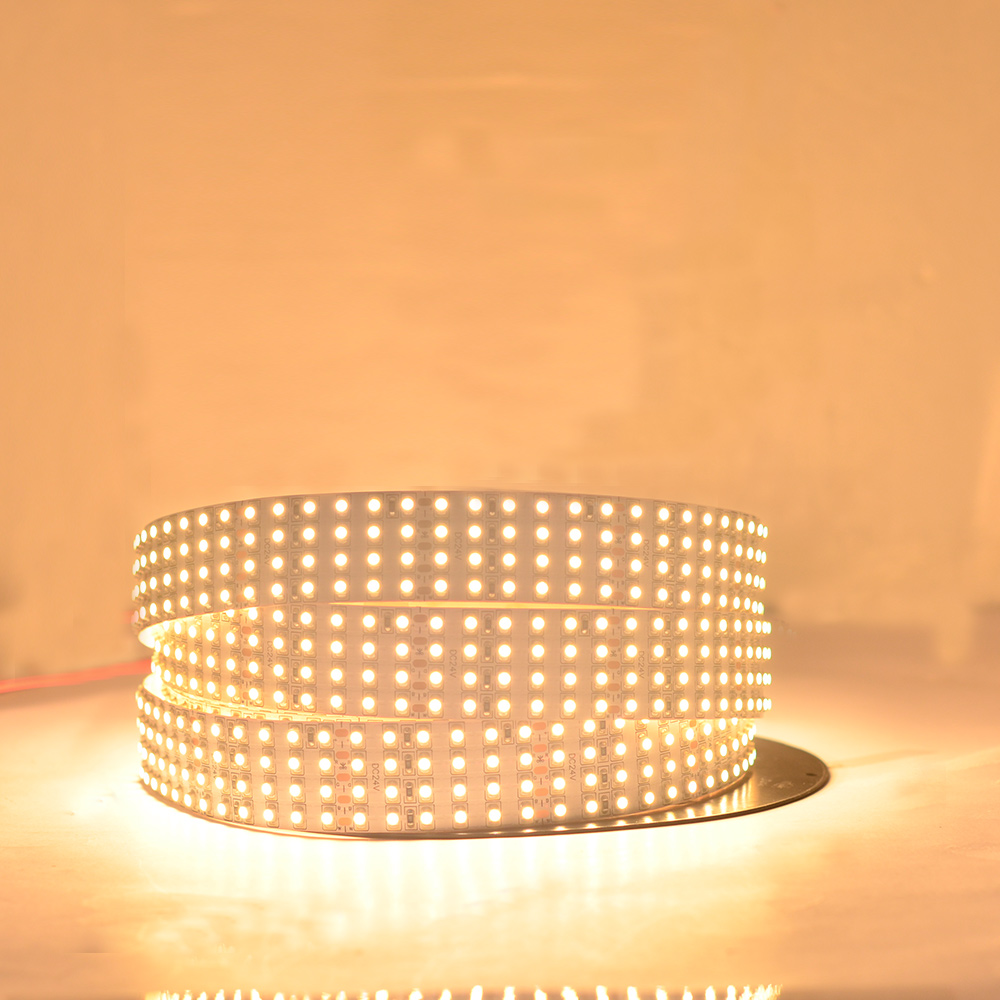

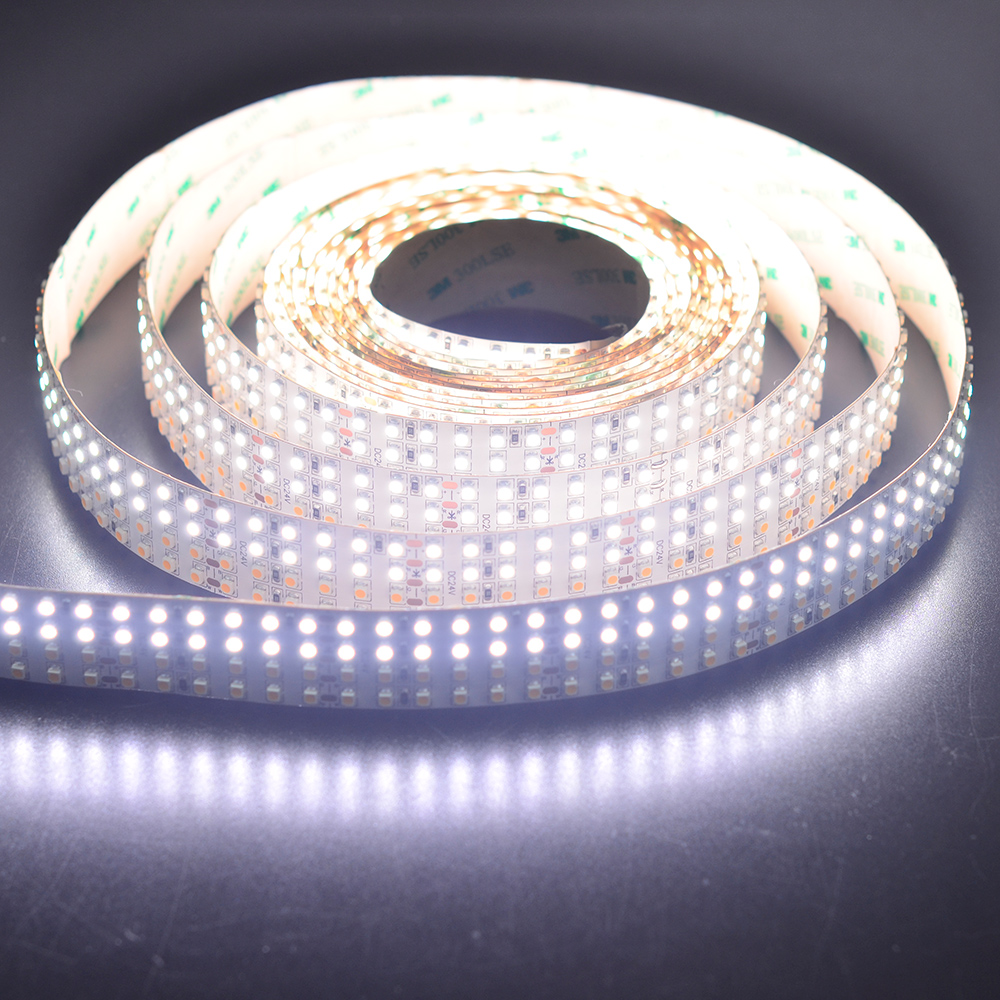

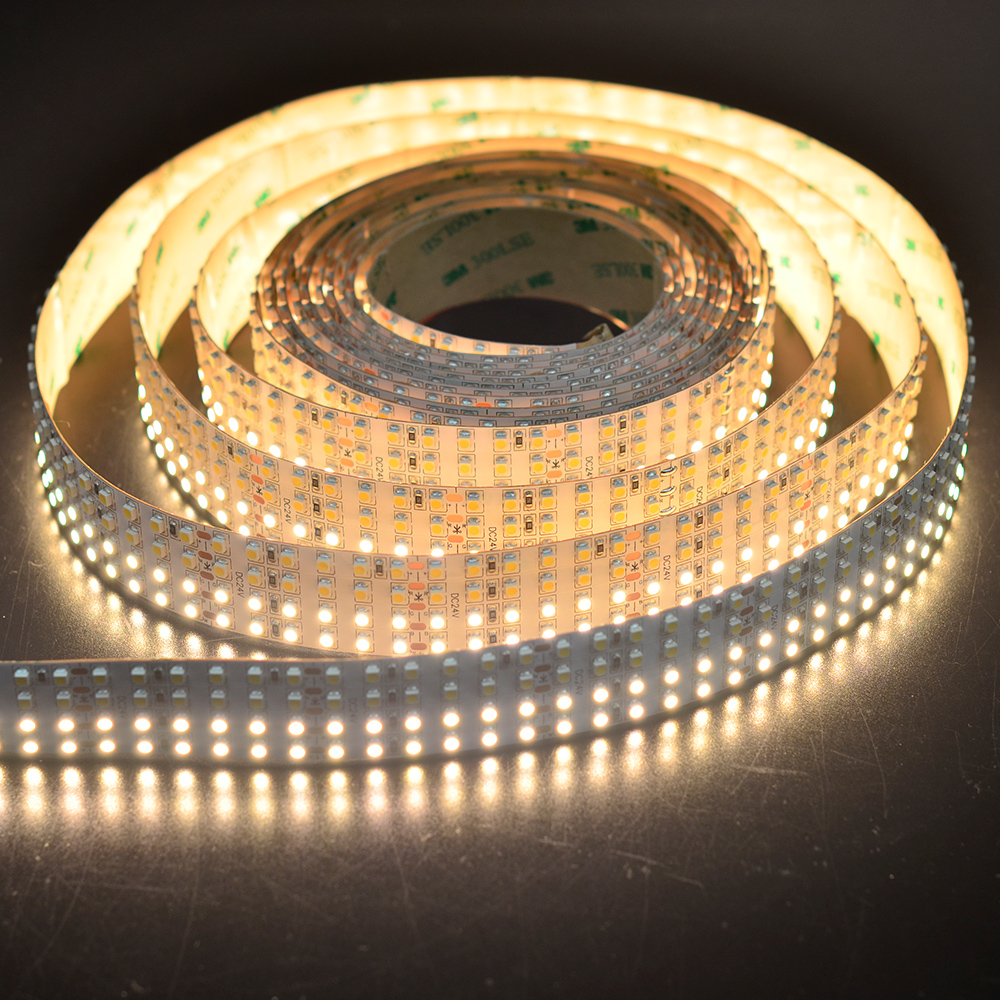

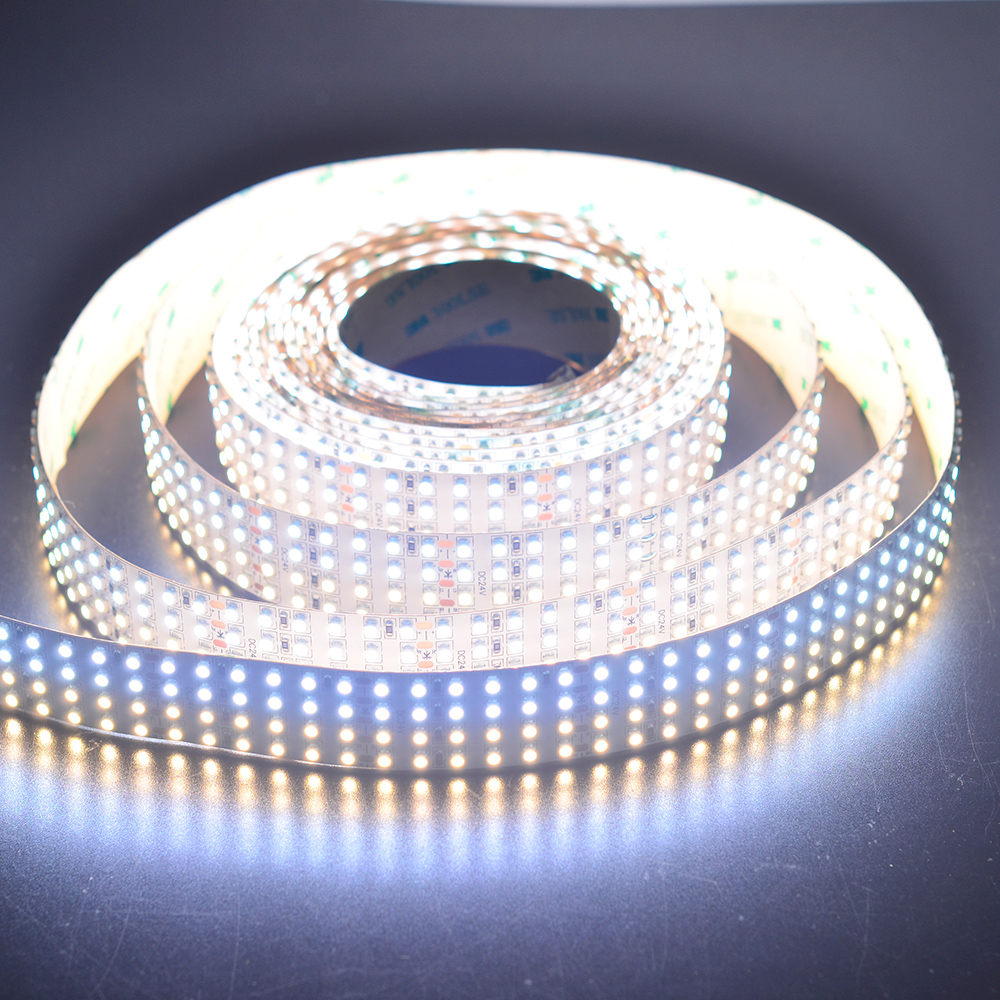

CCT White Light Adjustable 3528 Quad Row LED Strip 24V 3.28~16.4ft
What is CCT tunable white LED strip?
CCT means correlated color temperature. Usually, the warm white light and cool white LED light are specifically expressed by Kelvin color temperature. The white light color temperature of CCT tunable white LED strip can be adjusted with white CCT dimmers from 3000K to 6500K(warm white/soft white to natural white to daylight white to cool white).
What is 3528 SMD LED?
3528 SMD(surface mounted device, an LED technology) LED is referred to its size 3.5mm*2.8mm. The 3528 LED chip name is named after the LED size.
What are 24V LED strip lights?
24V led strip lights work under DC24V low voltage, have no voltage drop in 8-10 meters, and can cut 6 LED lights at a time. A 15-meter 24V led strip requires an led power supply at both ends, and a 10-meter strip can be powered at one end.
►This High CRI 95 flexible tunable white LED light strip is great for retail shops, jewelry cases, supermarkets, food and meat cases, museums, galleries, videography, under-cabinet lighting, or for home indoor applications where space is limited. Waterproof optional(IP20 vs IP65 vs IP67 vs IP68).
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
►Using 2,400 LEDs (1200 Daylight white 6300K and 1200 warm white 3000K), the light strip emits up to 876 lumens of powerful illumination per foot. Color temperature can be adjusted from 3000K to 6500K with a tunable white controller (sold separately).

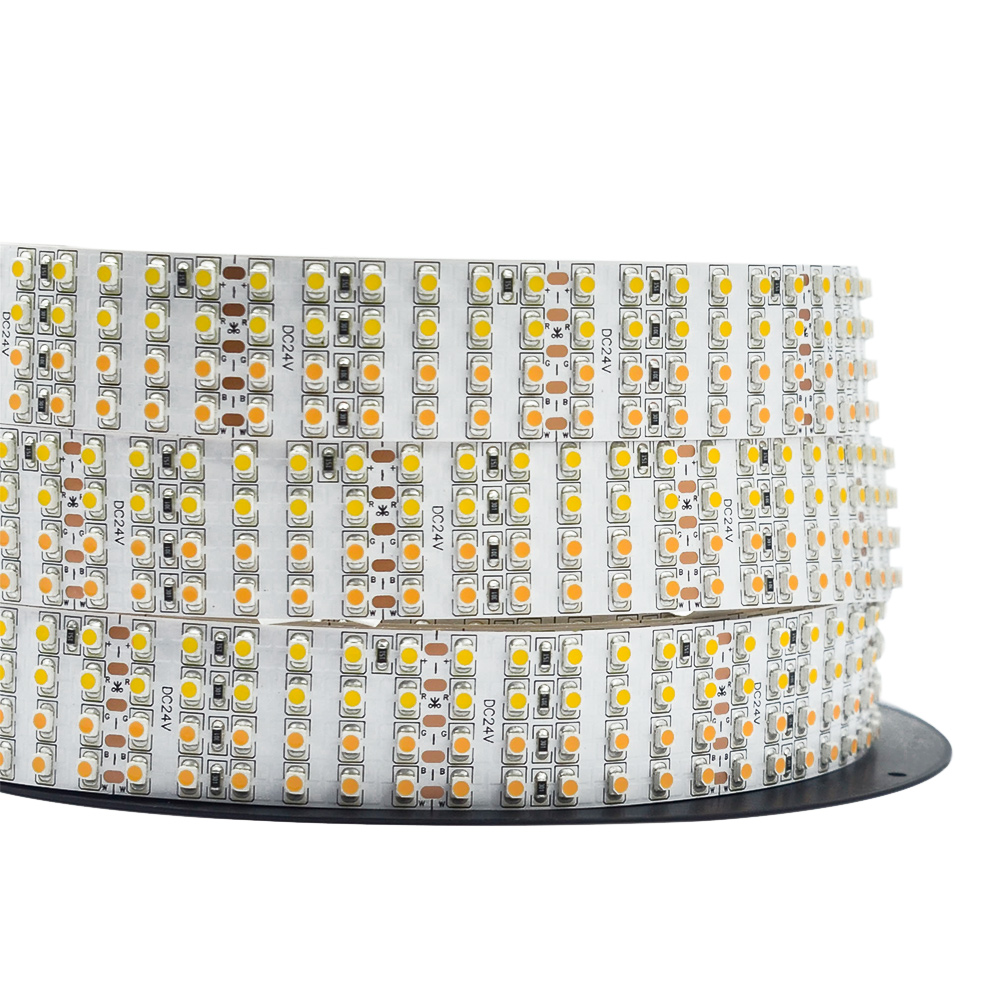

►The PCB width of this led strip light is 12mm. The 5m (16.4') LED light strip is available with a white finish and can be easily cut into 24-LED segments and installed with its peel-and-stick adhesive backing. 24 VDC operation. The light strip must be used with a class DC24V 250W power supply.
►Choose a suitable LED power supply and an LED dimmer CCT controller:
Standards and Certifications
LED Strip Type: SMD 3528
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White
Dimension: 16.4ft/roll, every 24 PCS LED can be cut, 3.28 ~ 16.4ft optional.
LED Quantity: 2,400 LEDs per 5meter (16.4 ft) [1200 daylight white leds +1200 warm white leds]
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W2.8cm(1.1 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 8.1A 194W /16.4ft Max
Lamp Luminous Flux(lm): 5-6lm/LEDs 14366Lumens/16.4ft, 876Lumens/Ft, 74Lumens/watt
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(6000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
1. Use CCT white led strip lights:

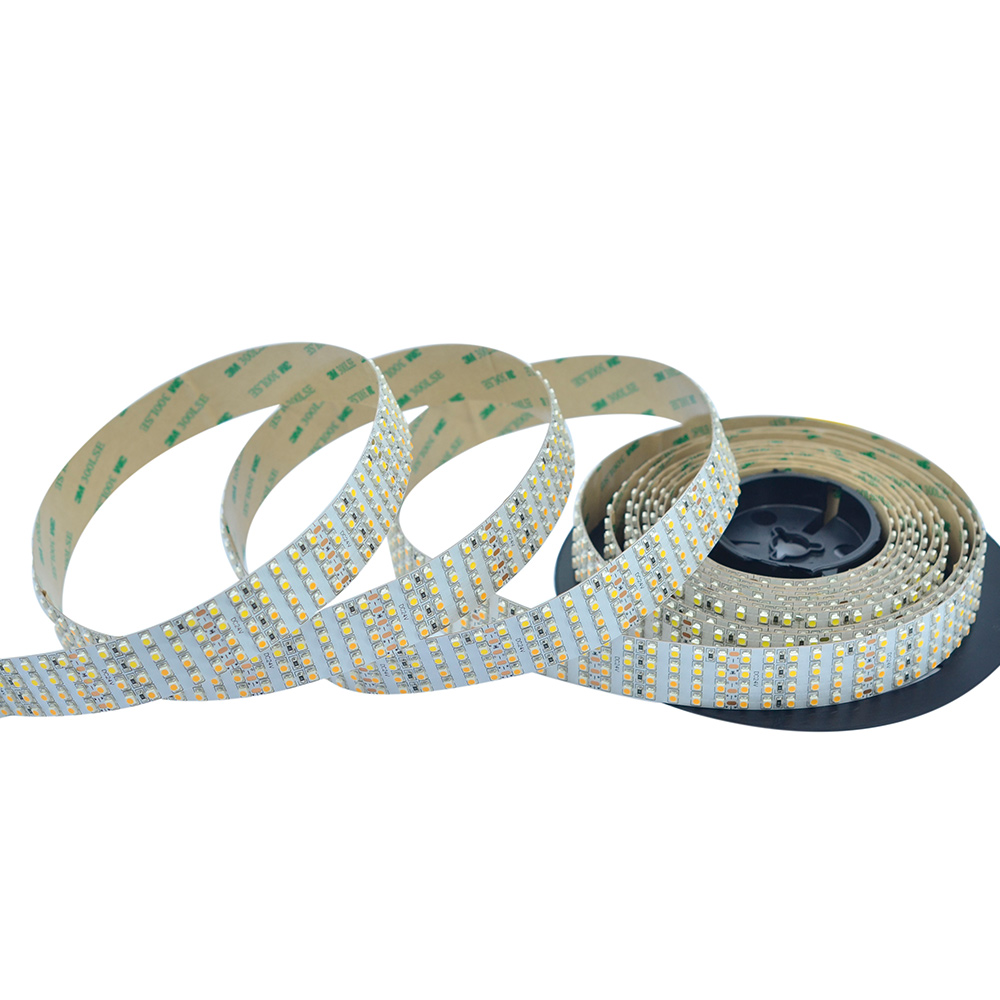

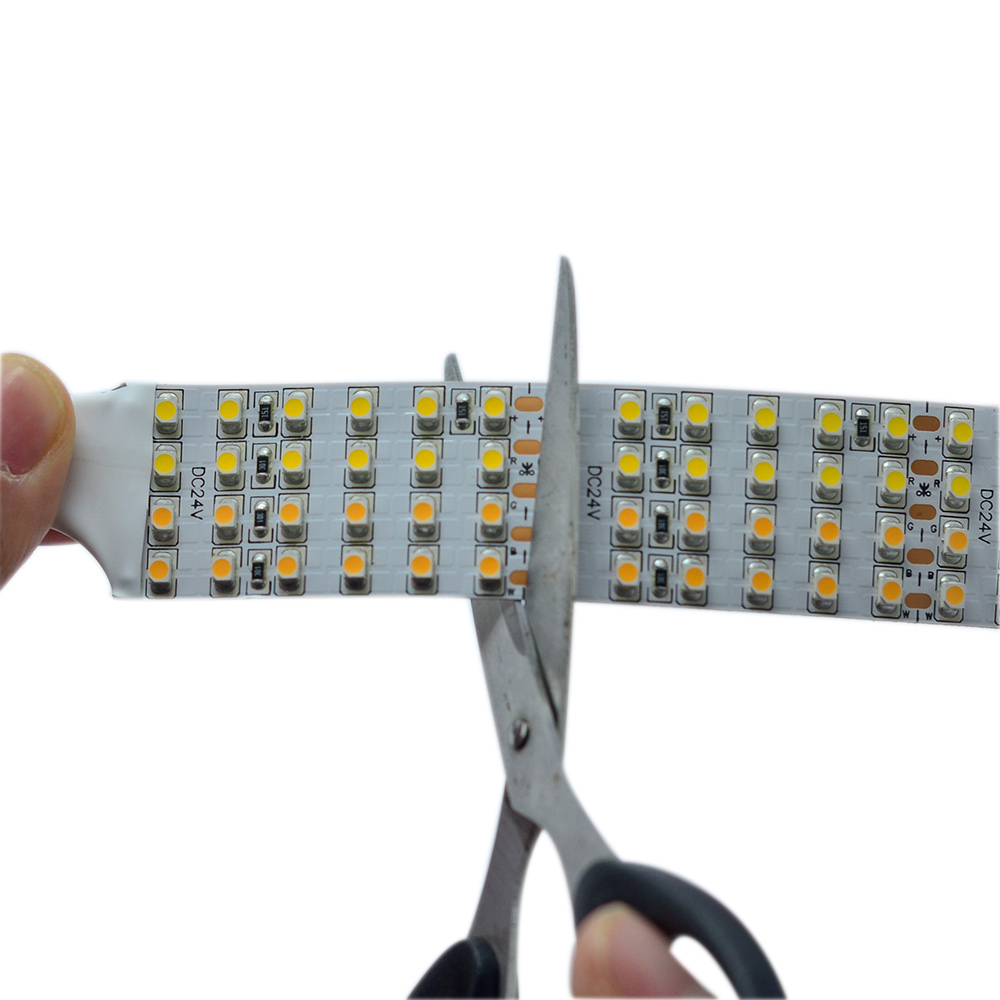

|You can cut the strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof type which will come with mounting brackets.|

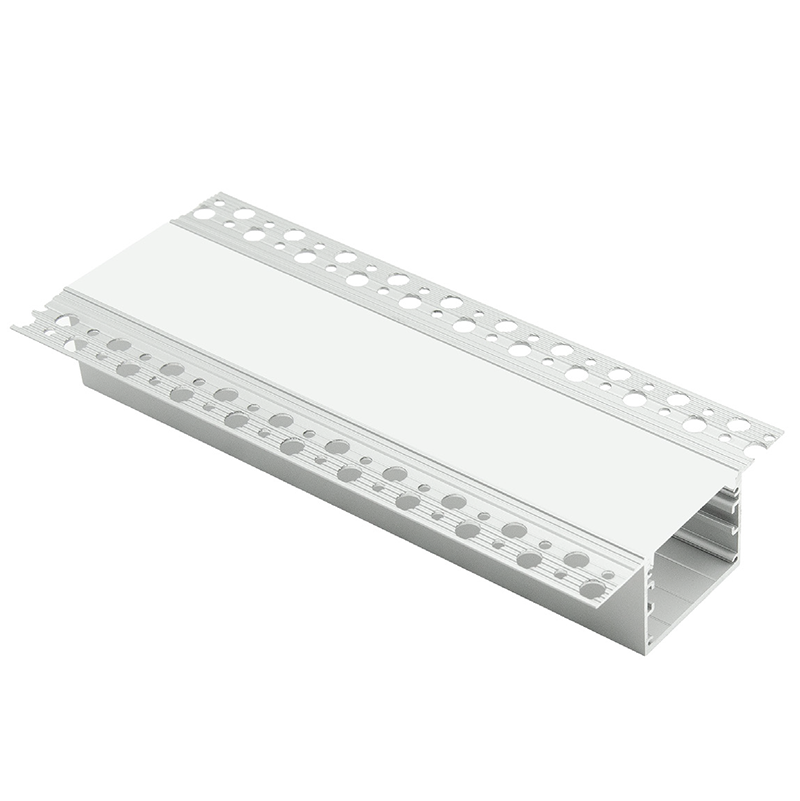

2. CCT white light led strip accessories: Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
3. CCT led strip wiring diagram:
