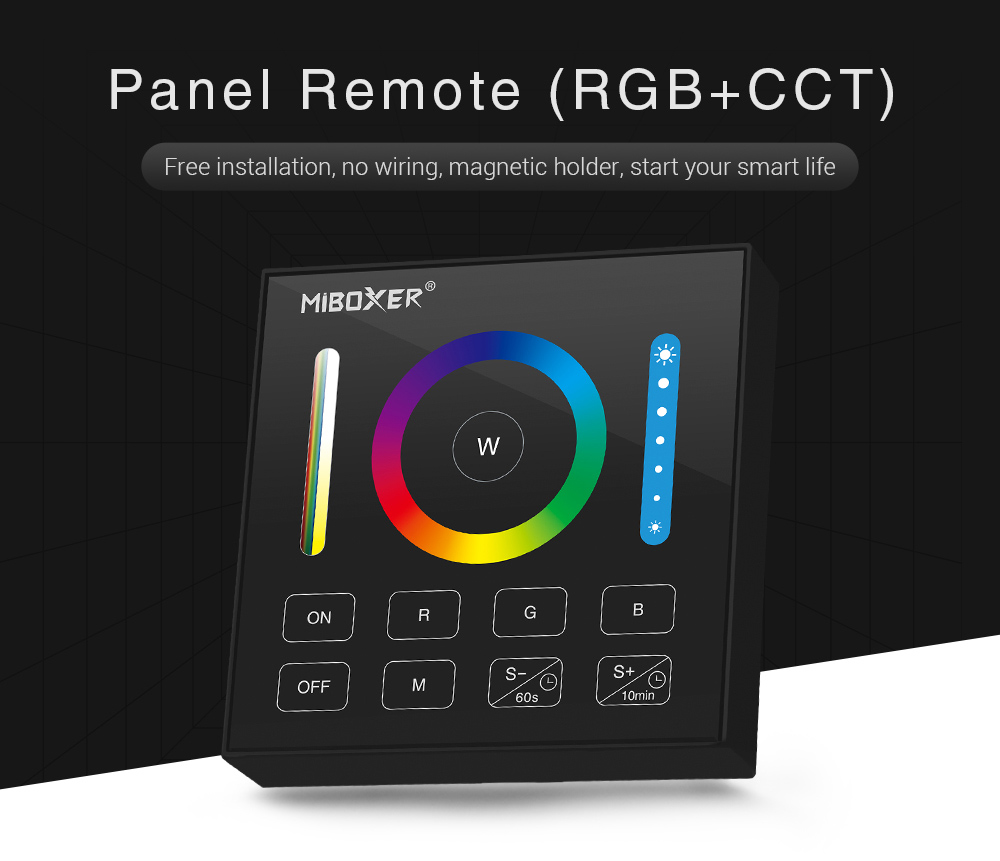

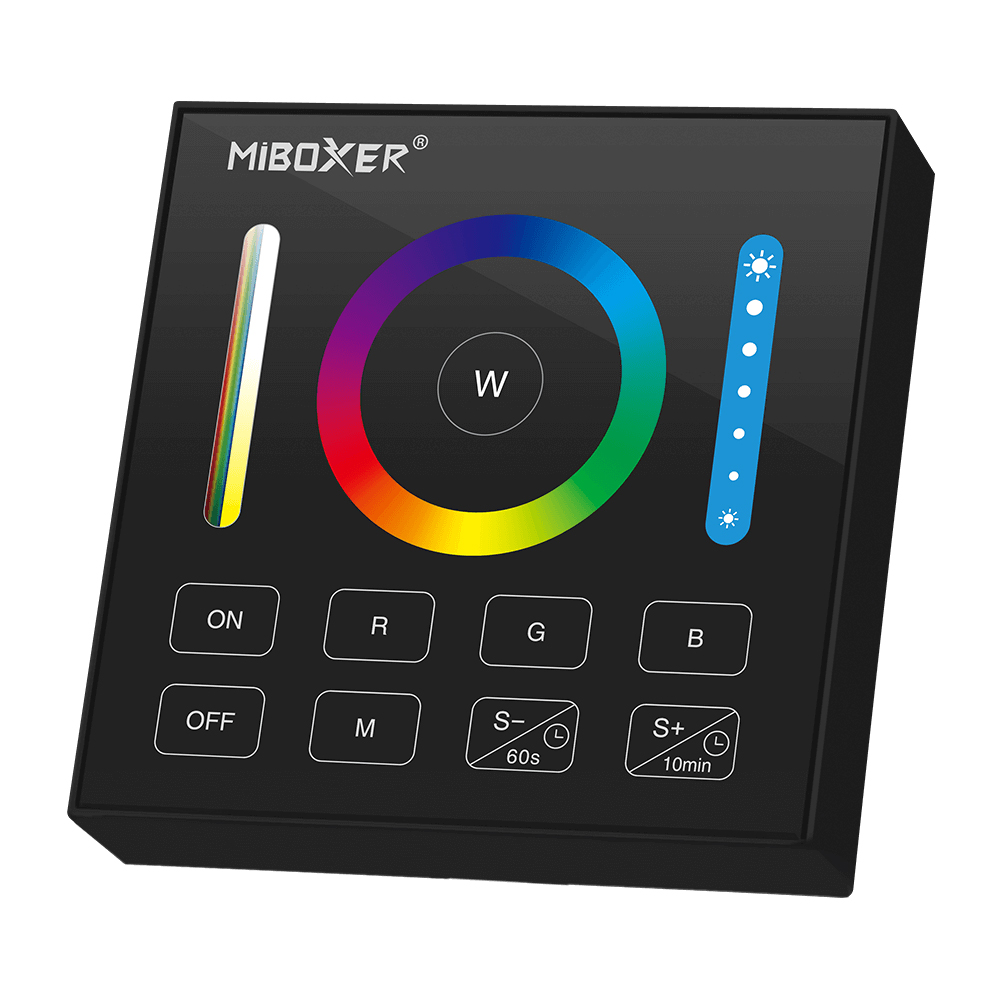

B0-B 2.4GHz RF Wireless Smart Black RGBCCT LED Wall Panel Controller
• Adopt a high precision capacitive touch IC
• 2.4GHz RF wireless transmission
• Can control the color, saturation, color temperature, brightness of 2.4G lamps
• Control Distance: 30m
Product Name: Panel Remote (RGB+CCT)
Model No.: B0-B
Voltage: 3V (2*AAA Battery)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power: 20uA
Control Distance: 30m
Working Temp.: -10~40℃
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
