Ceiling Black LED Channel Diffuser For 20mm Double Row LED Light Strips

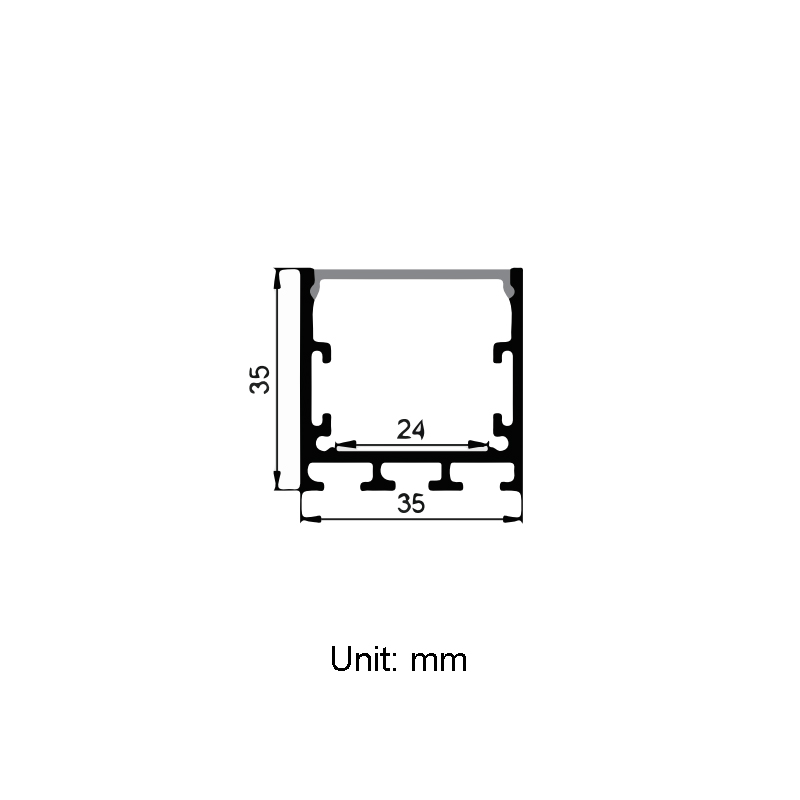

This suspended led channel diffuser is made of 6063-T5 high-quality aluminum alloy with surface silver anodizing treatment, use together with the led light strip can act as a linear led pendant light, 24mm/0.94in inner width suitable for dc24v double row led strip lights. LED strip with diffuser with better heat dissipation and various led light effects, PC opal micro prism, PC clear micro prism, PC semi-clear diffuser, and balck PC diffuser, different led light distribution effects. 1m and 2m channel aluminum profiles are available. White and black aluminum profiles bring a variety of options for your residential and commercial LED linear lighting project. With end caps and suspension steel cables, the ceiling led channel can be used in homes, offices, supermarkets, malls, retails, kitchens, cabinets, etc. Stick the led light strip in the channel is quite easy, you can through the end cap with a hole to power or control the led strip lighting.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|

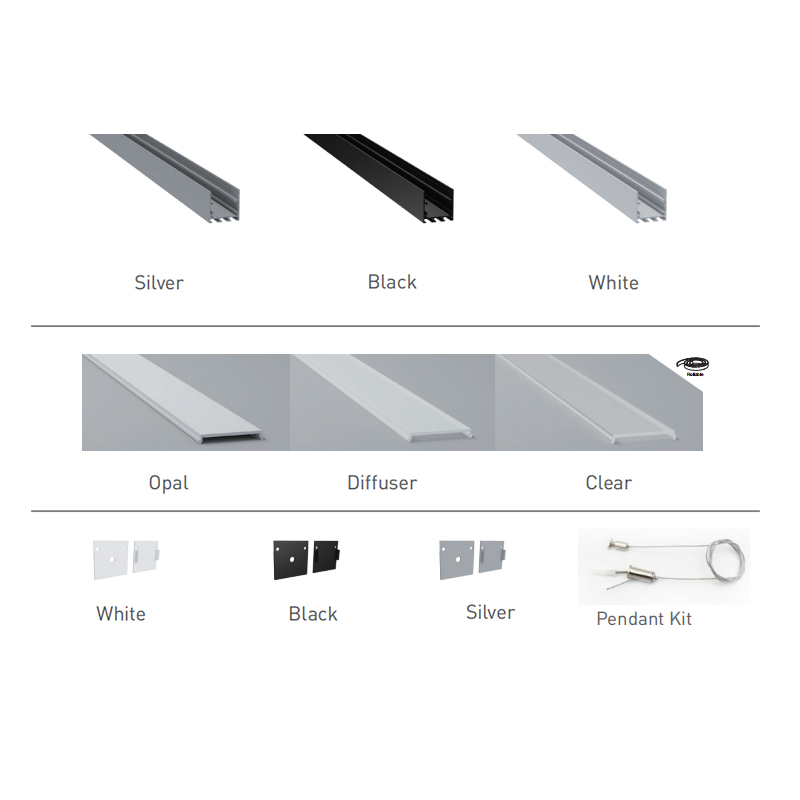

|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC clear microprism diffuser /PC semi-clear diffuser /Black PC diffuser|
|Accessory||End cap without hole, end cap with wire hole, suspension steel cables|
|Apply to||15mm/20mm 3528/2835/5050/CCT double-row flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
