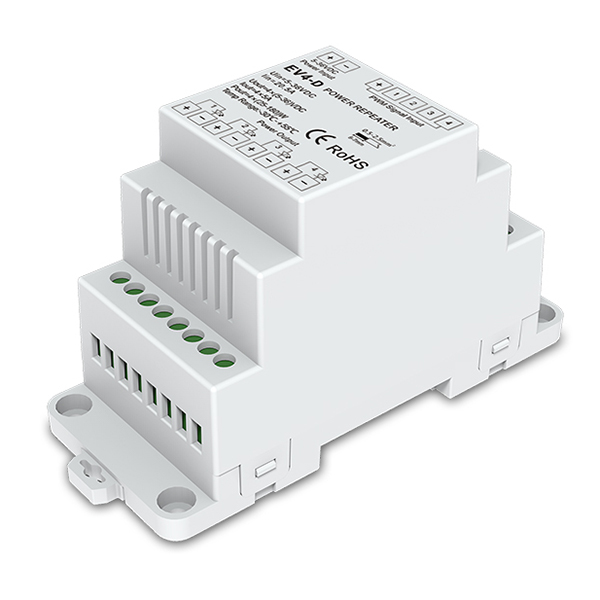

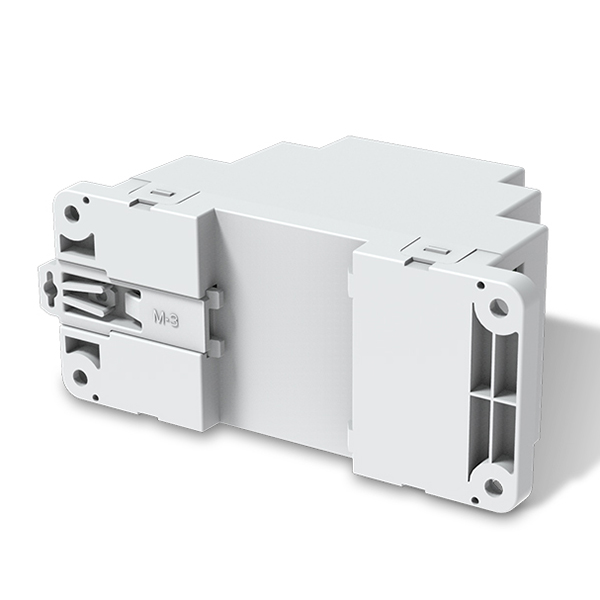

DC5-36V 4CH Din-rail Constant Voltage Power Repeater EV4-D For outdoor RGBW led light strip
Used with various LED PWM constant voltage controller, expand output power of the controller to control more lamps.

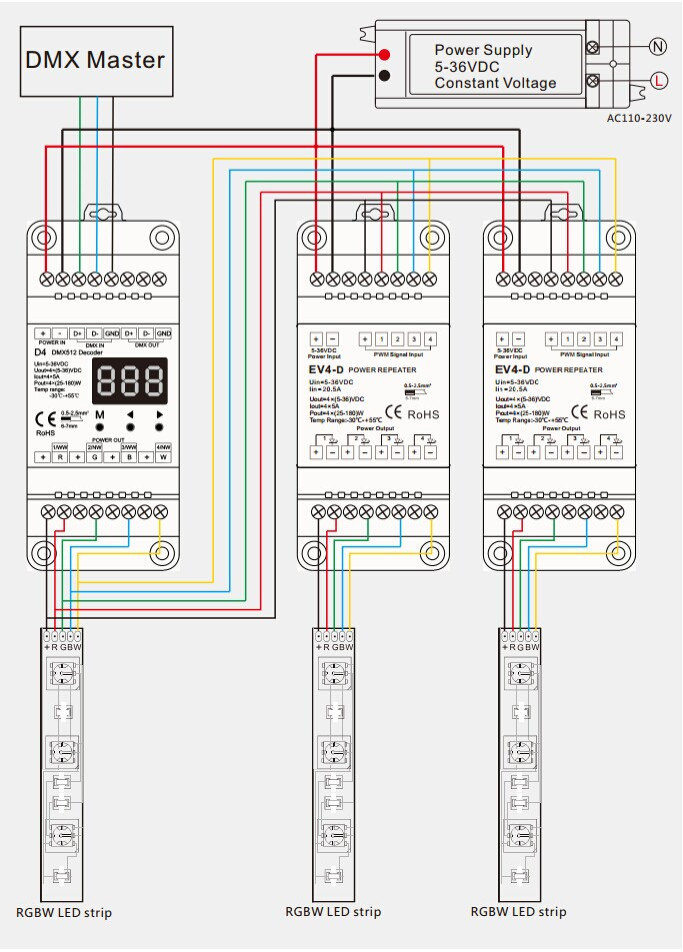

A controller can connect unlimited number of LED power repeaters in series or in parallel,and achieve the synchronous control effects.
Standards and Certifications
Input voltage: 5-36VDC
Load current: 4CH, 5A/CH
Output power: 4 x (24-180)W
Working temperature: -30℃~55℃
Product size: L115×W48×H67mm
Net weight: 114g
