DC12-36V 4CH Constant Voltage Power Repeater EV4 For RGBW LED Lamp
Used with various LED PWM constant voltage controller, expand output power of the controller to control more lamps.

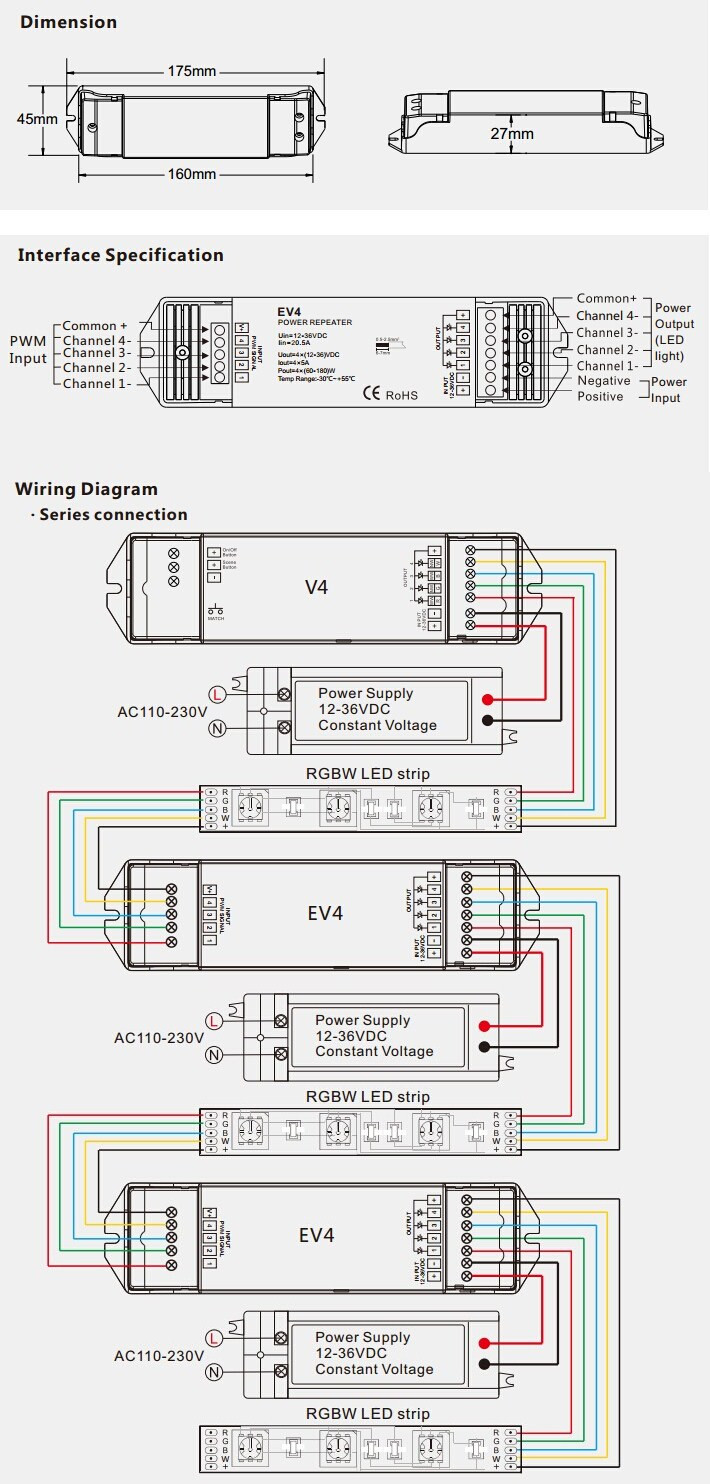

2.A controller can connect unlimited number of LED power repeaters in series or in parallel, and achieve the synchronous control effects.
Standards and Certifications
Input voltage: 12-36VDC
Load current: 4CH, 5A/CH
Output power: 4 x (60-180)W
Working temperature: -30℃~55℃
Product size: L175×W45×H27mm
Net weight: 114g
