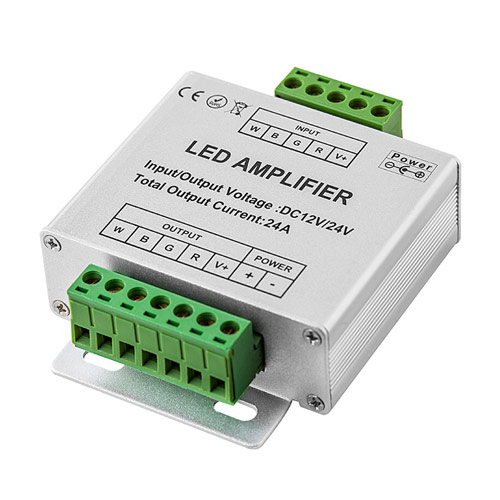

DC12/24V 6Ax4CH Max24A, PWM LED RGBW Data Signal Amplifier Aluminum shell For RGB+White SMD 3528 5050 LED Light Strip
This LED RGB 6A 4 Channel 24A series four channel RGB/RGBW amplifier. Maximum 6 Amps per channel/24 Amps total. Increases the load capability and extends the signal of universal RGB/RGBW controllers. Required if exceeding the maximum load capability of any universal RGB/RGBW controller. 12~24VDC operation.
Type: RGB/RGBW Amplifier
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 3 years
Craft materials: Aluminum case
Operating Temperature: -20~+60°C
Supply Voltage: DC 12~24V
Max load current: 6 Amps/channel (24 Amps total)
Output: 4 Channel
Static power consumption: 0.12 Watt
Output Power: 288Watts(12V)/576Watts(24V)
Function: Amplify RGB Signals using PWM
Product size: (L)84 Χ (W)64 Χ (H)24 mm
Net weight: 120g

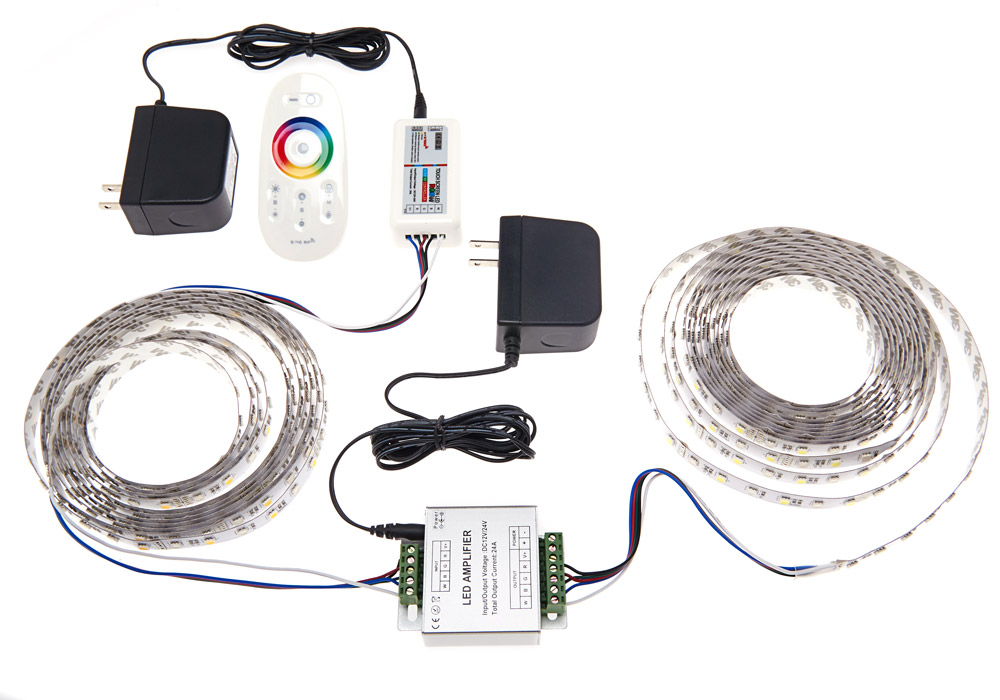

1). All places where RGB or white light strips need to be extended when connecting.
2). All places where the quantity of RGB + white lights need to be increased.
3). All places where the color effects need to be changed as a whole in small scale.
1). Supply voltage of this product is 12~24 Volts DC, do not exceed.
2). Shorting output wires my cause damage to amplifier.
3). Always observe proper polarity when connecting power and load.
4). For indoor use only – this product is not waterproof or weatherproof.
1 x LED RGB Amplifier
1 x User manua
